The Stack DVL Kits provide a dual solution to event recording and now allow data logging to be overlayed and synchronized to the recorded footage.
Stack DVLs are able to be connected to a Stack dash display, any data logging system and some third party ECU's* by CAN bus and can record up to 128 channels for optimum logging results. The unit features a 3 axis g-sensor, which, when linked to GPS module can optimise accurate speed readouts when on loose surfaces which may show inaccurate speed readouts if the wheels lose traction. The GPS module also allows a 'track map' to be created ensuring lap by lap comparison. The Stack Pro DVL can be used as standard video recorder without logger which provides a contingency should data logging become a requirement.

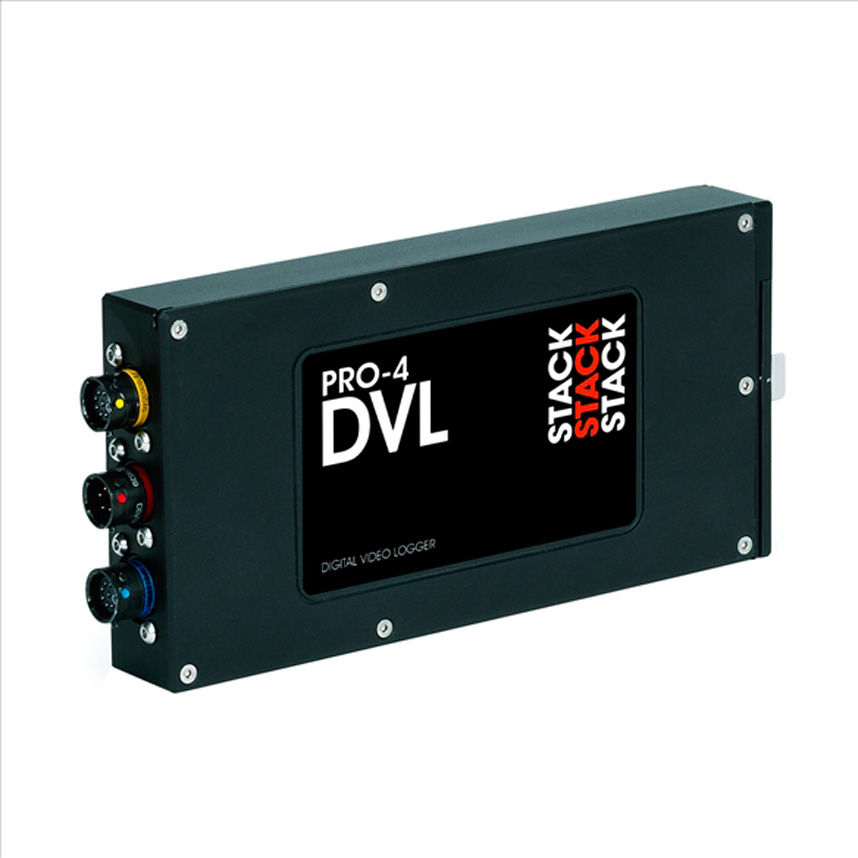

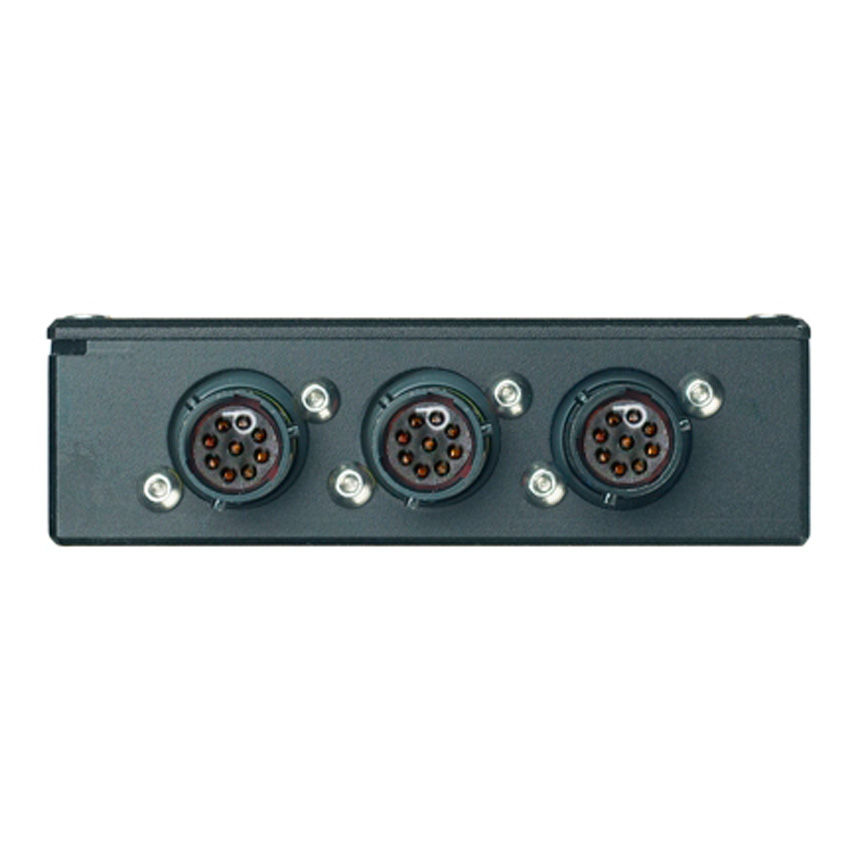

Intended for more demanding motorsport applications (wet or high vibration environments), the PRO-4 DVL case is fully waterproof equipped with high specification 'AS' connectors. The waterproof case provides a certain 'fit and forget' type installation with just the Compact Flash card fitting and removal required. The case also operates to a wide temperature tolerance (0-70 degrees C) providing robust suitability across the globe, whether competing in formula series, karting, powerboats, rallying and events in between.

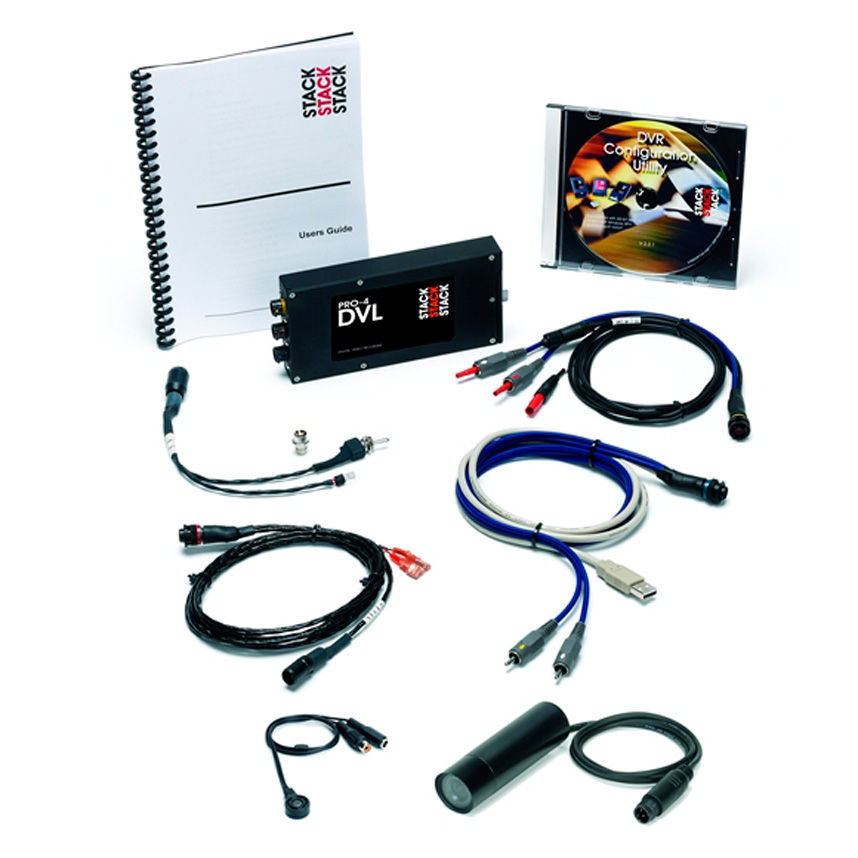

Standard single camera Pro kit includes:
- Single high quality camera
- Microphone
- Remote control trigger
- Wiring harness
- PC software and cable
- Instruction manual.
Please note, camera mounts, additional cameras and data storage cards are available separately.
*ECU interface is constantly updating, please contact our sales team for further information
