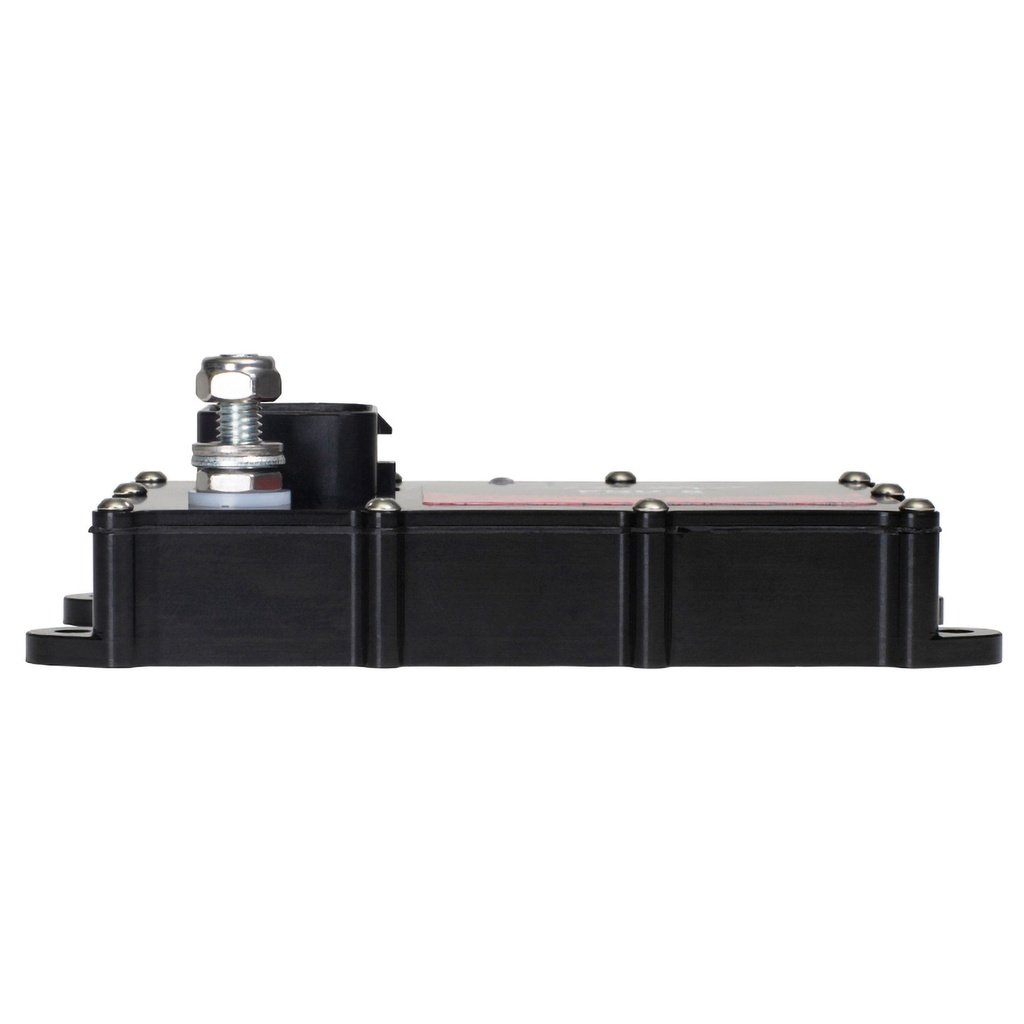

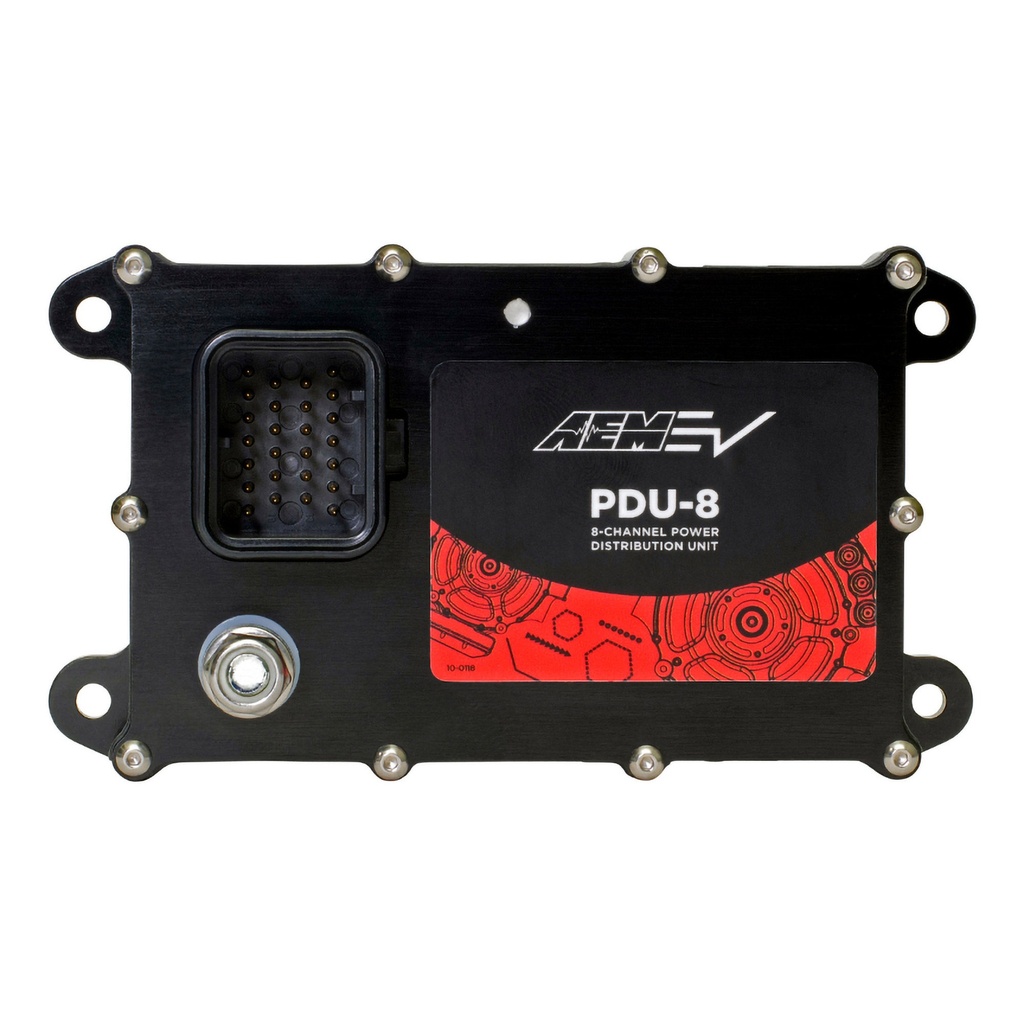

The AEM Electronics PDU-8 provides a cost effective solution for controlling switched devices on electric vehicles via CAN connection to an AEM VCU200 or VCU300. The PDU-8 power distribution unit has 8 channels but if more channels are required you can link up to 8 units together for a total of 64 available channels. Ideal for controlling devices such as cooling pumps, fans, lights, indicators, windscreen wipers etc.
- 4 x 20A and 4 x 10A high side 12v outputs for electrical circuit control
- Up to 8 units can be connected for up to 64 channels
- Compatible with AEM VCU200, VCU300 or other VCU's with CAN capability
- CAN commanded PDU, no logic programming required for PDU operation
- Easy to configure and troubleshoot
- Reports current draw and circuit faults to the VCU
A separately available 8 button keypad can be used in conjunction with the PDU-8 to allow for manual switching of circuits via CAN connection.
