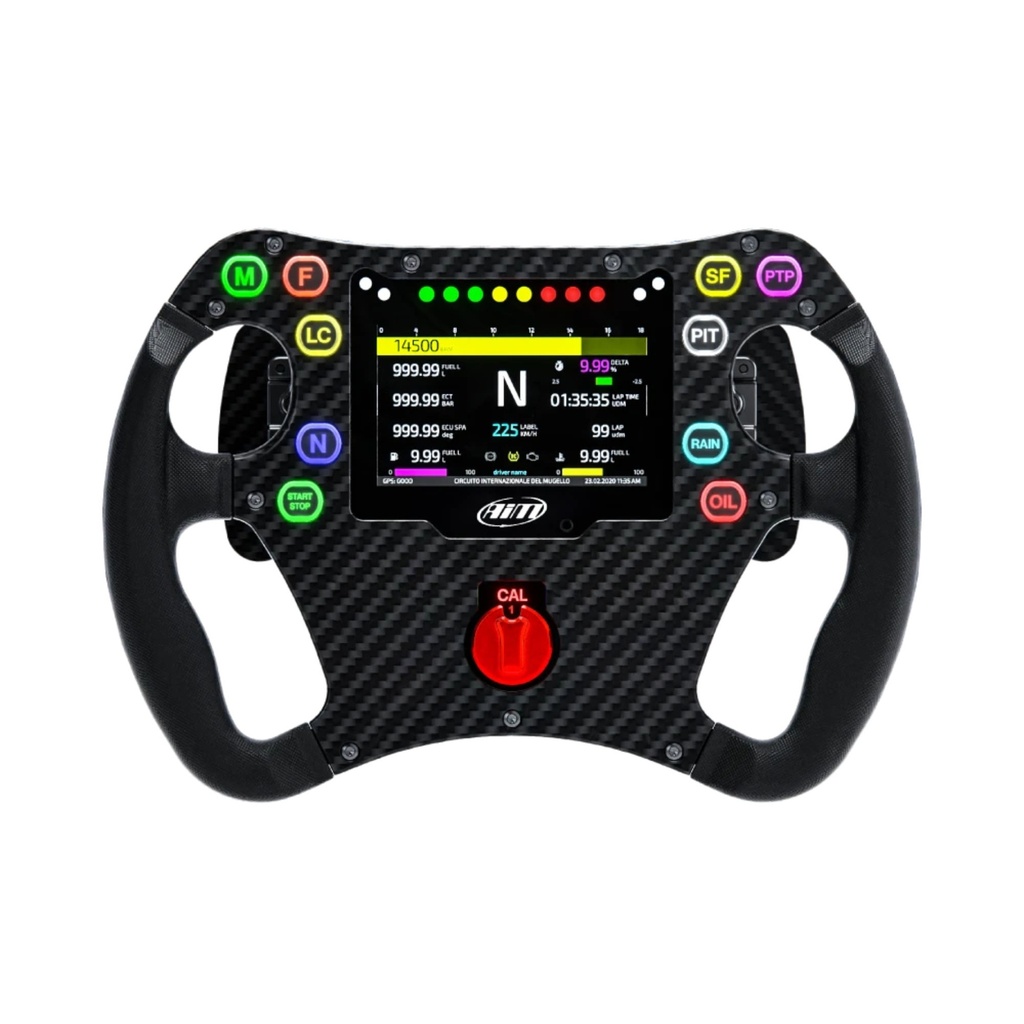

AIM SW4 270 Formula Steering Wheel (With Integrated Dash)

The AIM SW4 270 Formula Steering Wheel provides integrated vehicle control, live data monitoring and driver input management through a compact 270mm steering wheel with a built-in digital display. It combines a configurable 4.3-inch TFT display, RGB shift and alarm LEDs, ECU compatibility across more than 2,000 protocols, and ergonomic controls within a lightweight polymer, carbon and CNC-machined aluminium construction to give you direct access to vehicle data and system adjustments during driving.

Discover the key features of this integrated steering wheel and display system:

• 4.3" TFT Display: The fully configurable high-contrast 4.3" TFT display is sunlight viewable and supports multiple screen layouts, allowing you to monitor lap times, engine parameters, alarms and performance data clearly in changing lighting conditions so you can keep critical information visible throughout each session.
• 2,000+ ECU Protocol Compatibility: Support for more than 2,000 ECU communication protocols enables the steering wheel to integrate with a wide range of race vehicle electronics, giving you flexibility when installing the system across different vehicle platforms and data systems.
• Configurable Shift Light LEDs: Eight RGB shift lights can be customised with gear-specific patterns, colours, priorities and flashing frequencies, helping you monitor engine speed accurately and maintain consistent shift points during driving.
• Integrated RGB Alarm LEDs: Four programmable RGB alarm LEDs allow you to assign warnings for oil pressure, coolant temperature, fuel pressure or other critical channels, providing clear visual alerts when vehicle conditions move outside your configured limits.
• Customisable Display Pages: Multiple configurable display layouts let you choose exactly which channels and information appear on screen, giving you a steering wheel setup tailored to your preferred data priorities and driving requirements.
• Polymer And Carbon Front Panel Construction: The lightweight polymer and carbon front panel design reduces steering wheel weight while maintaining structural rigidity, helping improve steering response and long-term durability under demanding motorsport conditions.

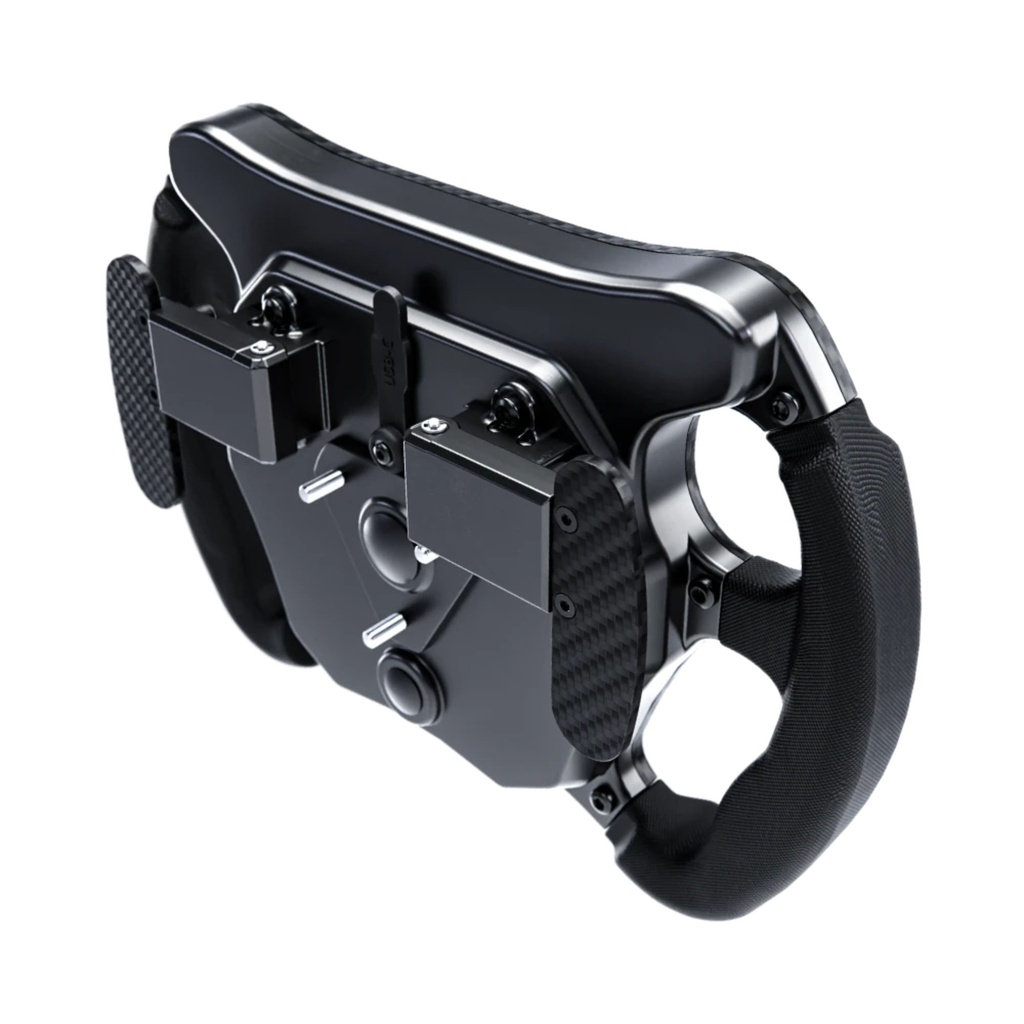

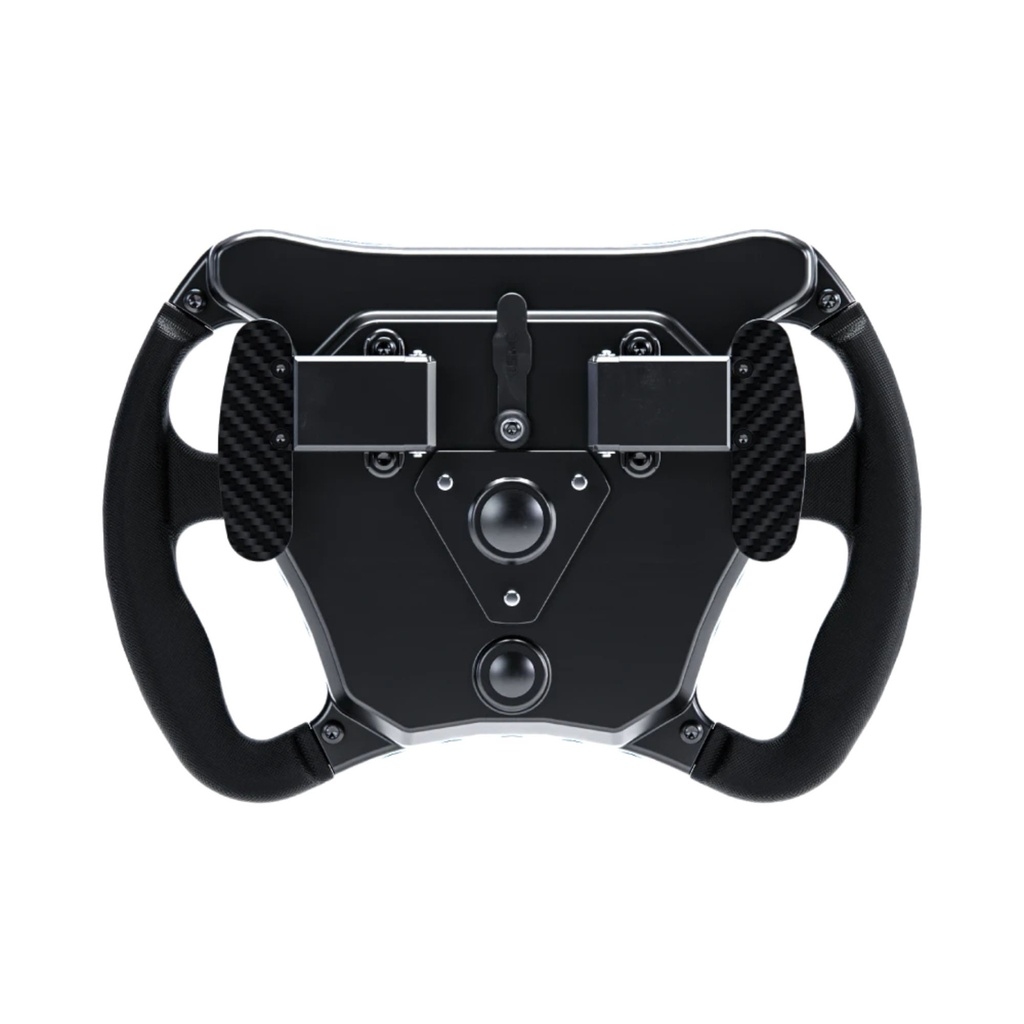

• CNC-Machined Aluminium Base: A precision CNC-machined aluminium base provides a strong mounting structure for the wheel assembly, ensuring stable fitment and dependable performance during high-load steering inputs.
• HBNR Hydrocarbon-Resistant Materials: The use of HBNR hydrocarbon-resistant compounds improves resistance to oils, fuels and workshop chemicals, helping maintain material integrity and consistent grip quality over extended use.

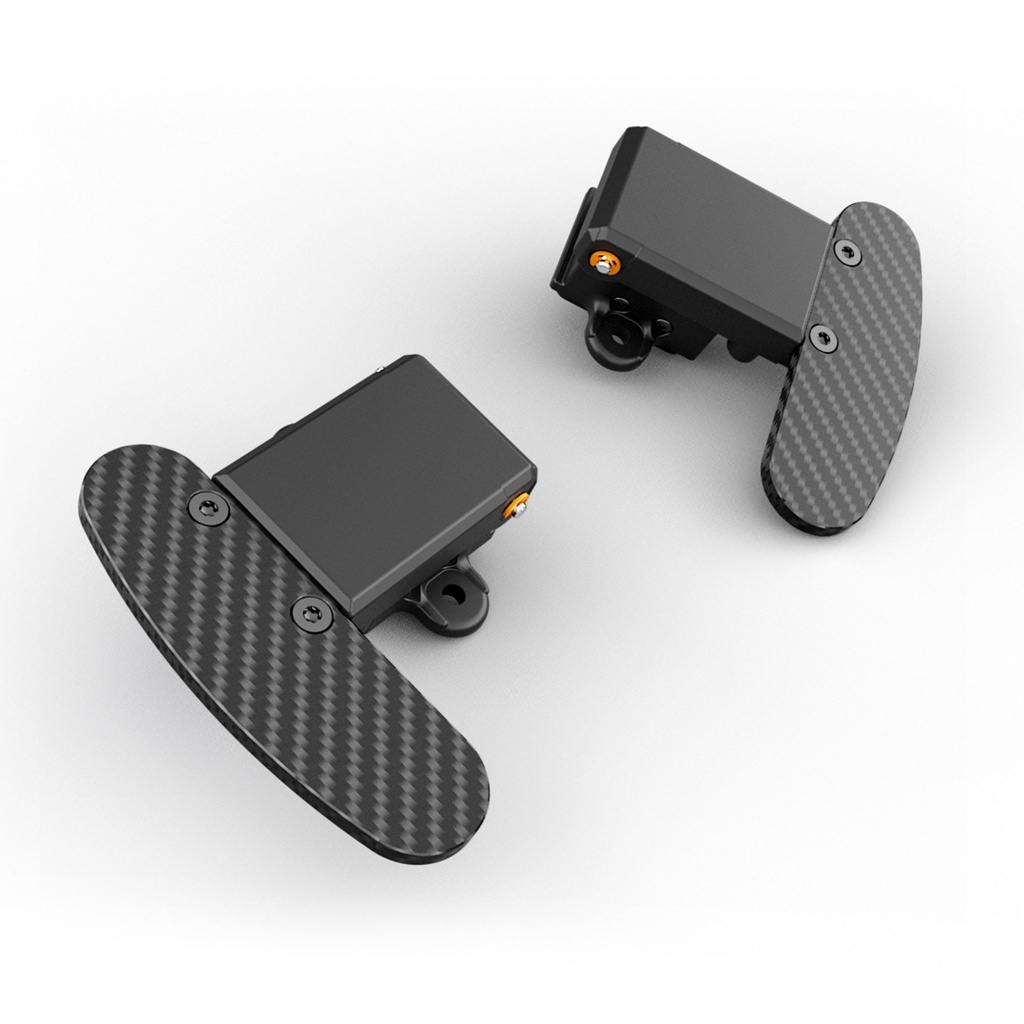

• Carbon Fibre Shifter Paddles: Magnetic carbon fibre shifter paddles are engineered to provide precise engagement, consistent tactile feedback and fast gear change operation while maintaining easy accessibility from the steering position, helping you perform accurate shift inputs with reduced hand movement and improved control during demanding driving conditions.
• Ergonomic Control Layout: The redesigned ergonomic structure positions all buttons and rotary switches within thumb reach while reducing lower section thickness, allowing faster access to controls without requiring unnecessary hand movement.
• RGB Backlit Push Buttons: Eight fully configurable push buttons and two open free-contact buttons include RGB LED backlighting, making switch identification easier during low-light conditions and helping you manage vehicle functions quickly while driving.

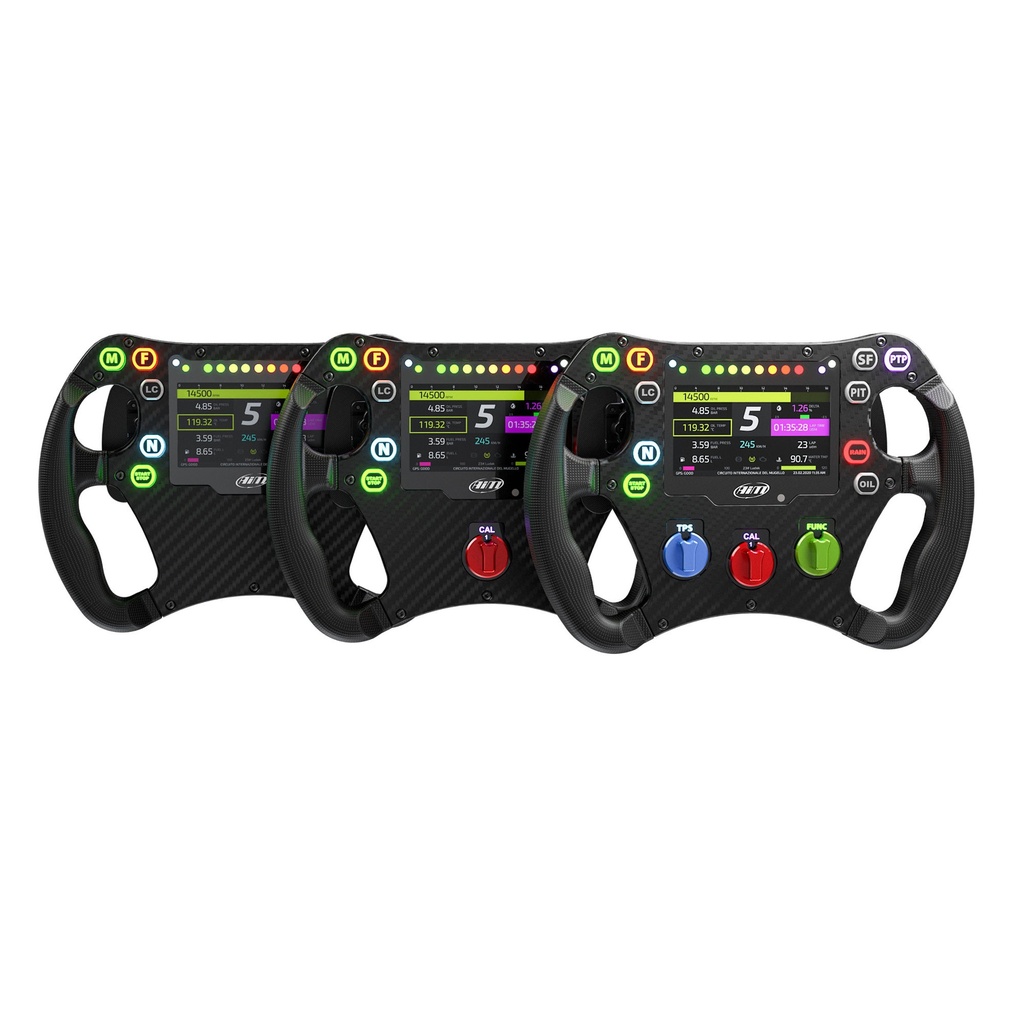

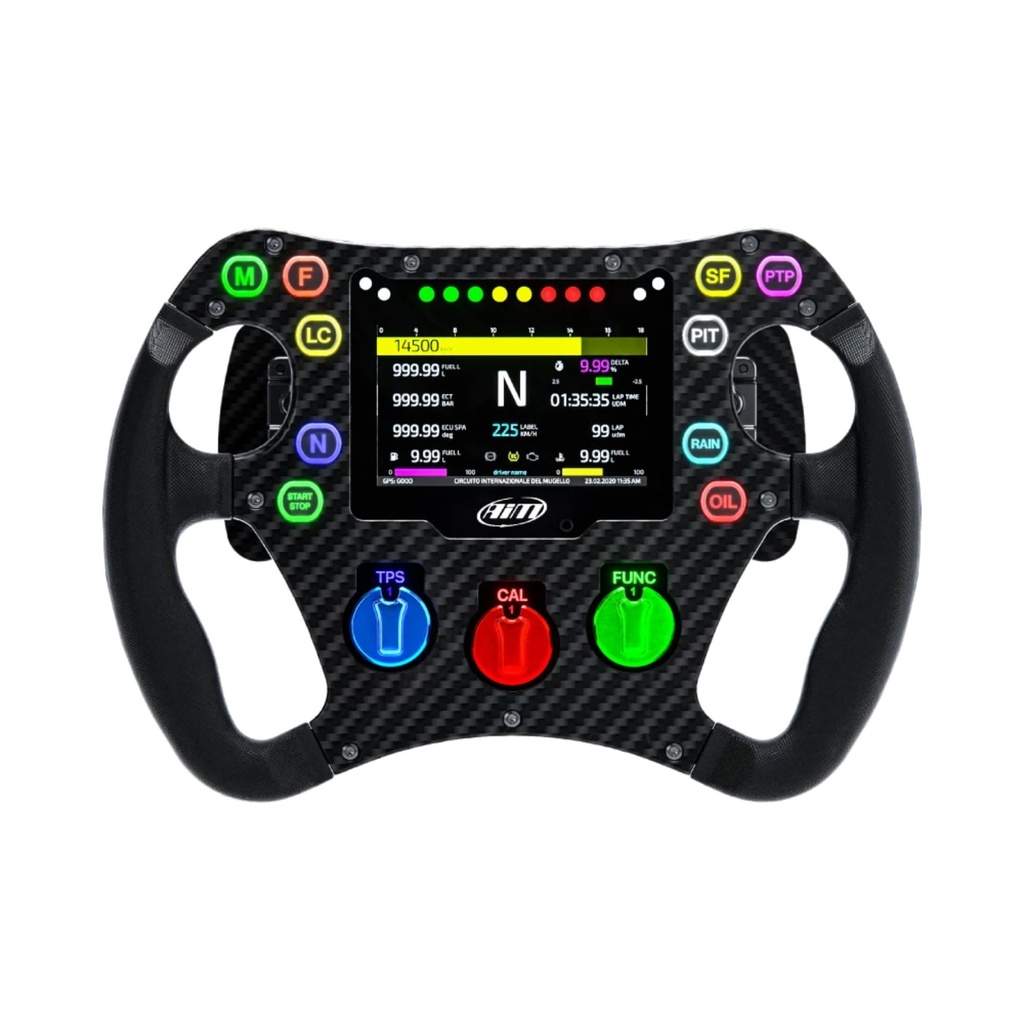

• Configurable Rotary Switch Options: The steering wheel is available with zero, one or three configurable rotary switches, allowing you to tailor control inputs for functions such as traction control, brake bias or engine mapping based on your vehicle setup.
• High-Density Polyurethane Grips: Removable ergonomic grips made from high-density polyurethane provide consistent hand support and grip stability, helping reduce unwanted movement and maintaining steering control in varying cockpit conditions.

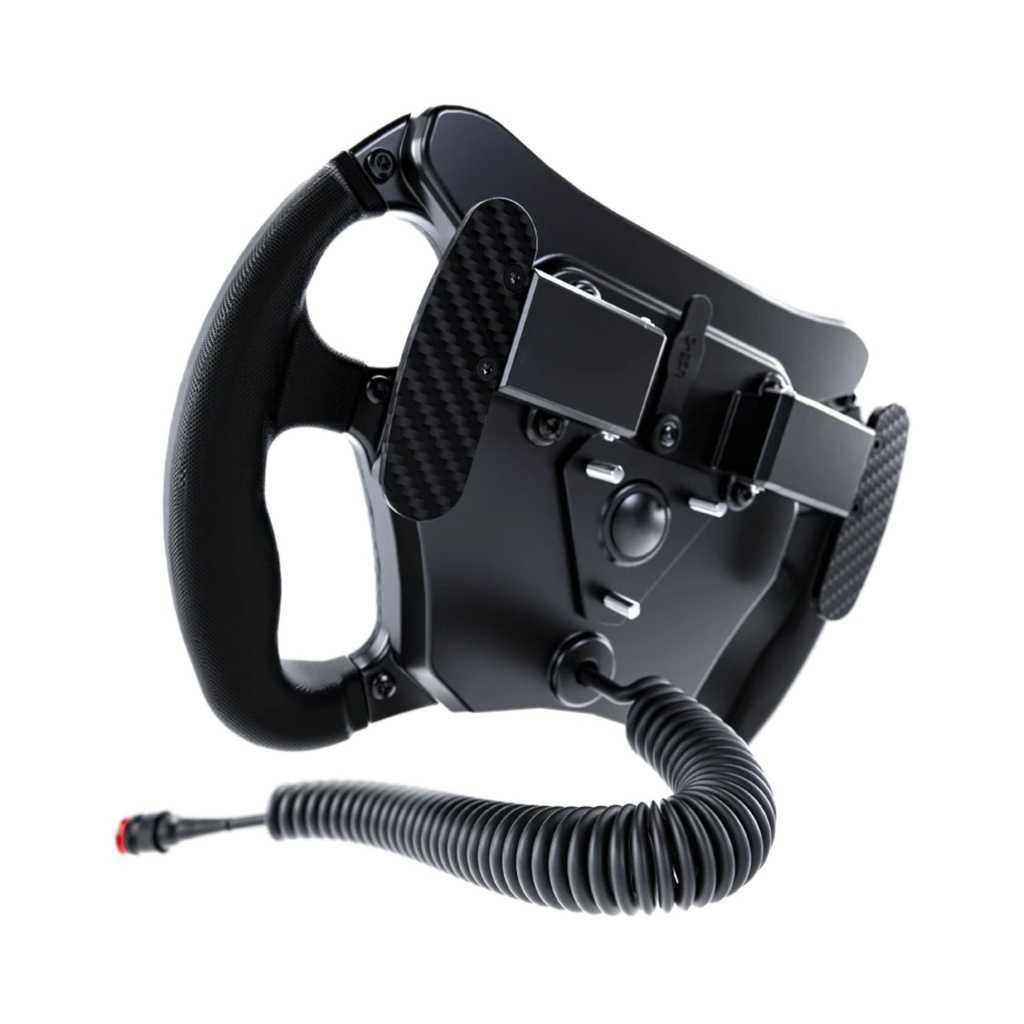

• 22-Pin Autosport Connector Option: Connection through a coiled cable with a 22-pin Autosport connector provides a secure motorsport-grade electrical connection, helping simplify installation and ensuring reliable communication with the vehicle electronics.

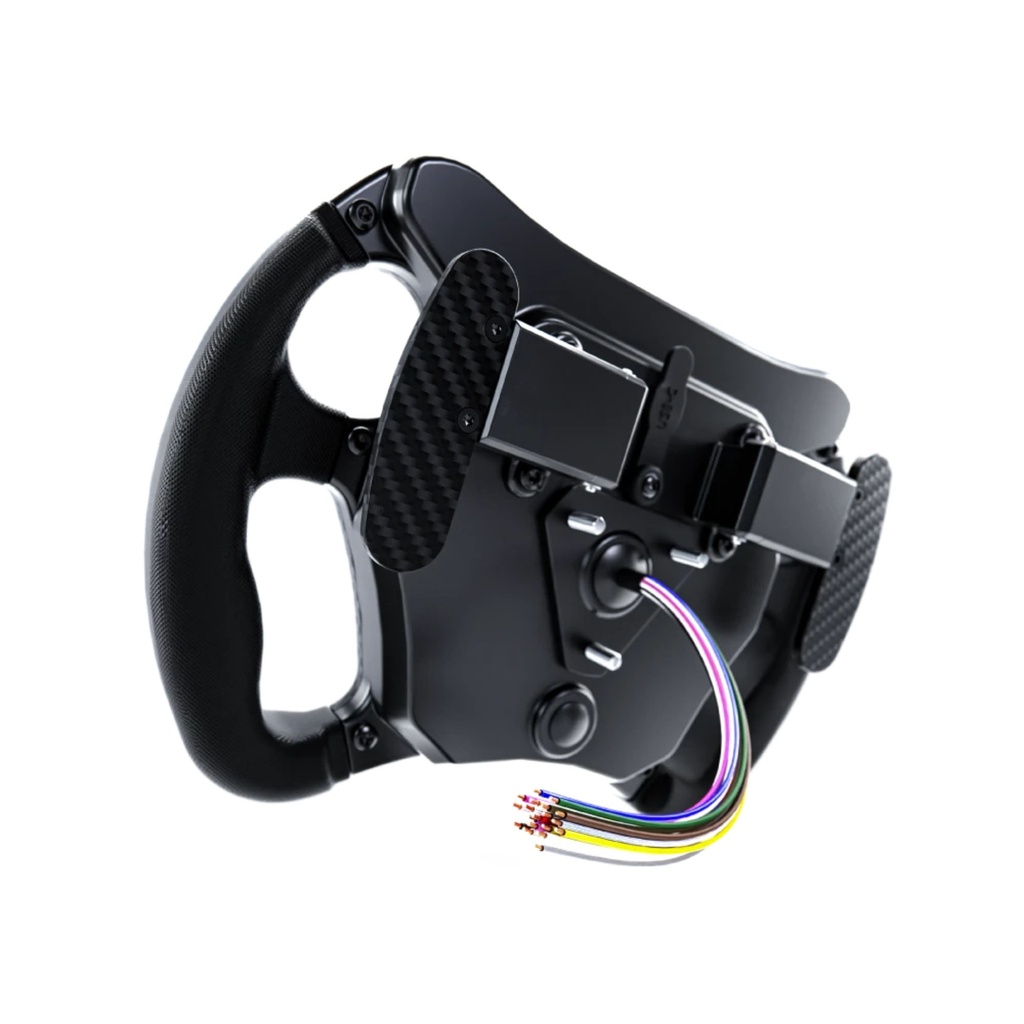

• Quick Release Free-Wire Compatibility: A free-wire cable option supports quick release steering systems, allowing easier installation into vehicles using detachable steering wheel setups.
• Race Studio 3 Integration: Full compatibility with Race Studio 3 software allows you to customise display pages, LED logic, alarms, button functions and steering wheel behaviour, giving you detailed control over how information and functions are managed.
• CAN-Based GPS Module Expansion: Optional CAN-connected GPS module support enables lap timing and track position analysis, helping you review driving performance and vehicle positioning data after each session.
• AIM Expansion Device Compatibility: Compatibility with AIM accessories including SmartyCam, TC Hub, Lambda Controller, RIO and GS-Dash allows you to build a wider integrated vehicle data and video system around the steering wheel.
• Sim Racing Firmware Support: Firmware support for simulator integration allows the wheel to function as a recognised game controller, enabling you to map controls to match your real vehicle setup and maintain familiarity between simulator and track driving environments.
• Real And Virtual Data Analysis: Race Studio 3 supports comparison of simulator and real-world driving data, allowing you to review performance trends and refine driving inputs using consistent steering wheel hardware across both environments.

The AIM SW4 270 Formula Steering Wheel helps you manage vehicle systems, monitor live performance data and maintain direct access to controls from a single integrated unit. Its configurable display system, programmable controls and broad ECU compatibility make it suitable for race cars requiring detailed driver information and adaptable control layouts. Adding this steering wheel to your vehicle setup gives you a practical solution for combining data visibility, driver input management and future system expansion within a compact motorsport-focused design.
