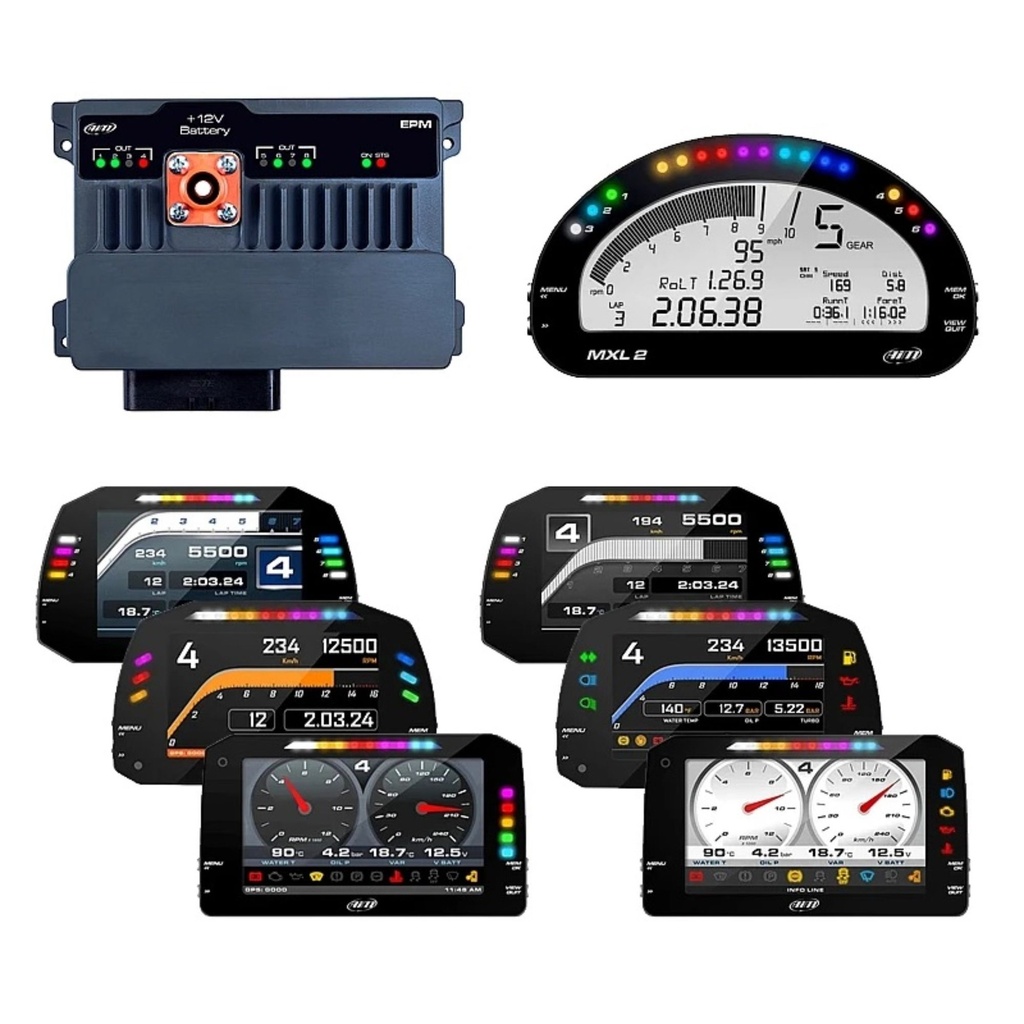

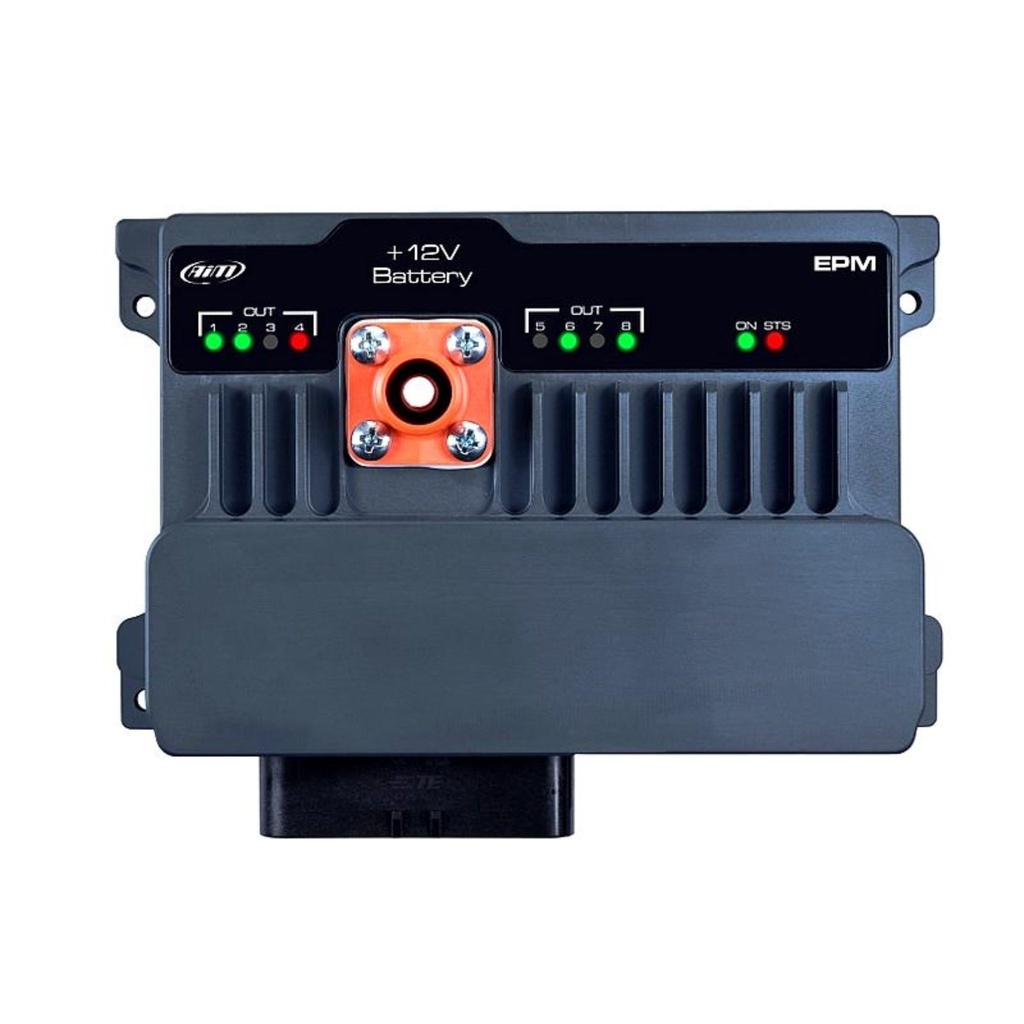

The AIM Motorsport EPM is designed to expand any AIM dash display with PDM functionality to offer easy and reliable control over vehicle electrical circuits. It can also be used to expand an AIM PDM providing 8 additional channels. The EPM also contains a professional data logger which records engine data from the vehicles ECU as well as lap times and track mapping if a GPS module is added (sold separately).
- Fully compatible with all AIM Motorsport dash displays
- 8 Channel PDM for control over vehicle electrical circuits without fuses or relays
- In built data logging captures engine perimeters from the vehicles ECU
- Lap timing and track mapping capability when used with a GPS module (not included)
- Rugged aluminium case waterproof to IP65 suitable for harsh Motorsport environments
The AIM Motorsport EPM power distribution interface has 8 outputs rated up to 20A for each channel and a total maximum current rating of 120A. The unit is protected for under / over voltage, over current and over temperature.
