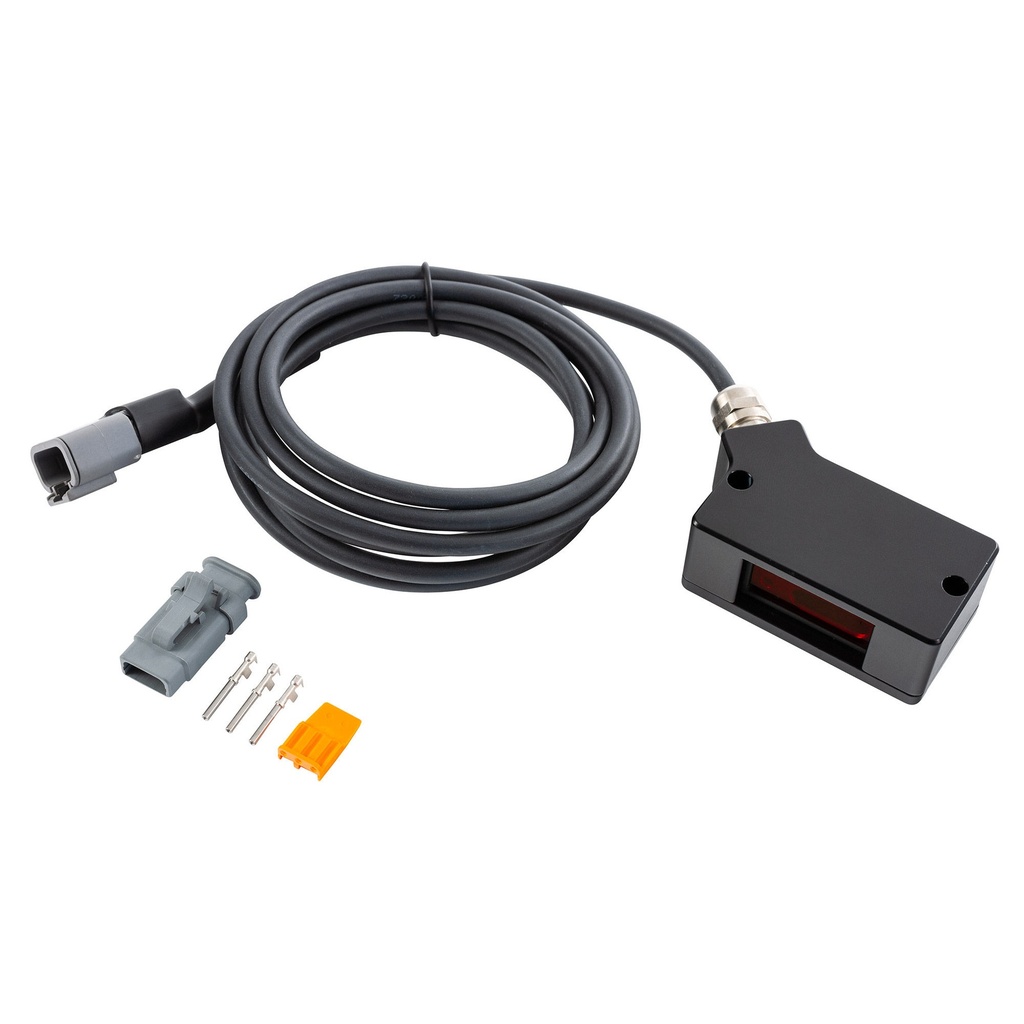

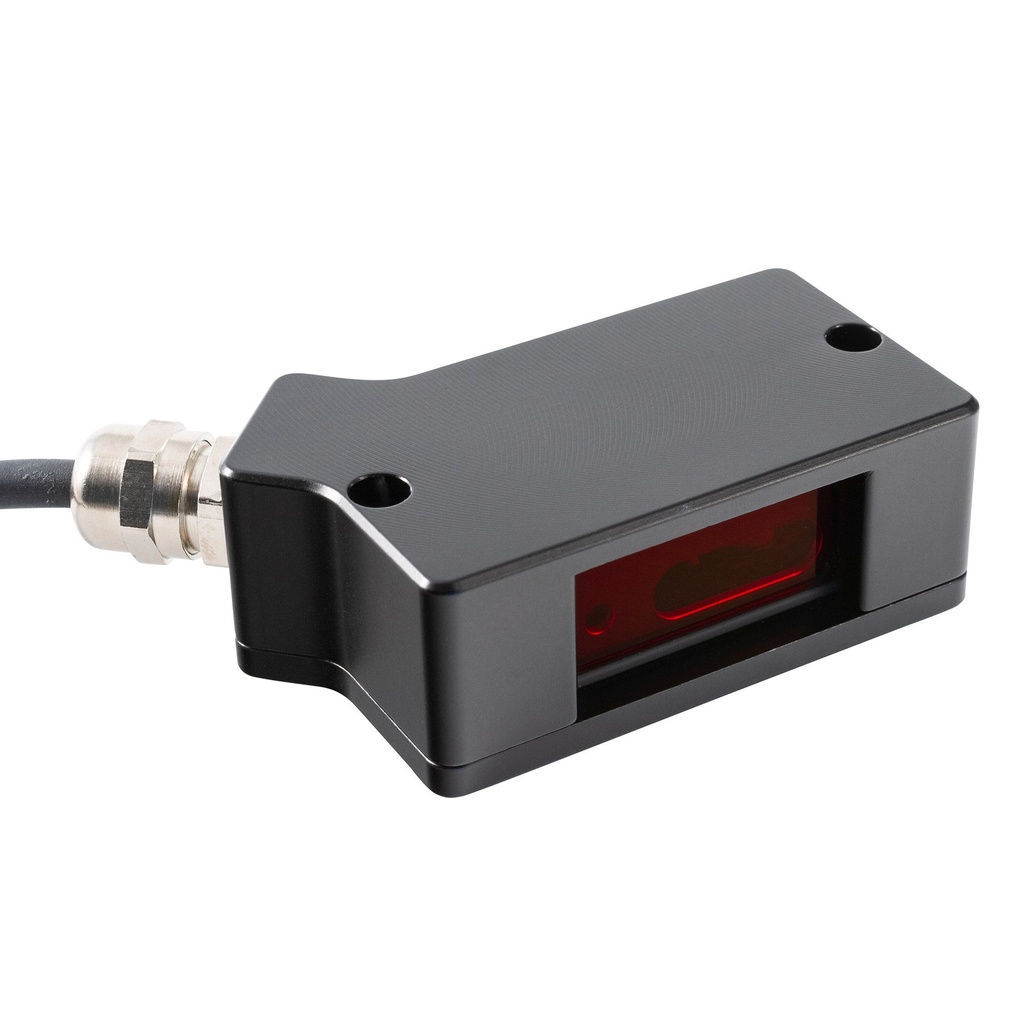

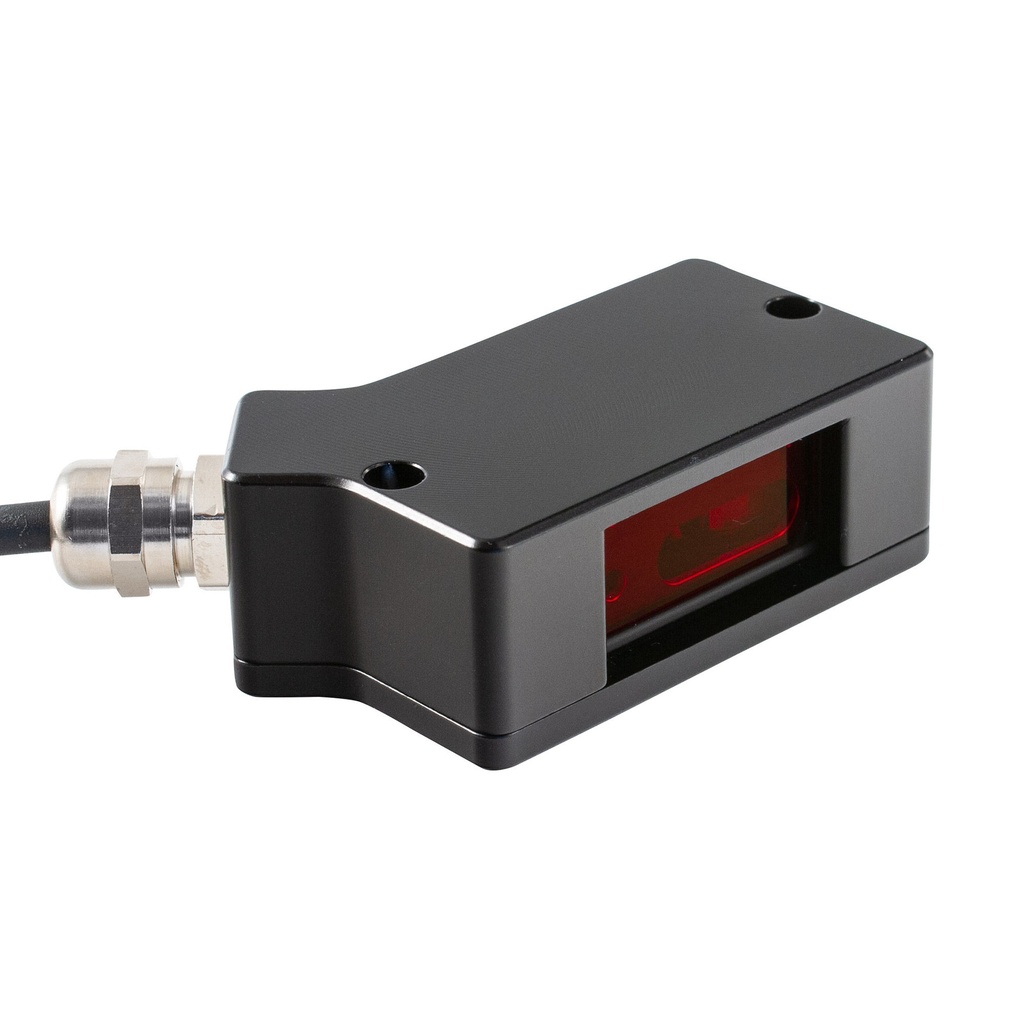

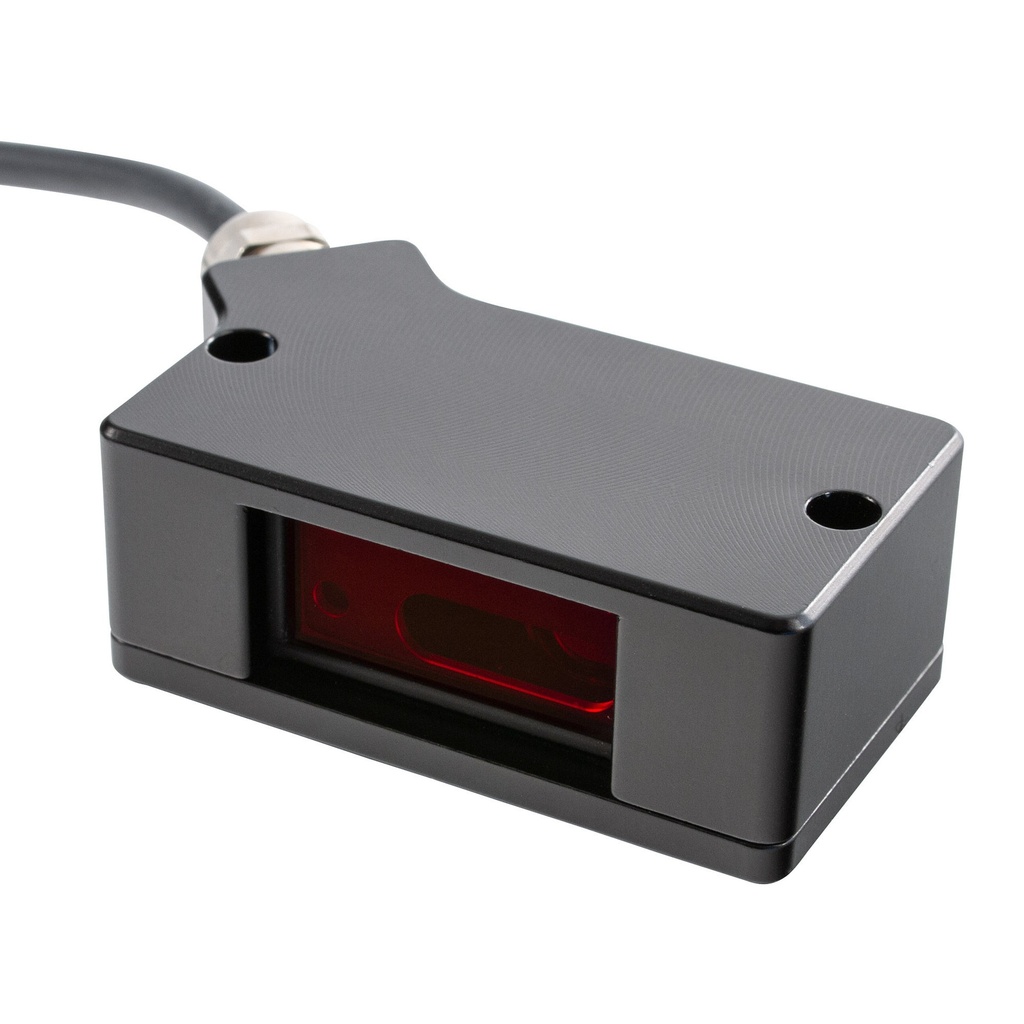

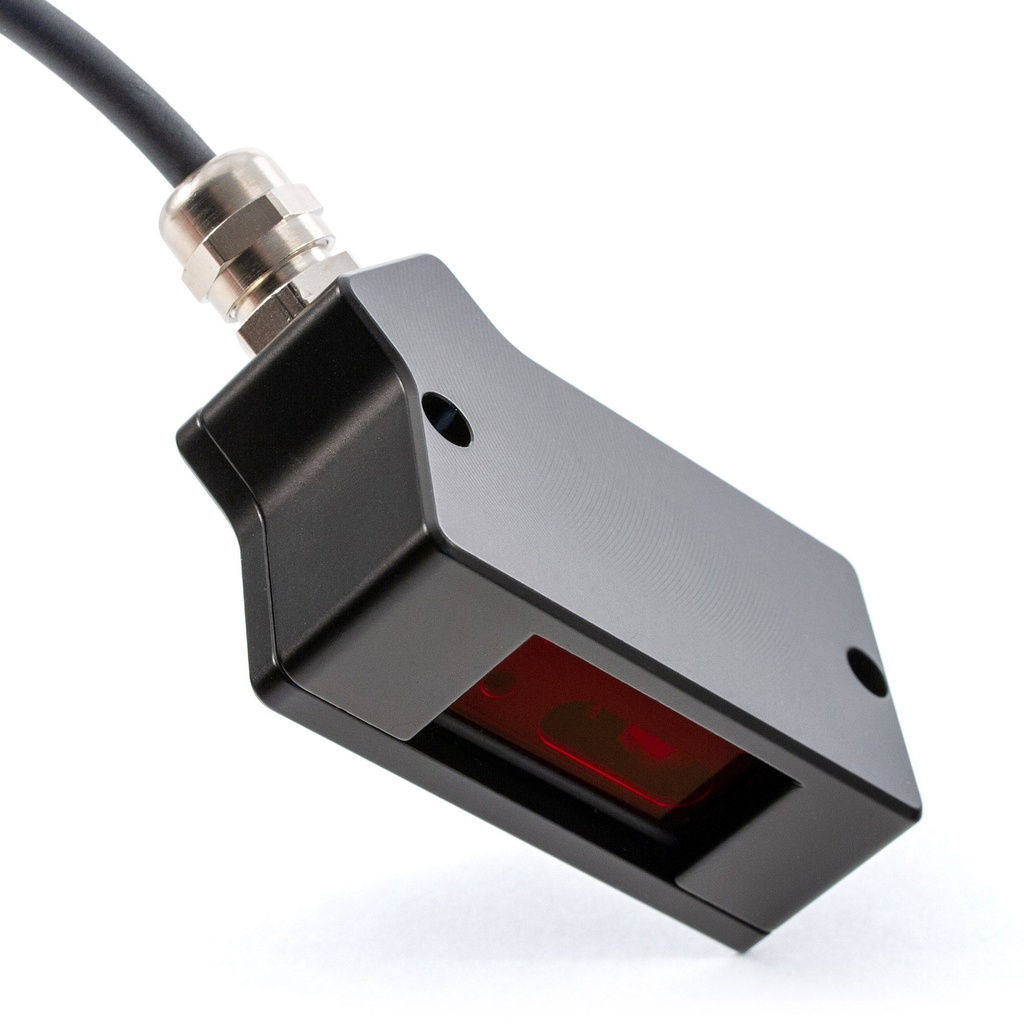

The AIM Motorsport non-contact laser ride height sensor has a small visible laser that reflects off the surface of the track to a very precise CCD detector that will determine the height from the ground. The miniature size sensor samples data at a rate of 1KHz and a linearity of 0.1% providing a fast and accurate recording of your real-time car data.
- Accurately measures distances between moving objects
- Measuring range of 60-260mm, suitable to be used with all types of vehicles
The sensor has be designed to withstand the harsh environments of motorsport, housed in a strong aluminium case to protect it against vibrations and temperature. The plastic lens can easily be replaced should it get damaged.
Please note:
- MXG / MXS / MXL (Strada and Pista) / MXL2 / EVO5 / MXm etc harnesses are fitted with 719 connections. To extend the length between your dash display / logger and the ride height sensor, please use the 719-719 extension lead which is available in various lengths. For most installations you will need one of these leads.
- EVO4 / EVO4S logger / Channel Expansions are fitted with 712 connections and require a 712-719 extension lead to connect these sensors.
