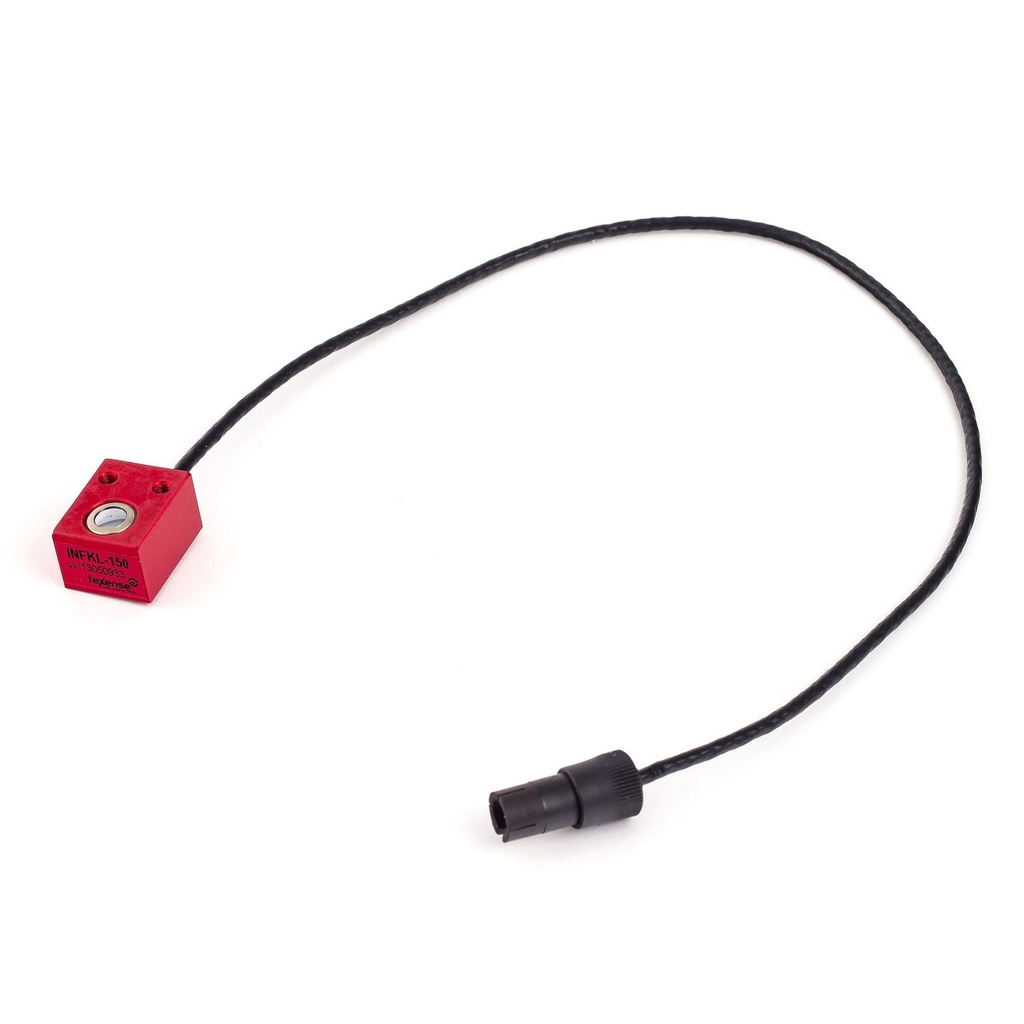

Professional quality AIM Motorsport Infrared (IR) tyre temperature sensors fitted with male 4 pin black 719 binder plug connections, to suit all AIM loggers and dash display / loggers. Compact IR sensor allows for contact free tyre temperature measurements at a distance from 30 to 150 mm. An ideal car set-up would be 3 sensors per tyre (inside, centre and outside), however 1 per tyre can also be useful if budget or channel input constraints dictate this. The temperature range is 0–150ºC. with a cable length of 20 cm.
Please note:
- MXS / MXP / MXG / MXL (Strada and Pista) / MXL2 / EVO5 / MXm etc harnesses are fitted with 719 connections. To extend the length between your dash display / logger and the analogue sensor, please use the 719-719 extension lead which is available in various lengths from 0.5 - 3 metres. For most installations you will need one of these leads.
- EVO4 / EVO4S logger / Channel Expansion are fitted with 712 connections and require a 712-719 extension lead to connect these sensors.
