The Allstar Performance Coil Over Brackets provide a simple solution to installing coilovers on certain applications.
The Brackets are available in either left handed, right handed, straight type or flat mounts providing a versatile option for various applications. The left and right handed brackets are notched enabling them to fit to rounded tubing and feature different length sides ensuring they attach to angled chassis points easier, creating a greater surface area and therefore stronger position with which to mount coilovers. The straight bracket is also notched for attachment to round tubing but features identical length sides for fitment to non-angled chassis points, whereas the flat mount is suitable to mount to flat or squared surfaces.
The kits include 1/2" bolt, lock nut and spacer ensuring the brackets are ready to be used once attached.

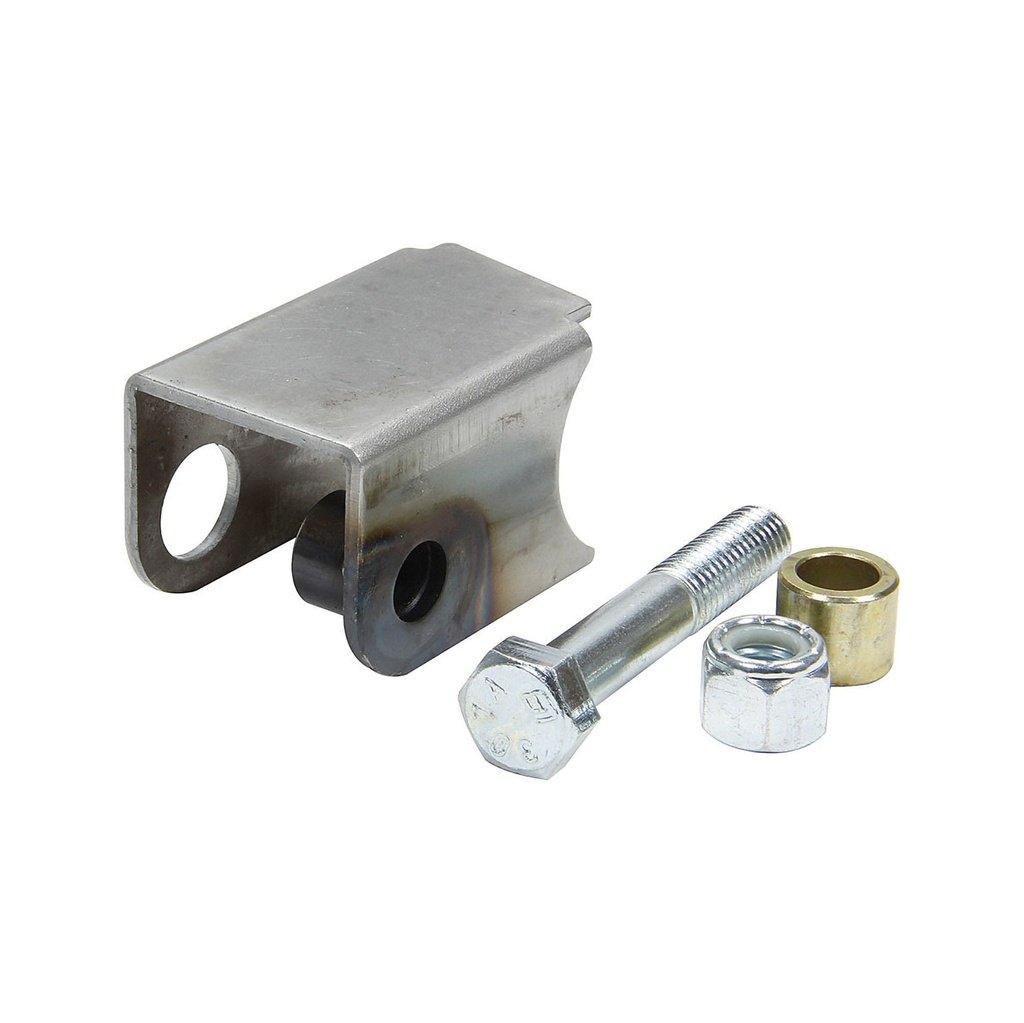

MSD60100 (Left hand bracket) Dimensions (approx)
- Maximum Length - 78mm
- Min Length - 62mm
- Width - 48mm
- Depth - 44mm

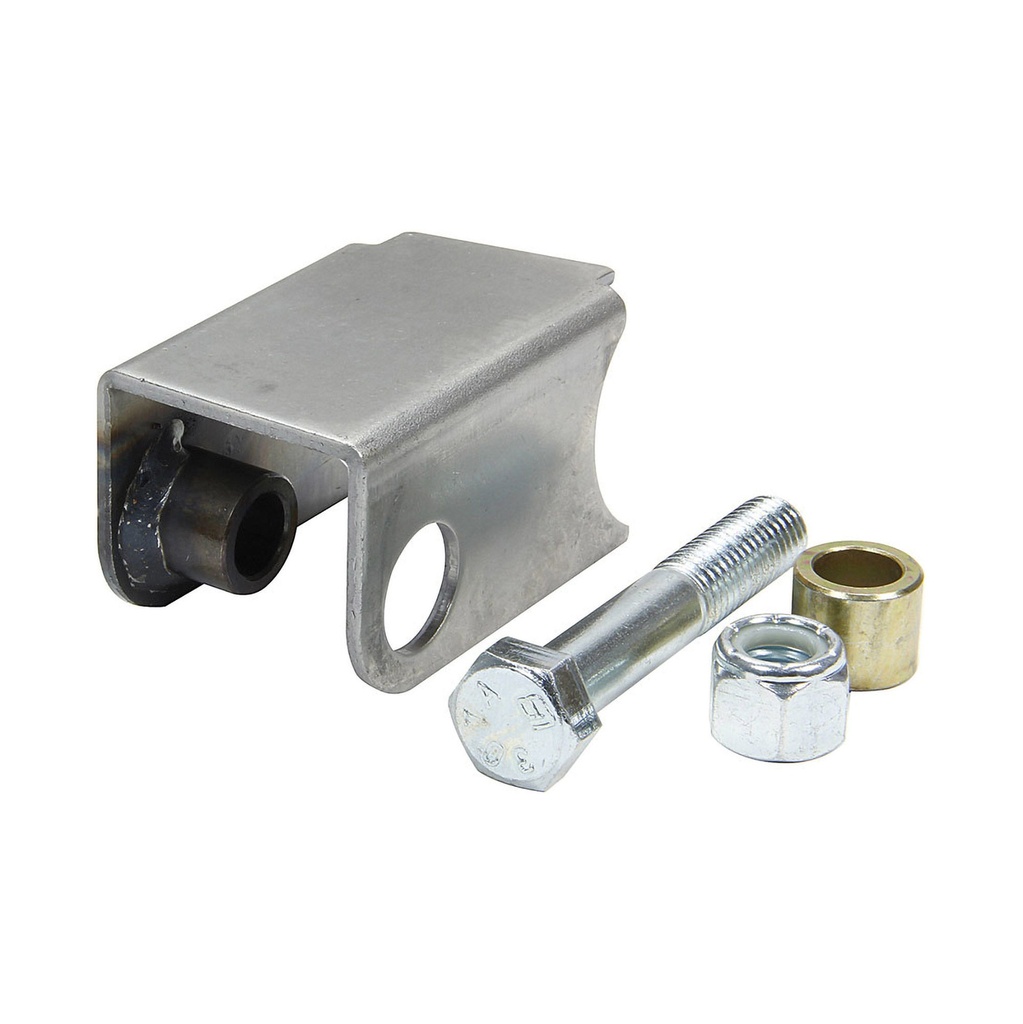

MSD60101 (Right hand bracket) Dimensions (approx)
- Maximum Length - 78mm
- Min Length - 62mm
- Width - 48mm
- Depth - 44mm

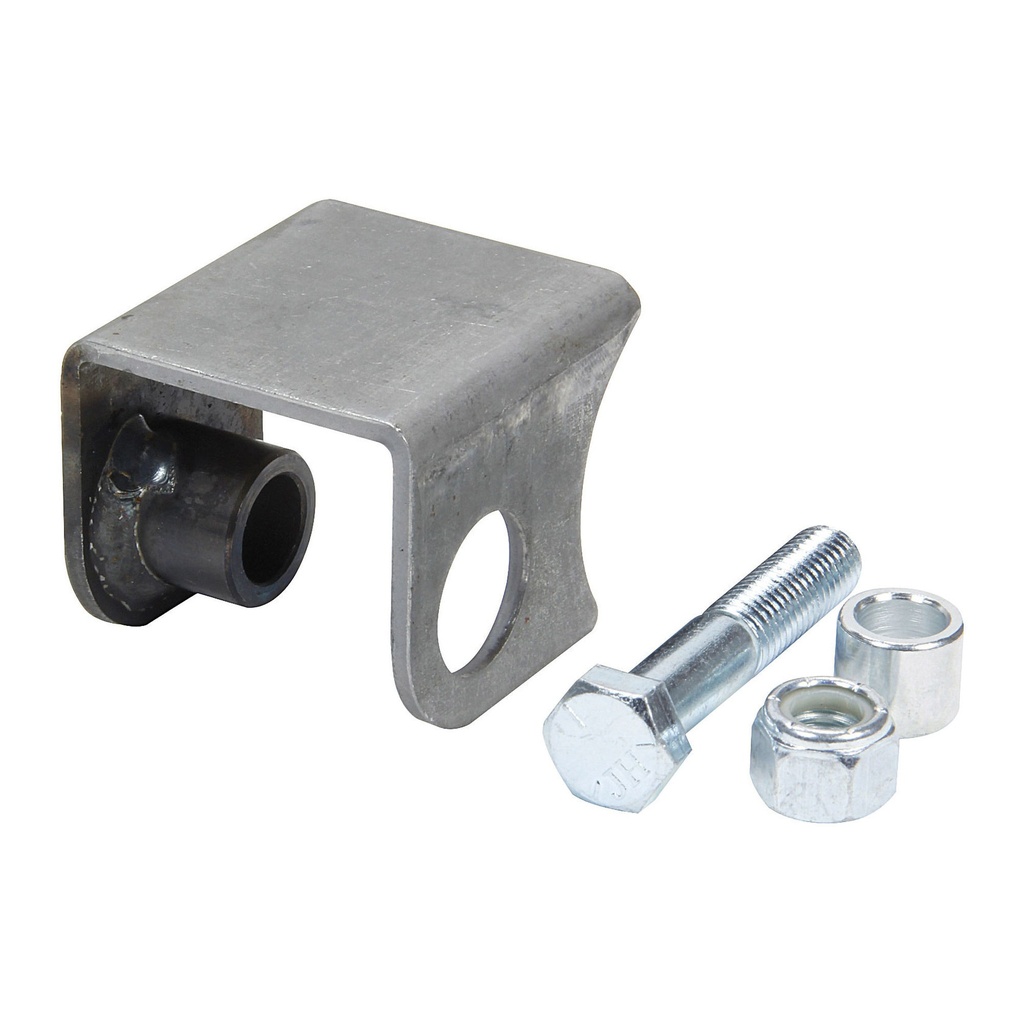

MSD60103 (Straight bracket) Dimensions (approx)
- Length - 50mm
- Width - 48mm
- Depth - 44mm

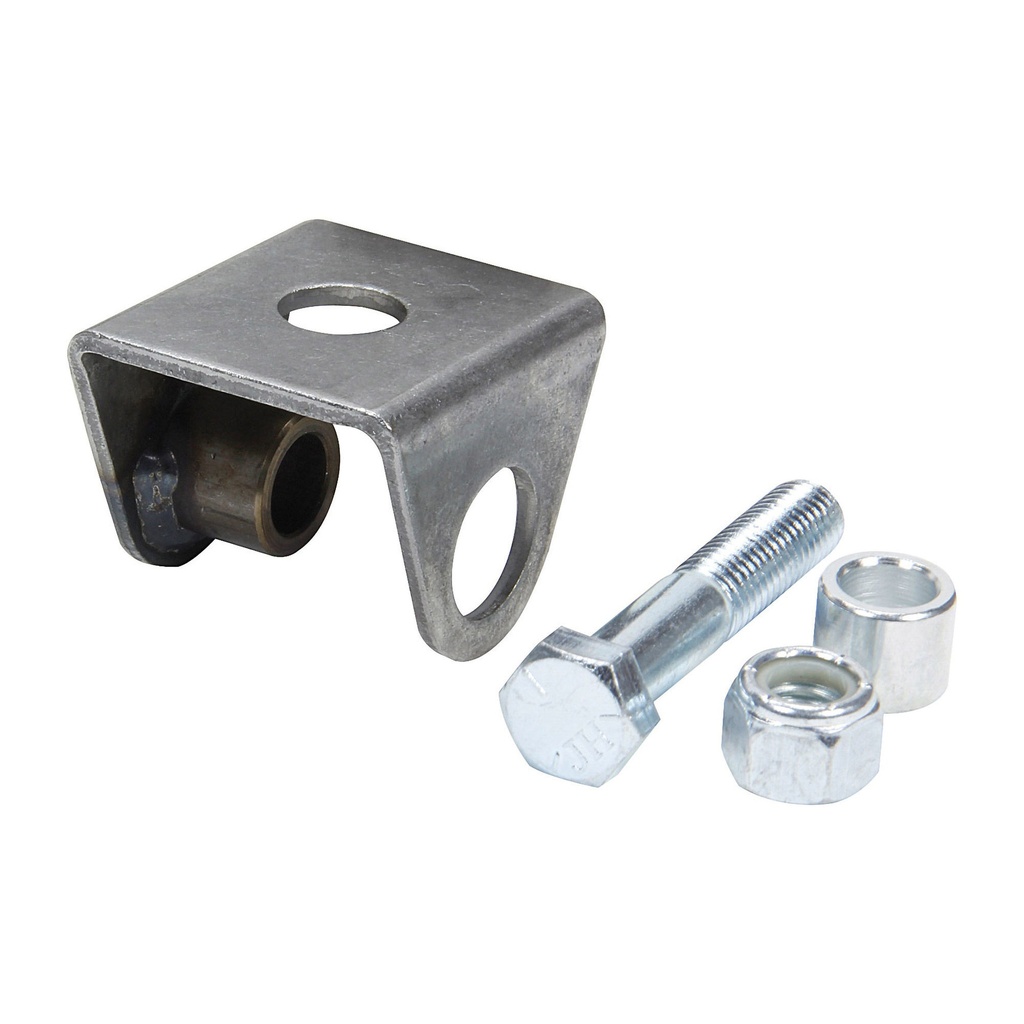

MSD60106 (Flat Mount)
- Length - 50mm
- Width - 48mm
- Depth - 40mm
