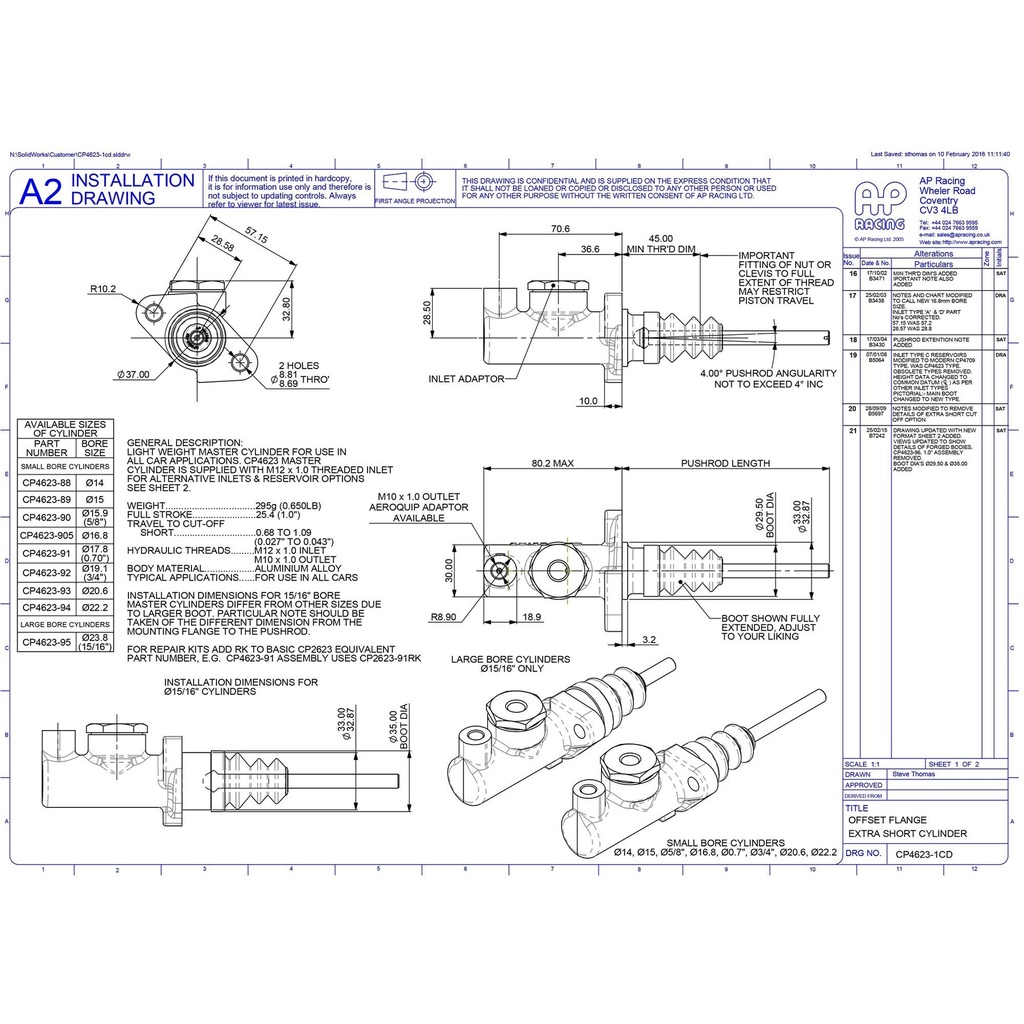

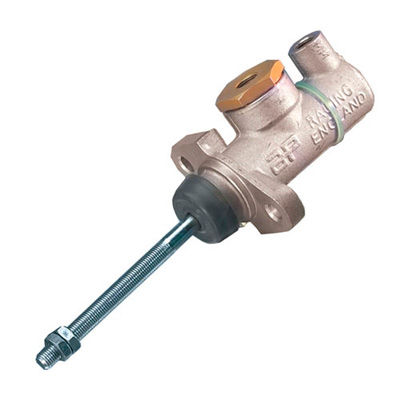

The CP4623 range of master cylinders from AP Racing feature a forged aluminium body and an extra short body length (80mm), which makes them ideal for brake or clutch applications where space is restricted. The mounting flange is at a 60 degree angle and the mounting hole spacing is 2.25 inch (57mm).

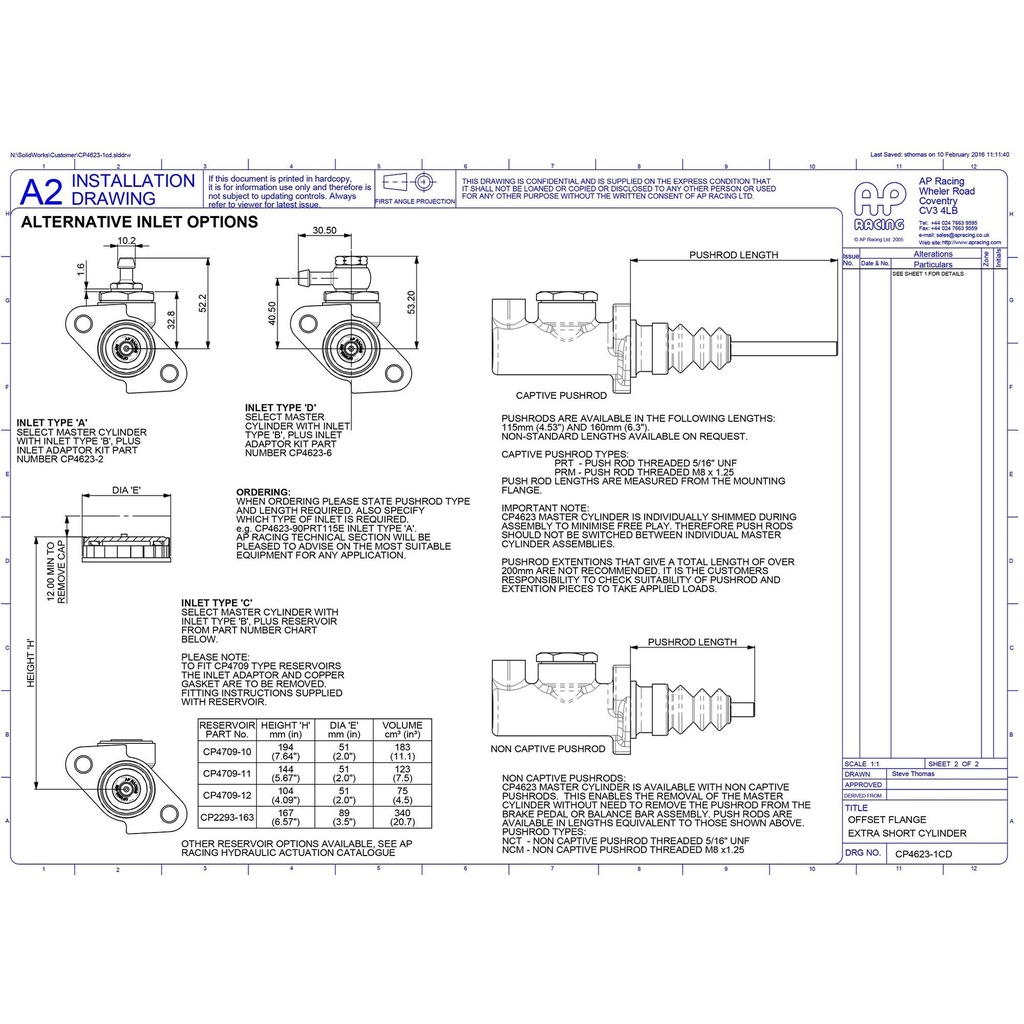

The CP2623 range is available in large range of bore sizes to suit most applications. There is also a choice of pushrod length and thread (Metric or UNF).
Inlet port: M12 x 1
Outlet Port: M10 x 1
Specifications
| Bore Size | .700 (7/10 Inch), .625 (5/8 Inch), .750 (3/4 Inch), .875 (7/8 Inch), .812 (13/16 Inch), .937 (15/16 Inch), 14mm, 15mm, .660 (2/3 Inch) |
| Pushrod Thread | No Pushrod (Non-Captive Type), M8 x 1.25, 5/16 Inch UNF |
| Pushrod Length | No Pushrod (Non-Captive Type), 160mm, 115mm |
| Brand | AP Racing |
