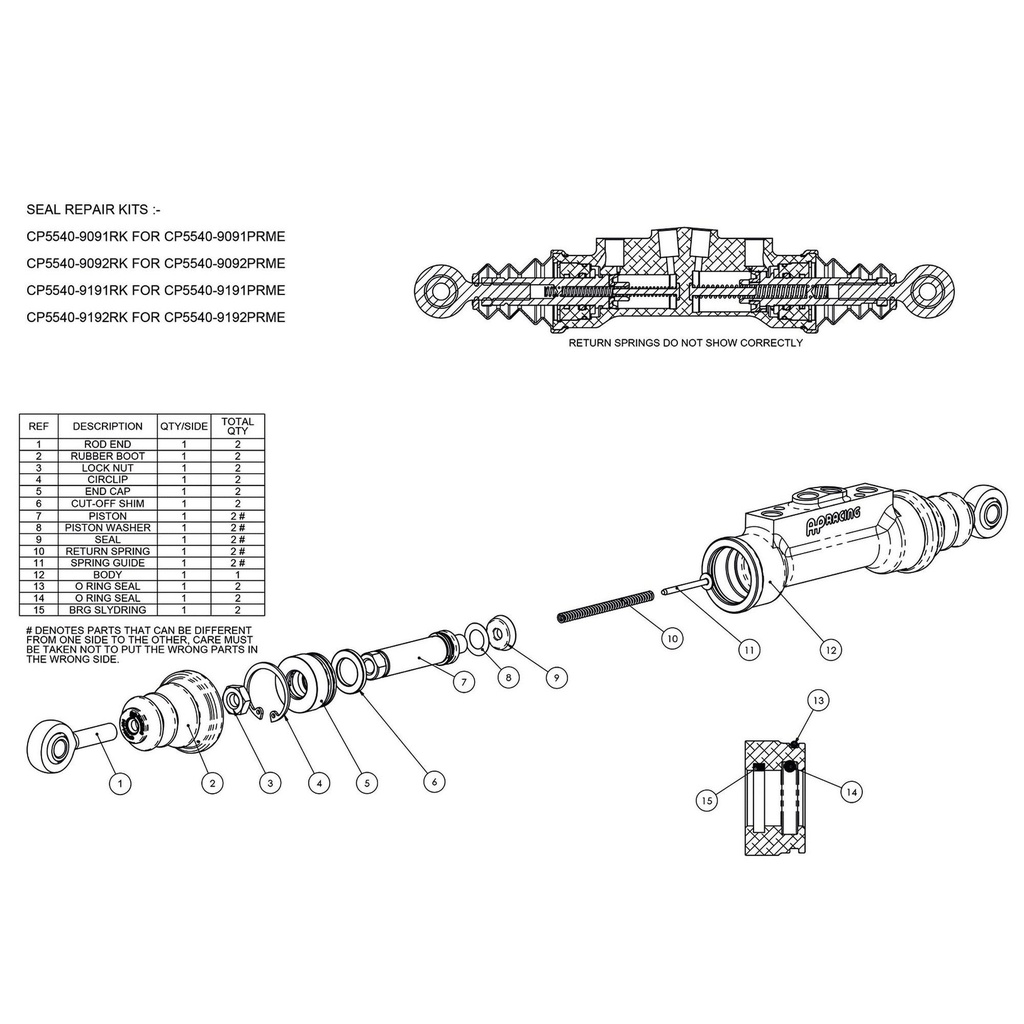

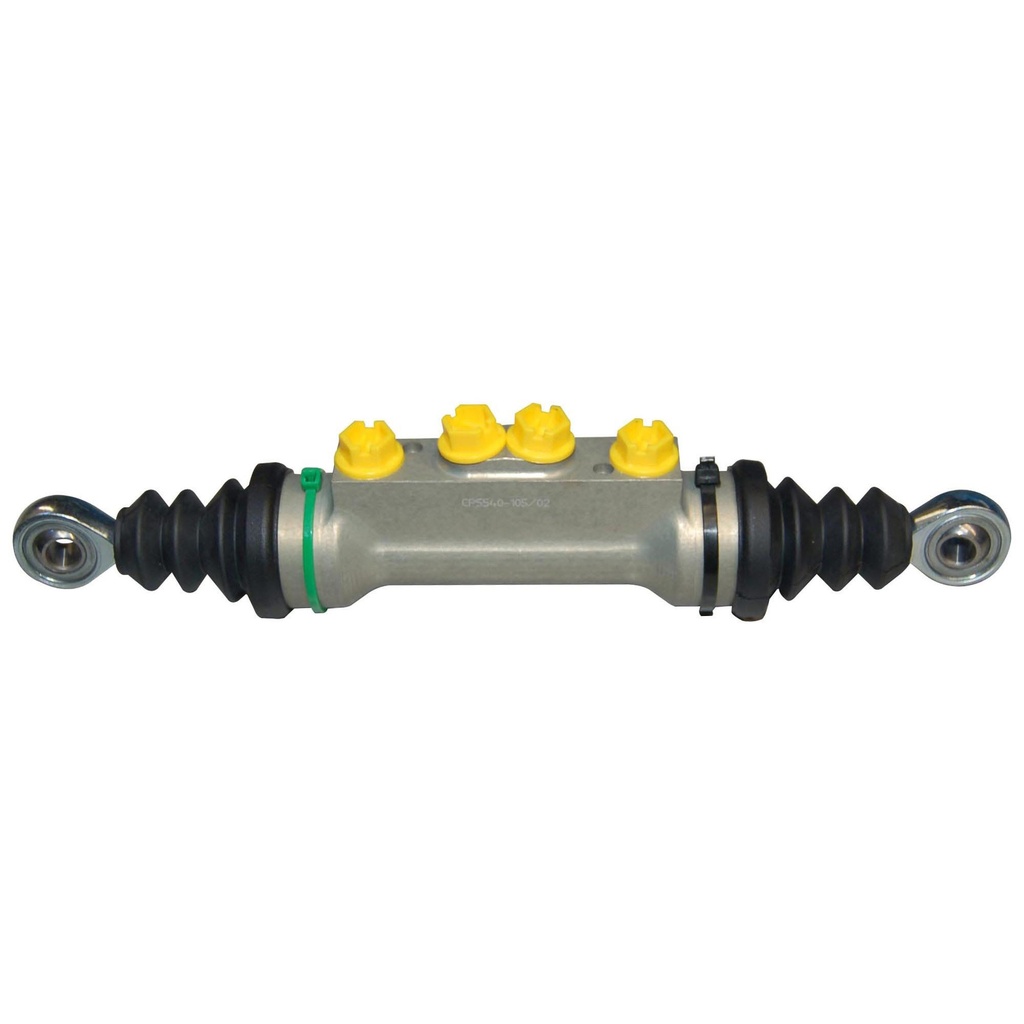

AP Racing CP5540 Double Ended Hand Brake Master Cylinder has be specifically designed to be used with the AP Racing vertical dual circuit hydraulic handbrake with differential release. The master cylinder is very light and has two separate hydraulic chambers that create two output pressures for the front and rear brakes.
- Mounted with spherical bearings for a smoother operating action
- Lightweight aluminium body with a hard anodised surface treatment
- A double ended master cylinder with various bore combinations

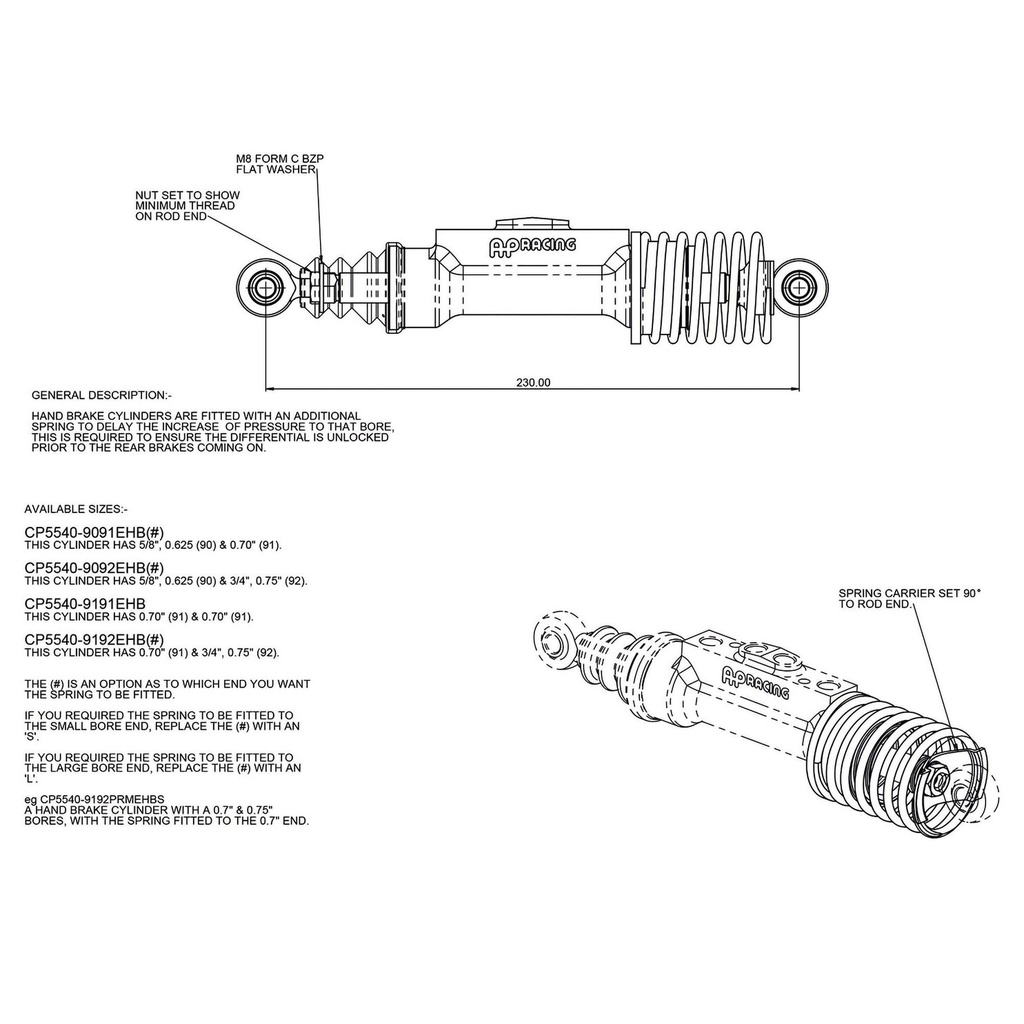

An additional fitted spring is to delay the increase of pressure to the bore which is required to ensure the differential is unlocked prior to the rear brakes coming on.
Specifications
| Option | Spring Fitted To One Side, Spring Fitted To Small Bore Side |
| Bore Size | .700 (7/10 Inch) / .700 (7/10 Inch), .700 (7/10 Inch) / .750 (3/4 Inch) |
| Brand | AP Racing |
