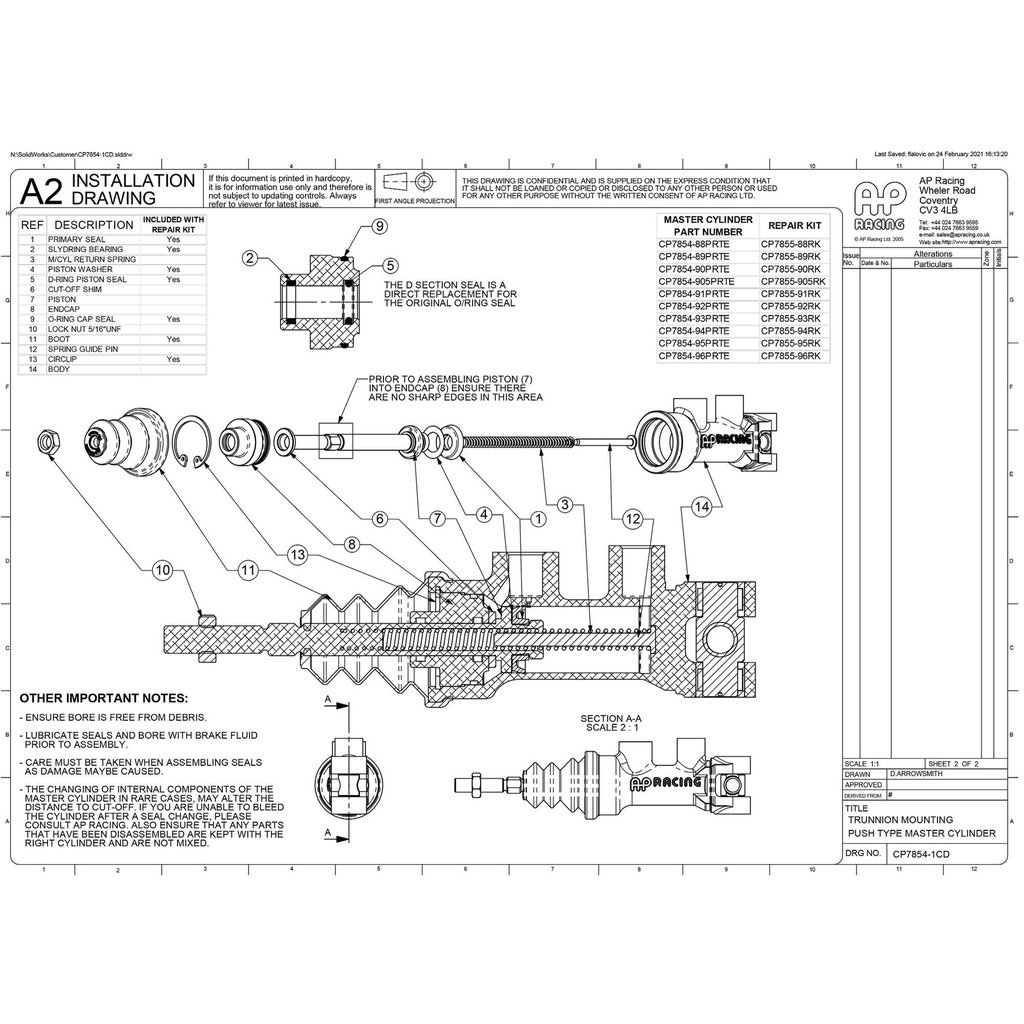

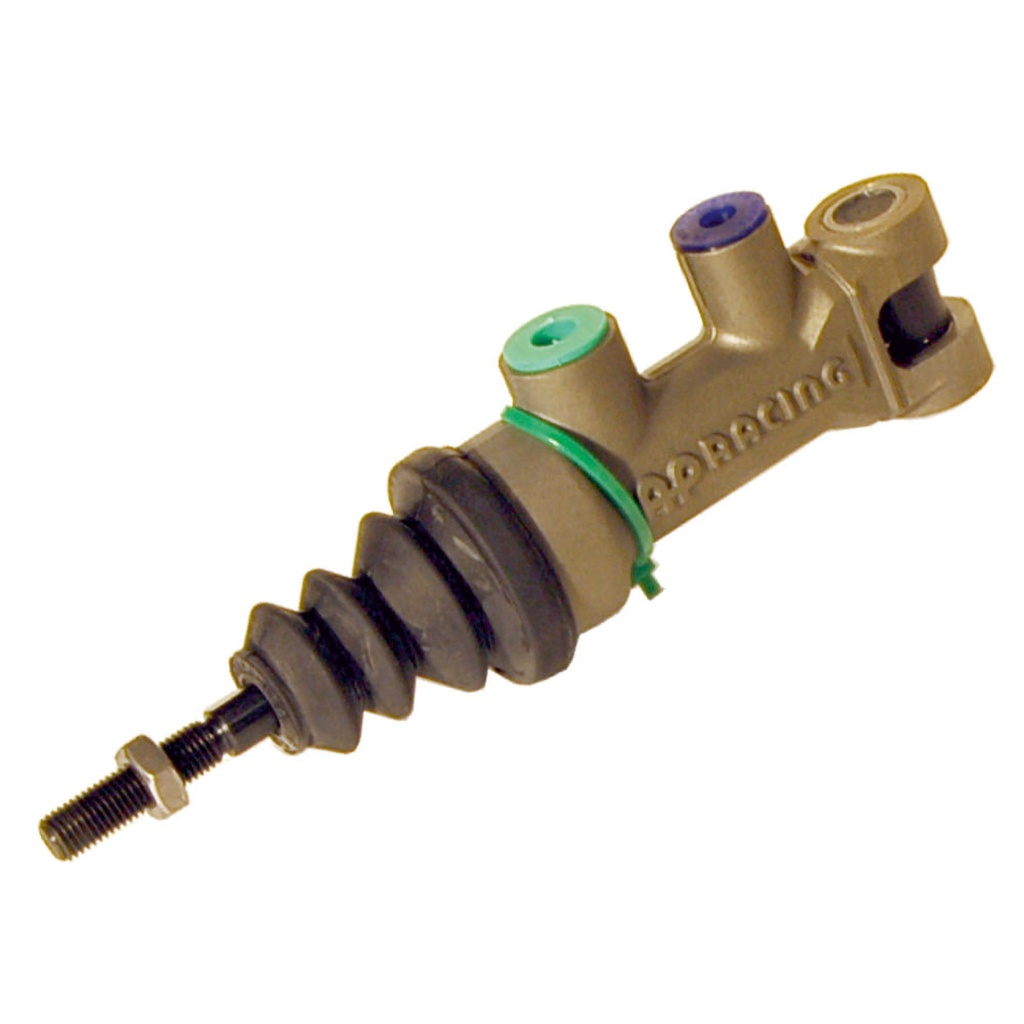

The CP7854 from AP racing is a range of short push type master cylinders which mount direct to the balance bar via a trunnion system. The trunnion runs in needle roller bearing for the smoothest operation. A one piece piston / pushrod design significantly improves the cylinders efficiency compared to traditional types.
- Trunnion mount with roller bearings for smoother operation
- Extra short travel to cut off 0.48mm-0.63mm (.019"-0.25")
- One piece piston / pushrod for improved efficiency
- Hard anodised aluminium body for corrosion resistance
Dimensions: Full stroke (14mm to 7/8" bore) - 30mm (1.18"), Full stroke (15/16" to 1" bore) - 28mm (1.10"), Travel to cut off - 0.48-0.63mm (.019-.025"), Inlet thread - 7/16" UNF, Outlet thread - 3/8" UNF, Pushrod thread - 5/16" UNF
Suitable for use with AP racing CP5509-1 floor mount pedal box and CP5520-3, CP5520-4, CP5520-25LC balance bars.
Specifications
| Bore Size | .700 (7/10 Inch), .625 (5/8 Inch), .750 (3/4 Inch), .875 (7/8 Inch), .812 (13/16 Inch), 1 Inch, .937 (15/16 Inch), 14mm, 15mm, 16.8mm Bore |
| Brand | AP Racing |
