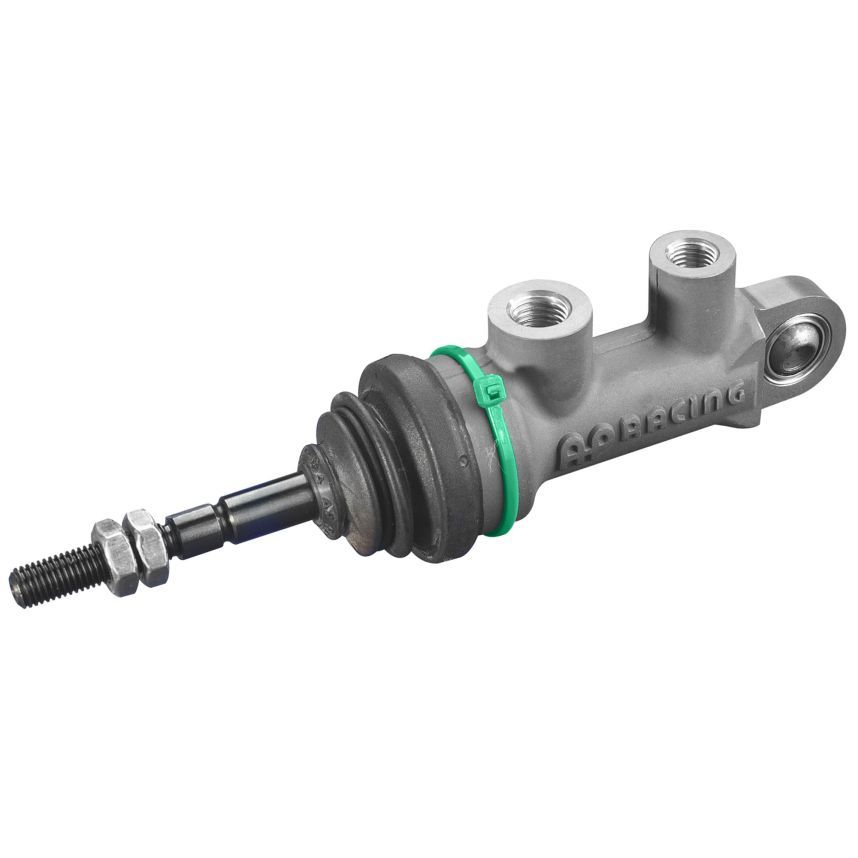

The CP7855 master cylinder from AP Racing features a hard anodised aluminium body housed in a compact design. The short push type action combined with a one-piece piston / pushrod setup provides a high efficiency alternative to a conventional style master cylinder. The cylinder is mounted via a spherical bearing to allow for more consistent braking performance for every pedal application.

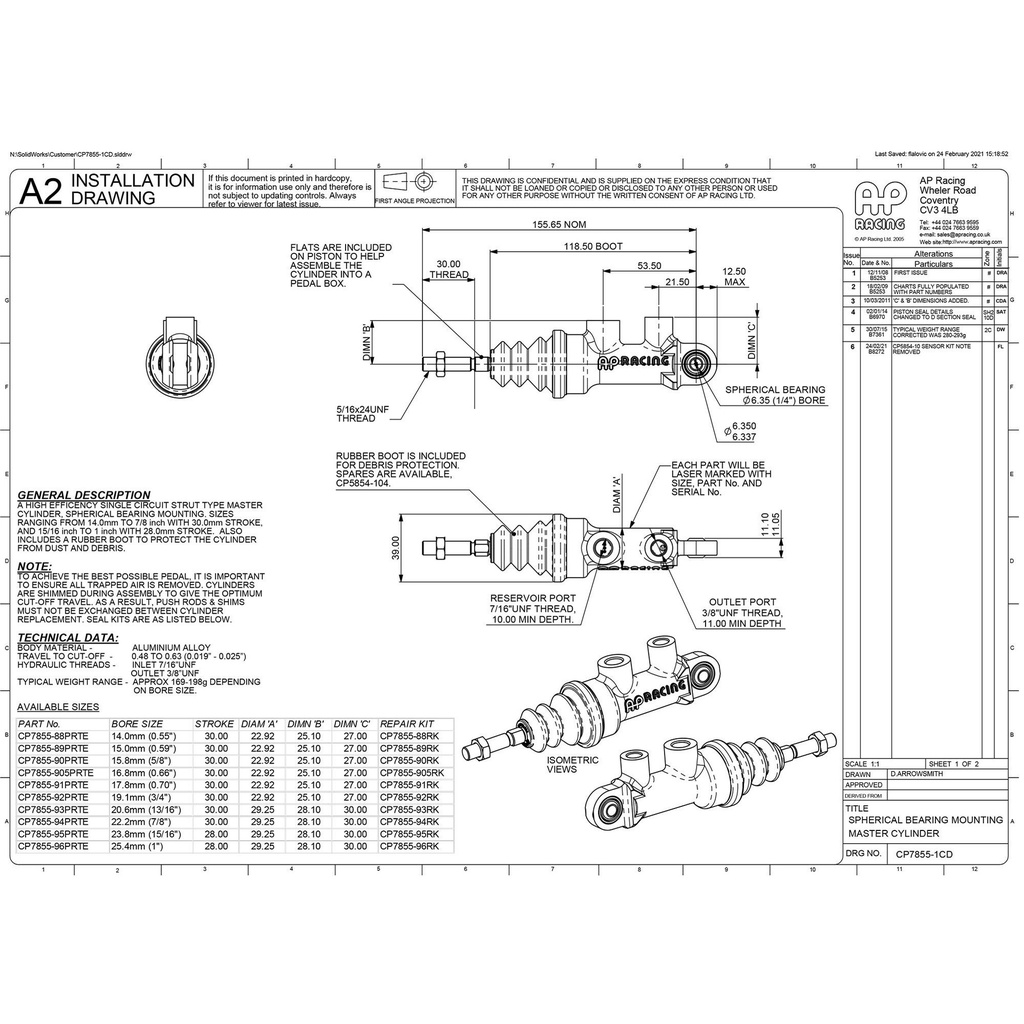

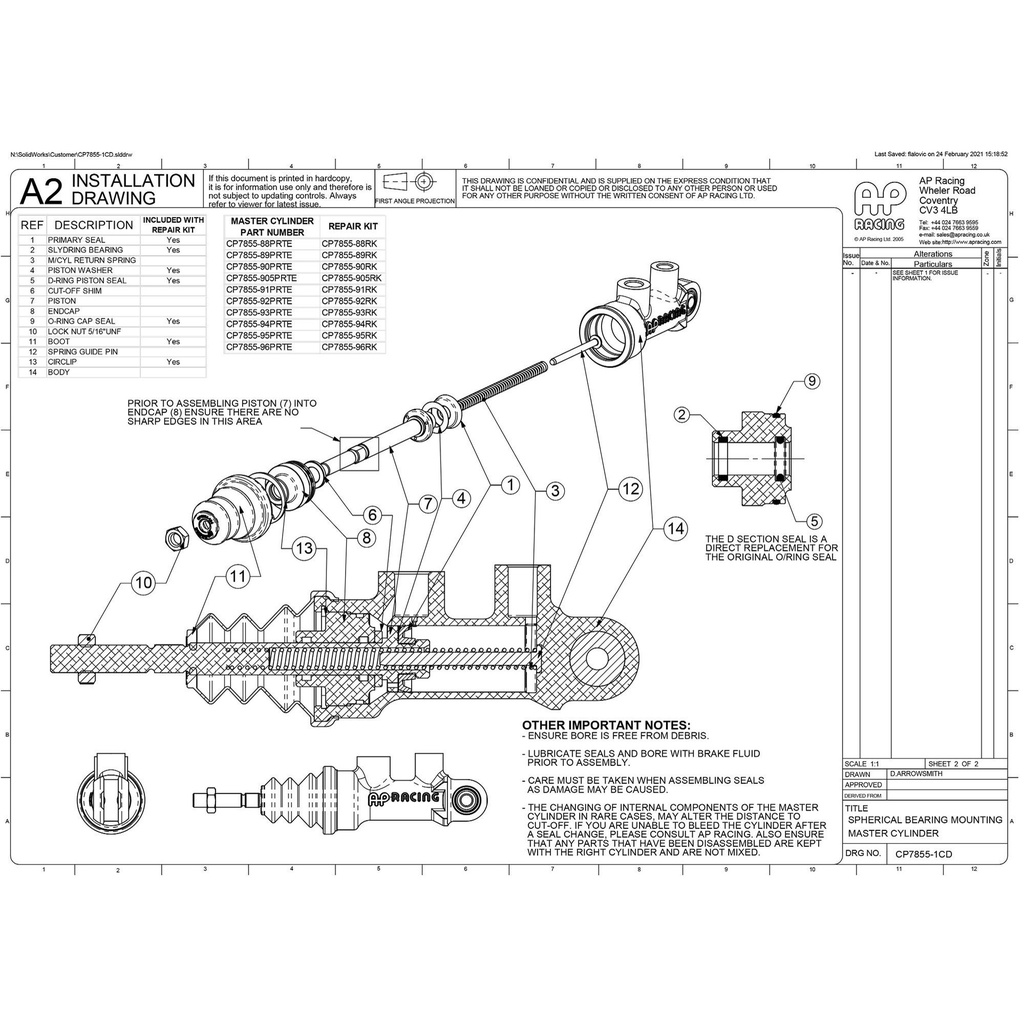

The range of cylinders available includes 14mm to 7/8" bore with a 30mm stroke and 15/16" to 1.00" bore with a 28mm stroke. Master cylinders which are .812" to 1.0" feature larger body dimensions, please check the technical diagram for full dimension details.
Inlet port: 7/16 UNF
Outlet Port: 3/8 UNF
Specifications
| Bore Size | 1.0 Inch, .937 (15/16 Inch), 14mm, 15mm, 16.8mm Bore, .625 (5/8) Inch, .700 (7/10) Inch, .750 (3/4) Inch, .812 (13/16) Inch, .875 (7/8) Inch |
| Brand | AP Racing |
