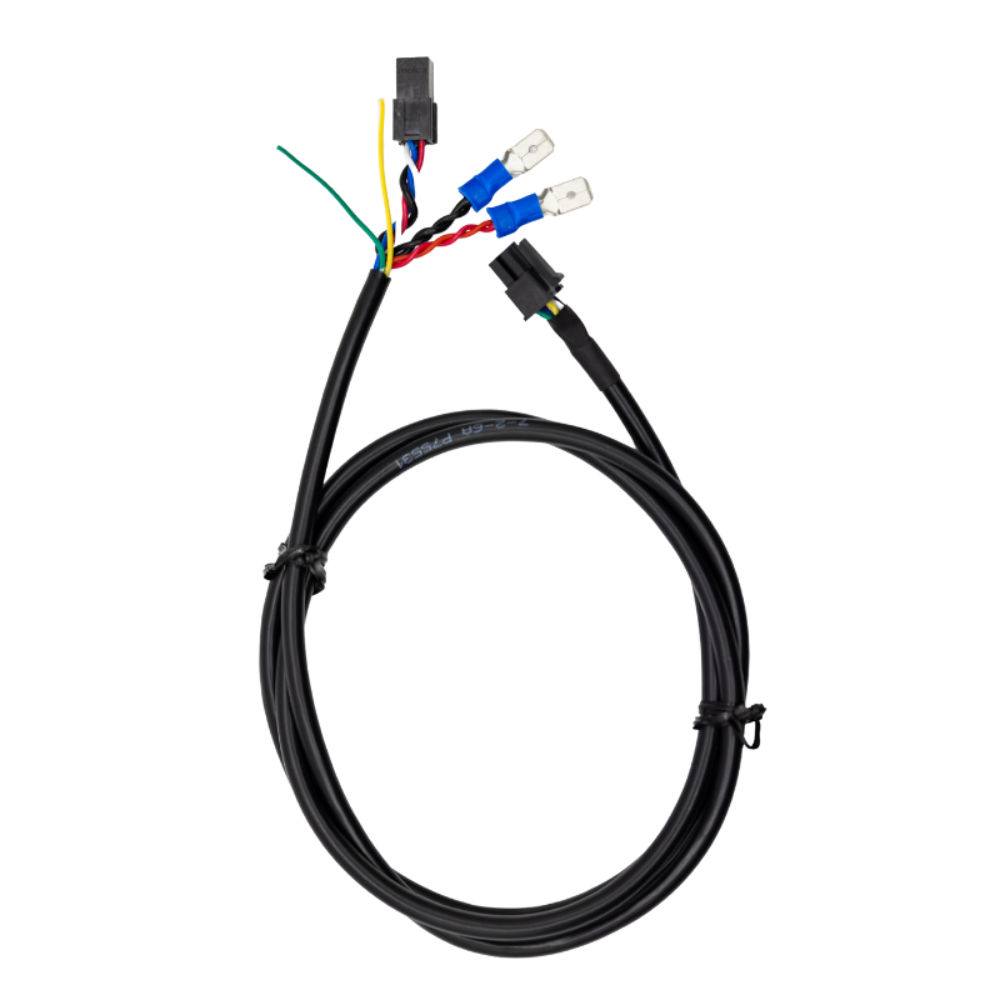

The Apture Wiring Kit simplifies the installation of the Apture RemoteGP by providing the required connections in a single ready-to-fit loom. It features a 6-pin mating connector for the RemoteGP, a 4-pin connector for the remote button and LED, plus flying leads for 12V power, ground and CAN connections, with pre-fitted male spade terminals for straightforward live and earth wiring.
The following features help make installation and integration more straightforward:
- 6-Pin RemoteGP Connector: A dedicated 6-pin mating connector is fitted to connect directly to the Apture RemoteGP unit, providing a secure electrical interface that reduces wiring preparation and helps achieve a tidy installation.
- 4-Pin Remote Button Connector: The integrated 4-pin connector is designed for the remote button and LED assembly, allowing you to connect the control interface quickly and maintain reliable communication between components.
- Flying Power and CAN Leads: Separate flying leads for 12V supply, ground and CAN connections provide flexibility during installation, enabling you to route and terminate the wiring according to your vehicle's electrical layout.
- Pre-Fitted Male Spade Terminals: The 12V and ground wires are supplied with male spade terminals already attached, reducing installation time and helping you make secure electrical connections with the supplied mating terminals.
- Complete Installation Loom: The combination of dedicated connectors and 1 metre long pre-prepared wiring removes much of the preparation work associated with building a custom harness, helping you complete the installation with fewer additional components.
You can achieve a cleaner and more organised RemoteGP installation by using a wiring loom designed specifically for the required connections. The pre-configured connectors and prepared power wiring help reduce setup time when integrating the system into your vehicle. As part of your vehicle electronics setup, this wiring kit is a practical addition that helps simplify the installation process and maintain a professional finish.
