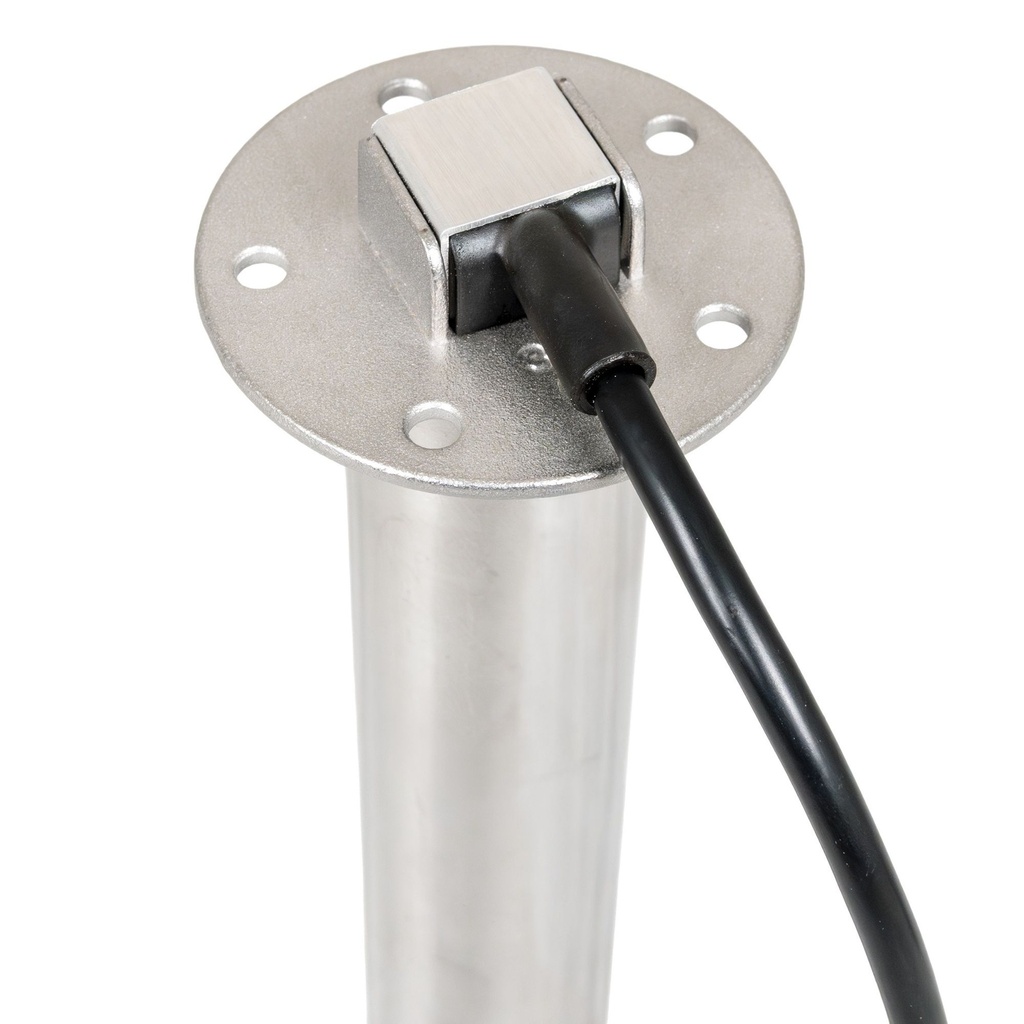

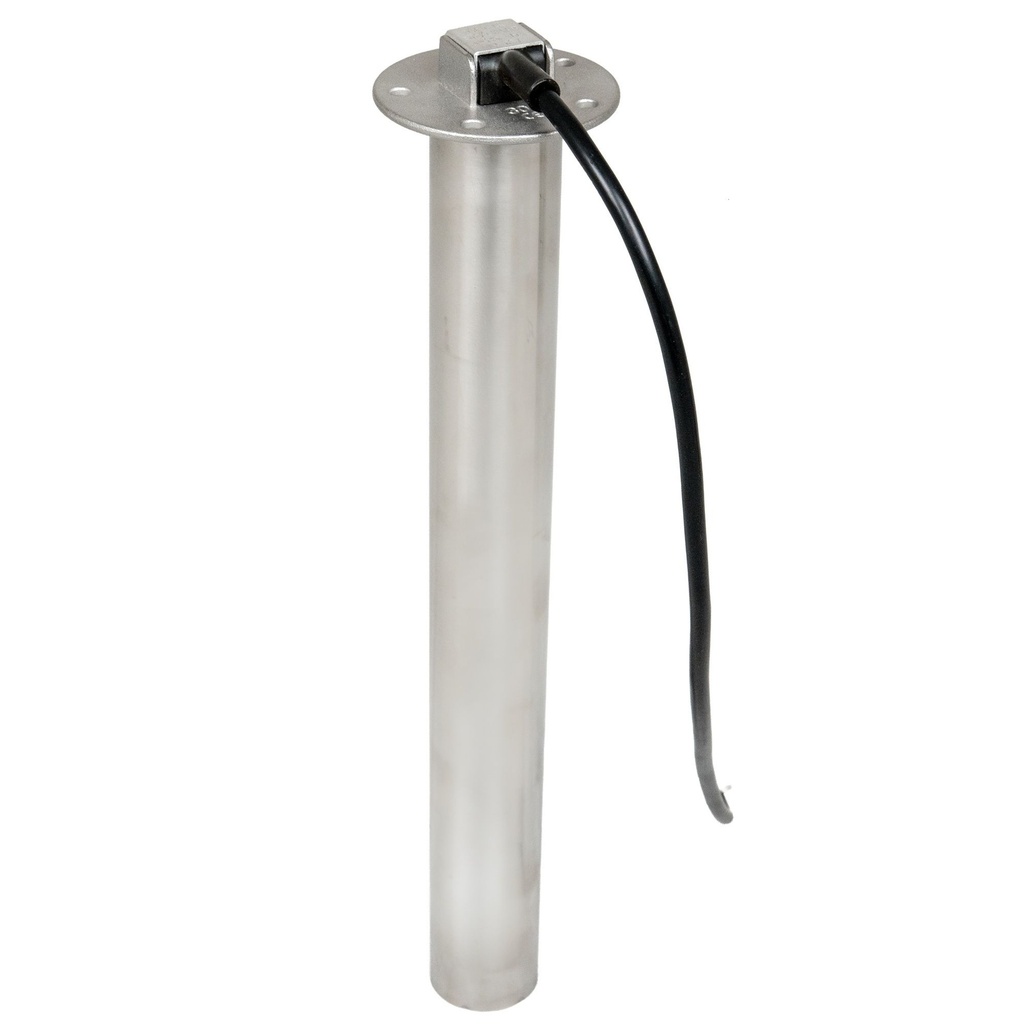

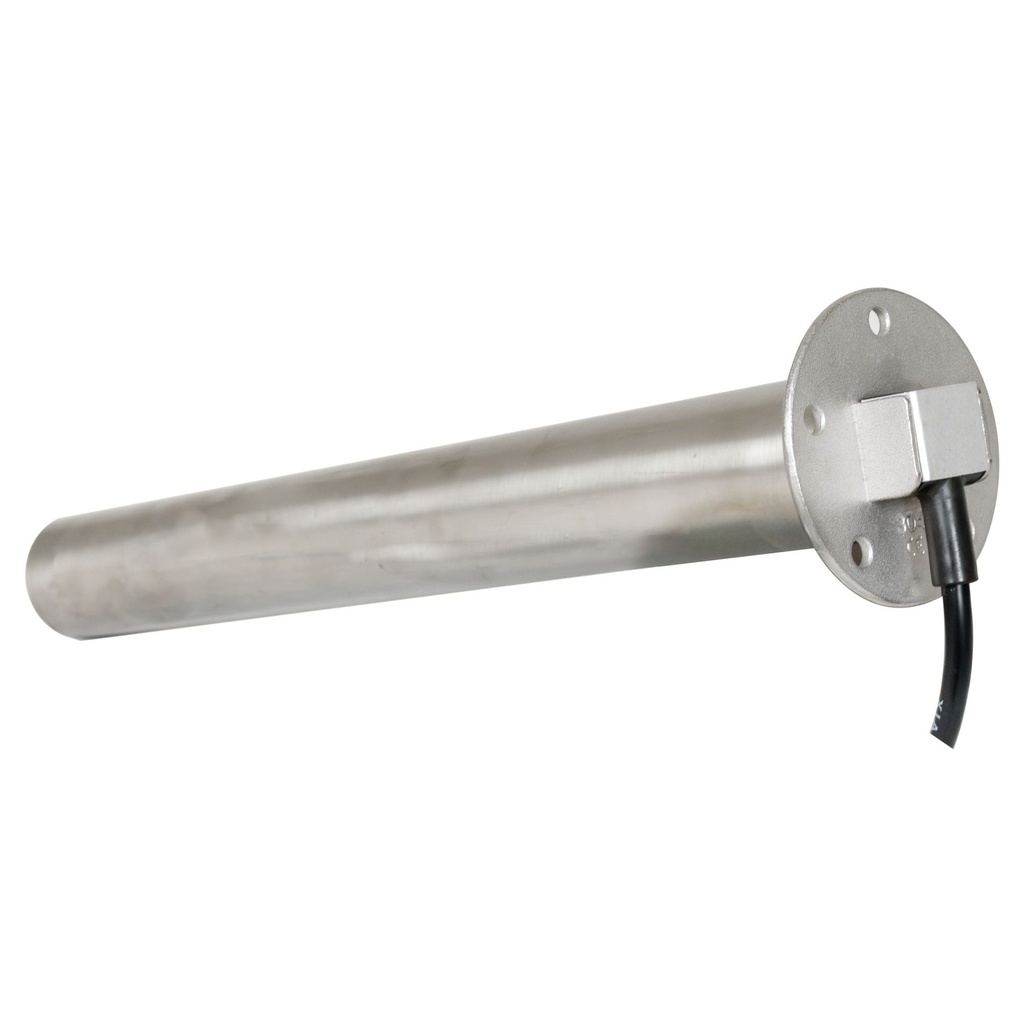

The ATL Float Style Fuel Level Sender provides an accurate fuel level reading by converting fuel height into a resistance signal for your dashboard gauge. It uses a sealed float within an aluminium cylindrical housing that travels along dual resistive wires to deliver stable readings, even in demanding tank conditions.
Discover the key features of this fuel level sender:
- Internal Float and Cylindrical Housing Design: The float is enclosed within a compact aluminium cylindrical body rather than mounted on an external arm, which reduces the space required inside the tank while removing concerns around float arm orientation, allowing you to install it easily in confined or irregular tank layouts and achieve consistent operation without alignment issues.
- Dual Resistive Wire Measurement System: The float travels along two resistive wires that translate its position into an electrical signal, providing a direct and reliable resistance output that ensures accurate fuel level data and consistent gauge readings during operation.
- Fuel Slosh Damping Construction: The enclosed float and guided wire system stabilise movement during rapid fuel transfer inside the tank, helping to reduce erratic readings caused by aggressive sloshing so you can monitor fuel levels with greater confidence in dynamic driving conditions.
- Wide Fuel Compatibility: The sender is designed for use with all fuel types, including petrol, diesel, and race fuels, allowing you to integrate it into a wide range of fuel systems without concern for material compatibility or performance degradation.
- 240–33 Ohm Resistance Output Range: Operating between 240 Ohms when empty and 33 Ohms when full, this sender provides a standardised signal range that works with compatible fuel gauges, ensuring clear and predictable readings across the full fuel level range.
- Gauge Compatibility Specification: The defined resistance range aligns with the ATL Fuel Level Dashboard Gauge EL-AD-068 and other gauges using the same specification, allowing you to connect directly to existing systems and maintain accurate readouts without additional calibration.
- SAE 5-Hole Mounting Flange: The sender features a standard SAE 5-hole bolt pattern, making it straightforward to install into a wide variety of fuel tanks and cells, which simplifies integration and reduces the need for custom mounting solutions.
- Multiple Length Options: Available in a range of lengths, the sender can be selected to match different tank depths, ensuring the float travels across the correct fuel range and delivers accurate readings tailored to your specific setup.
You get a stable and accurate way to monitor fuel levels, even in tanks where fuel movement is unpredictable or space is limited. The enclosed float design and resistive wire system help maintain consistent readings during demanding use, which supports better fuel management during driving or track use. This makes it a practical addition to your fuel system, helping you keep reliable visibility of fuel levels across a wide range of tank configurations.
