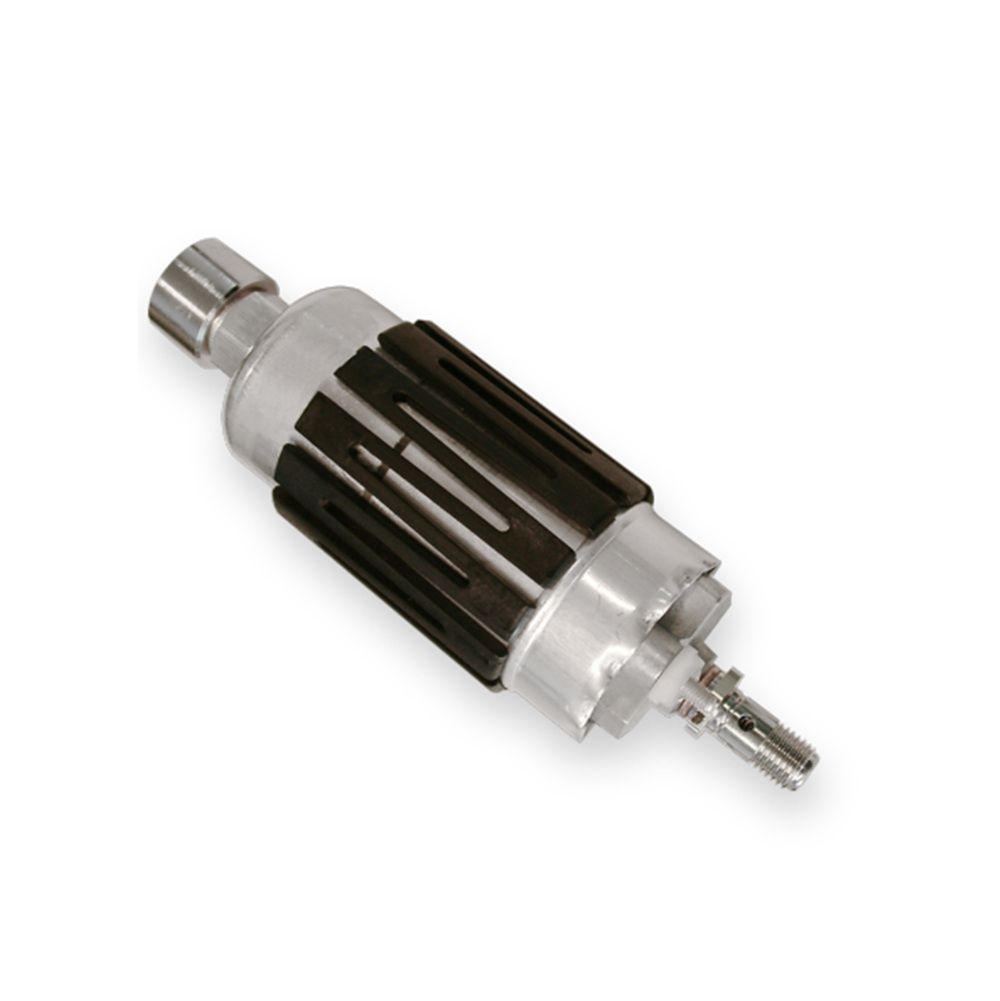

The Bosch FP200-7 is a high-pressure external fuel pump developed to replace the 0580.254.044 unit, offering reliable delivery for vehicles with increased fuel demands. Designed for in-line mounting, it features enhanced compatibility with modern ethanol-based fuels and delivers high-volume flow rates suitable for tuned engine applications.
Discover the key features of this fuel pump and how they support performance, reliability and compatibility:
- High Flow Capacity: Delivers up to 200 L/h at 7 bar and 270 L/h at 5 bar using a rotary vane design, providing consistent fuel supply to meet the demands of high-performance engines and prevent fuel starvation under load.
- Ethanol Fuel Compatibility: Supports diesel fuels and modern ethanol petrol blends up to E10 and can operate with E100 on a reduced service life, offering broad fuel compatibility that suits both standard and biofuel applications while helping you maintain performance on varied fuel types.
- Internal Pressure Limiting Valve: Includes a factory-fitted internal pressure relief valve rated at 8–10 bar, protecting the fuel system from overpressure and maintaining stable delivery under varying conditions.
- External 300 Micron Pre-Filter: Fitted with a coarse stainless steel pre-filter at the inlet to trap debris before it enters the pump, helping reduce wear and extending the working life of the pump and downstream components.
- M18 Inlet and M12 Banjo Outlet Fittings: Retains the same inlet and outlet thread sizes as the original 044 unit for seamless integration, allowing for quick installation using existing fittings without additional adapters or modifications.

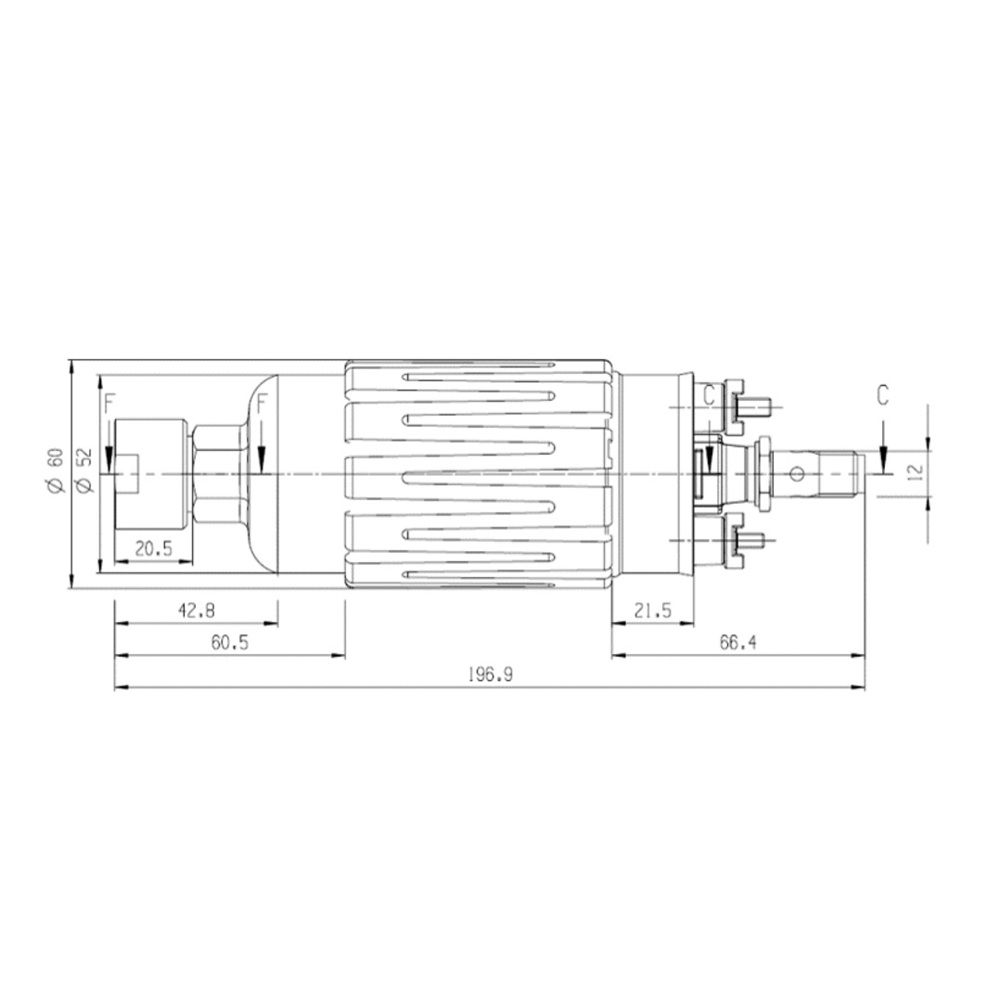

- Compact In-Line Design: Measures 60 mm in diameter and 197 mm in length with a 750 g weight, allowing you to mount it externally along the chassis or fuel system where space is limited while maintaining accessibility for inspection or replacement.
- Proven Bosch Engineering: Built with OE-grade components and electrical connections for dependable running, enabling continuous use in demanding environments without loss of flow or pressure over time.
This pump is well-suited to engine builds where increased fuel delivery is essential for maintaining power and drivability under load. With its direct-fit format and compatibility with modern fuels, it’s a valuable addition to your vehicle’s fuelling setup. It offers a smart upgrade route when moving beyond the limitations of factory fuel systems, especially in tuned or high-demand applications.
Specifications:
- Fittings In: M18 x 1.5 Female
- Fittings Out: M12 x 1.5 Banjo One Way Valve Stub
- Voltage: 12v
- Flow (Max): 270 Ltr/Hr
- Flow @ 7 Bar (101psi): 200 Ltr/Hr
- Flow @ 5 Bar (73psi): 270 Ltr/Hr
- Length : 197mm
- Diameter : 60mm
