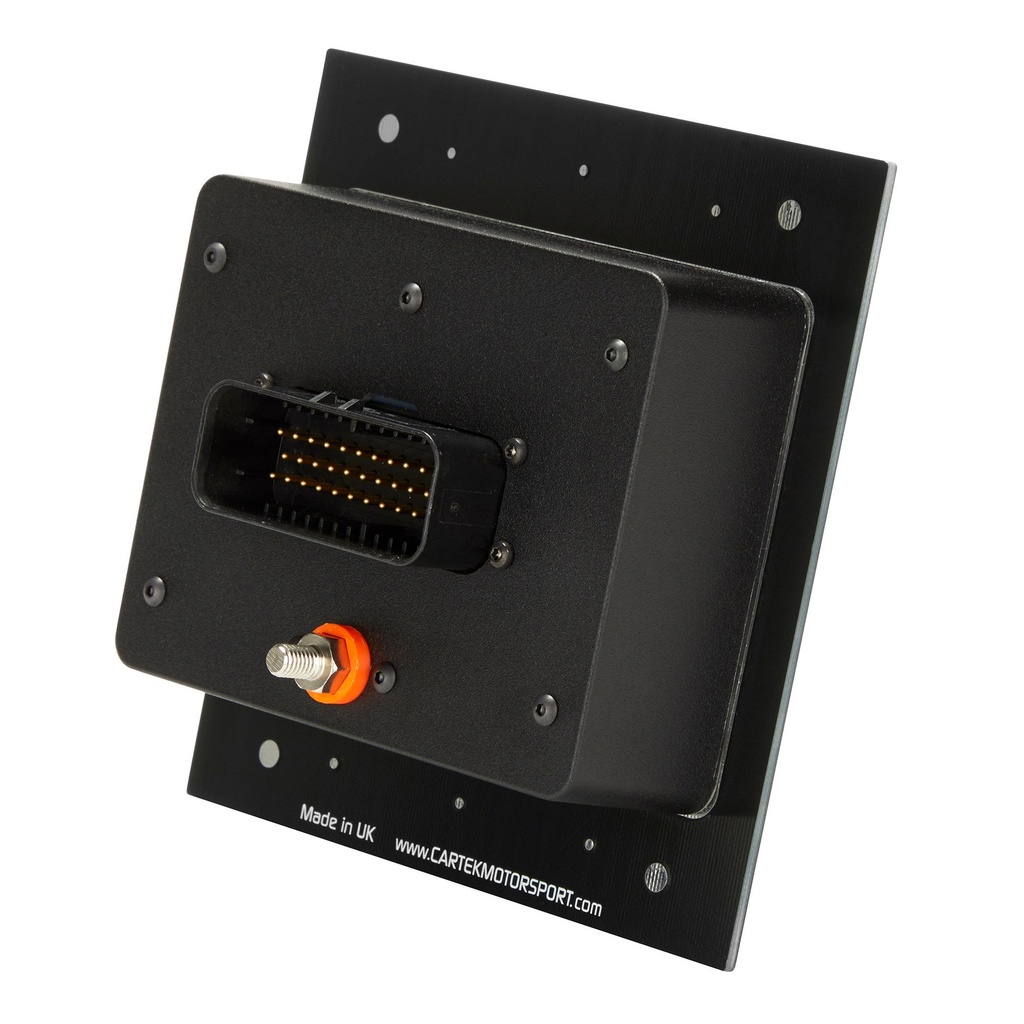

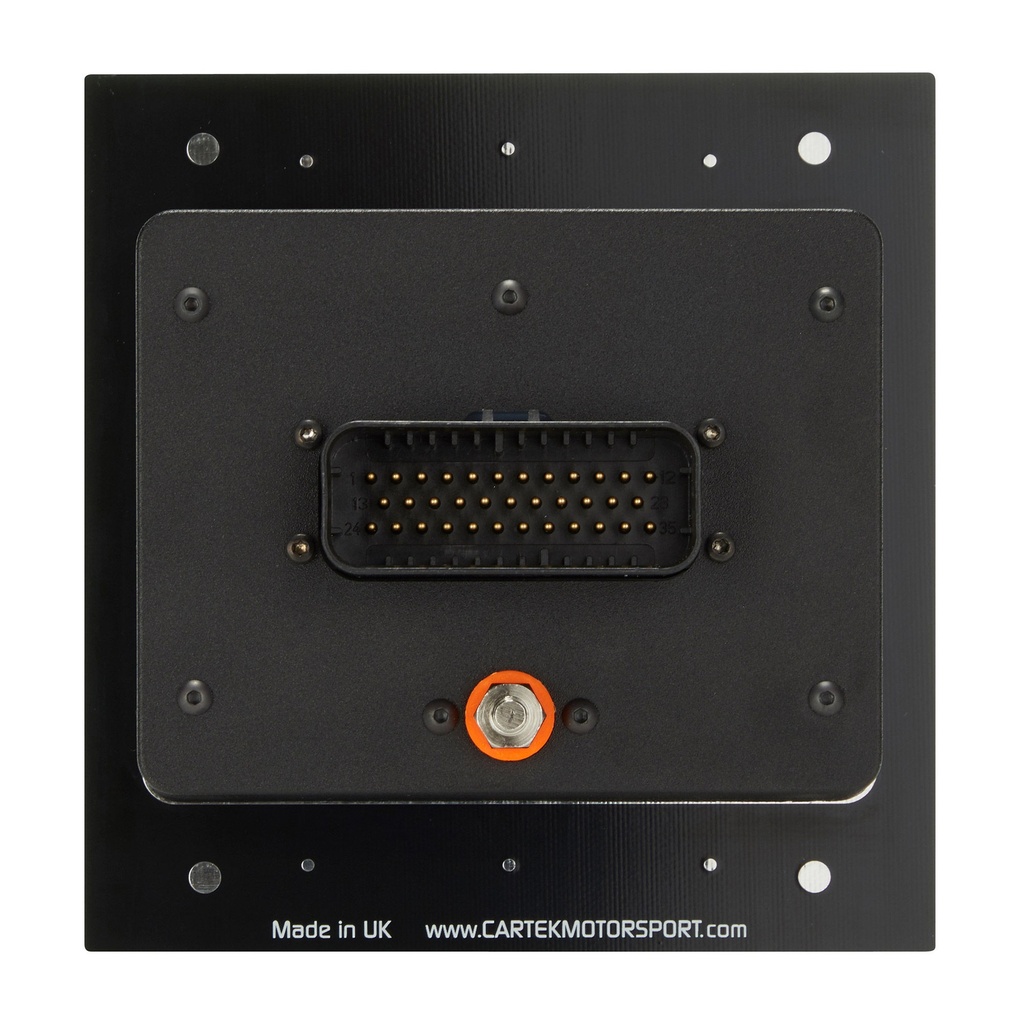

The Cartek Power Distribution Panel is a fully integrated, fully electronic solution to power distribution in race and rally cars. Designed to replace 8 fuses, relays and switches as well as a variety of control systems, these units therefore greatly simplify the wiring, reducing build time, saving weight and maximising reliability.

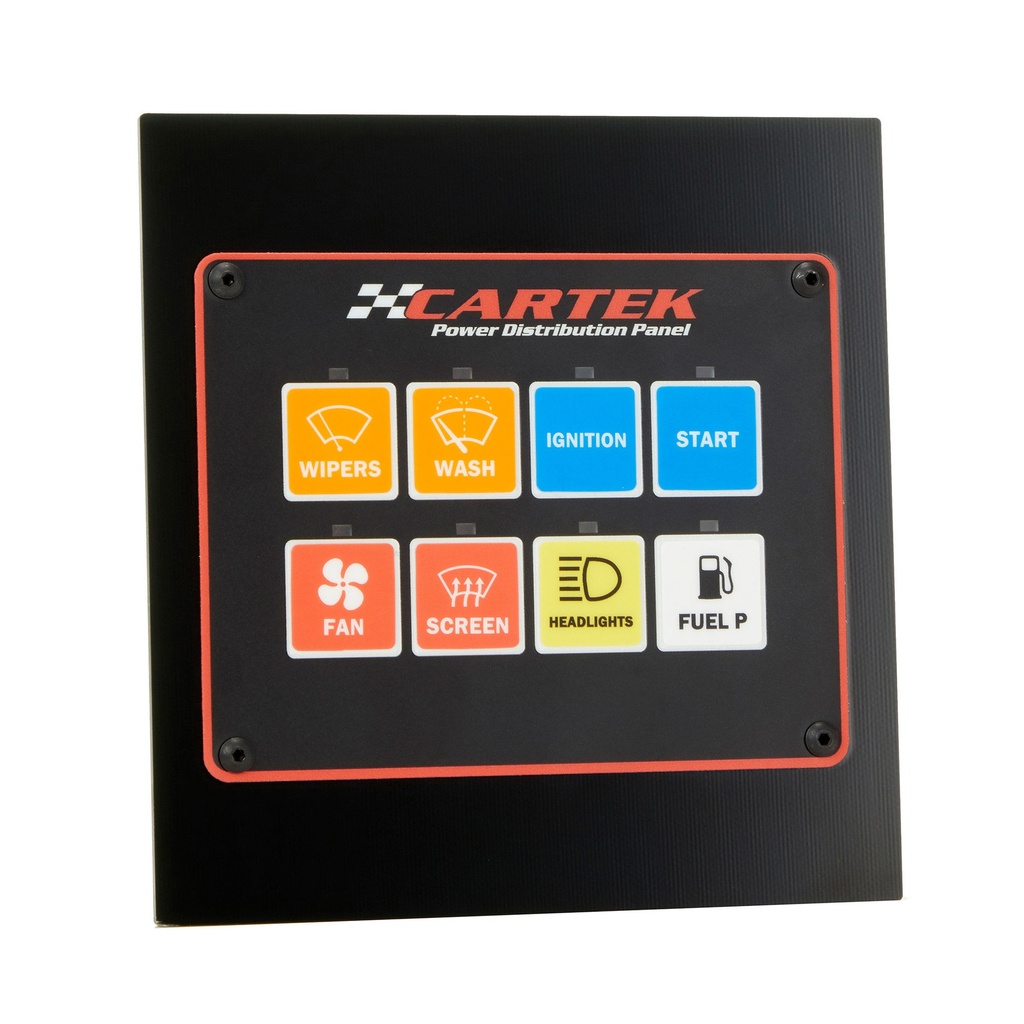

The Power Distribution Panel takes +12V power directly from the battery then distributes this to all the electrical systems around the car. The 8 power outputs from the Power Distribution Panel are controlled from the front panel push buttons or from external switches and inputs. All 8 power outputs are fully protected with 6 selectable current settings thereby completely removing the need for fuses or circuit breakers. The Function of each Channel is also selectable from a choice of 8 different options.
- 8 User Configurable Channels, selectable current settings of 5, 10 or 15 Amps. Combine two channels together for 20, 25 or 30 Amps. No laptop required
- Selectable functions such as momentary action (starter motor, washer pump etc), latching (with memory) - latching (without memory), latching with time delay (heated screen), flashing (indicators etc), toggling (headlights high beam/low beam)
- Over current and short circuit protection - no fuses or relays needed
- 1 Battery Isolator XR inputs - allowing the battery Isolator XR to shut down the Power Distribution Panel
- 8 Momentary switch Inputs - allowing any channel to be operated by an additional switch or the Cartek wireless control system
- 8 ECU inputs – allows the ECU to run on channels such as fuel pumps
- 4 Dedicated function inputs - flash input for lights, wash input for wipers, wiper park position etc
Unlike most PDM's on the market the Cartek Power Distribution Panel does not need a laptop to program the configuration. Pre-set options for functionality and current settings can be chosen by going through a simple process via the switch panel. This saves the user time and any potential labour costs in setting it up. A choice of pre-crimped or loose crimped connector kits are available separately to make the installation of the Power Distribution Panel easier.
The Distribution Panel measures W140mm x H145mm and weighs 450g
