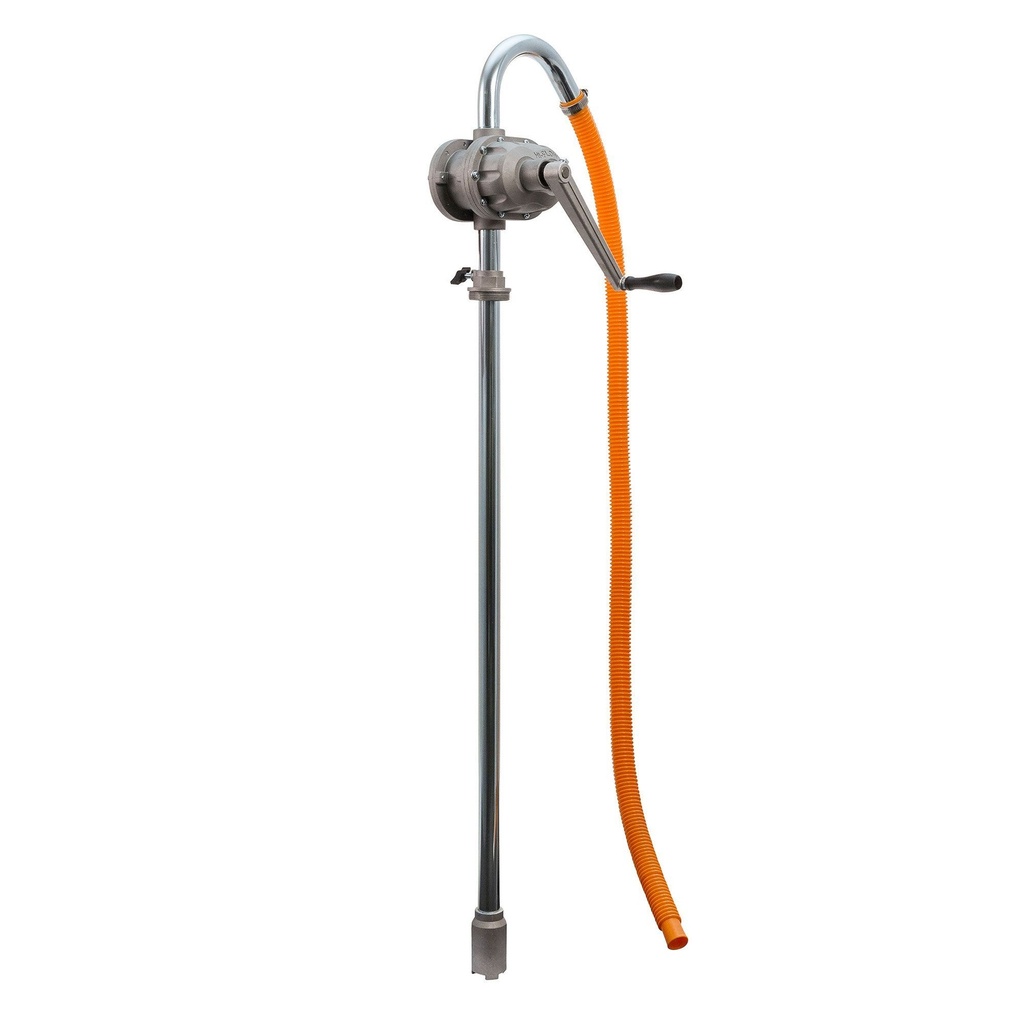

This rotary hand pump is suitable for use with drum capacities up to 205 litres and is capable of delivering up to 100 litres per minute with ease via the use of twin rotor technology.

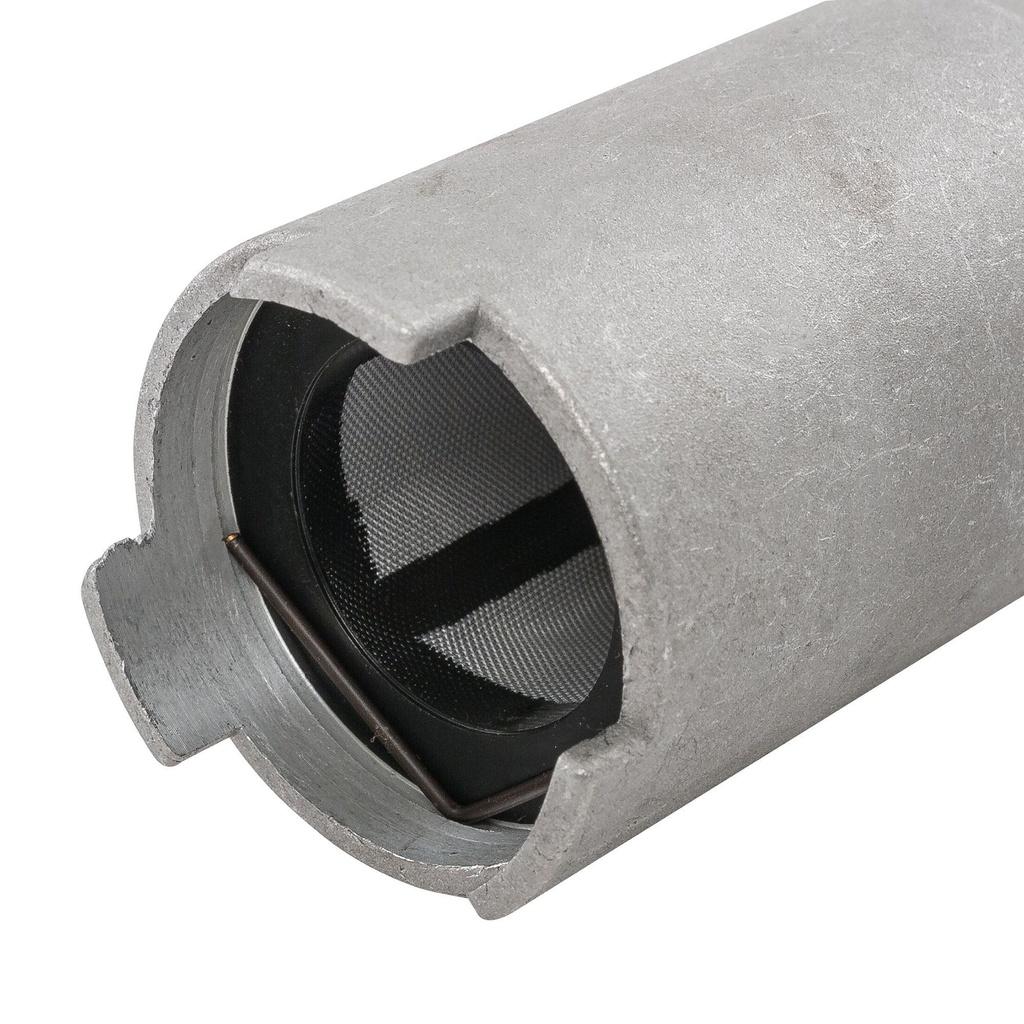

- Pickup pipe is in 3 sections to suit different capacity drums up to maximum 205 litres
- Allows for quick and easy fluid transfer
- 100 Litres per minute fluid delivery
- Fits most common types of steel drum
- Suitable for use with petrol, methanol and low viscosity oils

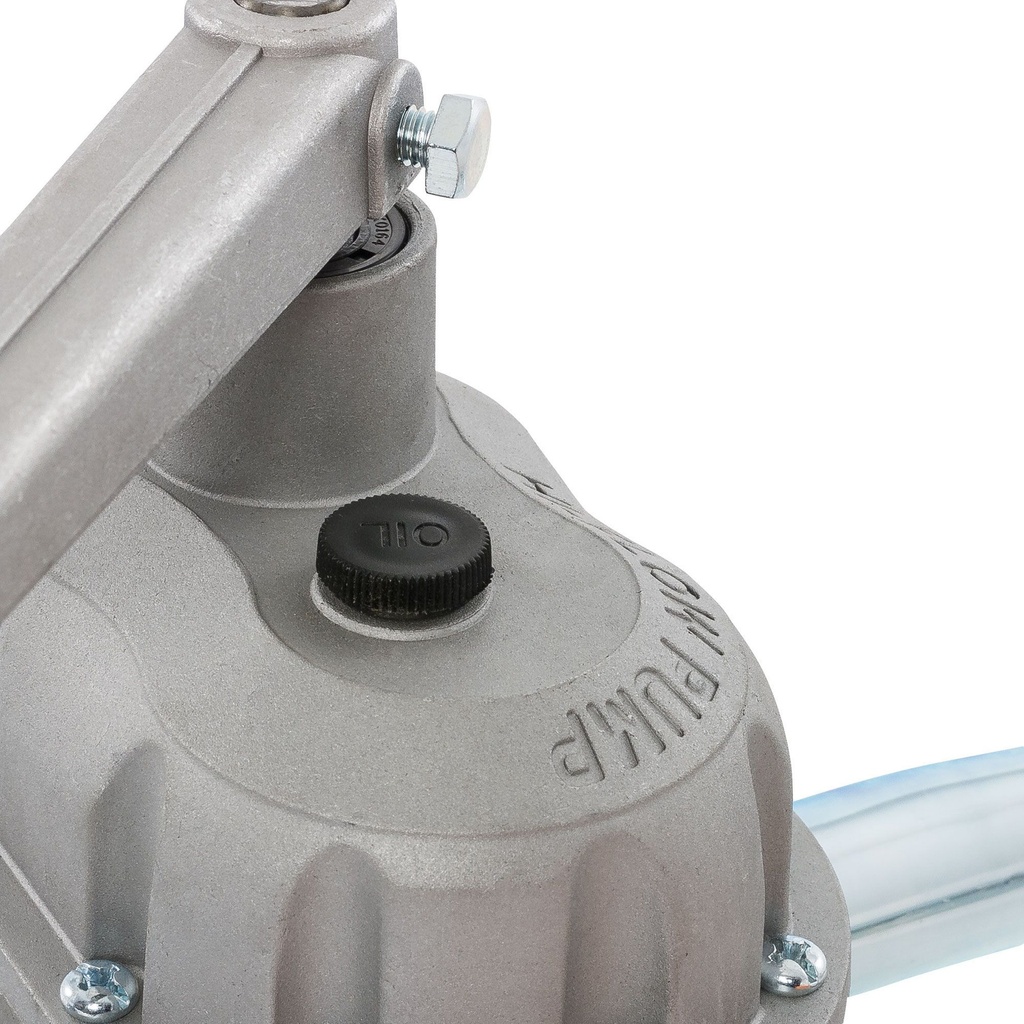

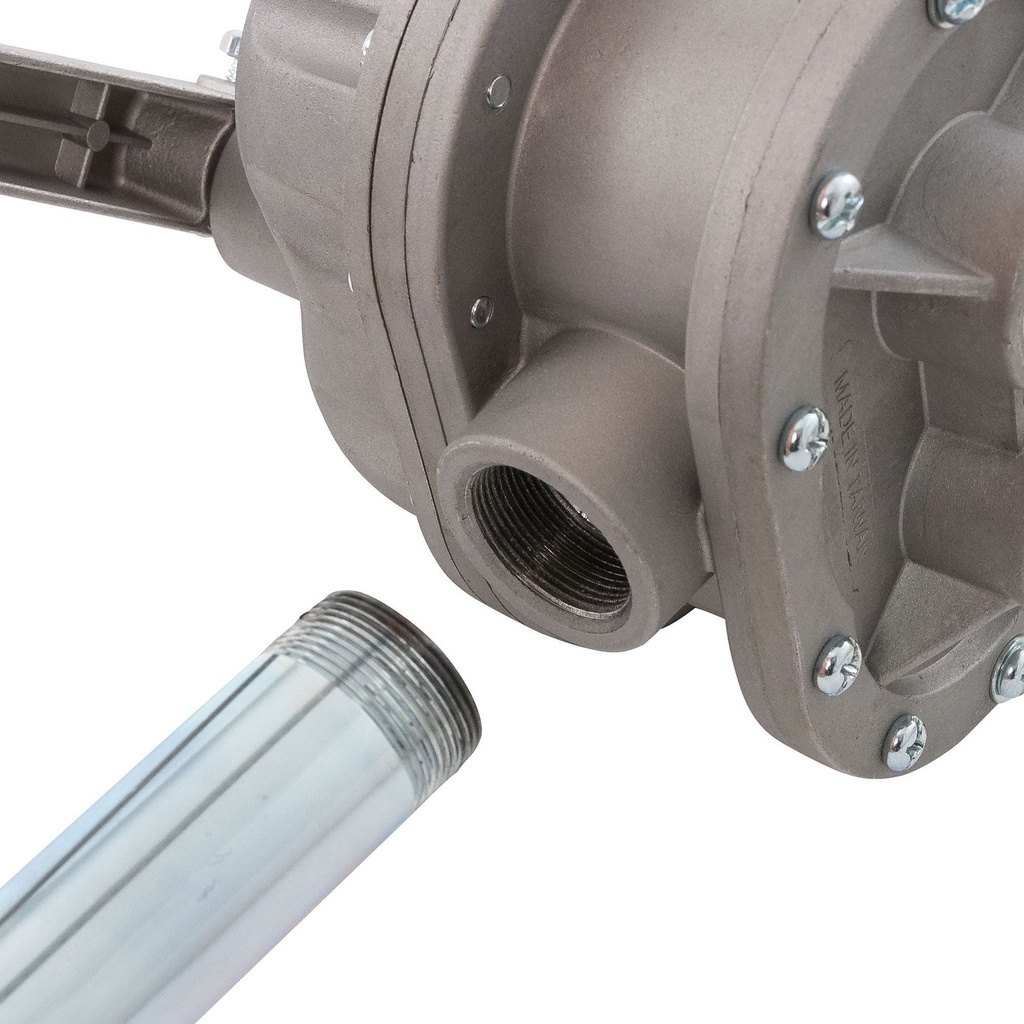

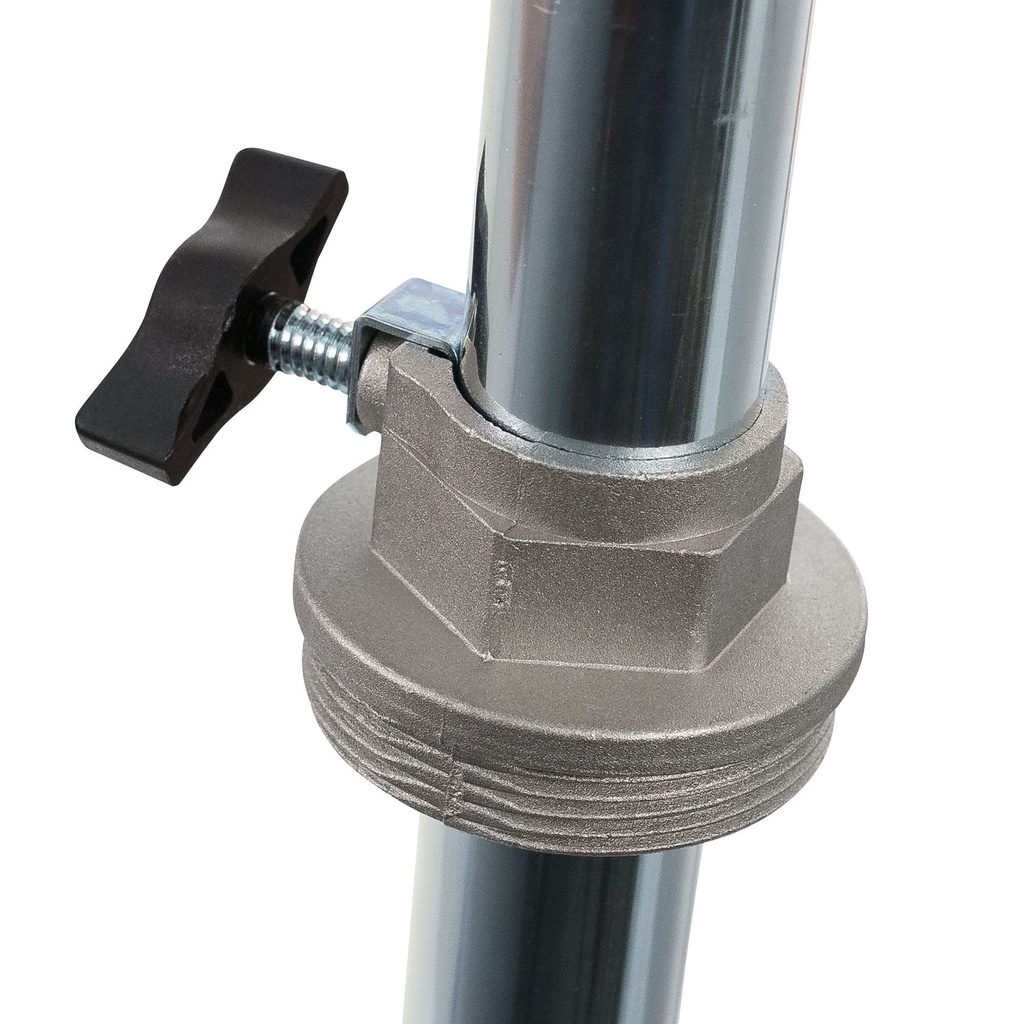

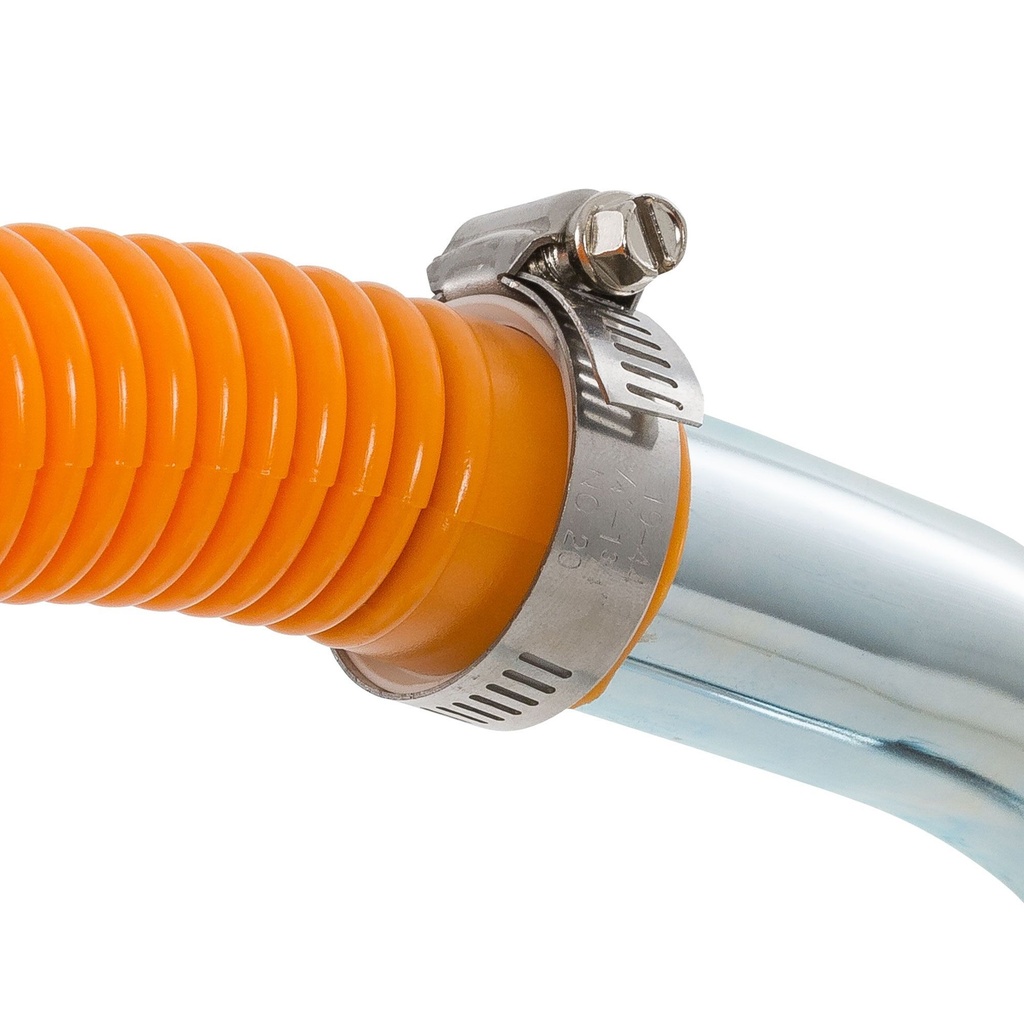

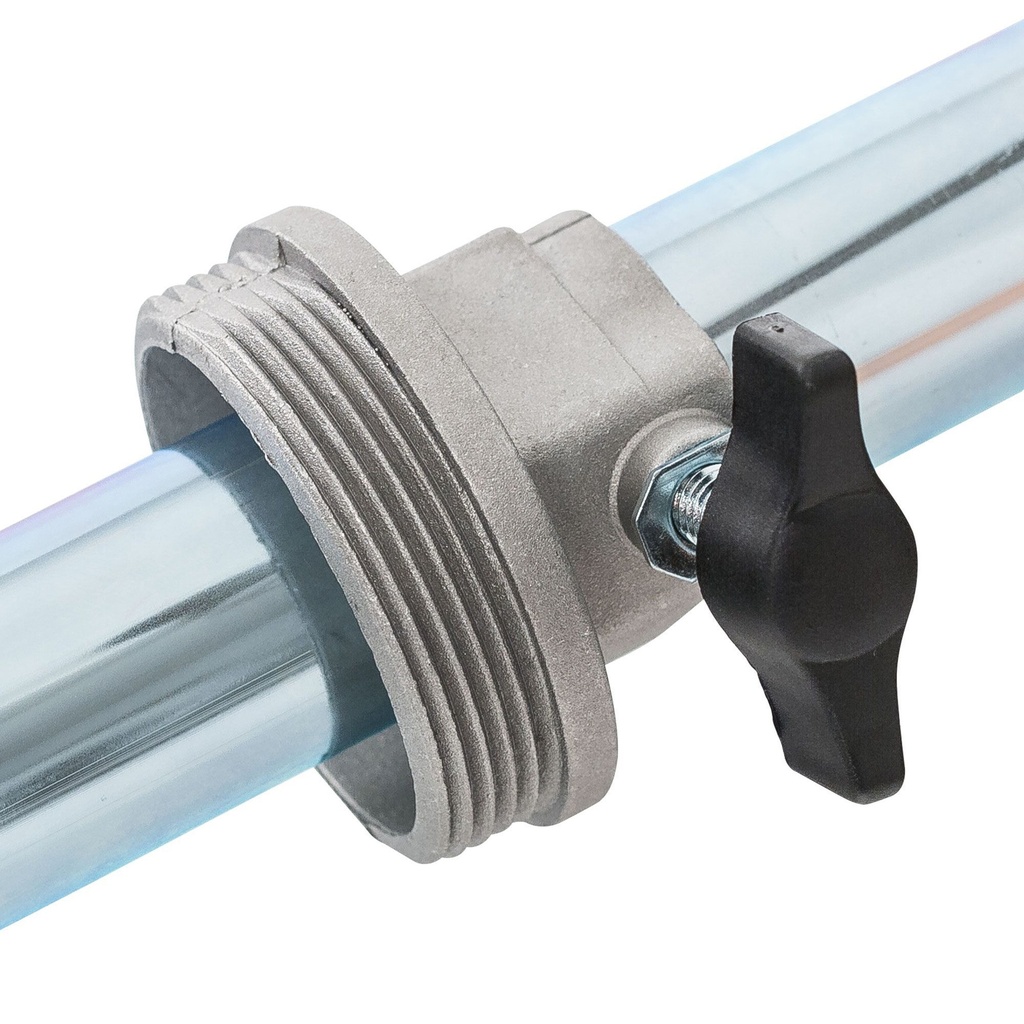

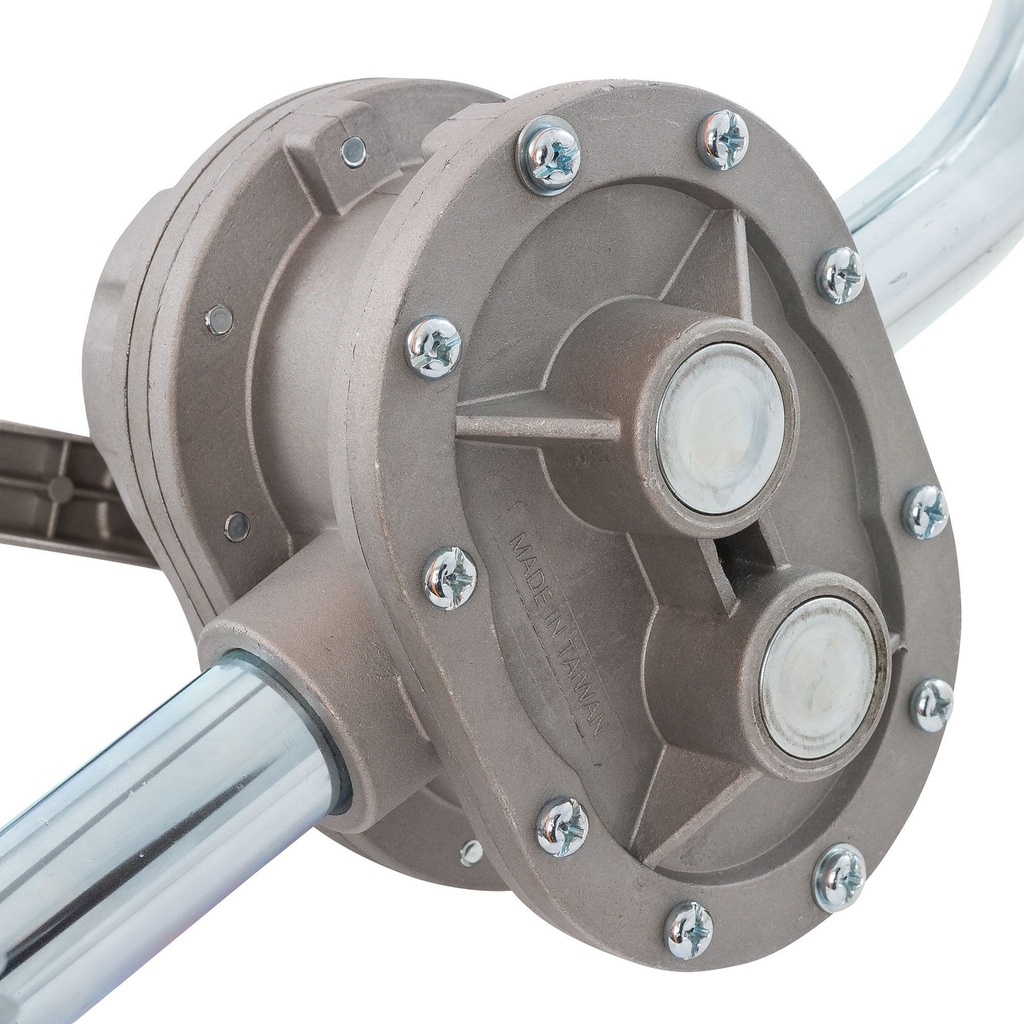

The pump body is constructed from lightweight aluminium with a steel rotor and riser. The spout, which can be removed, has an outside diameter of 32mm. A 2" BSP bung adaptor allows the pump to be fitted onto the most common types of steel drums. The pickup pipe splits into 3 sections to allow it to fit various depth drums.
Suitable for use with petrol, methanol and low viscosity oils.
Specification:
Pump Type - Rotary Vane
Flow - 100 litre/min (approx)
Maximum fluid temperature - 60°C
Bung Adaptor - 2" BSP Male
Suction Tube Length - 101cm max
Inlet - 1-1/4" OD
Outlet - 1-1/4" OD
Maximum Viscosity - 1000mPas
