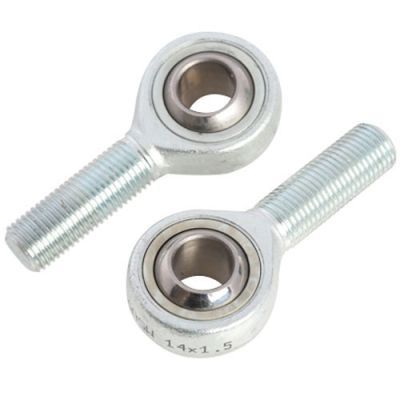

Fluro GAXSW Series heavy duty maintenance free male rod ends. With metric threads, made from zinc plated heat-treated steel and with PTFE liners for maintenance free use.
Materials:
- Housing: Heat-treated steel to 42CrMo4, Aisi 4140, forged
- Insert: Free-cutting steel to 9SMnPb28K, 12L13, with PTFE liner bonded to the inner surface
- Ball: Bearing steel to 100Cr6, Aisi 52100, hardened, ground, polished
- Thread sizes: M6 X 1.00mm, M8 X 1.25mm, M10 X 1.5mm, M12 X 1.75mm, M14 X 2.0mm, M16 X 2.0mm, M18 X 1.5mm & M20 X 1.5mm
Size Chart:
