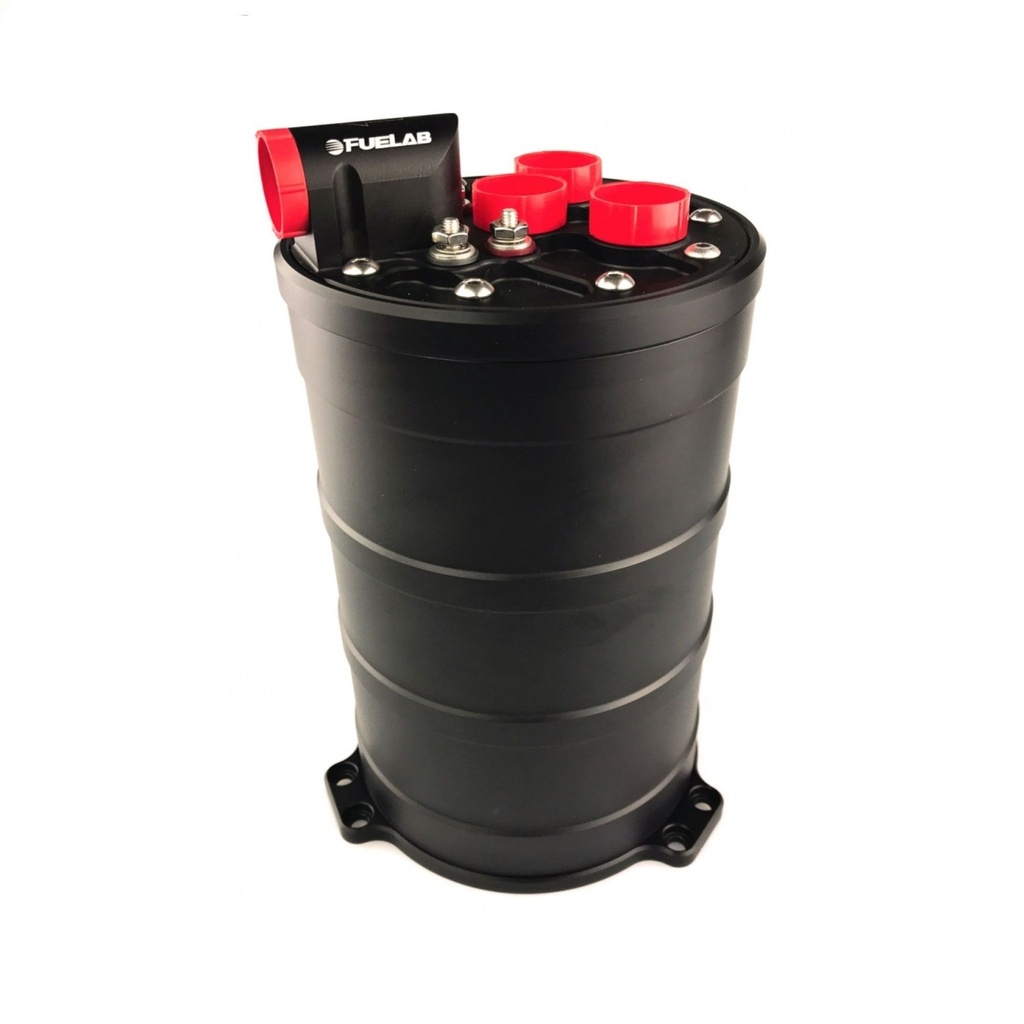

The Fuelab surge tank system is an all in one solution to preventing fuel starvation due to sloshing. A small reservoir of fuel is maintained in the system to ensure the internal high pressure pump never runs dry. The system can be fed via a low pressure / low flow pump from the main fuel tank.
- Prevents fuel surge which can potentially ruin an engine
- Single or dual Internal high pressure / high flow fuel pumps (up to 680 Litres /hr flow rating)
- Compatible with pump fuel, racing fuel and E85
The housing is constructed from billet aluminium with -8 AN ports. A range of adaptors to suit various plumbing requirements are available separately.
Available in a range of options:
Option 1 - 2.1 Litre capacity tank, single 340 litre/hr fuel pump
Option 2 - 2.1 Litre capacity tank, dual 340 litre/hr fuel pumps (680 litre/hr max fuel flow)
Option 3 - 2.7 Litre capacity tank, single 340 litre/hr fuel pump
Option 4 - 2.7 Litre capacity tank, dual 340 litre/hr fuel pumps (680 litre/hr max fual flow)
Dimensions: 2.1 Litre - 129mm diameter x 235mm high / 2.7 Litre - 129mm diameter x 290mm high
Please Note: This system requires a return line to the fuel tank.
An accessory kit suitable for mounting the Fuel surge tank system is available separately, Click Here
All Fuelab products are covered by a ‘Forever Fixed’ warranty. The warranty covers the original purchaser against all material or workmanship defects. Fuelab products are made to the highest standards and have a warranty that covers them for life.
