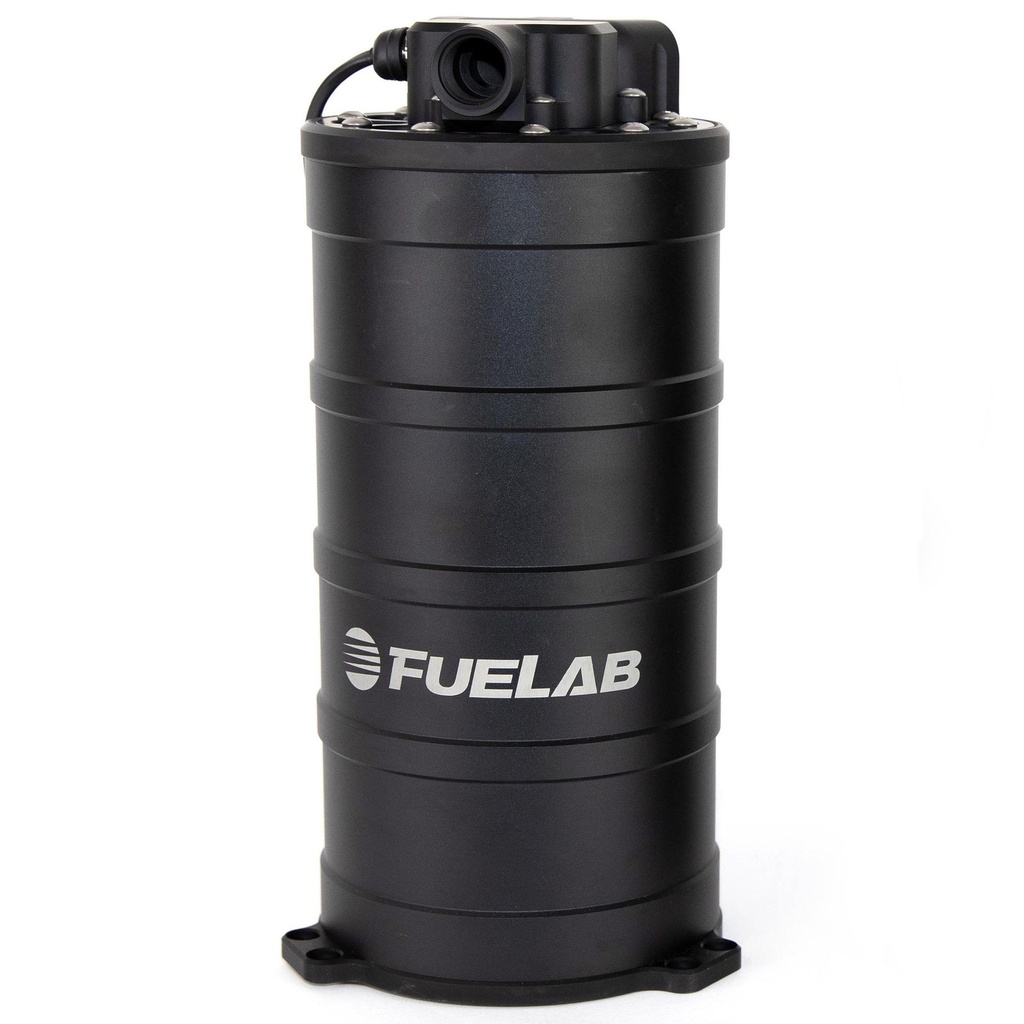

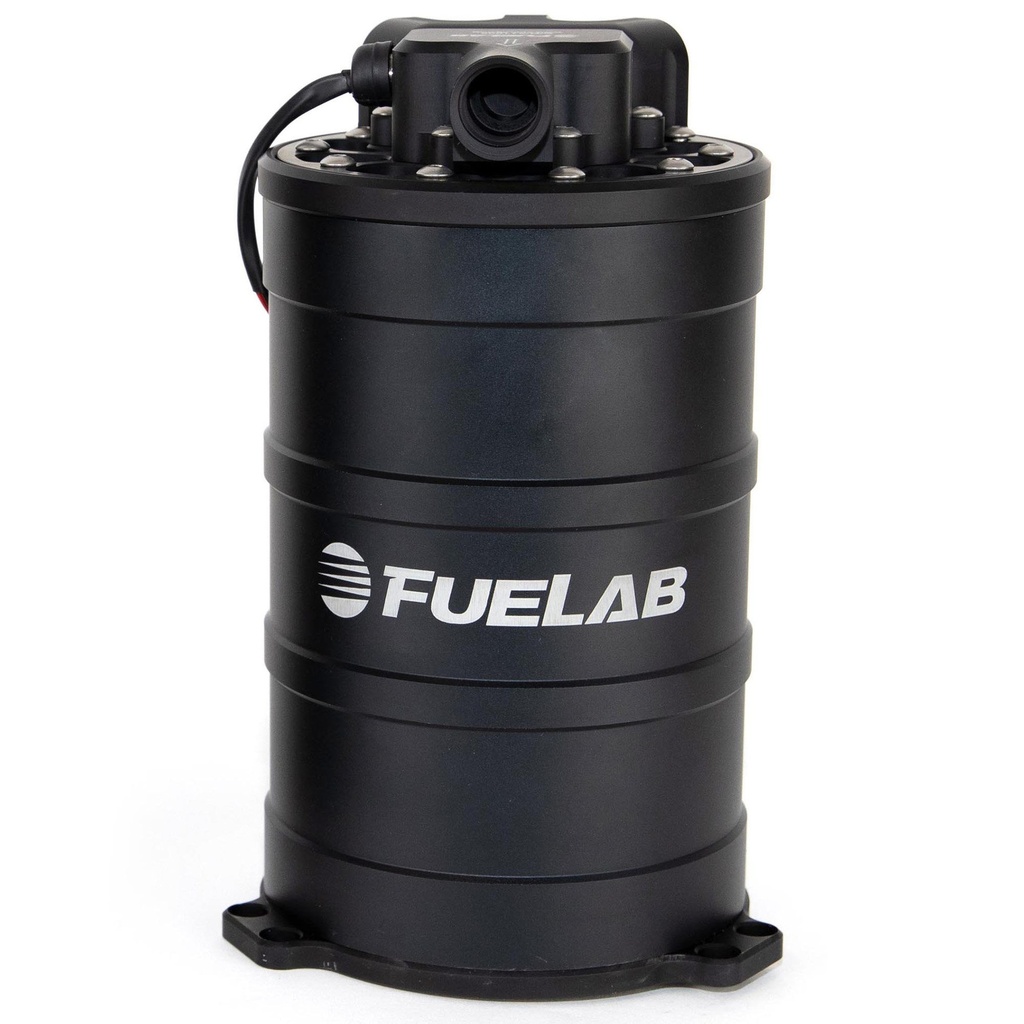

The Fuelab surge tank system is an all in one solution to preventing fuel starvation due to sloshing. A small reservoir of fuel is maintained in the system to ensure the internal high pressure pump never runs dry. The system can be fed via a low pressure / low flow pump from the main fuel tank.
- Prevents fuel surge which can potentially ruin an engine
- Internal high pressure / high flow fuel pump (up to 1250 BHP rating)
- Integrated pump controller with PWM speed control
- Compatible with pump fuel, racing fuel and E85
The included fuel pump is a high capacity twin screw brush-less design for maximum performance and reliability. The integrated PWM speed controller removes the necessity for external pump controllers. The housing is constructed from billet aluminium with -8 AN ports.
Available with 3 different specification of fuel pump:
Up to 625 BHP - 250 ltr / hr @ 45 Psi. Max pressure 125 Psi
Up to 850 BHP - 350 ltr / hr @ 45 Psi. Max pressure 125 Psi
Up to 1250 BHP - 500 ltr / hr @ 45 Psi. Max pressure 125 Psi
Two housing sizes are available:
235mm high, 2.1 litre capacity
290mm high, 2.7 litre capacity
Please Note: This system requires a return line to the fuel tank.
An accessory kit suitable for mounting the Fuel surge tank system is available separately, Click Here
All Fuelab products are covered by a ‘Forever Fixed’ warranty. The warranty covers the original purchaser against all material or workmanship defects. Fuelab products are made to the highest standards and have a warranty that covers them for life.
