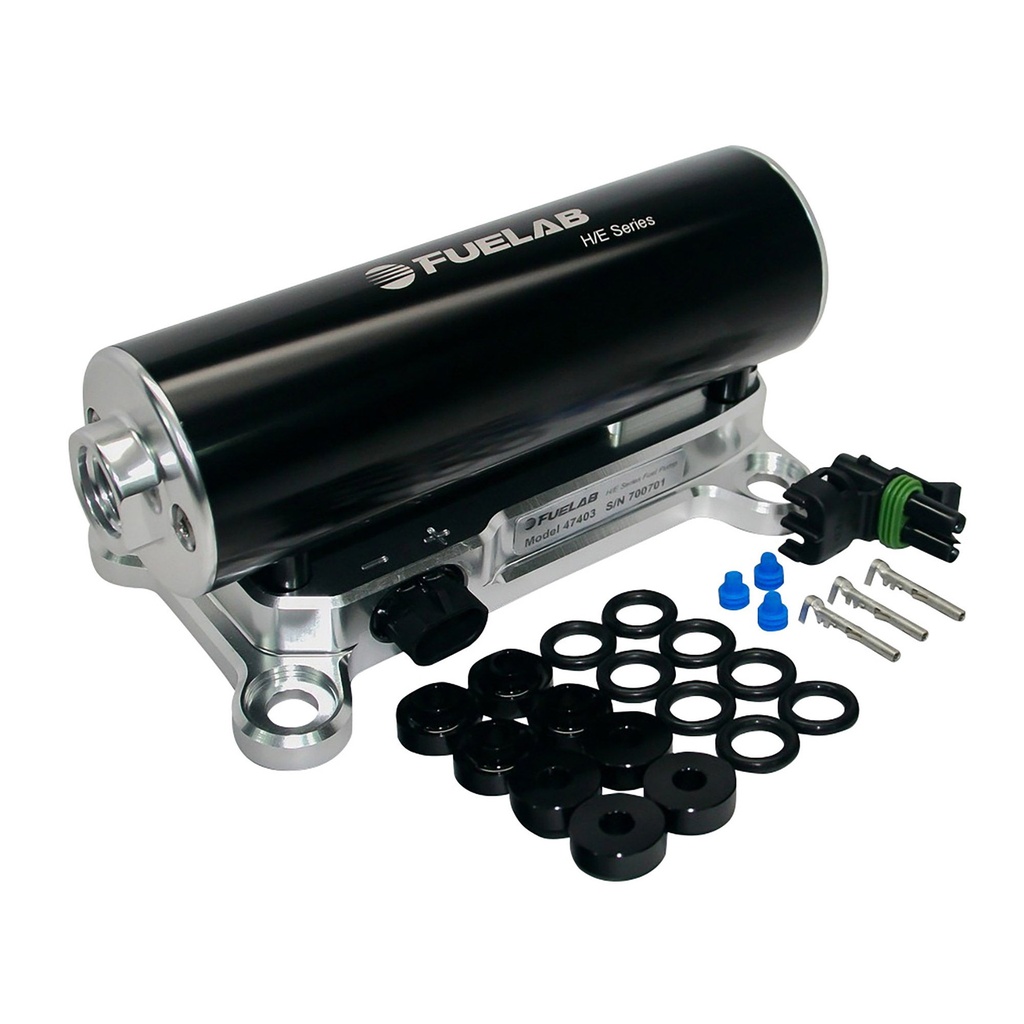

The Fuelab H/E series fuel pumps represent the latest innovation in brushless technology. Designed for external use these lightweight pumps feature a twin screw rotor pumping mechanism capable of producing huge flow rates to satisfy the demands of extremely high power engines. Suitable for high pressure (EFI) applications.
- Huge fuel flow rates (up to 500 Ltr/hr), suitable for engines up to 1250bhp
- Superior priming capability
- Compatible with petrol (pump and race), diesel, methanol and ethanol (inc E85)
- Lightweight (less than 3lb), ideal for competition cars where weight saving is paramount
Fuelab H/E series brushless fuel pumps are constructed from billet aluminium to allow them to withstand the rigors of Motorsport use. A pump controller is integrated in the housing so there is no requirement for an external controller. A wet motors design means there are no shaft seals to wear out, making the pump more reliable with a longer service life.
There are a number of options in the range depending on the fuel demands of your engine:
Up to 625 bhp - 250 ltr/hr flow rate @ 45 psi. Max pressure 125 psi
Up to 850 bhp - 350 ltr/hr flow rate @ 45 psi. Max pressure 125 psi
Up to 1250 bhp - 500 ltr/hr flow rate @ 45 psi. Max pressure 125 psi
All pumps in the range feature AN -8 female ports for both inlet and outlet and are compatible with electrical systems from 8-16v.
Dimensions: 188mm long x 83mm diameter (including mounting base)
Weight: Under 3lb
All Fuelab products are covered by a ‘Forever Fixed’ warranty. The warranty covers the original purchaser against all material or workmanship defects. Fuelab products are made to the highest standards and have a warranty that covers them for life.
