The Fuelab in-tank brushless fuel pump kit is designed for easy installation and has everything you need to get up and running. The kit includes a 496 series brushless fuel pump, 72002 PWM pump controller, hermetic feed through, pre filter, wire leads and hardware.
- Compatible with petrol, E85 and methanol
- Suitable for low pressure carburettor or high pressure EFI use
- Includes everything needed to install a brushless high flow fuel pump in an OE module
- Compatible with most aftermarket ECU's with PWM output frequency
The 496 series brushless fuel pump bring high flow brushless technology in a compact size into the fuel tank. They are designed for high flow, high pressure applications and are easily retro fitting into an OE pump module. The electronic brushless pump controller is manufactured from billet aluminium and is designed to operate the brushless fuel pump. A strong and compact unit that can operate up to 20 amps and 16 volts.
Specification (Power Rating):
- Up to 850bhp - 350ltr/hr flow rate @ 3 bar. Maximum pressure 8.6 bar (125 psi)
- Up to 1250bhp - 500ltr/hr flow rate @ 3 bar. Maximum pressure 8.6 bar (125 psi)

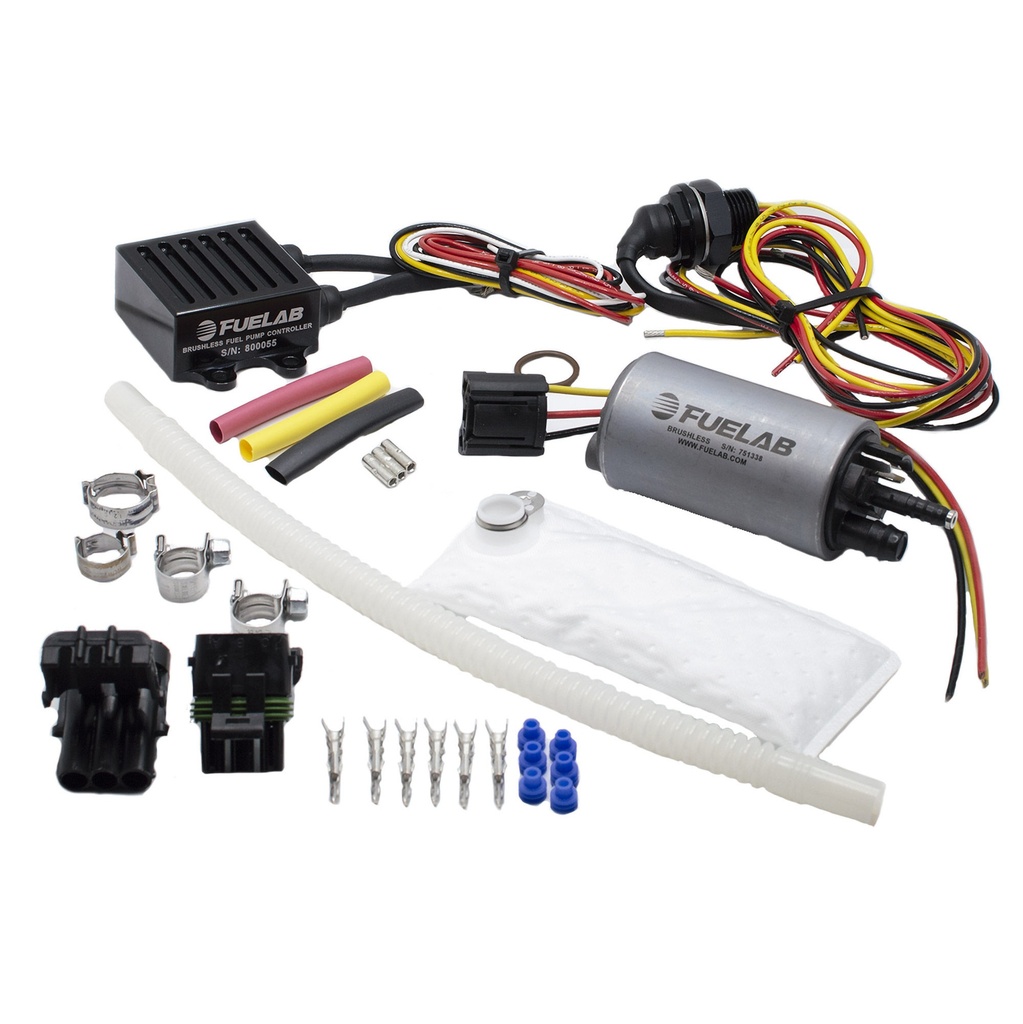

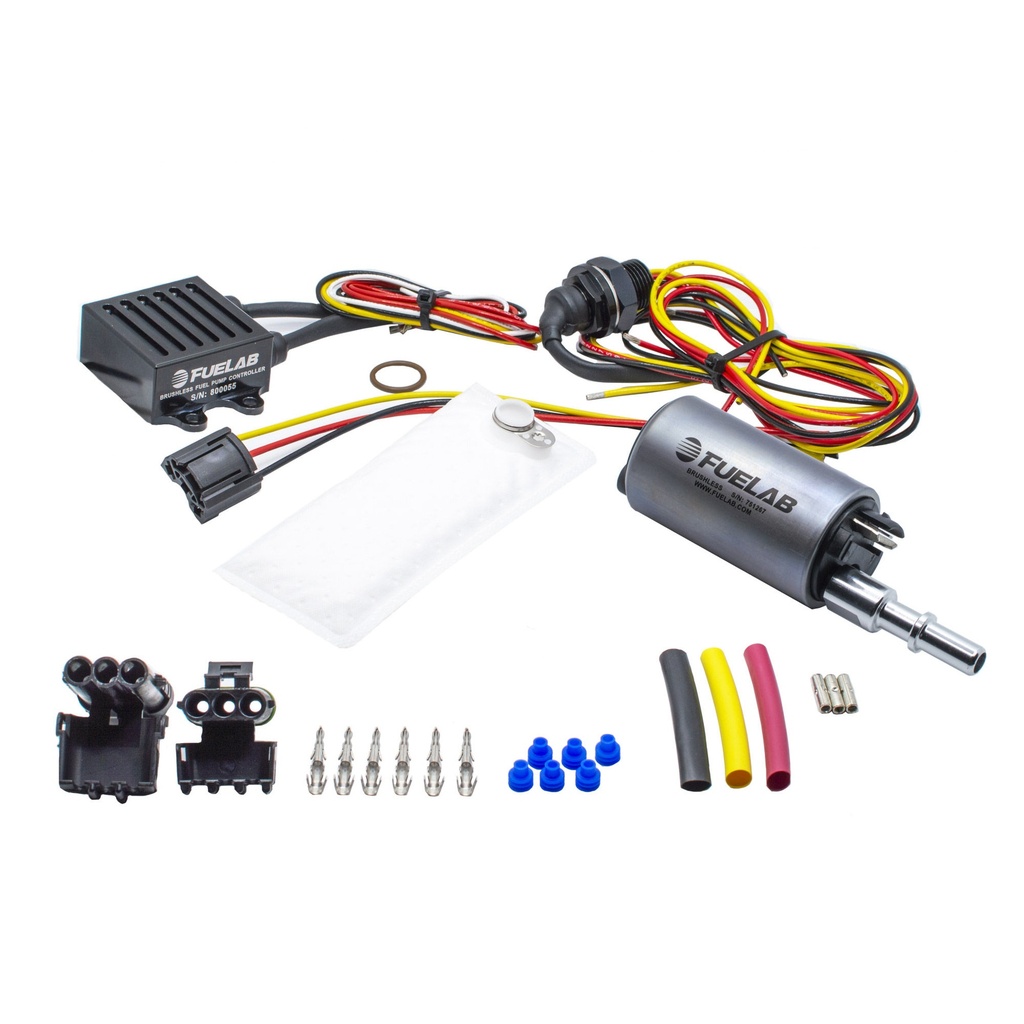

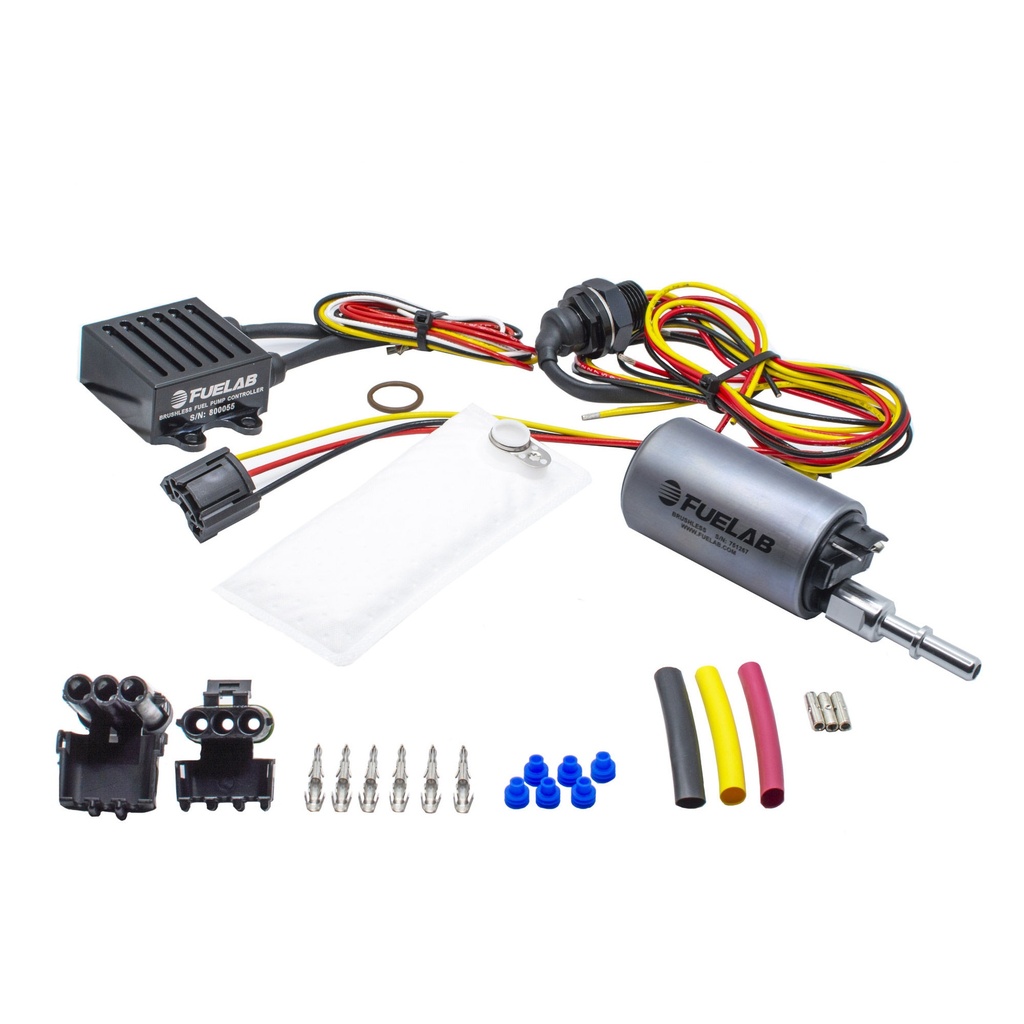

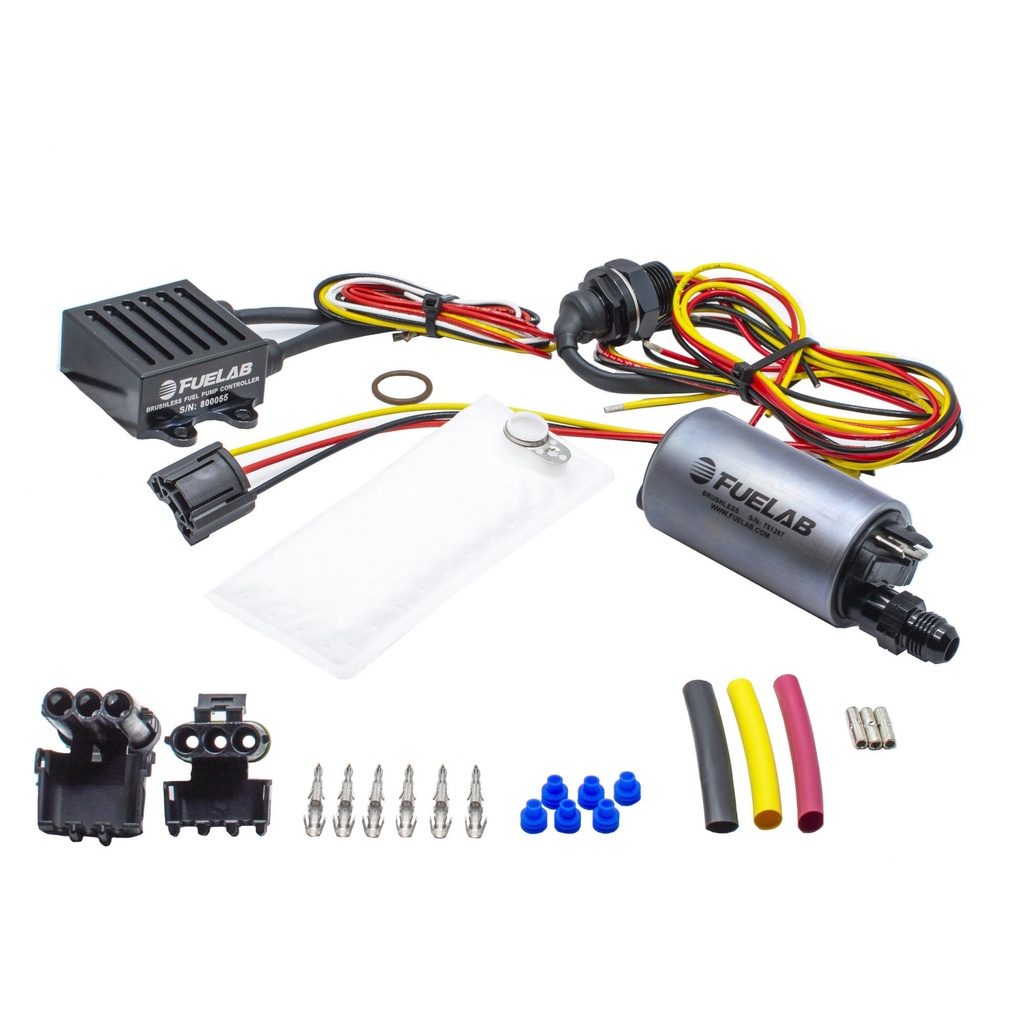

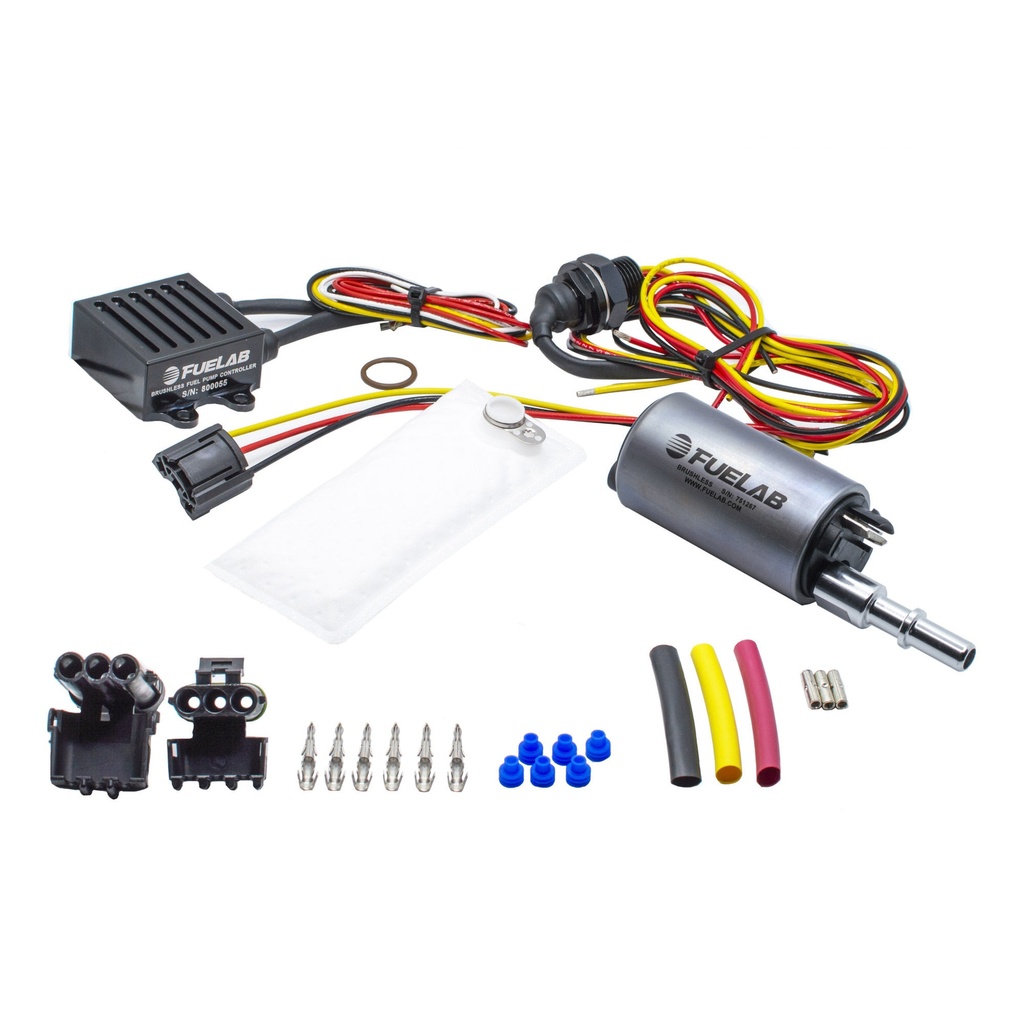

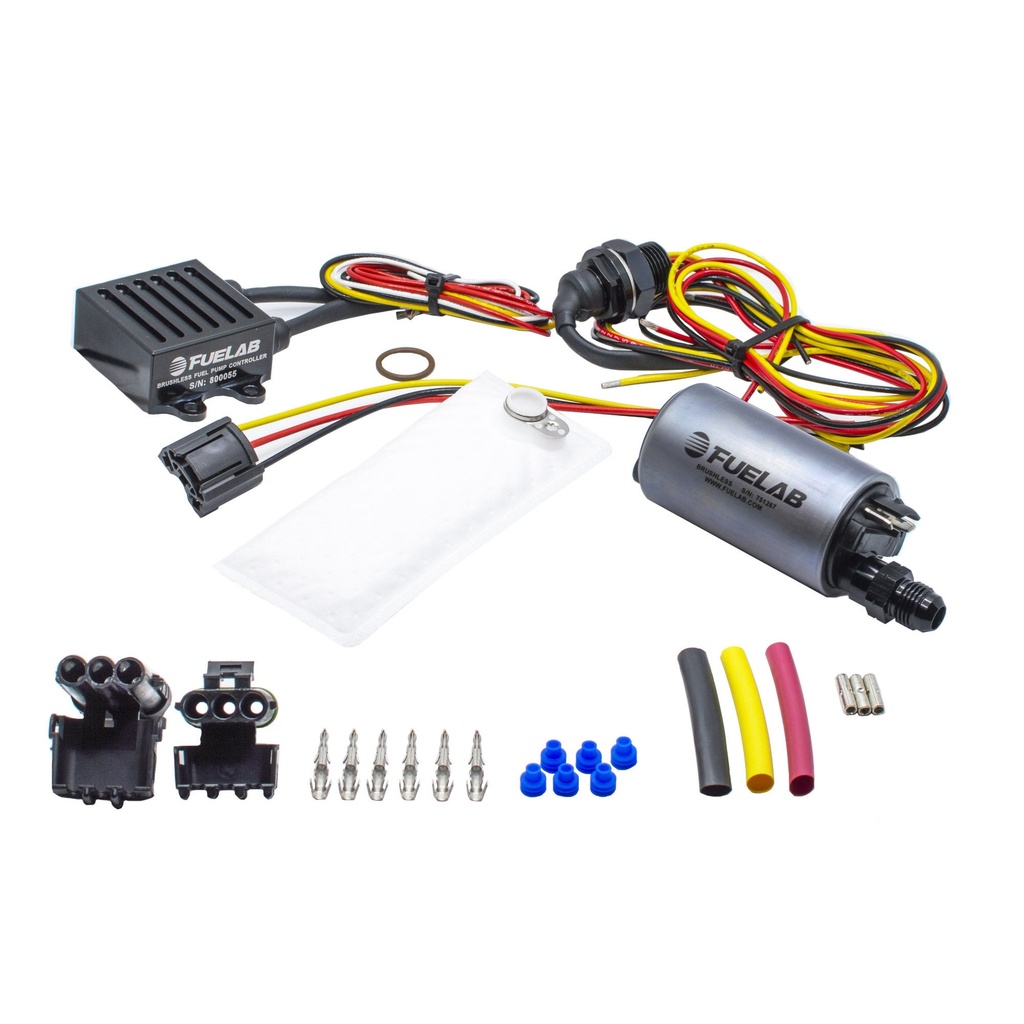

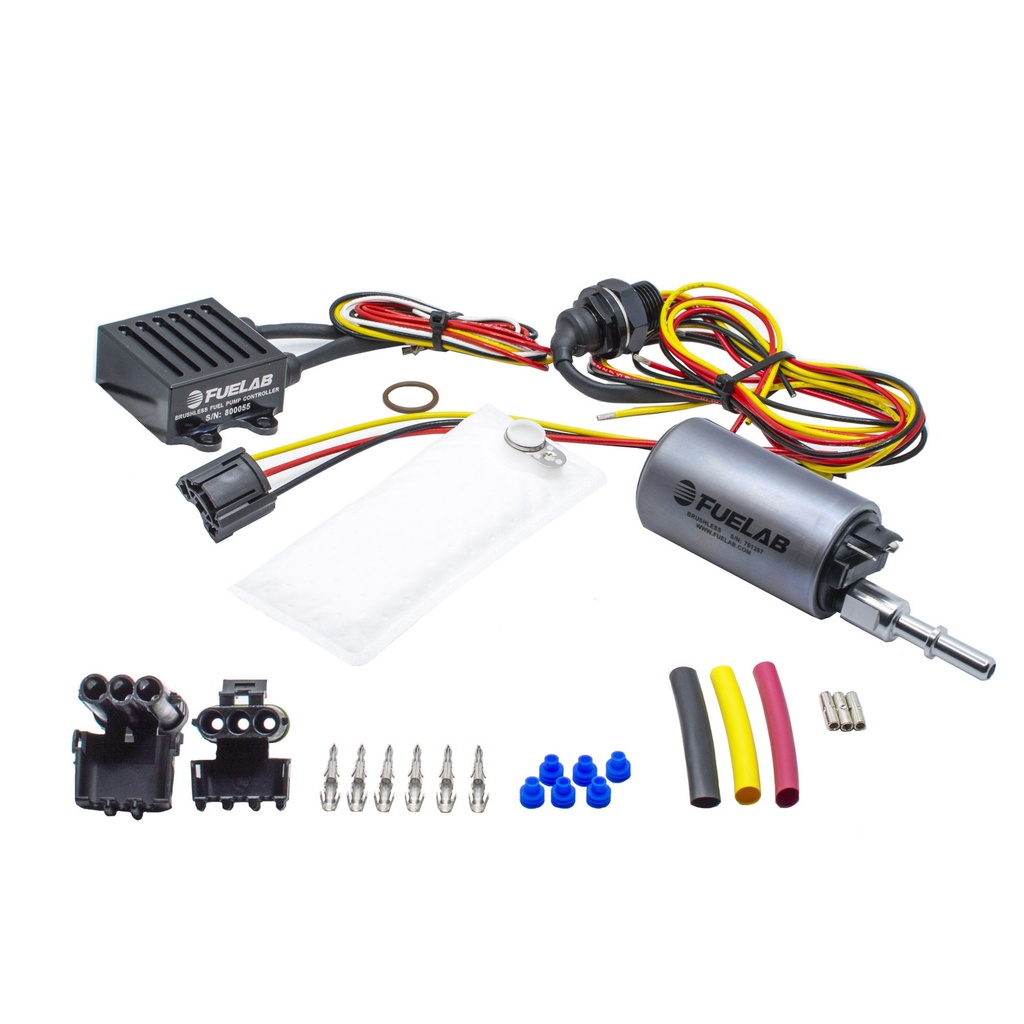

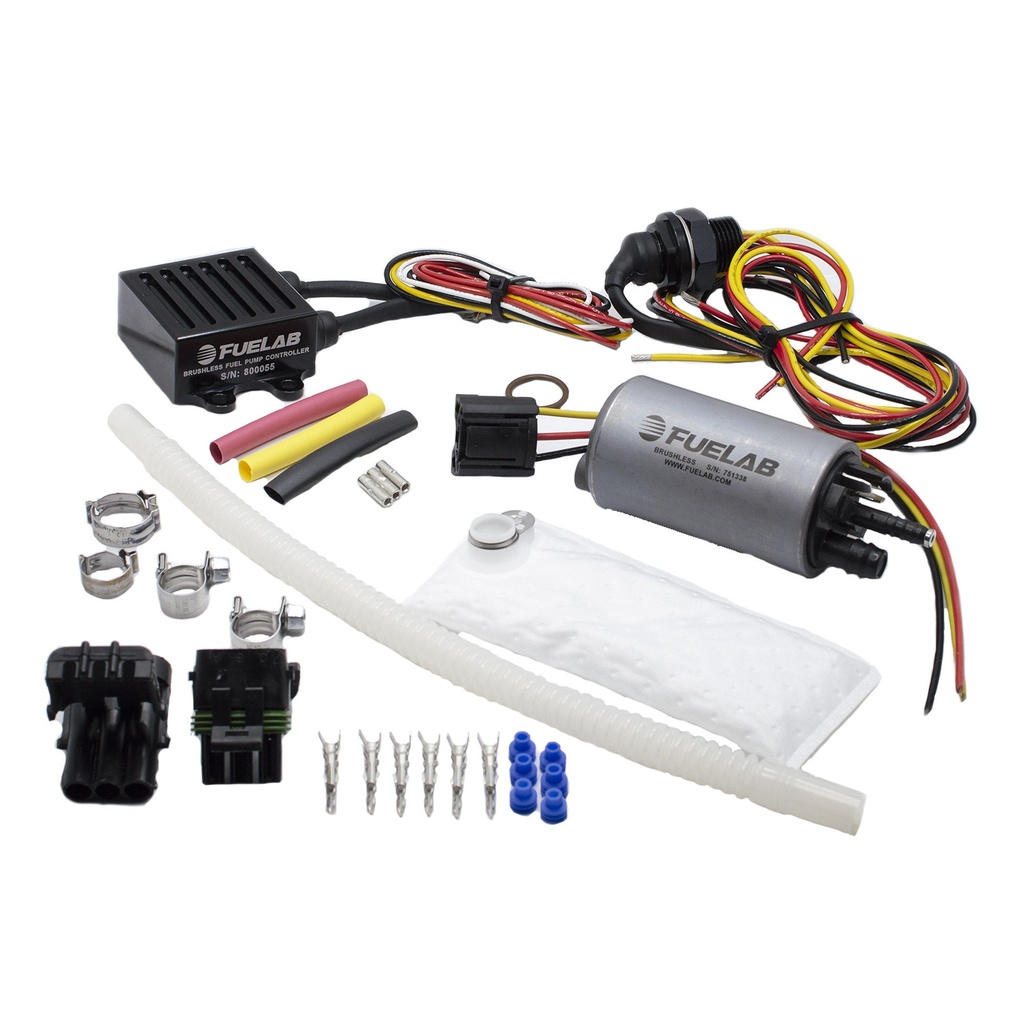

Kit includes: Brushless fuel pump, PWM brushless pump controller, 3 wire hermetic bulkhead feed thru, pre-filter, wire lead harness, 2 set of weatherpak connectors, convoluted tubing, clamps, butt splices and heat shrink tube
All Fuelab products are covered by a ‘Forever Fixed’ warranty. The warranty covers the original purchaser against all material or workmanship defects. Fuelab products are made to the highest standards and have a warranty that covers them for life.
