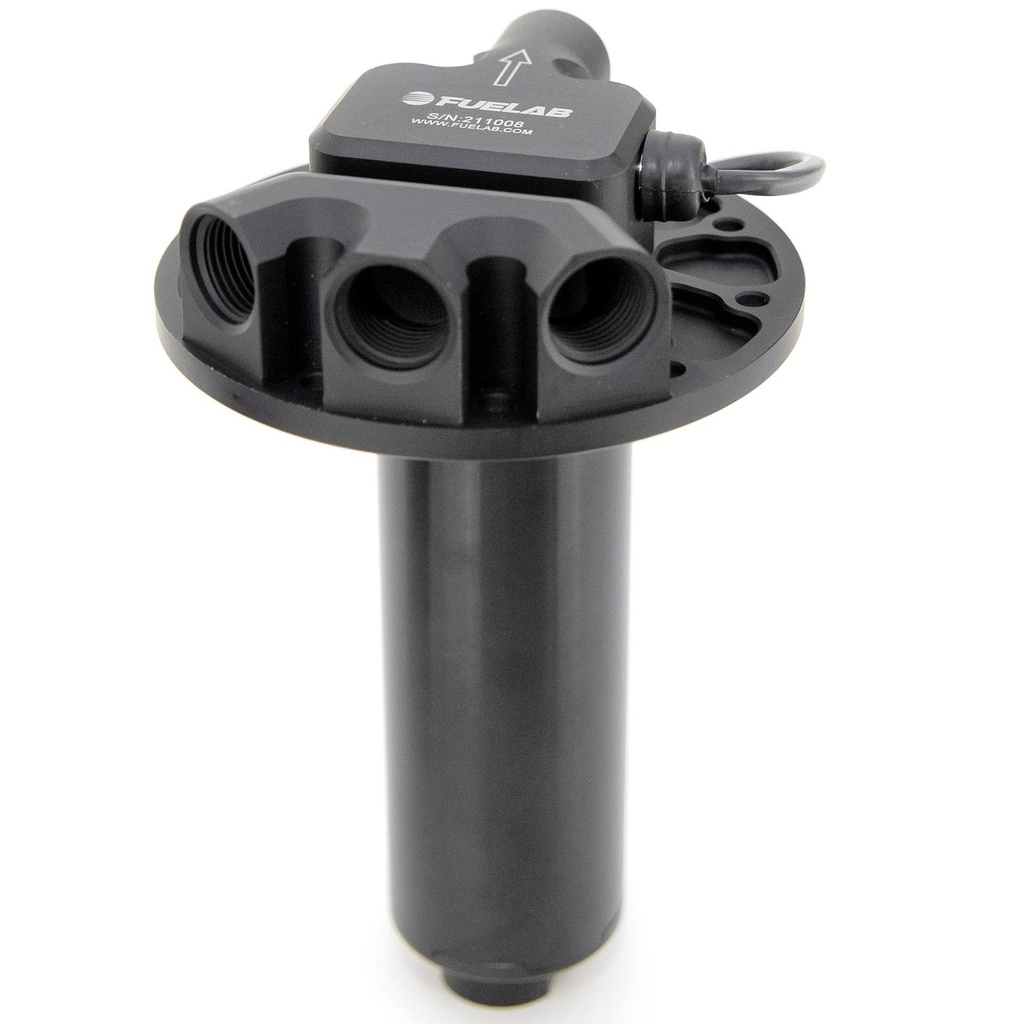

This version of Fuelab's brushless fuel pump has an integral SAE flange for mounting to a fuel tank or reservoir. The twin screw pumping mechanism is capable of supporting engines up to 1250 Bhp.
- Huge flow rates (up to 500 Ltr/hr), suitable for engines up to 1250 Bhp
- Superior priming capability
- Compatible with petrol (pump and race), diesel, methanol and ethanol (inc E85)
- Lightweight (less then 2.5lb) and compact with integral 10 bolt mounting flange
The Fuelab SAE flange mount in tank brushless fuel pump is constructed from billet aluminium with an anodised black finish to MIL-A-8625 type II standard. The pump features a twin rotor pumping mechanism which is highly efficient and has a reduced current draw and less noise. The super efficient DC brushless motor is designed for reliability and a long service life. The variable speed motor is a wet design which means there are no shaft seals to wear out, adding to the excellent reliability of this pump.
There are various options available to suit different engine demands:
Up to 625 Bhp - 250 ltr/hr flow rate @ 45 psi. Max pressure 125 psi
Up to 850 bhp - 350 ltr/hr flow rate @ 45 psi. Max pressure 125 psi
Up to 1250 bhp - 500 ltr/hr flow rate @ 45 psi. Max pressure 125 psi
All pumps in the range feature AN -8 female ports for both inlet and outlet and are compatible with electrical systems from 8-16v.
Dimensions: 8" (203mm) Overall length, 2" (51mm) pump diameter
Weight: Less than 2.5lb (1.13kg)
All Fuelab products are covered by a ‘Forever Fixed’ warranty. The warranty covers the original purchaser against all material or workmanship defects. Fuelab products are made to the highest standards and have a warranty that covers them for life.
