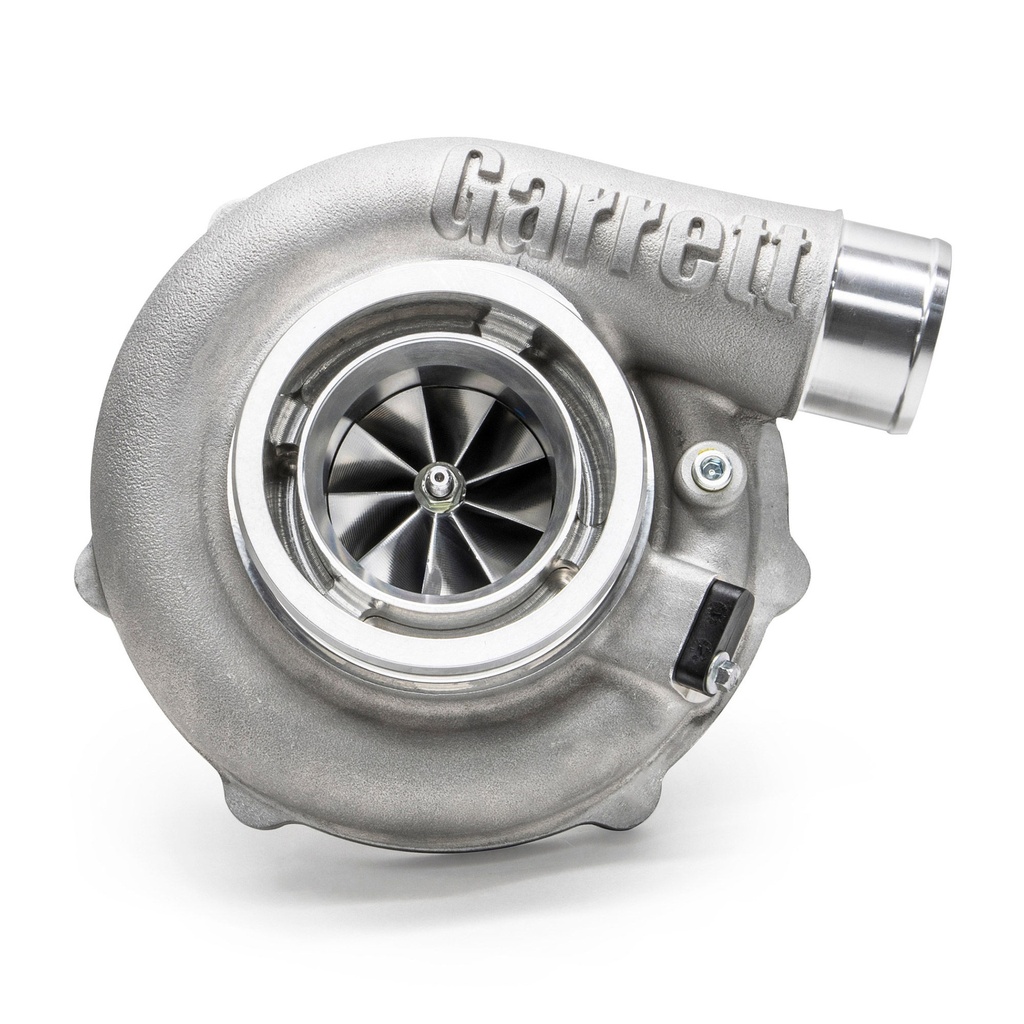

This Garret G30-660 turbocharger super core consists of a centre housing rotating assembly (CHRA) with a compressor housing attached. Various options of turbine housings are available to purchase separately to suit your specific requirements.
The Garrett G30-660 turbocharger super core is ideally suited to engine capacities from 2.0L to 3.5L and is capable of producing 350-660 Bhp. The Garrett G series of turbochargers have been developed to outflow all other comparable sized turbos on the market. Advanced compressor and turbine aerodynamics maximise power and boost response with up to 79% efficiency.
- Out performs all like for like turbos on the market
- Compressor & turbine wheels are specially designed to maximise power and boost response
- Capable of withstanding exhaust gas temperatures up to 1050° C
- Fully machined speed sensor and pressure ports

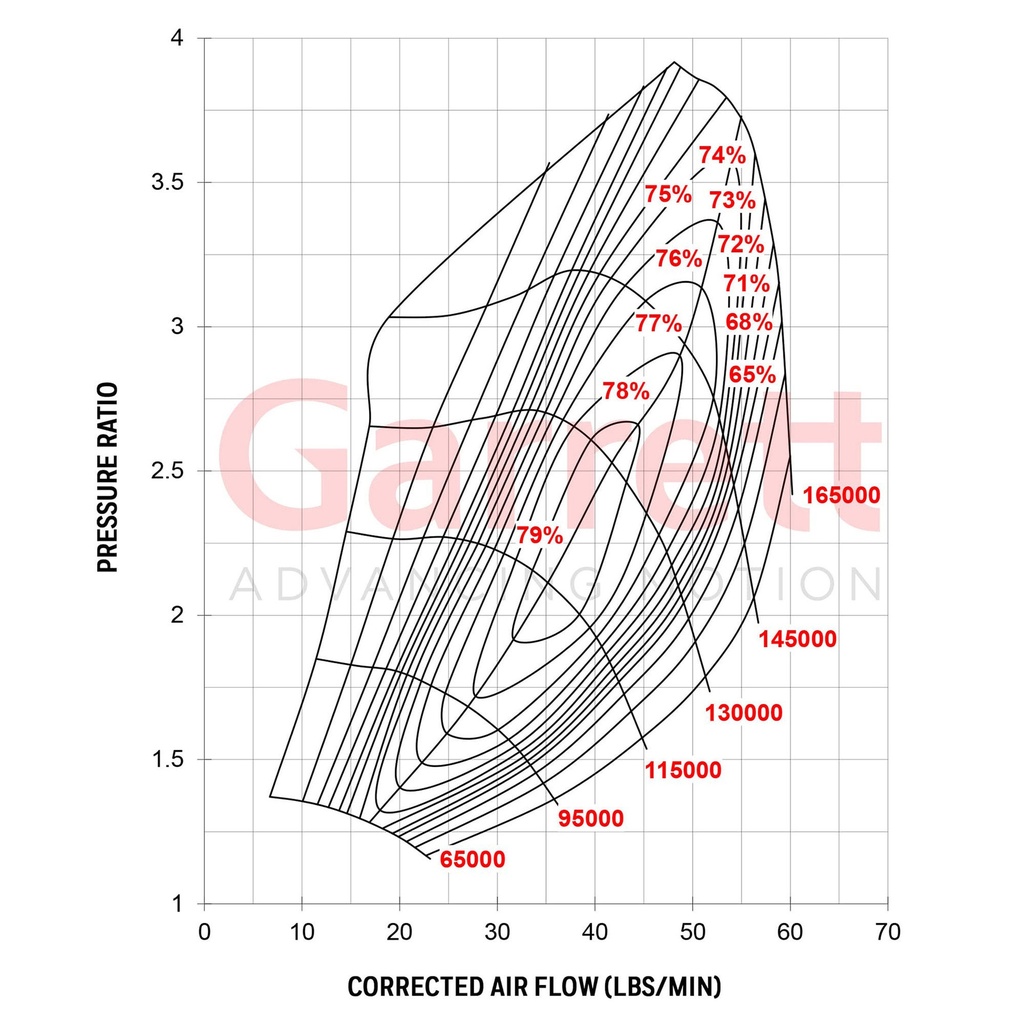

- Up to 79% maximum compressor efficiency
- Supports up to 700 Bhp

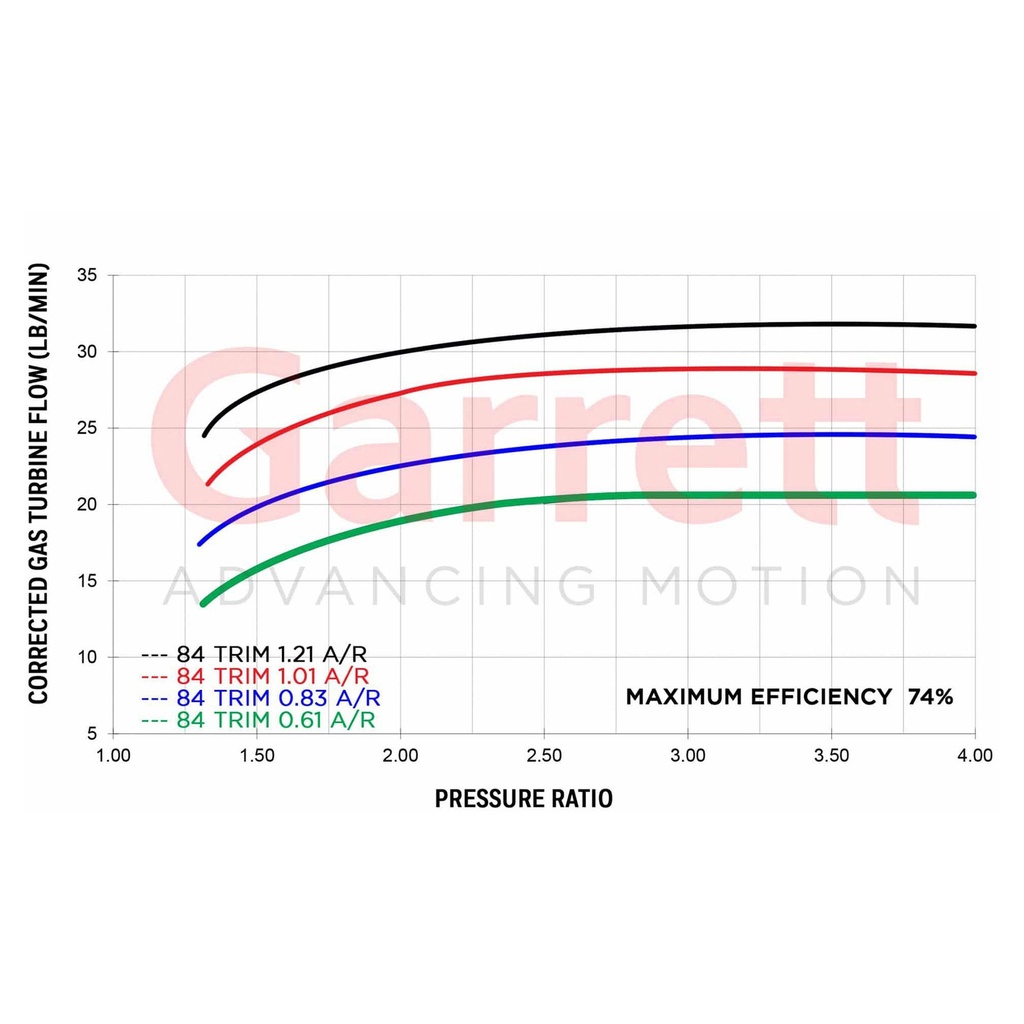

The G30-660 turbocharger assembly kit is available with different turbine A/R (Area/Radius) options:
Option 1: 0.61 A/R
Option 2: 0.83 A/R
Option 3: 1.01 A/R
Option 4: 1.21 A/R

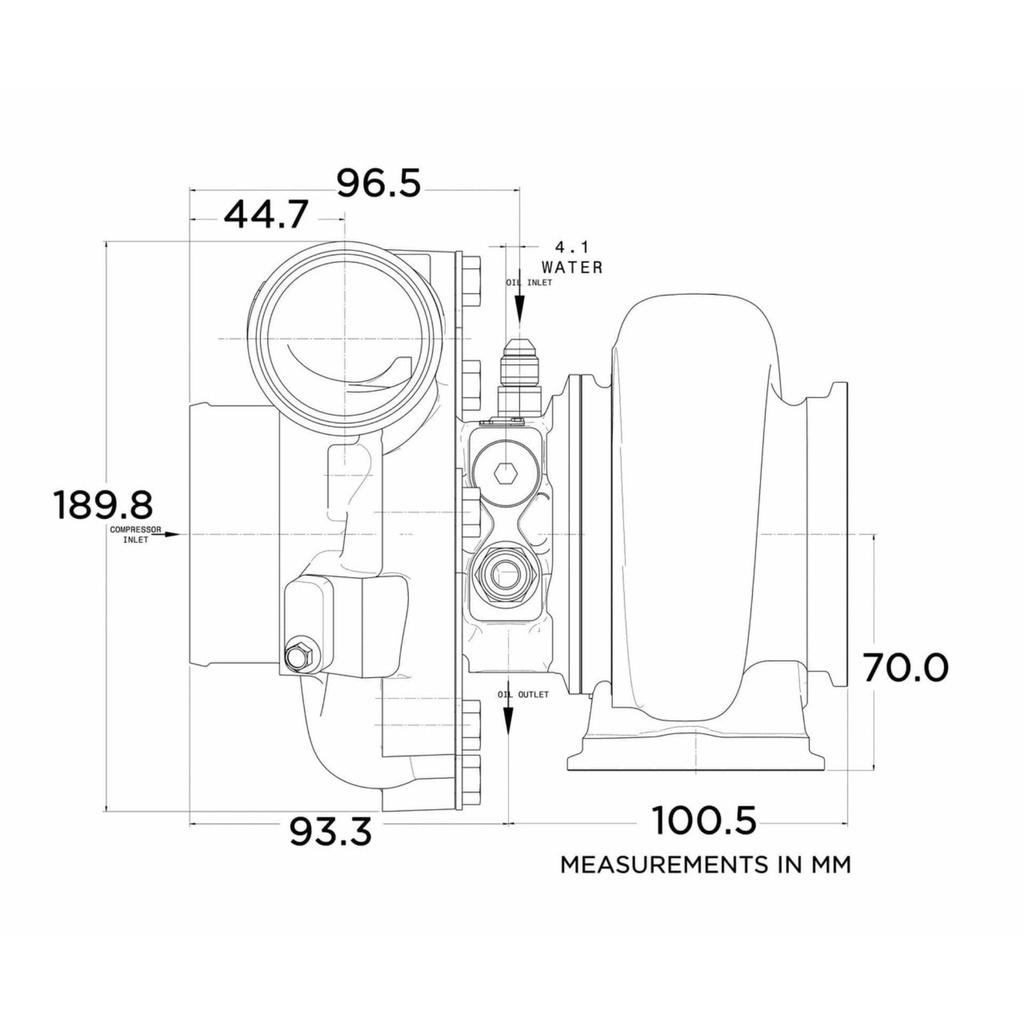

All other specifications are the same (see table below)
