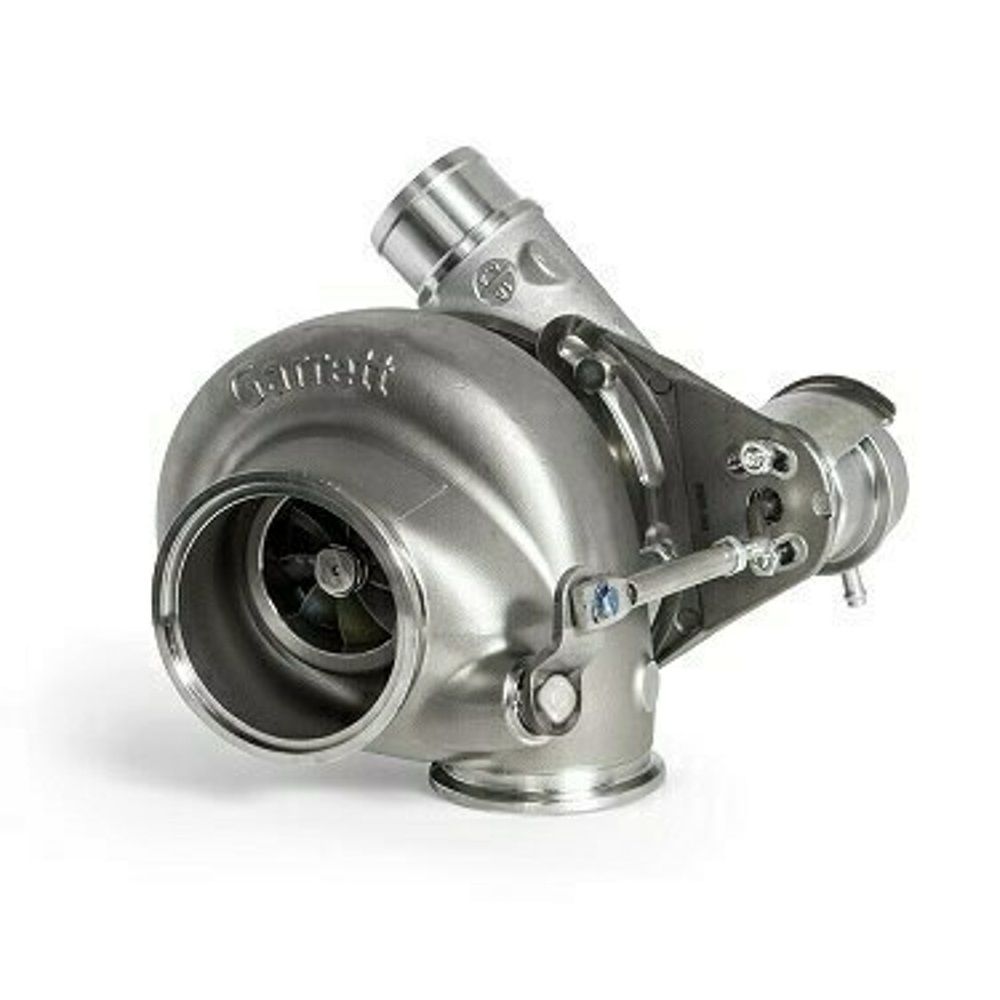

The Garrett G30-770 turbocharger is ideally suited to engine capacities from 2.0L to 3.5L and is capable of producing 475-770 Bhp. The Garrett G series range of turbochargers have been developed to outflow all other comparable sized turbos on the market. Advanced compressor and turbine aerodynamics maximise power and boost response, with up to 80% efficiency. The Turbine housings are made from Stainless steel and the turbine wheel is made of Mar-M super alloy. These materials allow the G series turbos to handle exhaust gas temperatures up to 1050° C making them ideal for Motorsport use.
- Out performs all like for like turbos on the market
- Compressor & turbine wheels are specially designed to maximise power and boost response
- Capable of withstanding exhaust gas temperatures up to 1050° C
- Fully machined speed sensor and pressure ports
- Wastegated turbine housing, supplied with calibrated 0.5 bar actuator
- Up to 80% maximum compressor efficiency
- Supports up to 770 Bhp
The G30-770 turbocharger is available with different turbine A/R (Area/Radius) options:
Option 1: 0.83 A/R
Option 2: 1.01 A/R
