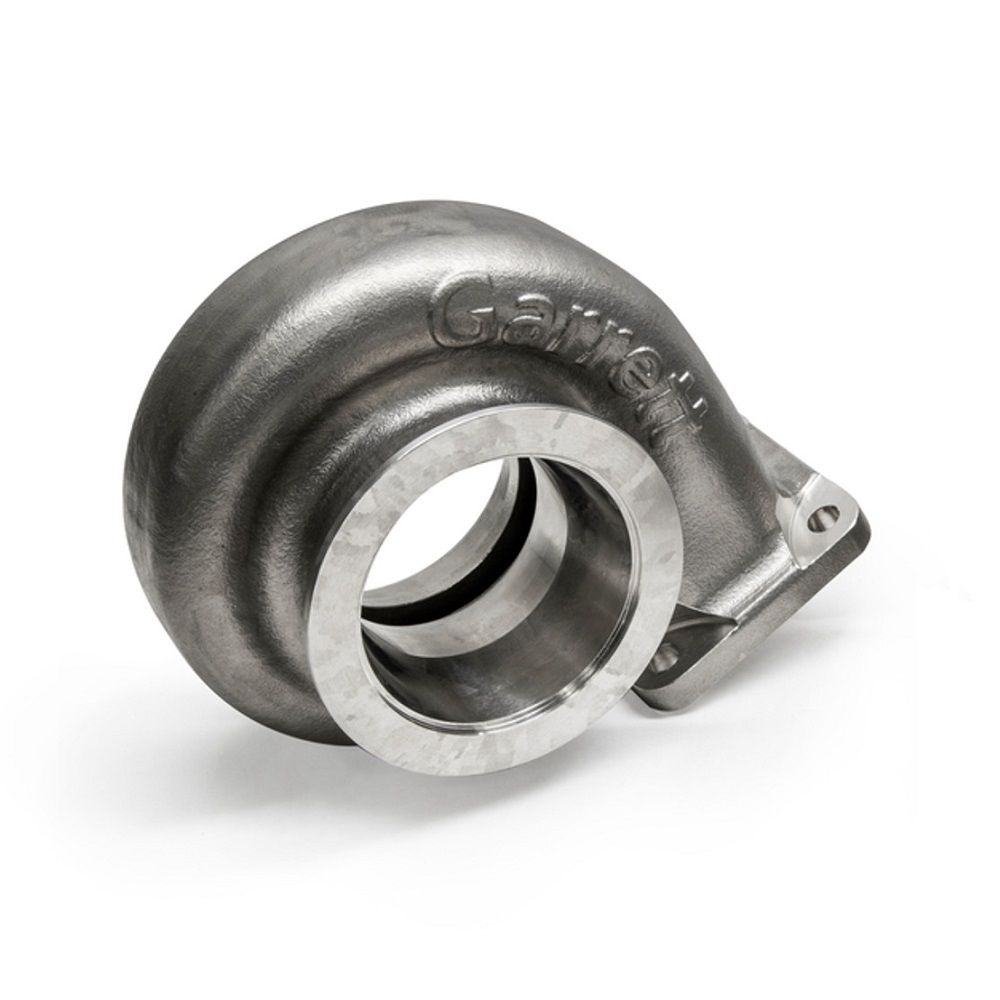

This Garrett G40 divided turbine housing is manufactured from stainless steel which is capable of withstanding extreme temperatures of up to 950° C making it ideal for Motorsport use or for high boost / high power applications. T4 inlet flange, kit includes V-bands for the outlet.
- Stainless material, ideal for extreme temperature applications (up to 950° C)
- Kit includes V-bands for outlet
- Ideal for G40 custom builds
The Garret G40 divided turbine housings are available with different A/R (Area/Radius) options:
Option 1: A/R 0.88
Option 2: A/R 0.95
Option 3: A/R 1.06
Option 4: A/R 1.44
The rest of the specifications remain the same:
Trim: 84
Inlet: T4 flange
Outlet V-band: 4.30" (109mm) diameter
Free float
