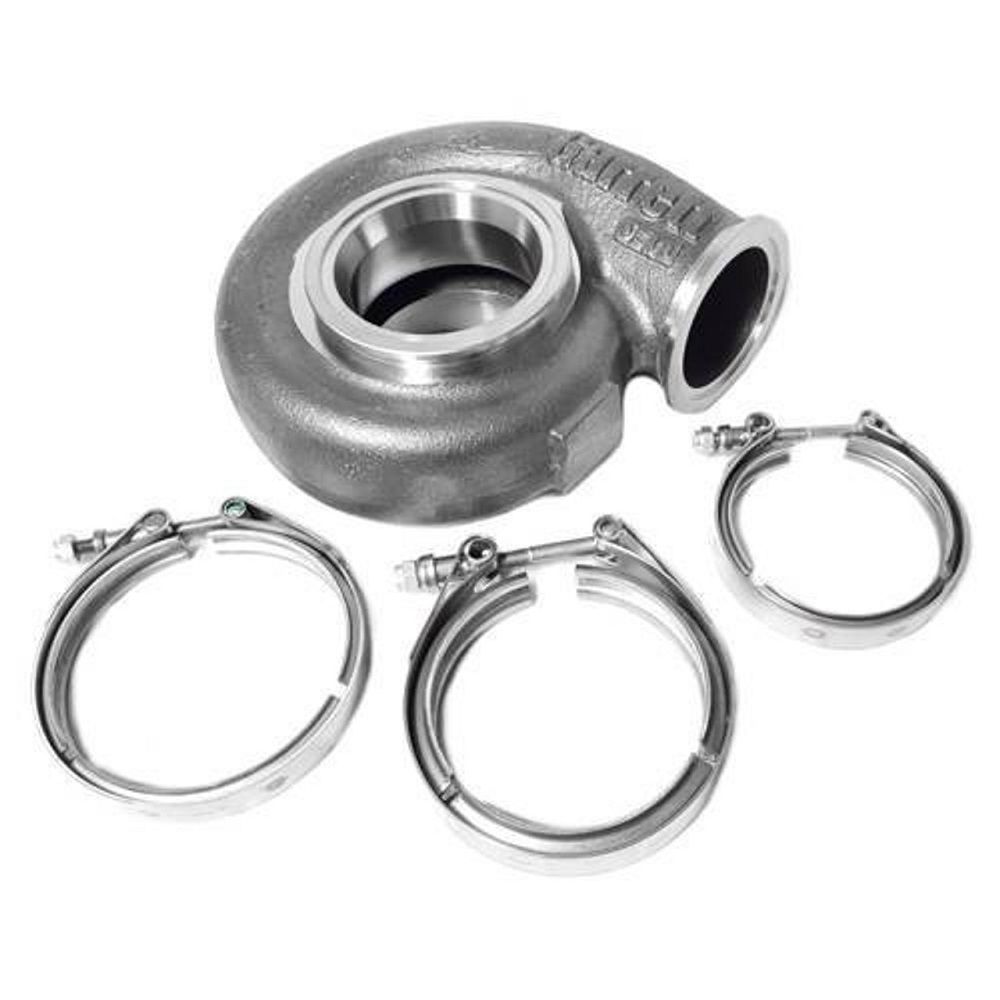

This Garrett G45 turbine housing is manufactured from stainless steel which is capable of withstanding extreme temperatures of up to 950° C making it ideal for Motorsport use or for high boost / high power applications. Kit includes V-bands.
- Stainless material, ideal for extreme temperature applications (up to 950° C)
- Kit includes V-bands
- Ideal for G45 custom builds

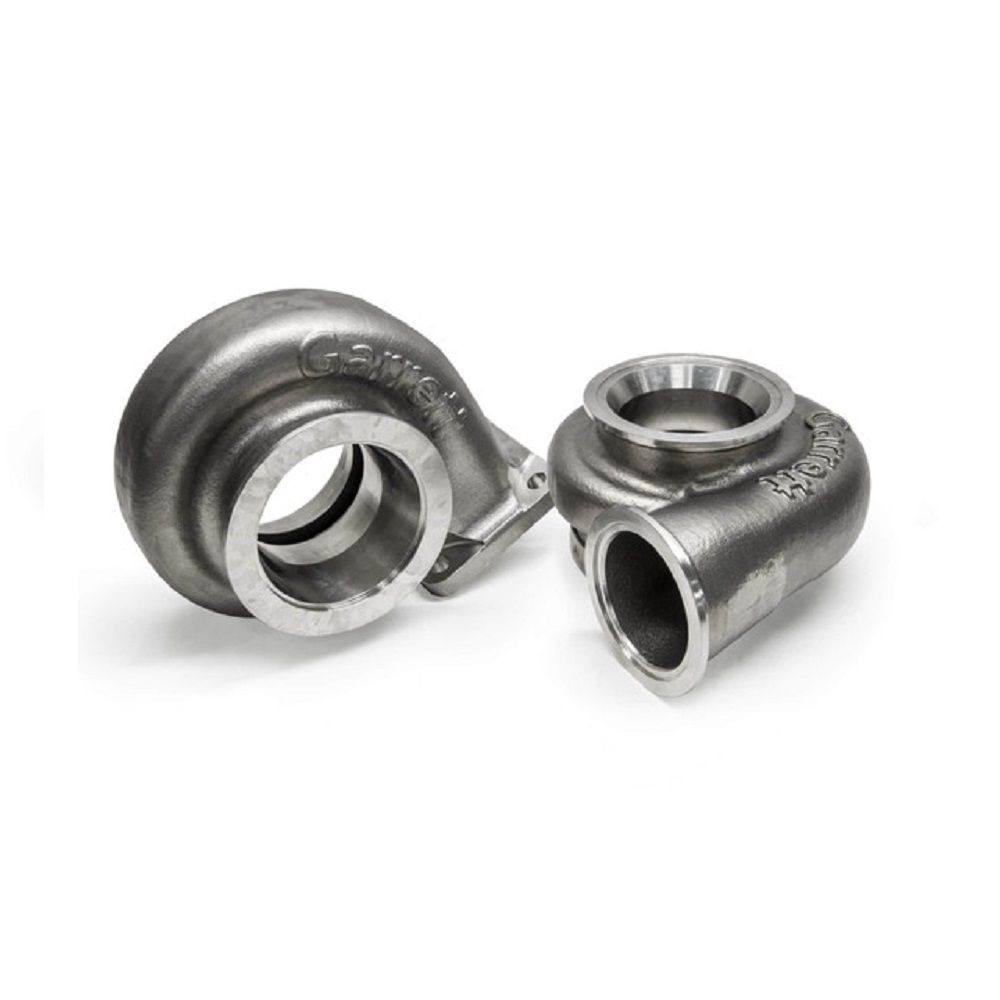

The Garret G45 turbine housings are available with different inlet flange and A/R (Area/Radius) options:
3.60" (91mm) V Band Inlet Flange Options
Option 1: A/R 1.01
Option 2: A/R 1.15
Option 3: A/R 1.28
Option 4: A/R 1.44
T4 Inlet Flange Options
Option 5: A/R 1.01
Option 6: A/R 1.15
Option 7: A/R 1.28
Option 8: A/R 1.44
The rest of the specifications remain the same:
Trim: 84
Inlet V-band: 3.60" (91mm) diameter
Outlet V-band: 4.30" (117.3mm) diameter
Free float
