Garrett turbocharger assembly kits are supplied as a super core consisting of a centre housing rotating assembly (CHRA) with a compressor housing attached. A turbine housing is supplied but not fitted. Gaskets are included to complete the assembly.

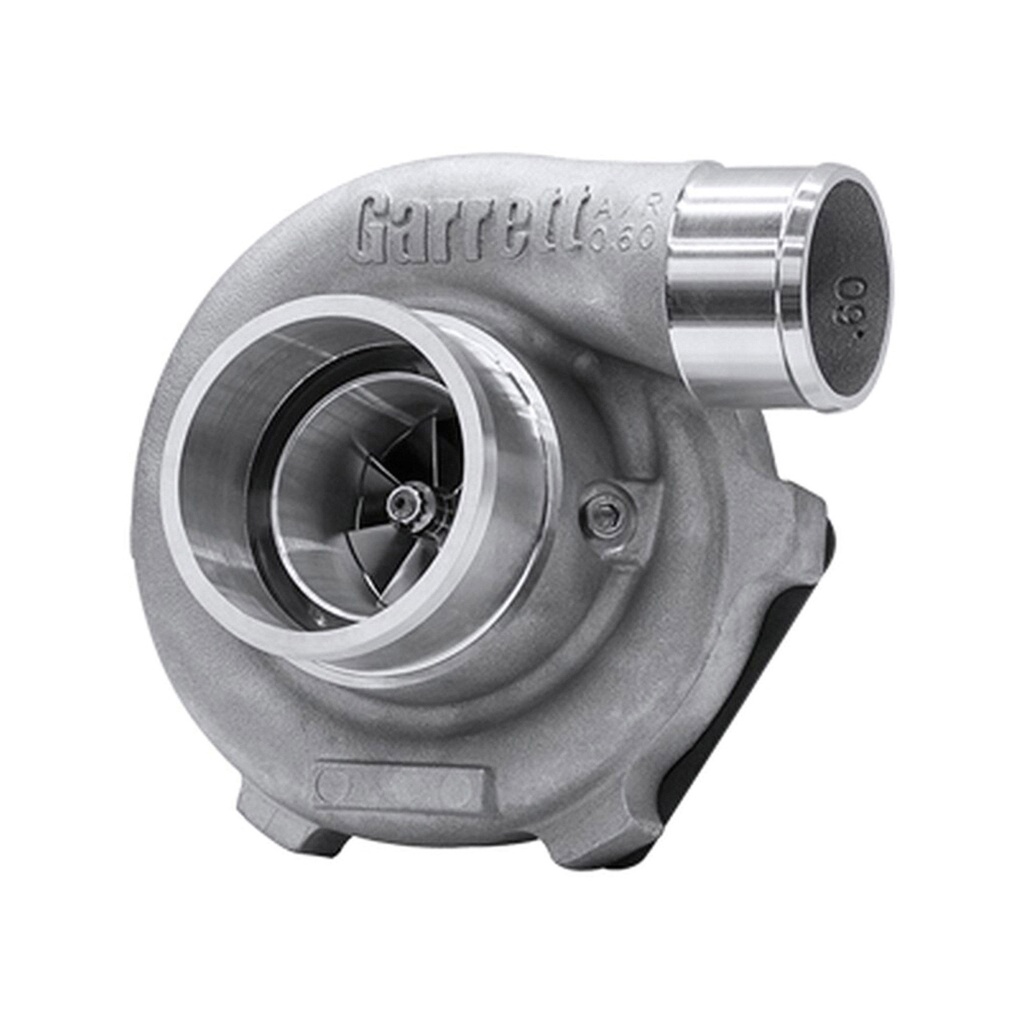

The GTX2860R Gen II turbocharger assembly is ideally suited to engine capacities from 1.4L to 2.5 L and is capable of producing 200-475 Bhp. It features a billet CNC machined Gen II aero compressor wheel which is capable of producing 20% more power than the previous version.
- Billett CNC machined Gen II aero compressor wheel which provides 20% more power then previous GTX compressor wheels
- Ported shroud compressor housing increases surge resistance
- Wastegated tubine housing
- Integral speed sensor port
- Capable of producing 200-475 Bhp
The GTX2860R Gen II turbo assembly kit is available with different turbine A/R (Area/Radius) options:
Option 1: 0.64 A/R
Option 2: 0.86 A/R
All other specifications are the same (see table below)
