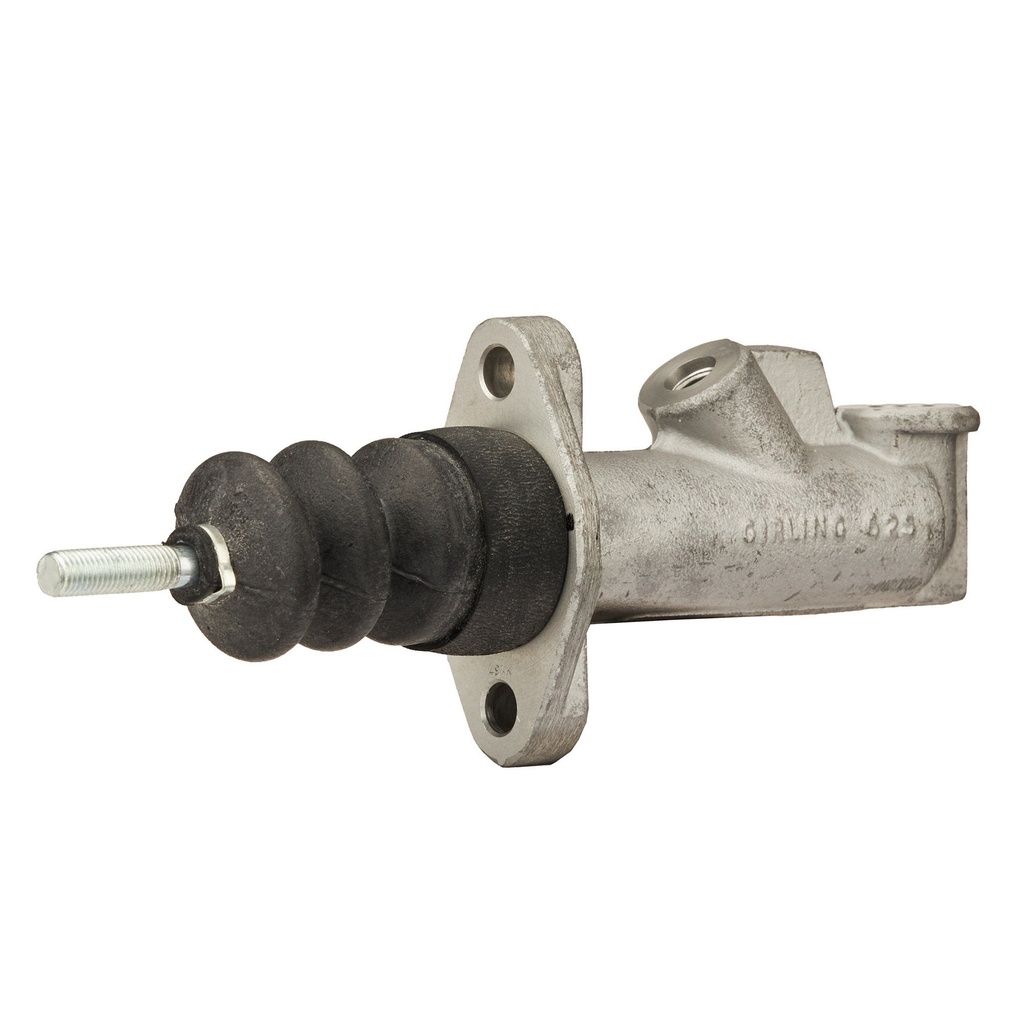

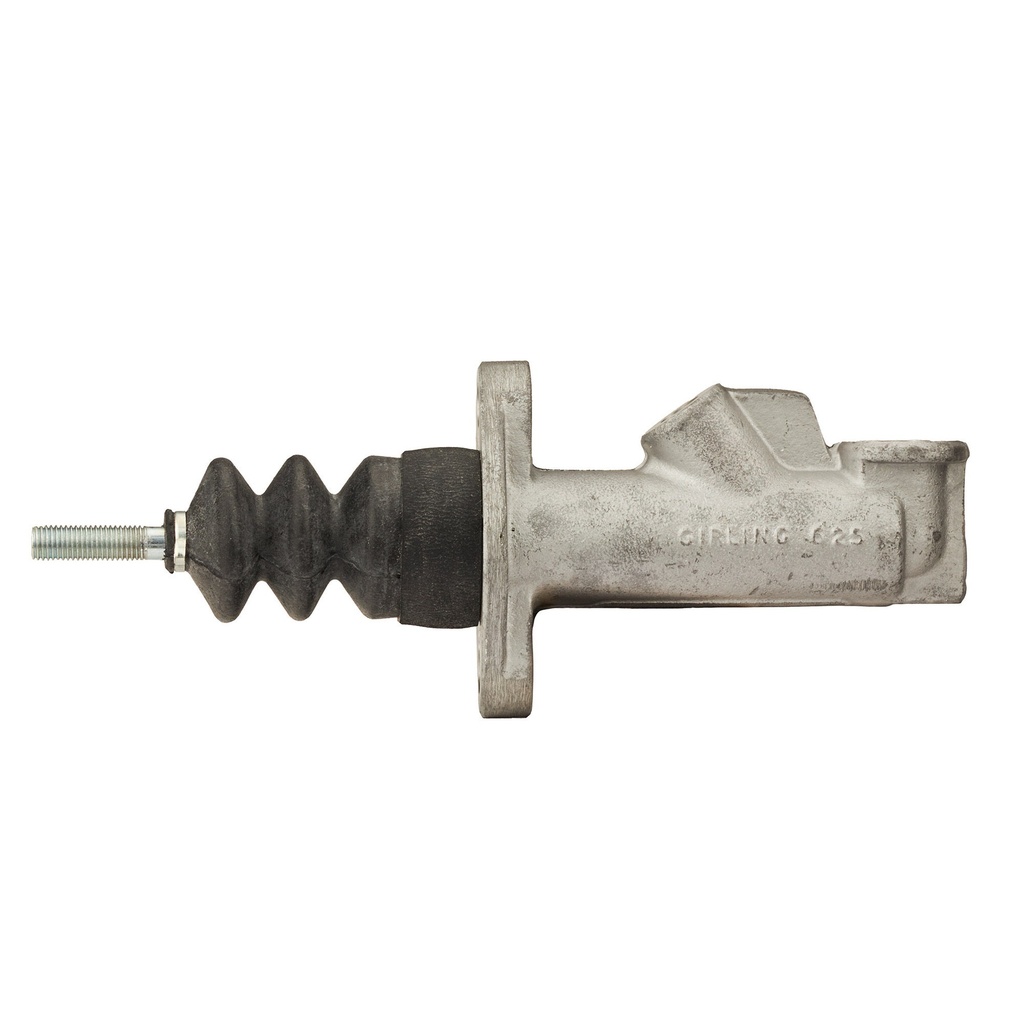

Universal genuine Girling alloy master cylinder for brake or clutch actuation. Featuring a vertical mounting flange with 2.25 inch mounting hole spacing and a 5/16 UNF threaded pushrod. The inlet port has a 7/16 UNF thread and the outlet port has a 3/8 UNF thread.
- Ideal for brake or clutch applications
- Universal design with common flange fitment
- Available in a range of sizes to suit most applications
A separate fluid reservoir is required which can either be remotely mounted and connected to the inlet via a link pipe, or screwed directly into the inlet port.
Please note: The size .812 (13/16") is not branded Girling on the cylinder body. It is manufactured using the same internal parts as the other Girling cylinders and to original Girling specification.
Sold individually.
Specifications
| Bore Size | .700 (7/10 Inch), .625 (5/8 Inch), .812 (13/16 Inch) |
| Brand | Girling |
