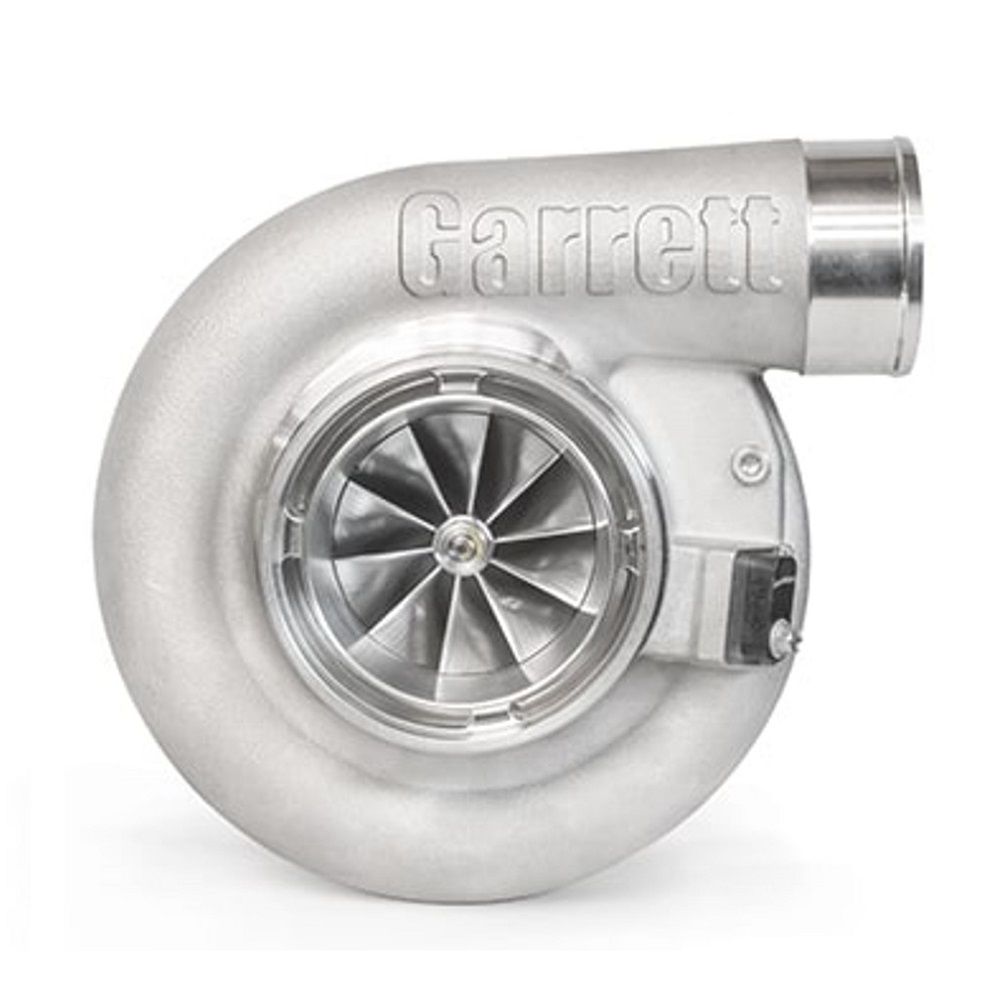

This Garret G40-1150 turbocharger super core consists of a centre housing rotating assembly (CHRA) with a compressor housing attached. Various options of turbine housings are available to purchase separately to suit your specific requirements.
The Garrett G40-1150 turbocharger super core is ideally suited to engine capacities from 2.0L to 6.0L and is capable of producing 500-1150 Bhp. The Garrett G series of turbochargers have been developed to outflow all other comparable sized turbos on the market. Advanced compressor and turbine aerodynamics maximise power and boost response with up to 77% efficiency.
- Out performs all like for like turbos on the market
- Compressor & turbine wheels are specially designed to maximise power and boost response
- Capable of withstanding exhaust gas temperatures up to 1050° C
- Fully machined speed sensor and pressure ports

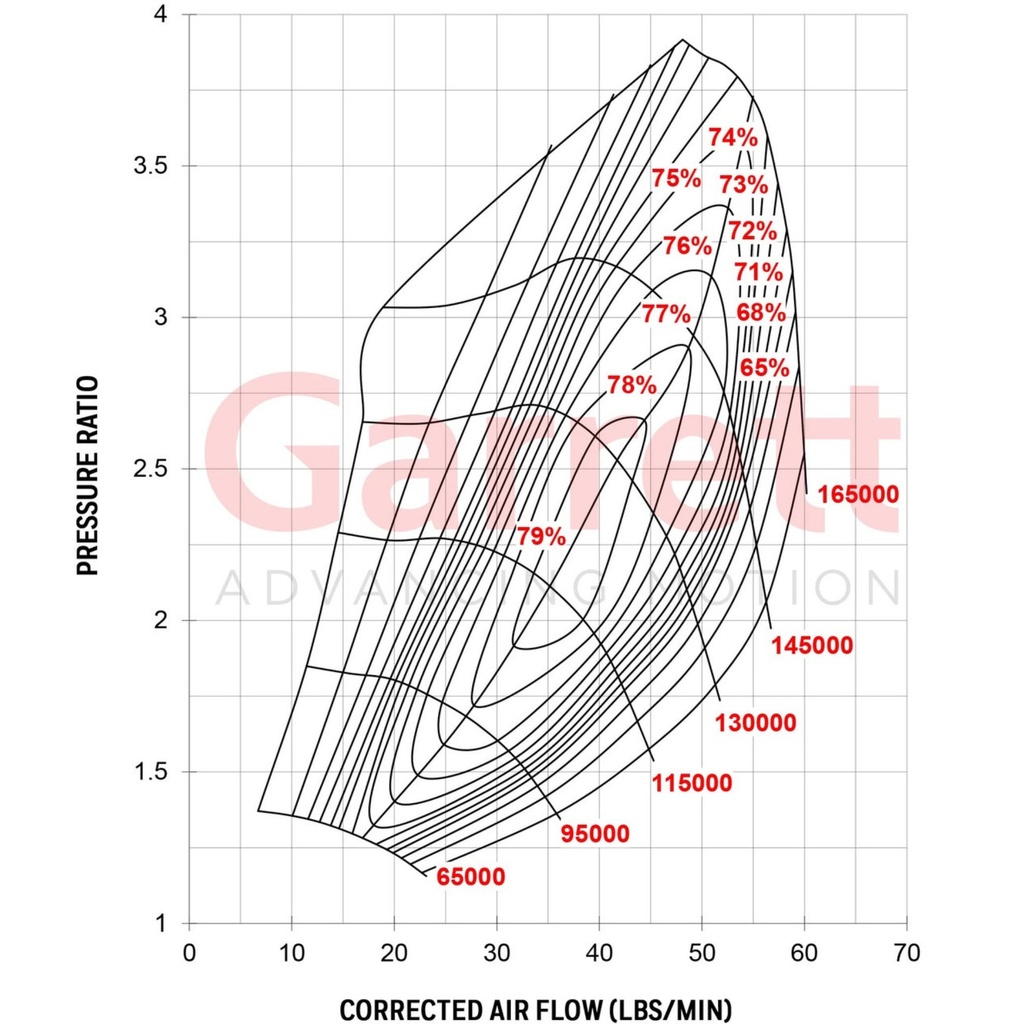

- Up to 77% maximum compressor efficiency
- Supports up to 1050 Bhp
Please note: This is turbocharger core only with a compressor housing. An exhaust housing is required to make a complete turbocharger. These are available separately.
