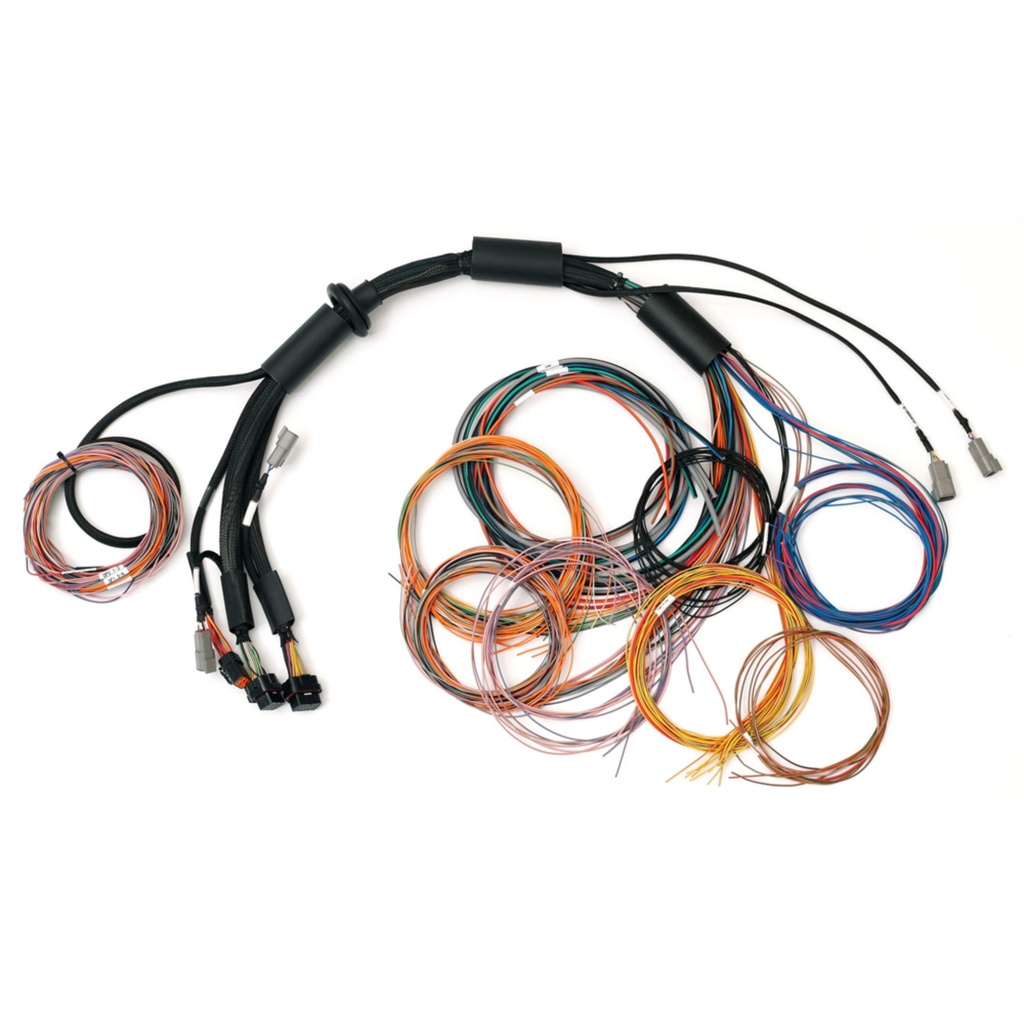

The Haltech Nexus R3 Universal Wire-In Harness is designed to facilitate precise and customisable wiring for engine swaps, race car setups, and other bespoke wiring applications. It features pre-terminated VCU connectors on one end and colour-coded, labelled wires on the other, simplifying the connection process to your Haltech VCU.
Explore the harness's features that enable a streamlined and efficient wiring experience:
- Colour-Coded and Labelled Wires: Each wire is distinctly marked and colour-coded, reducing confusion and aiding in an intuitive setup process that aligns perfectly with the accompanying detailed wiring diagram for a straightforward and efficient wiring job.
- Pre-Terminated VCU Connectors: Factory-terminated connectors at one end ensure a secure and reliable connection to your Haltech VCU, eliminating the need for additional crimping or soldering and ensuring dependable performance.
- Comprehensive Documentation: Includes a detailed wiring diagram, VCU manual, and software, accessible via the provided USB key or downloadable from the
Haltech website, offering a complete resource for setup, troubleshooting, and ongoing adjustments to your system.
This harness supports a methodical and practical approach to custom wiring, ensuring you achieve a clean and dependable connection for your vehicle’s electronic control system. Its thoughtfully designed features make it a valuable addition to any customised engine or race car wiring setup.
Haltech Nexus R3 Universal Wire In Harness Quick Start Guide
