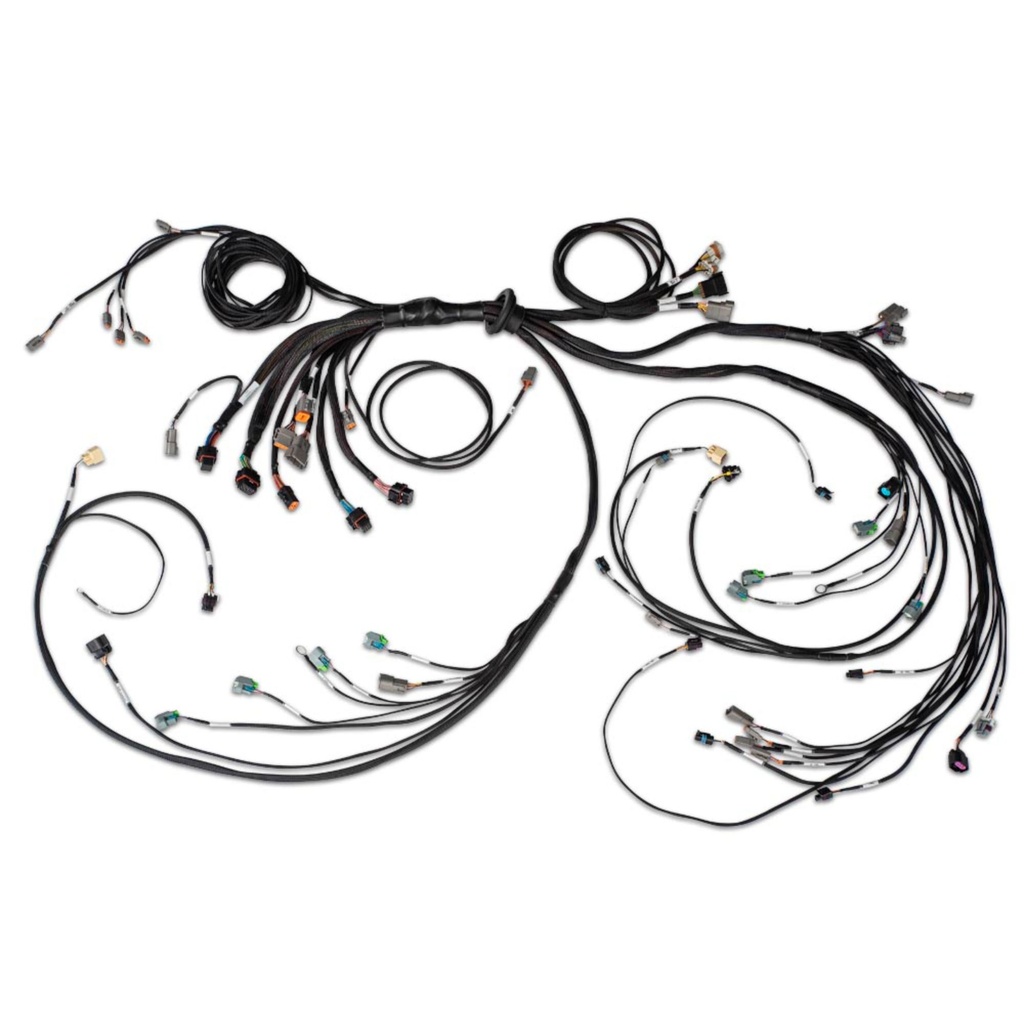

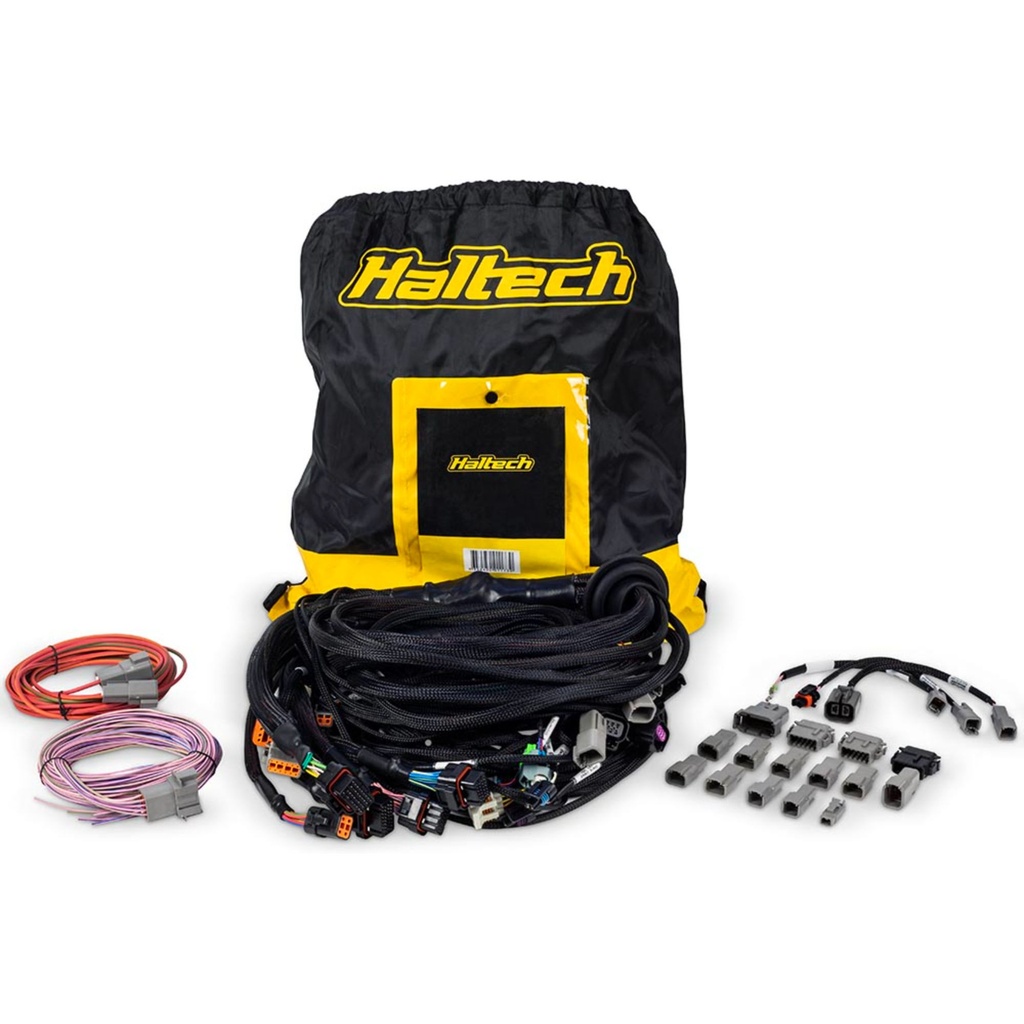

The Haltech Nexus R5 LSX DBW Terminated Harness is designed to provide seamless integration and control for LSX engines with drive-by-wire functionality. This harness incorporates PDM (Power Distribution Module) functionality and includes EV6 primary injector plugs, enabling straightforward plug-and-play connectivity with the OEM ignition sub-harness on the engine.
Discover the key features of this terminated harness:
- EV6 Primary Injector Plugs: Designed for compatibility with LSX engines, these connectors ensure reliable performance and straightforward installation by facilitating precise fuel delivery for optimal engine operation.
- Direct Fuel Pump and Thermos Fan Control: Equipped with 25A-HCO capabilities, this feature allows high-current control for both the fuel pump and thermos fan, enhancing engine efficiency and temperature regulation.
- Haltech CAN Bus Support: The DTM-4 connector enables seamless communication with Haltech CAN Bus systems, allowing for efficient data transfer and expanded system functionality, which is crucial for complex engine management tasks.
This terminated harness simplifies complex wiring requirements, providing a robust and organised solution for your LSX engine setup. Its thoughtful design and advanced features make it a practical addition to your vehicle, ensuring reliable performance and enhanced control across various components.
Haltech Nexus R5 LSX DBW Terminated Harness Quick Start Guide
