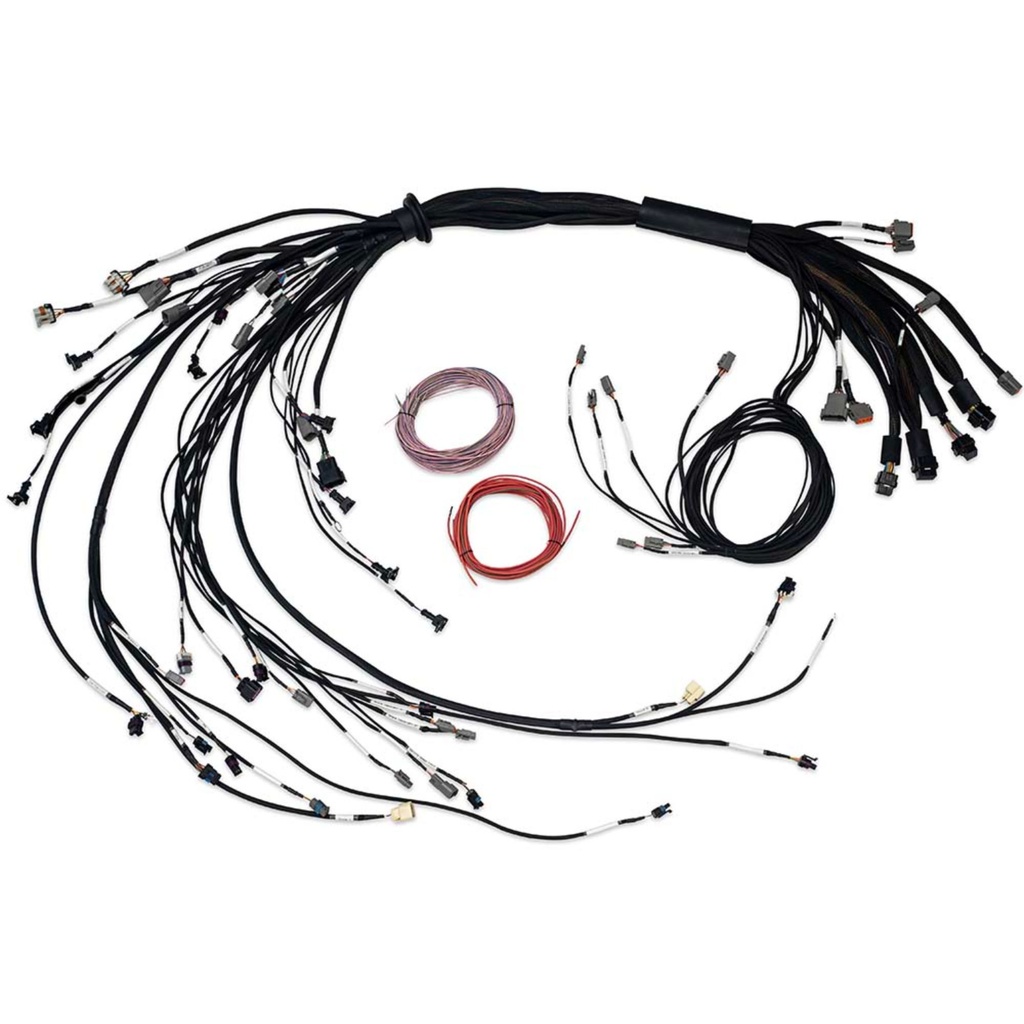

The Haltech Nexus R5 LSX Non-DBW Terminated Harness is designed to integrate seamlessly with LSX engines, providing comprehensive control for a range of critical engine functions. Its terminated design simplifies installation, while built-in PDM (Power Distribution Module) functionality ensures efficient and reliable power management for connected components.
Discover the key features of this terminated harness:
- EV1 Primary Injector Plugs: Equipped with EV1 connectors for the primary injectors, this harness supports a plug-and-play connection with the OEM ignition sub-harness, ensuring a straightforward installation process and dependable injector performance.
- Integrated Breakout Connections: Features breakout plugs for secondary and tertiary injectors, dual boost solenoid control, and dual wideband sensor control through the onboard wideband controller, allowing enhanced tuning flexibility and precise air-fuel management for optimised engine performance.
- Direct Fuel Pump and Thermos Fan Control: Includes pre-crimped DTP-2 connectors with 12AWG wiring to provide direct 25A high-current output (HCO) control for the fuel pump and thermos fan, ensuring efficient operation and reduced complexity in your electrical setup.
- Flex Fuel Sensor Integration: Compatible with flex fuel sensors to enable real-time fuel composition monitoring, providing adaptive fuel mapping for improved efficiency and power delivery across varying fuel types.
- Spare Inputs and Outputs for Customisation: Engineered with in-cabin and engine bay breakout connectors for spare inputs and outputs, this harness allows easy expansion for controlling additional devices such as transmission systems or auxiliary components, enhancing overall system versatility.
This harness provides a practical solution for managing LSX engines without DBW functionality. Its pre-terminated design and advanced features make it a valuable addition to your vehicle setup, offering reliable control and adaptability for a wide range of applications.
Haltech Nexus R5 LSX Non DBW Terminated Harness Quick Start Guide
