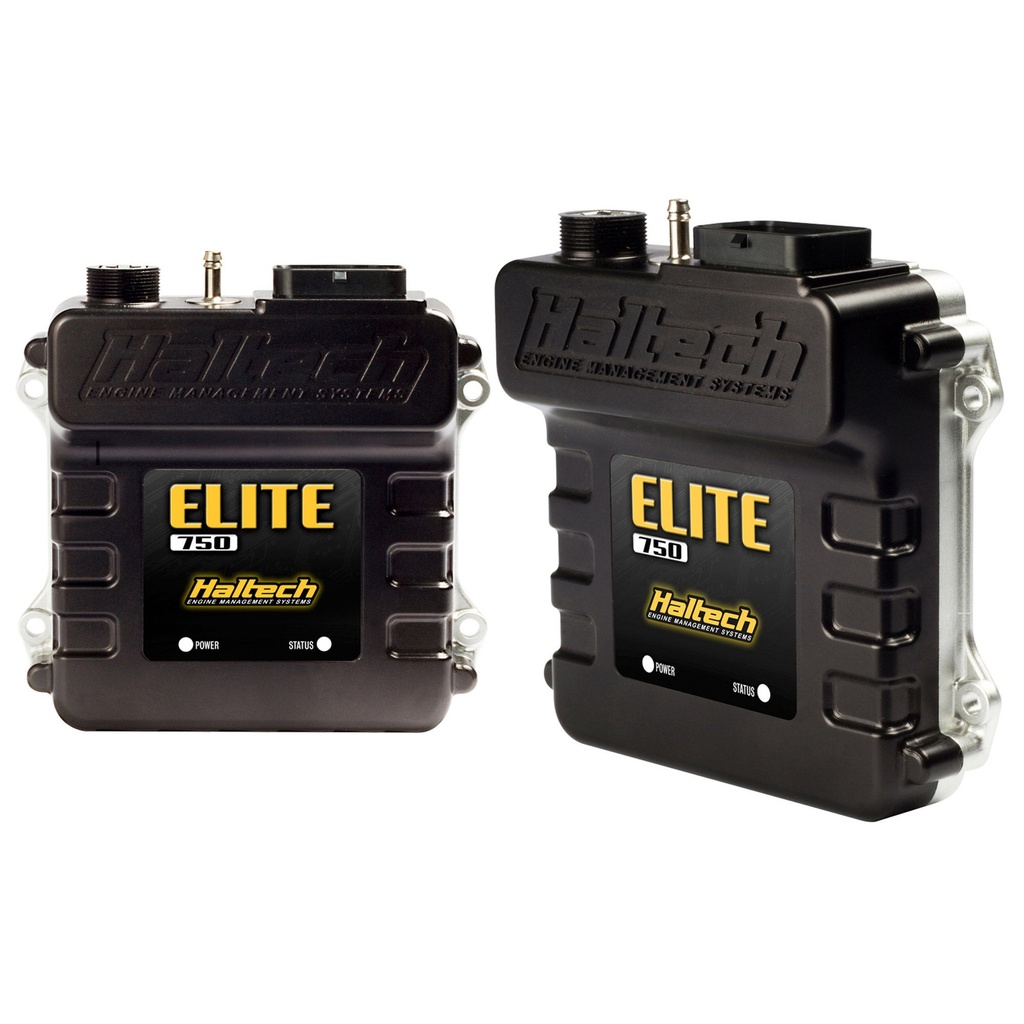

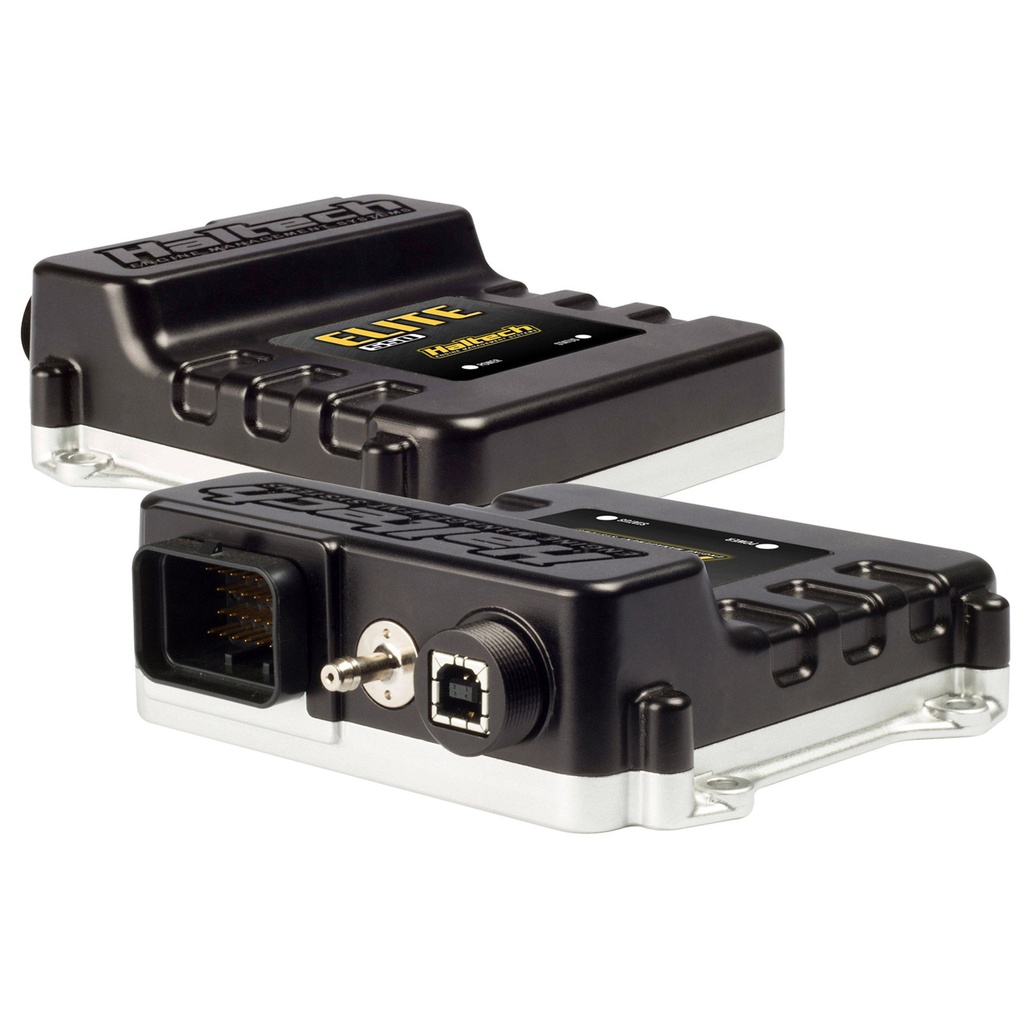

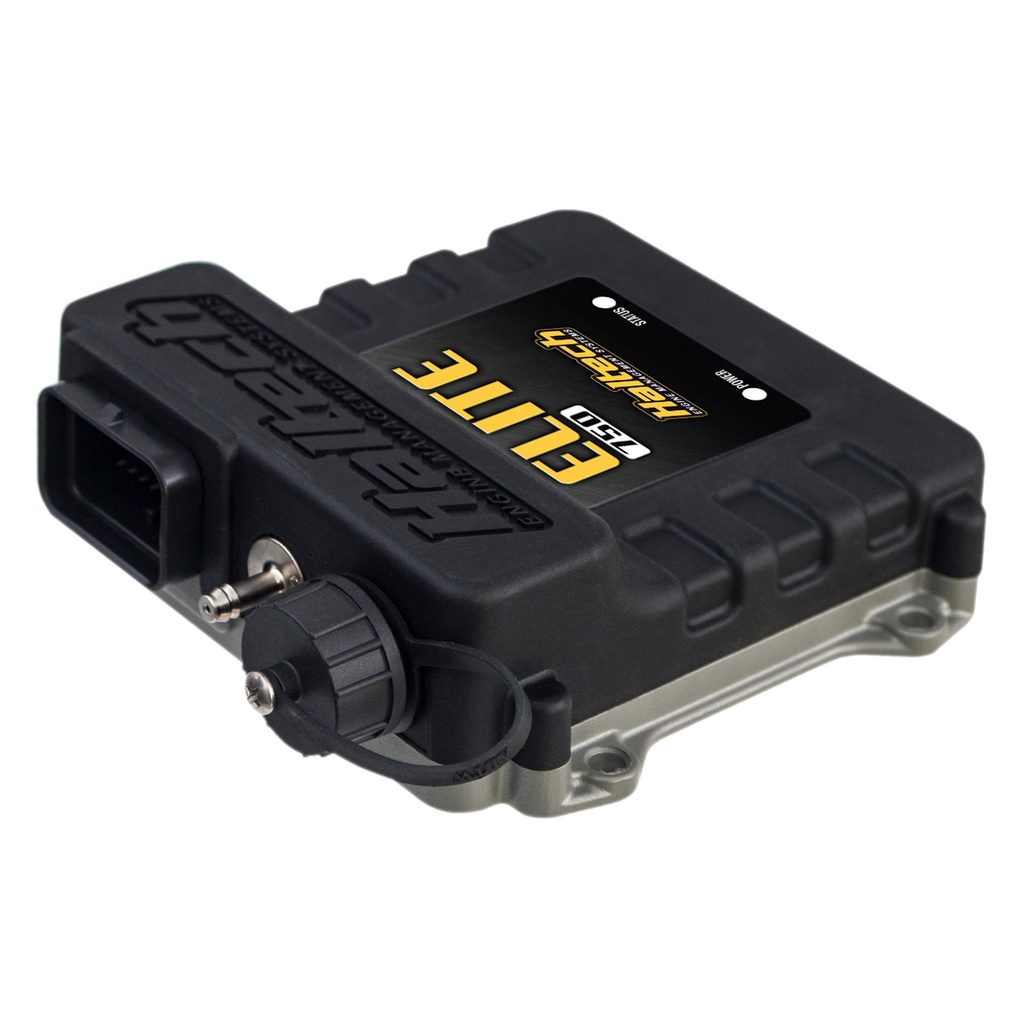

The Haltech Elite 750 is a great value entry level ECU suitable for up to 8 cylinder or 3 rotor EFI engines including those with forced induction and provides full control over fuel delivery, ignition timing and boost levels. It features an internal 3 bar MAP sensor and is suited to many different types of ignition and injection systems making it a great universal ECU ideal for engine conversions, carb to EFI conversions or turbo / supercharger conversions. Not suitable for engines with drive by wire throttle control.
- 1 -6 Injection and ignition outputs - suitable for EFI engines up to 8 cylinders or 3 rotors including forced induction
- Fully mappable for ignition timing, fueling and boost
- Compatible with various ignition systems including: distributor, multi coil and Haltech multiplex CDI systems
- Capable of delivering different injection patterns including: Sequential, Semi-sequential, Batch and Multipoint. Also includes 2 injection stages for rotary engines.
- TPS (throttle position sensor), MAP (manifold absolute pressure) or MAF (mass air flow) load sensing
- Ideal for engine conversions, carb to EFI conversions or turbo conversions
The Haltech 750 ECU is available as just the ECU or with different plug / wiring options to suit different applications:

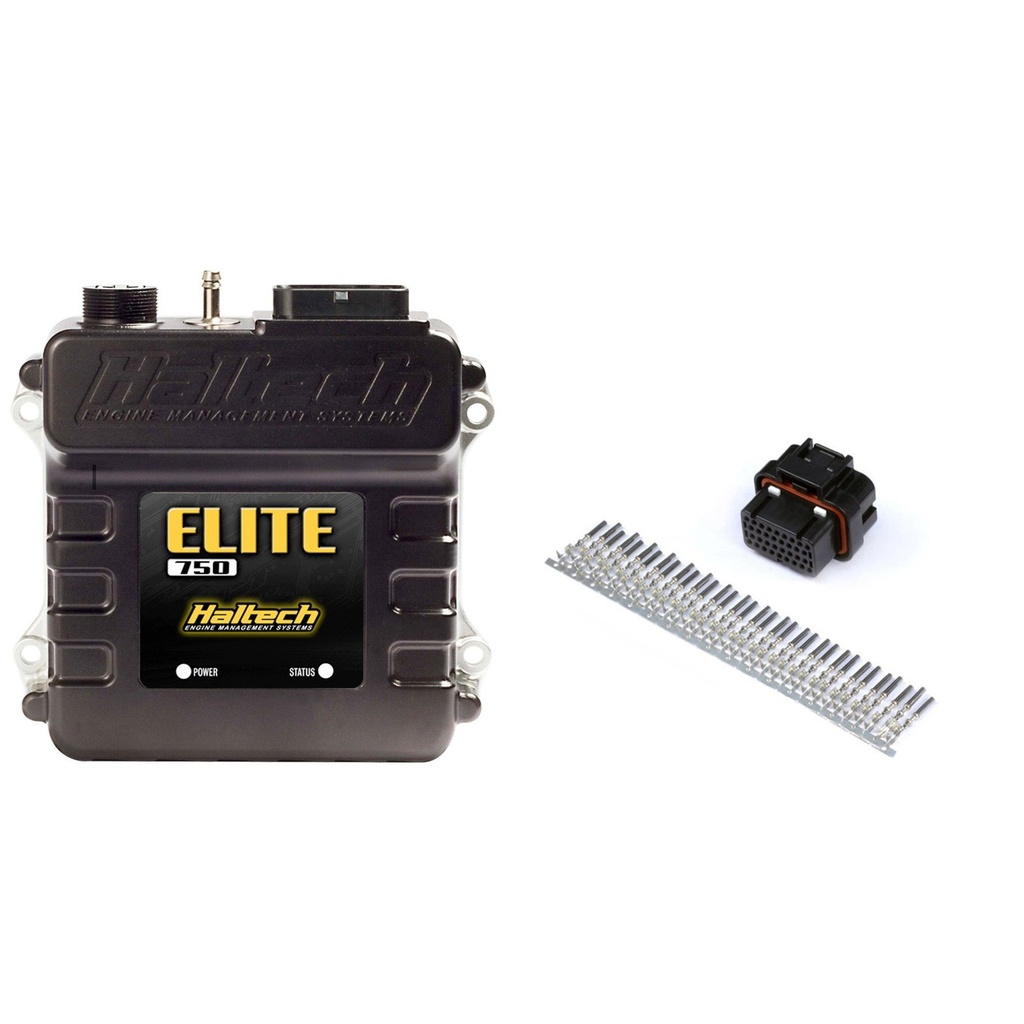

ECU With Plug & Pin Set - Includes a plug to fit the ECU socket and pins to allow for wire connection. Ideal for when a bespoke wiring loom is being produced

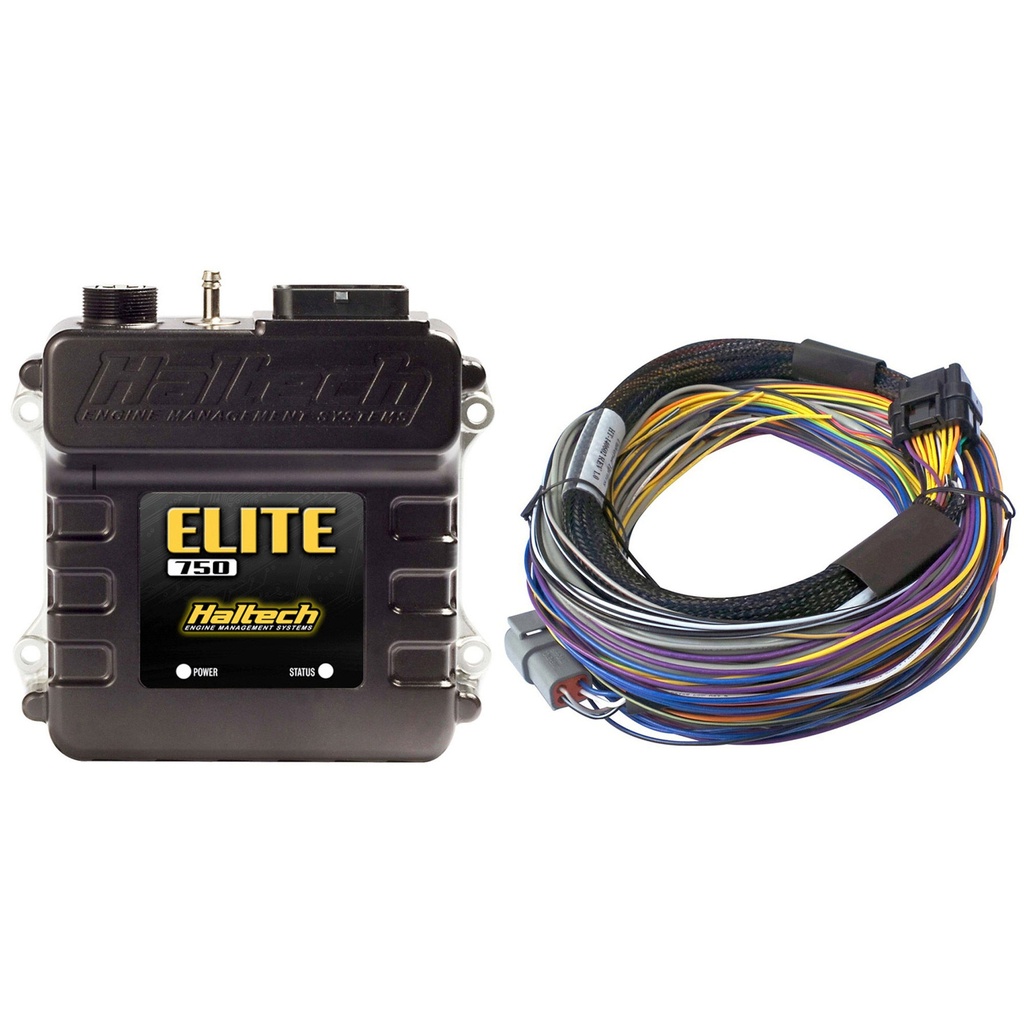

ECU With Basic Harness - Includes a 2.5m long wiring harness with an ECU specific plug on one end and un-terminated wiring on the other end. The wires are colour coded and labelled for ease of installation. Ideal for connecting to existing sensors.

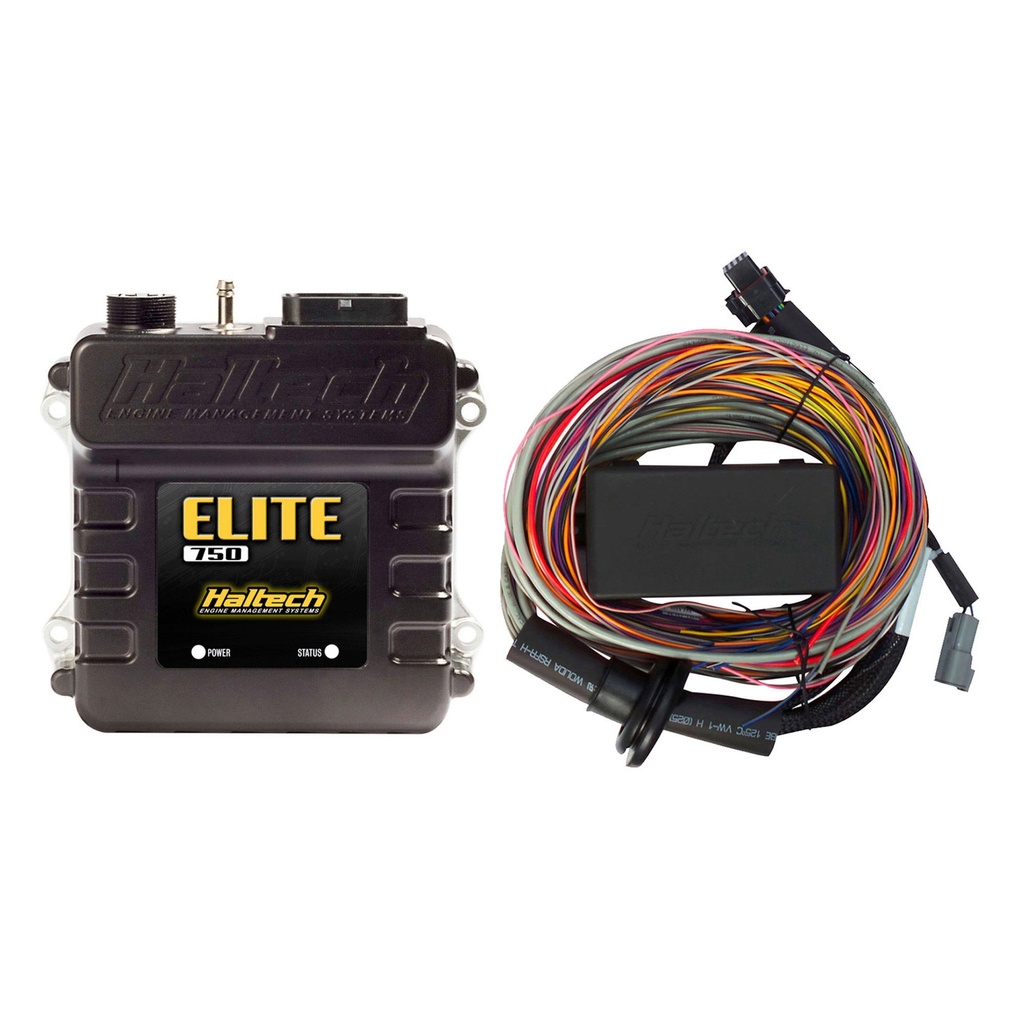

ECU With Premium Harness - Includes the same harness as the basic version above but also includes a 6 circuit fusebox with lid, 4 relays, 7 fuses and pins, and a firewall grommet.
The Haltech Elite 750 ECU has many features, too many to list here. For a more detailed list of features and specifications click the link below.
Haltech Elite 750 ECU Features & Specifications
If you are unsure of which is the correct Haltech ECU for your application, click the link below to see a comparison of the features and specifications between the models.
