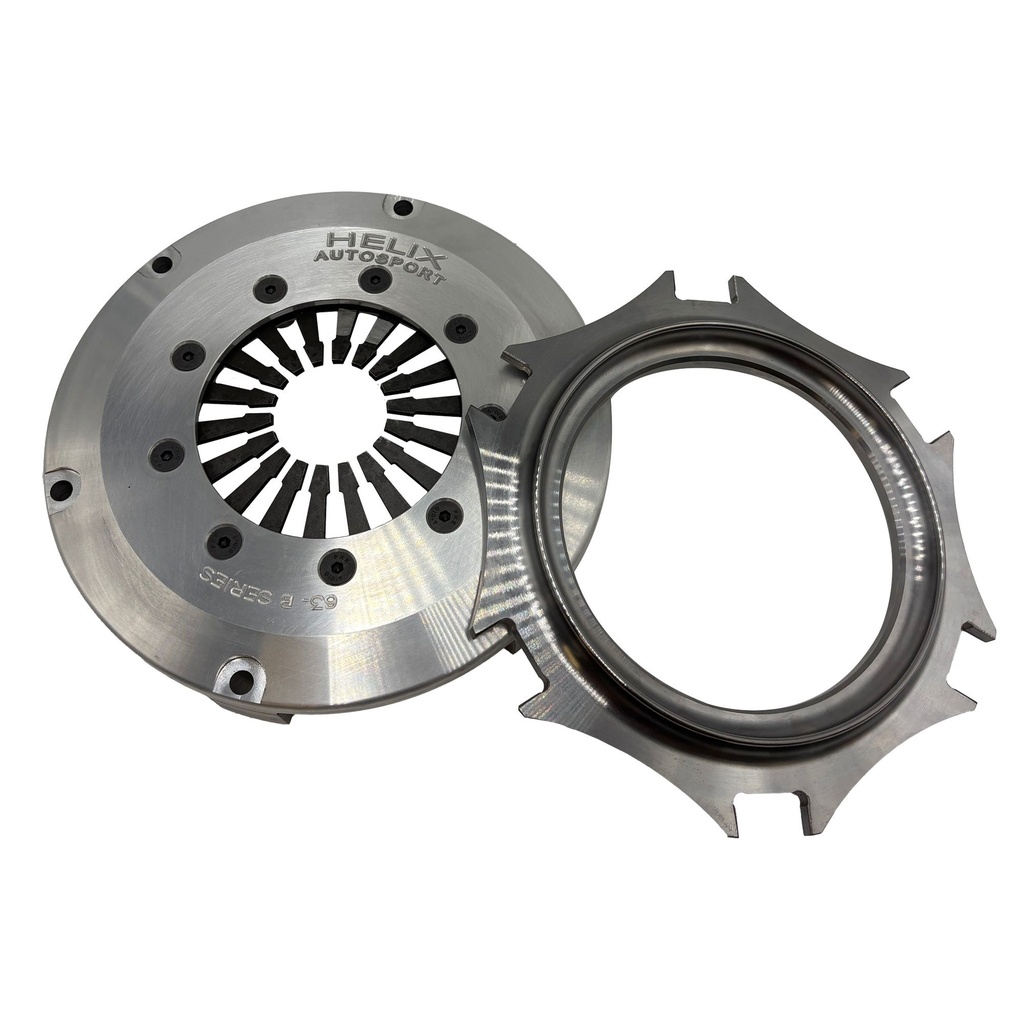

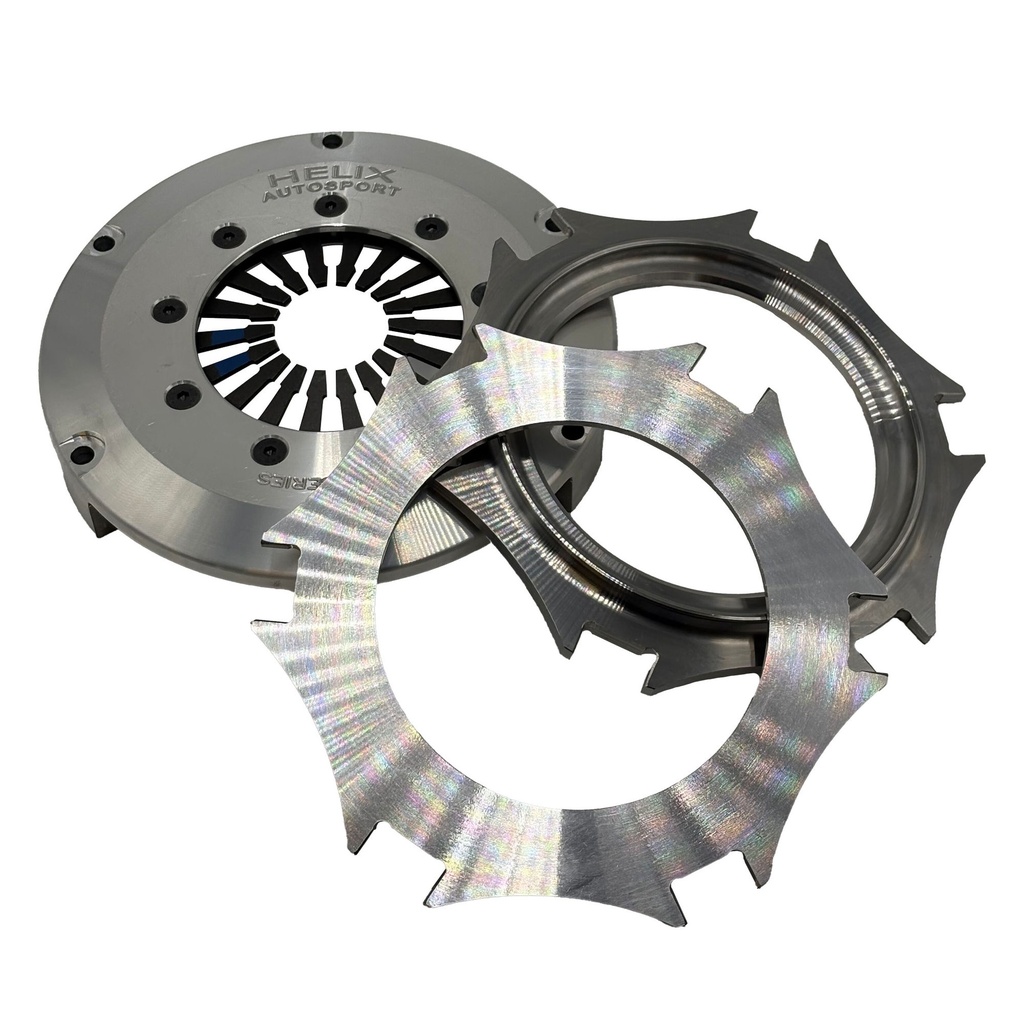

The Helix 7.25" (184mm) Rally Clutch Cover Assembly is designed to transfer high levels of engine power and torque to the transmission in demanding road, track and competition applications. Its one-piece aluminium construction, lug drive design, 184mm diameter and choice of diaphragm spring configurations allow it to manage high loads, improve heat dissipation and maintain reliable operation at sustained engine speeds.
Discover the key features of this clutch cover assembly:
- 7.25" (184mm) Compact Diameter Design: The compact 184mm diameter reduces rotational mass within the clutch assembly, helping the engine accelerate and decelerate more freely which improves throttle response and provides a more direct connection between engine speed and vehicle performance.
- One-Piece Aluminium Cover Construction: Manufactured from a single-piece aluminium housing, the cover efficiently dissipates heat generated during clutch operation which helps maintain stable clutch performance and supports consistent operation during repeated high-load use.
- Lug Drive Mechanism: The lug drive arrangement allows friction material dust to escape more effectively from the clutch assembly, helping to reduce contamination within the cover and supporting smoother engagement during prolonged use.
- High Power and Torque Capability: Engineered specifically for vehicles producing substantial power and torque outputs, the assembly provides the clamping force required to maintain reliable power transfer and reduce the likelihood of clutch slip under heavy load.
- Single, Twin and Triple Plate Compatibility: Available for use with single, twin or triple plate clutch configurations, the assembly allows you to select a setup that matches your vehicle requirements while maintaining compatibility with a wide range of driveline specifications.
- Cerametallic and Organic Drive Plate Compatibility: Designed for use with either cerametallic paddle plates or organic friction plates, the cover assembly supports different clutch characteristics, allowing you to tailor engagement behaviour to suit your application.
- Lightweight Aluminium Construction: The reduced weight of the aluminium cover lowers the clutch assembly's moment of inertia, helping the engine respond more quickly to throttle inputs and contributing to a more responsive driving experience.
- Sustained High RPM Operation: The robust design is intended to withstand continuous operation at elevated engine speeds, helping maintain dependable clutch performance during extended periods of hard use.
- Multiple Diaphragm Spring Options: Available with a choice of diaphragm spring types to suit different release bearing faces, the assembly enables correct component matching which supports reliable clutch release and consistent pedal operation.
Improved engine responsiveness and dependable power transmission become particularly valuable when your vehicle is subjected to repeated high-load acceleration, sustained high engine speeds and demanding driving conditions. The combination of lightweight aluminium construction, effective heat management and flexible configuration options allows this clutch cover assembly to integrate into a wide range of driveline setups. It is a practical addition to your transmission system when reliable clutch performance is required from a high-power vehicle.
Diaphragm Spring Options: These cover assemblies are available with different diapgragm spring configurations depending on the release bearing type to be used.
- Straight diaphragm spring - For use with release bearings which have a curved face and a fulcrum point between 48-54mm
- Curly diaphragm spring - For use with release bearings which have a flat face and a fulcrum point between 48-54mm
- Diaphragm spring with release bearing plate - For use with flat face carbon release bearings
Torque Capacity: The torque figure quoted in the dropdown menu is when cerametalic plates are used. Torque capacities for organic plates are shown below.
Single Plate
211 Nm (155 lb/ft) With cerametallic plate / 152 Nm (112 lb/ft) With organic plate
299 Nm (220 lb/ft) With cerametallic plate / 216 Nm (159 lb/ft) With organic plate
445 Nm (327 lb/ft) With cerametallic plate / 324 Nm (238 lb/ft) With organic plate
490 Nm (360 lb/ft) With cerametallic plate / 356 Nm (262 lb/ft) With organic plate
Twin Plate
291 Nm (214 lb/ft) With cerametallic plates / 215 Nm (158 lb/ft) With organic plates
433 Nm (310 lb/ft) With cerametallic plates / 305 Nm (224 lb/ft) With organic plates
626 Nm (460 lb/ft) With cerametallic plates / 453 Nm (333 lb/ft) With organic plates
688 Nm (506 lb/ft) With cerametallic plates / 498 Nm (366 lb/ft) With organic plates
Triple Plate
1131 Nm (843 lb/ft) With cerametallic plates / 848 Nm (626 lb/ft) With organic plates
1319 Nm (974 lb/ft) With cerametallic plates / 989 Nm (730 lb/ft) With organic plates
1555 Nm (1147 lb/ft) With cerametallic plates / 1166 Nm (860 lb/ft) With organic plates
Please note: Clutch drive plates are not included.
Specifications
| Option | Straight Diaphragm Spring, Curly Diaphragm Spring, Diaphragm Spring With Release Bearing Plate |
| Number Of Drive Plates | 1, 2, 3 |
| Torque Capacity | 211 Nm (155 lb/ft), 445 Nm (327 lb/ft), 299 Nm (220 lb/ft), 490 Nm (360 lb/ft), 291 Nm (214 lb/ft), 626 Nm (460 lb/ft), 422 Nm (310 lb/ft), 688 Nm (506 lb/ft), 1319 Nm (974 lb/ft), 1131 Nm (834 lb/ft), 1555 Nm (1147 lb/ft) |
| Brand | Helix |
