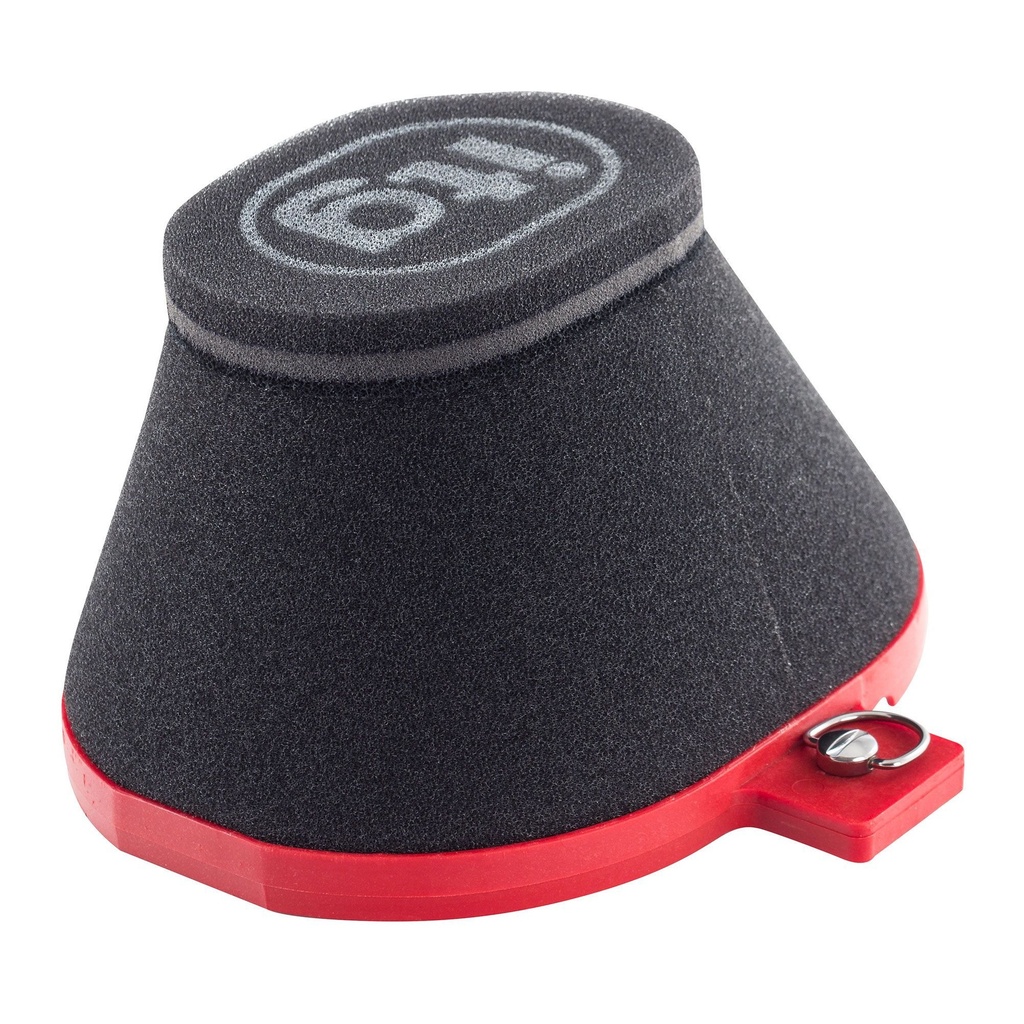

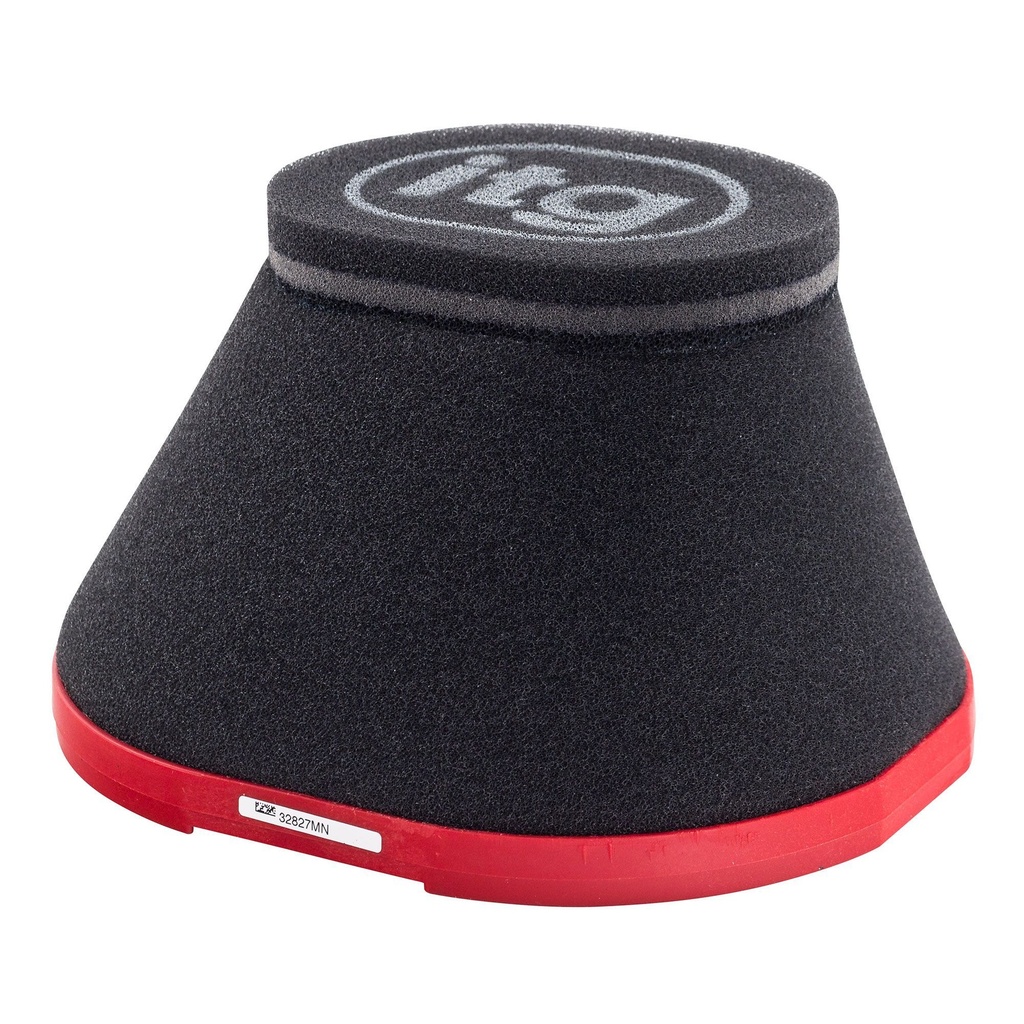

This competition air filter is designed to specifically fit Formula Ford race cars with Weber twin choke carburettors. The tapered design allows it to fit Formula Fords including those with air scoops. Baseplates for Weber 32/36 DGAV, DGVA, DGV, DGMA and 38 DGAS, DGAR carburettors are sold separately.
- Designed to fit all models of Formula Ford
- Self extinguishing foam reduces fire risk
- Provides optimum airflow for maximum power
- Three layer filtration for ultimate air cleaning
- Internal mesh to keep filter shape
The ITG Formula Ford Air Filter is designed for competition use, with the filter simply bolting onto the base plates (available separately) providing optimum air flow, engine protection and safety. This is accomplished by providing a three layer 'Trifoam' system, with the outer two layers filtering drawn air and the inner manufactured from self extinguishing filter foam providing a safety vital aspect designed to reduce damage to the filter should 'blowback' from the carburettor occur. The red (or black) bands fixed to the filter enable secure attachment to the baseplate and maintain overall rigidity. They are constructed from a tough, durable yet lightweight fibre reinforced nylon which also has been researched to ensure best match to the baseplate for minimum induction seepage. ITG recommend a maximum gap between the top of the inside of the filter and the carburettor inlet (or trumpets/ram pipes) ensuring sufficient air to circulate, but 13mm (1/2") (19mm gap if ram pipes/trumpets are fitted) should provide suitable circulation should space be at a premium.
Available with 'Original' red base band or 'Classic' black band.
JC20 Air Filter dimensions (excludes mounting lugs): Length: 192mm, Width: 148mm.
Please note, ITG air filters require pre-oiling prior to installation. Baseplate not included.
