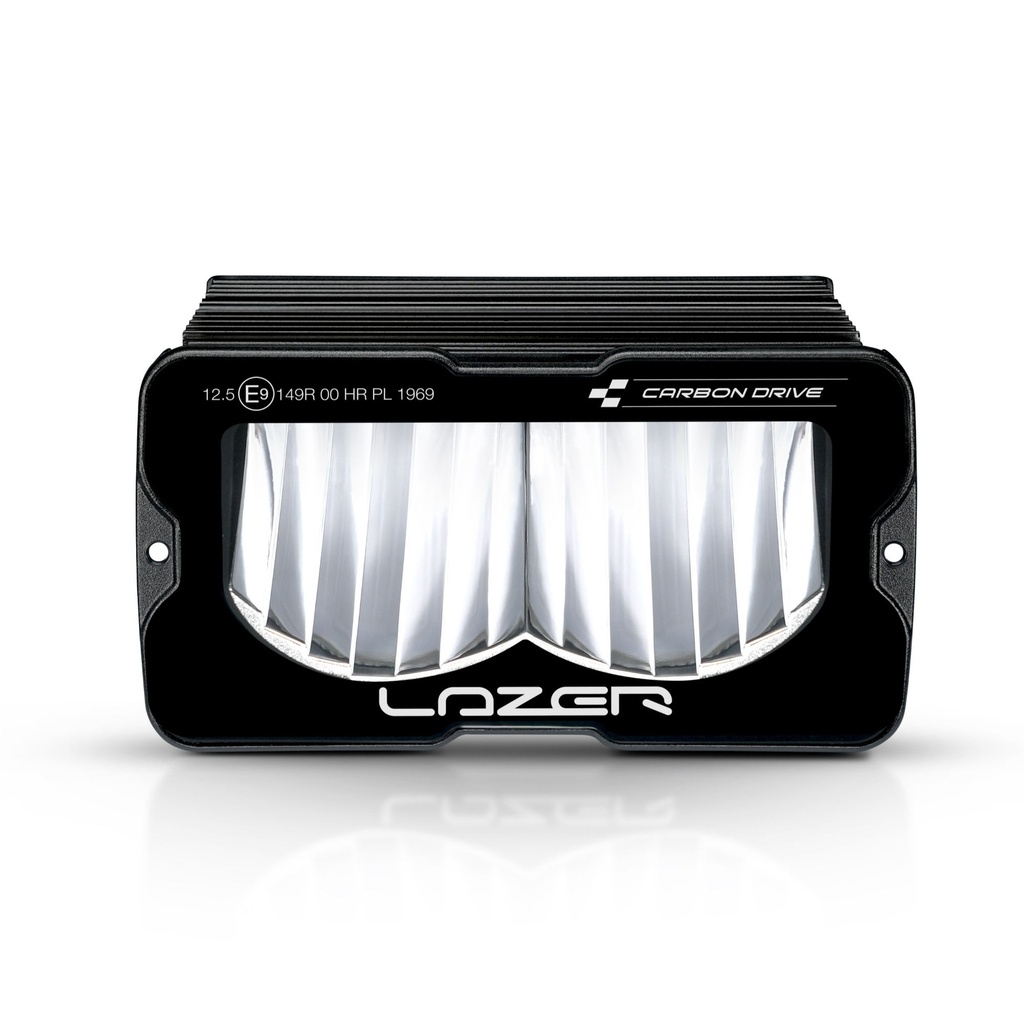

The Lazer Lamps Carbon-2 Gen 4 is a lightweight LED lamp designed to deliver high performance lighting in a compact, lightweight housing. You can select between white or yellow dipped beam options to suit different visibility conditions, with additional backlight colour customisation available through a built-in switching sequence (yellow dip beam option only).

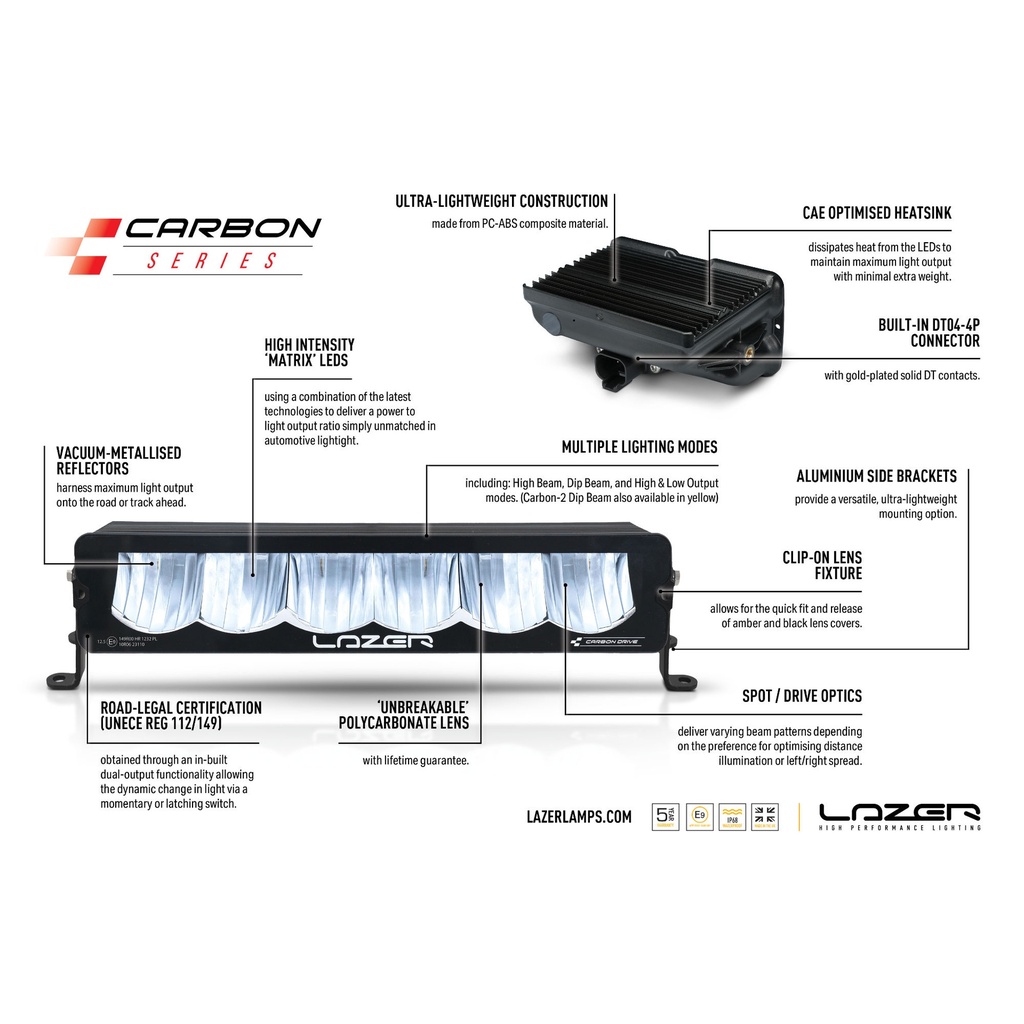

Explore the key features, benefits and outcomes of the Carbon-2 Gen 4 LED lamp:
- Dual Beam Output Modes: Each unit features High Beam – Boost Mode, Dip Beam, and High Beam – Reduced Output settings, giving you flexible lighting options for road-legal and off-road use depending on your application and environment.
- Dip Beam Colour Selection: Available in white or yellow dip beam options, the yellow variant improves contrast and reduces glare in fog, snow or wet conditions, helping you maintain visibility in adverse weather.
- User-Selectable Backlight Colours: The yellow dip beam version includes white and amber backlight options that can be switched via a predefined on/off flashing sequence, allowing you to change appearance post-installation without needing additional tools or devices.
- Superior Light Output: Delivering 3,120 lumens from high-efficiency LEDs, this feature ensures strong forward illumination with wide coverage, helping you identify hazards and maintain awareness during night-time driving on road, stage or track.

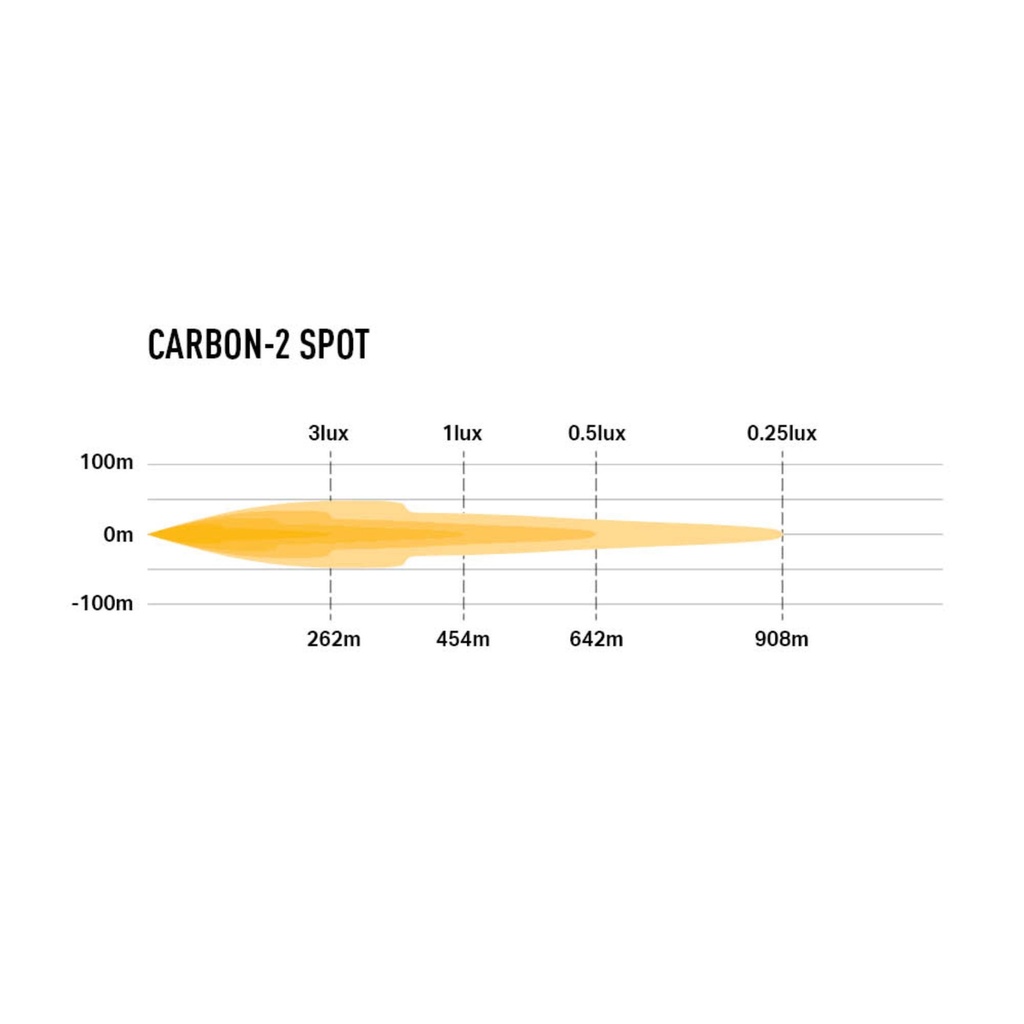

- SPOT Beam Dual Output Control: The Carbon-2 SPOT includes full and reduced output settings, enabling 100% intensity for off-road use or a 25% output level that meets UNECE R149 Class RA regulations for road use, giving you greater control over compliance and performance.

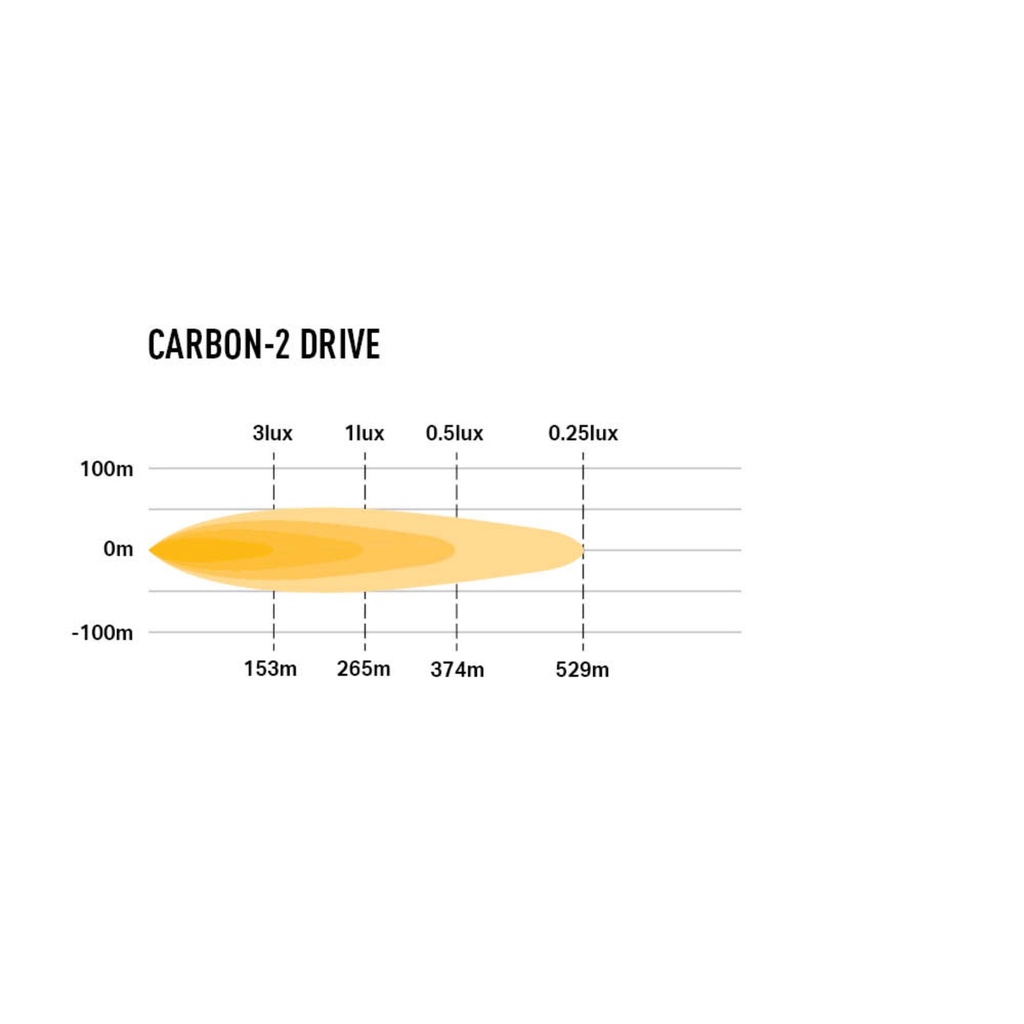

- DRIVE Beam Road Approval: The Carbon-2 DRIVE is fully approved under UNECE R149 Class B Driving Light regulations, making it suitable for use as a high beam on public roads without additional approvals or modifications.

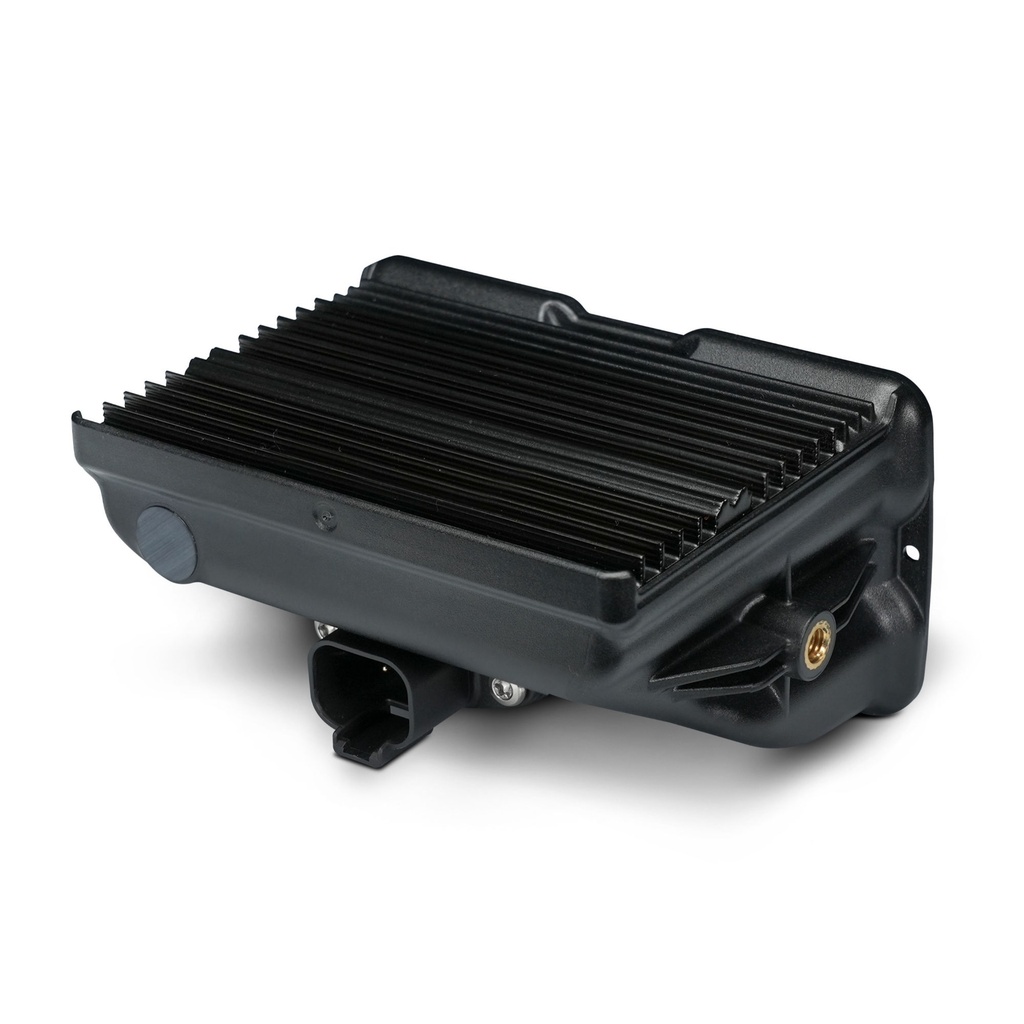

- Optimised Thermal Management: A CAE-optimised anodised aluminium heat sink ensures minimal airflow is required to maintain 100% light output, reducing the risk of thermal de-rating during extended use.
- Dynamic Drive Modulation: This feature actively protects the lamp’s internal components by adjusting drive levels based on environmental and thermal conditions, helping to maintain long-term reliability in harsh environments.
- Lightweight and Durable Construction: The PC-ABS composite housing and polycarbonate lens deliver strength and resistance to heat and impact while keeping weight to just 192g per unit, helping to minimise strain on mounting structures.
- Precision LED Technology: Premium-bin LEDs paired with carefully selected 5000K colour temperature improve sharpness and clarity in night driving conditions, enhancing depth perception and reducing eye strain.
- Sealed and Ready to Install: Each lamp includes a built-in DT04-4P Deutsch Connector with gold-plated solid contacts, plus 150mm of cable and a vehicle-side connector for easy integration into existing electrical systems.
This lightweight, high-output lamp gives you a compact and reliable lighting solution for use in both road and off-road environments. Its adaptive beam settings, thermal protection, and colour customisation provide flexibility when conditions or regulations change. It’s a smart addition to your vehicle lighting setup when you need performance, control, and durability in a compact format.
5 Year warranty
Sold individually
