This range of MAP (Manifold Absolute Pressure) sensors from Link Engine Management are available in different pressure ratings making them suitable for everything from N/A engines to forced induction engines running up to 4 Bar (58 Psi) of boost. The sensors are remote mounted and include a plug and pins for wiring purposes.
- Pressure ratings up to 5 Bar ideal for super high boost applications
- Supplied with a plug and pins for wiring
- Rugged and compact aluminium casing

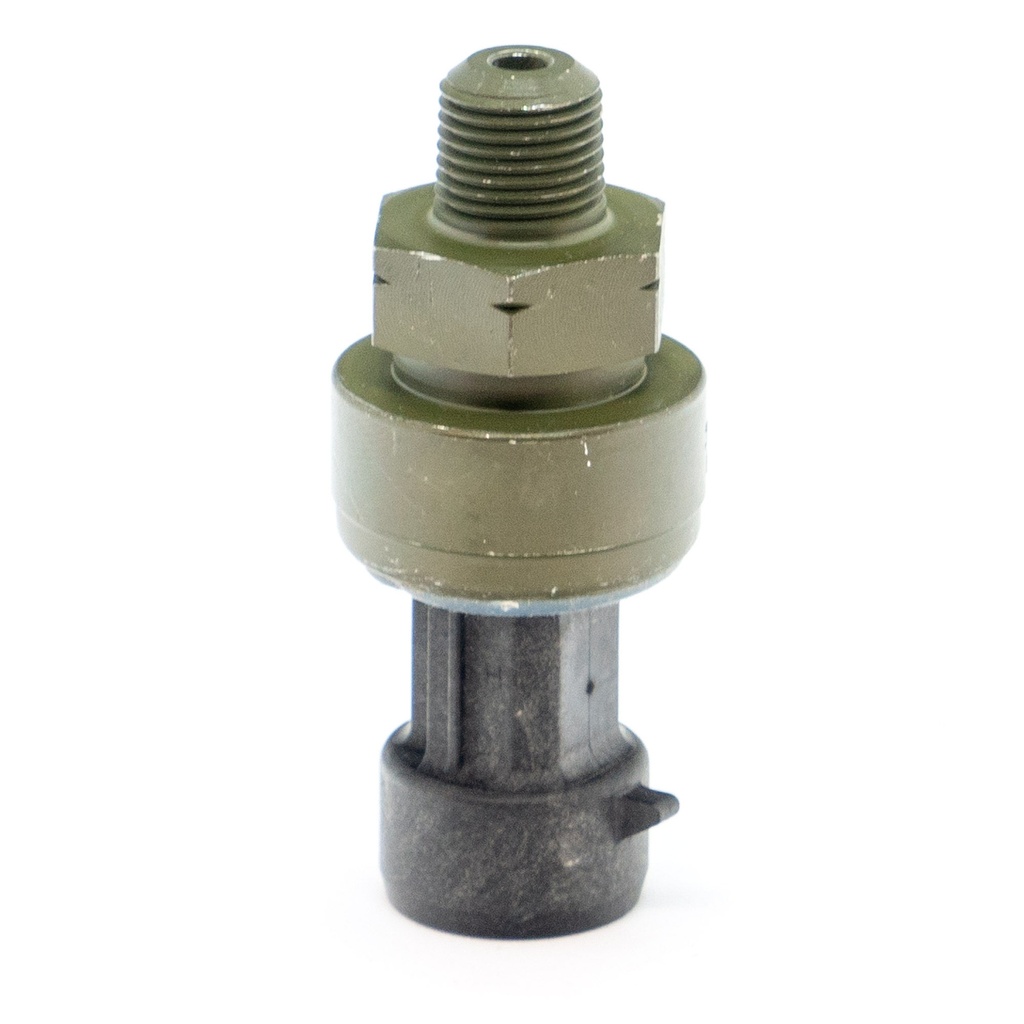

All of the MAP sensors except the 5 bar sensor accept a 4mm bore push on pressure hose and feature a 3 pin Deutsch DTM connector. The 5 Bar sensor has a 1/8" NPT male fitting for for connecting to a pressure hose and features a 3 pin Delphi plug. All MAP sensors should be mounted higher than the pressure outlet port it is connected to.
Link Engine Management MAP sensors are available in the following options:

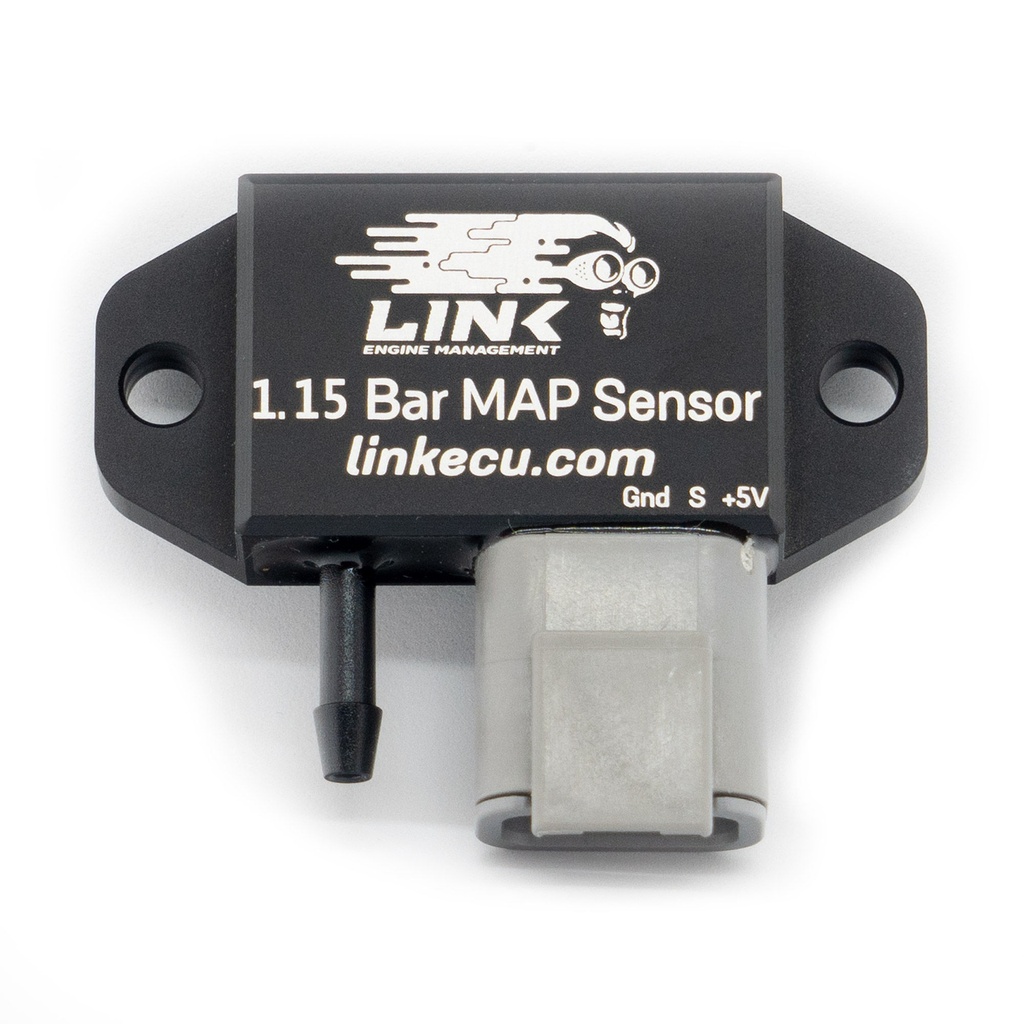

1.15 Bar - Suitable for manifold pressures of 0.15 Bar (2 Psi). Ideal for N/A engines with ram air intake.

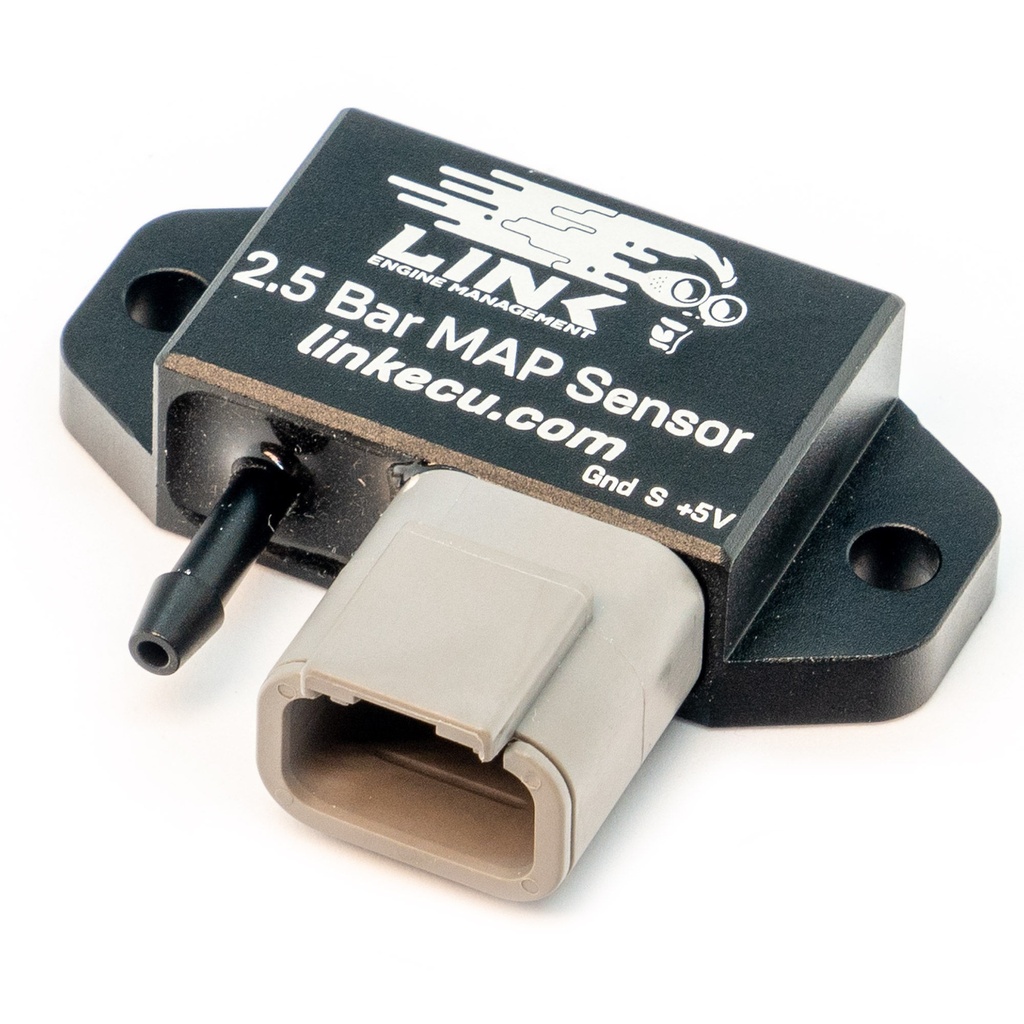

2.5 Bar - Suitable for boost pressures up 1.5 Bar (22 Psi)

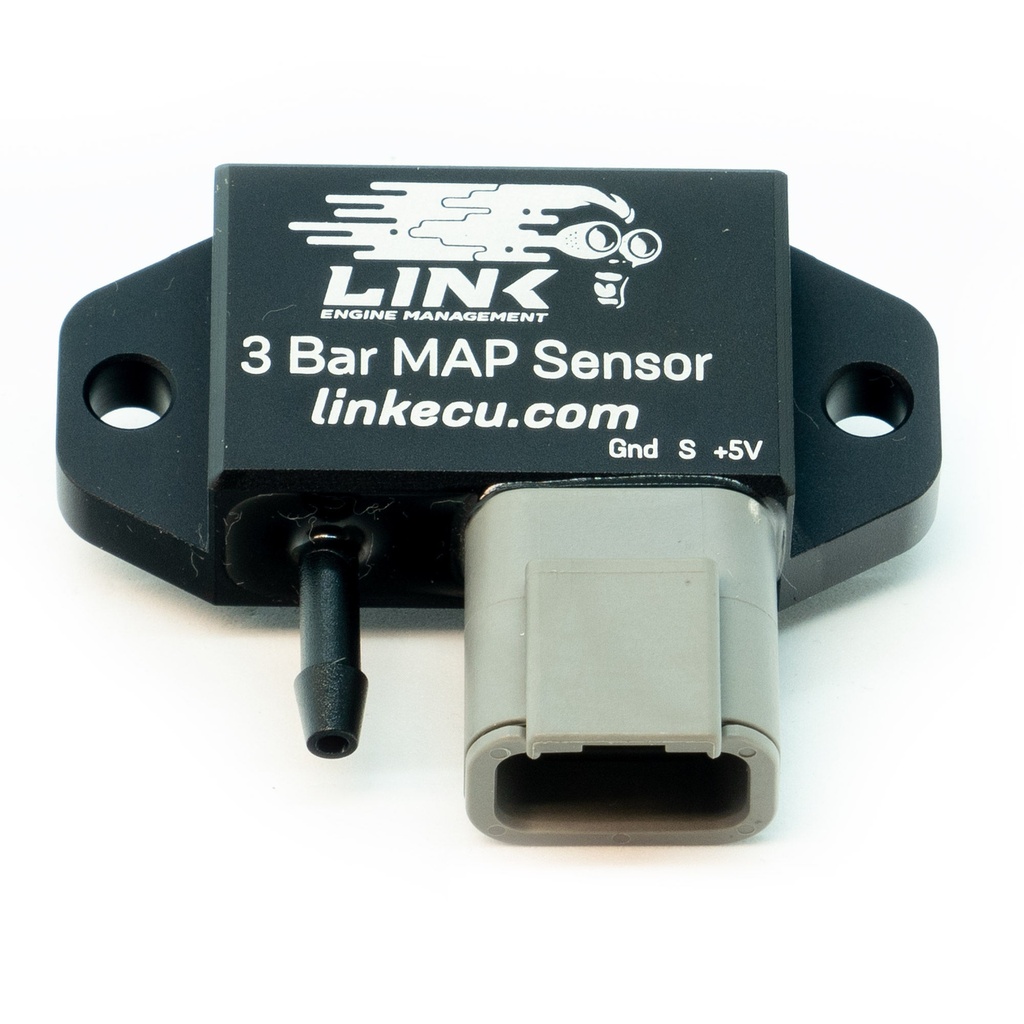

3 Bar - Suitable for boost pressures up to 2 Bar (29 Psi)

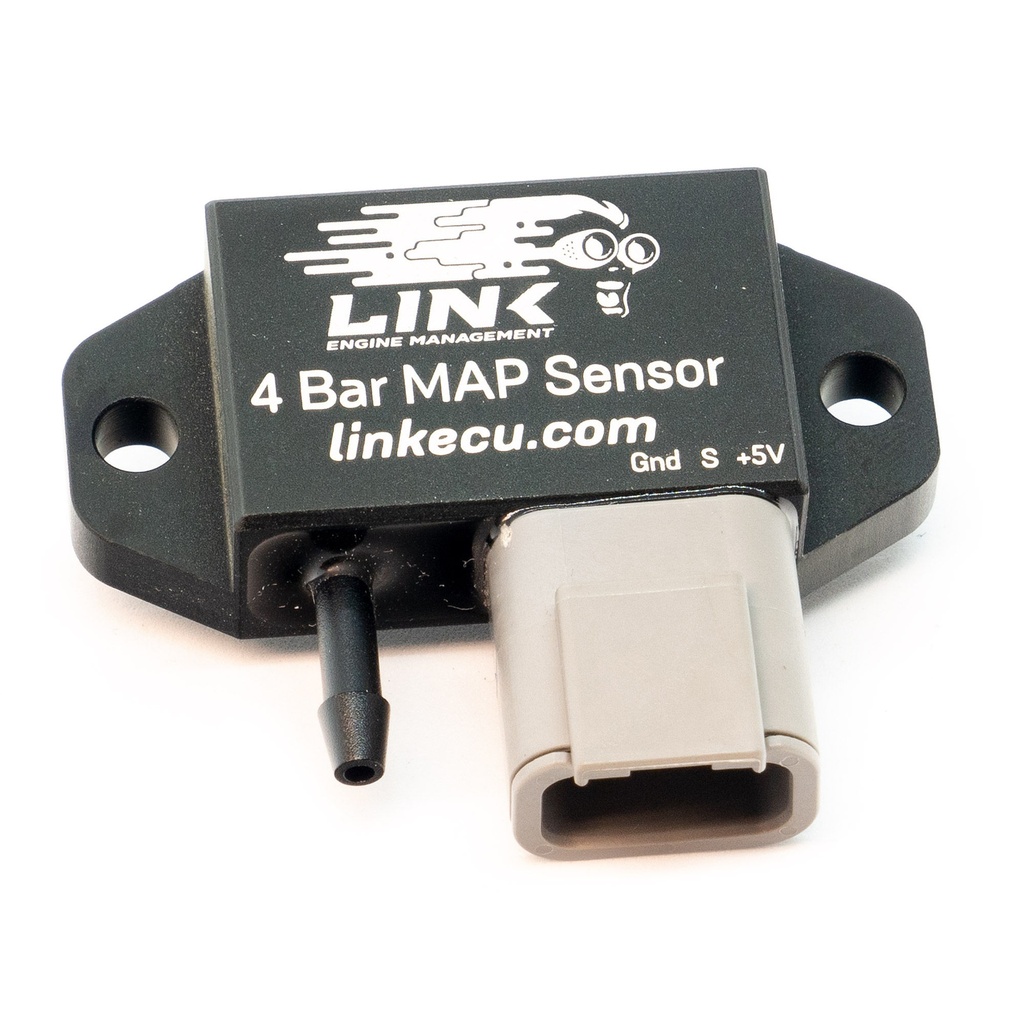

4 Bar - Suitable for boost pressures up to 3 Bar (44 Psi)
5 Bar - Suitable for boost pressures up to 4 Bar (58 Psi)
