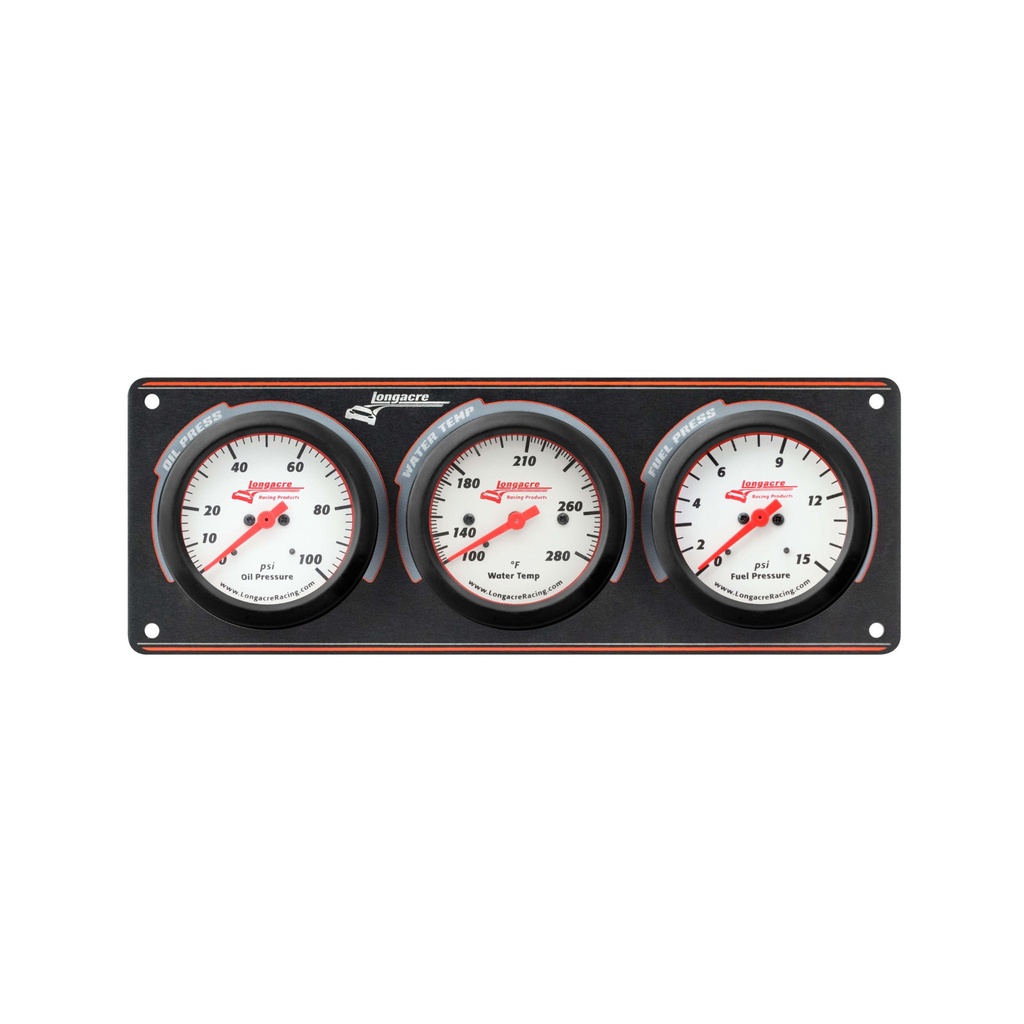

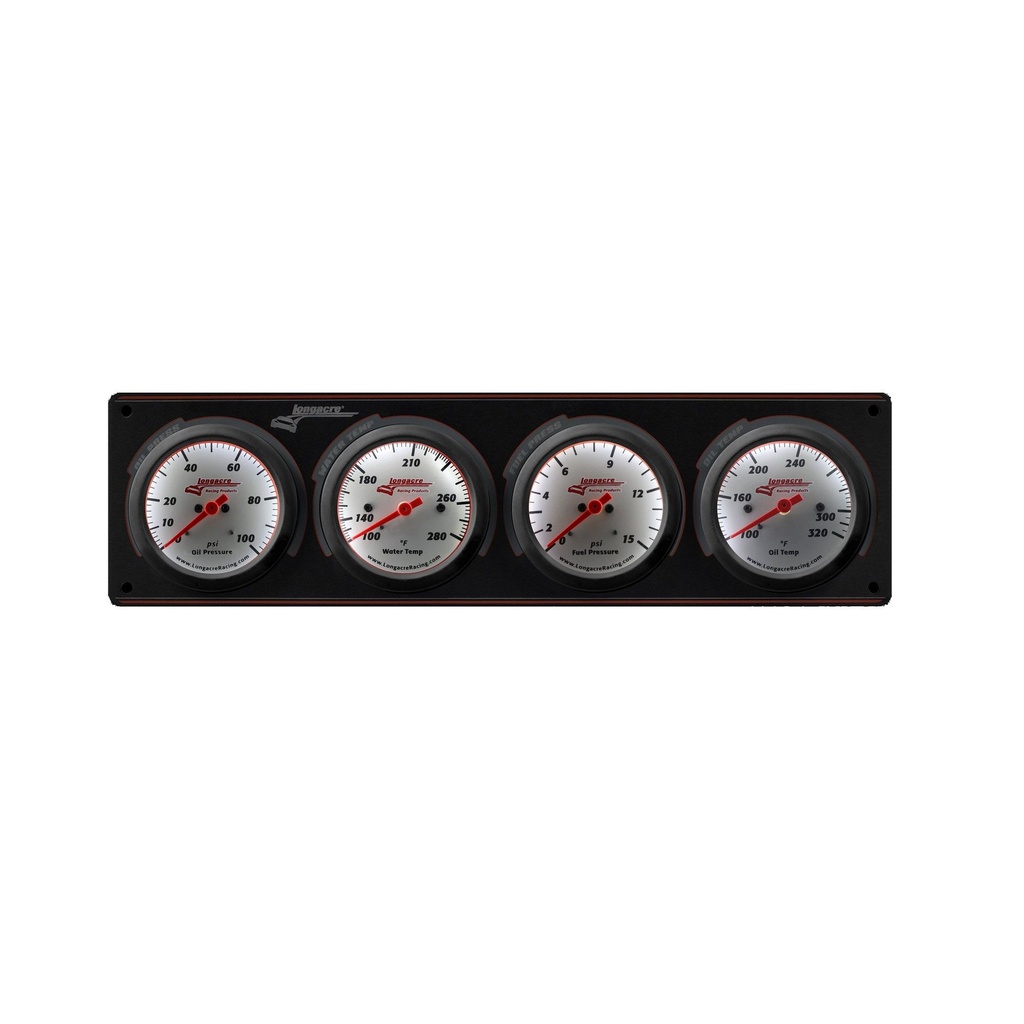

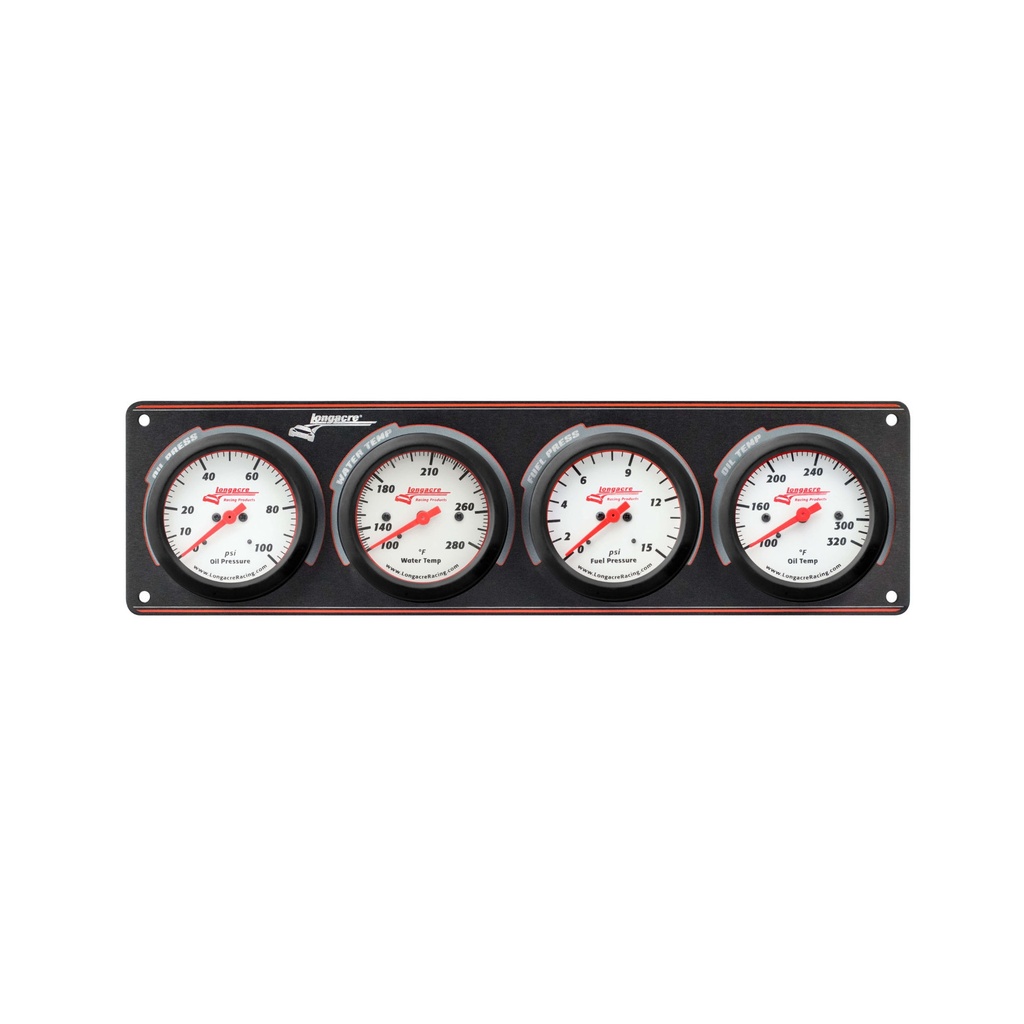

These stylish panels are fitted with accurate Longacre Sportsman mechanical gauges which are 2 5/8" (57mm) diameter and feature a backlight with LED illuminated pointer for optimum visibility day or night. Each gauge features a separate warning light to provide a visual alert to low pressures or high temperatures, removing the necessity to have separate warning lights.

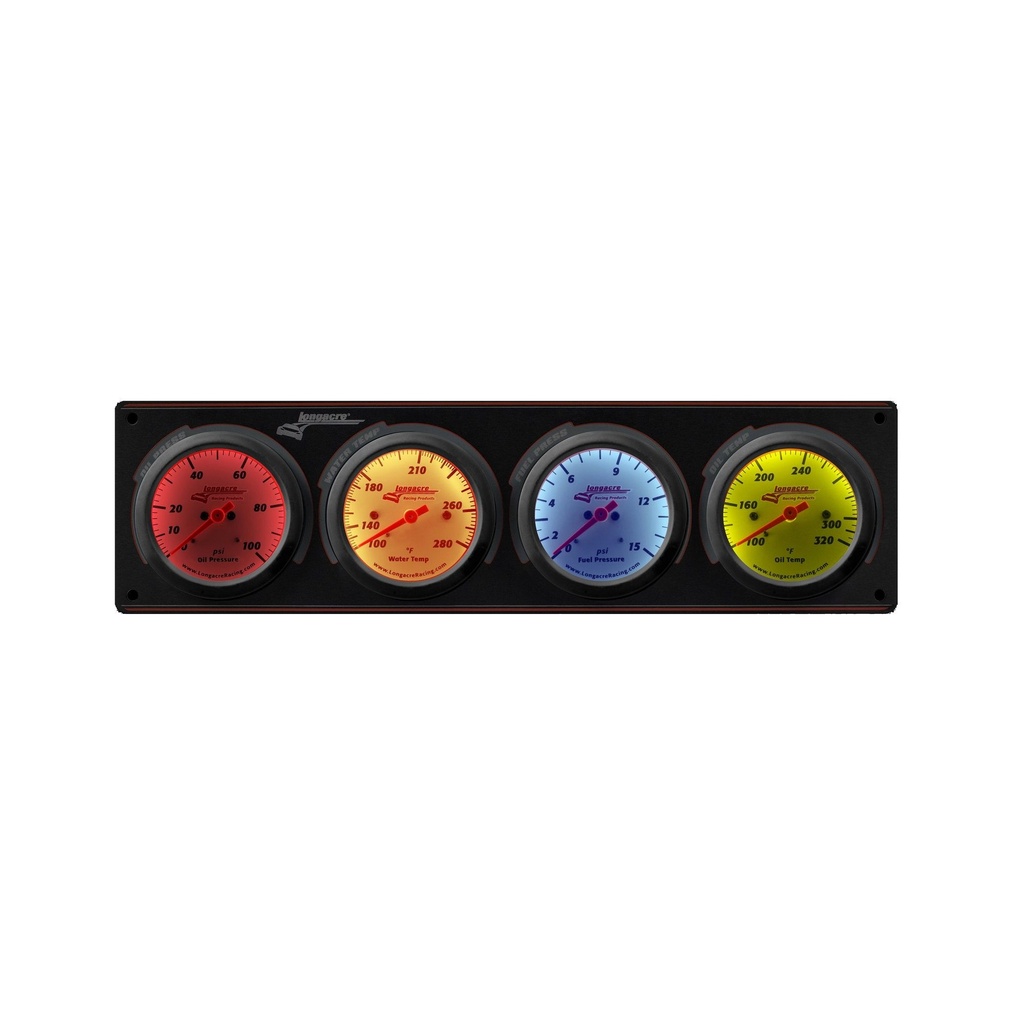

- 2 5/8" (67mm) diameter mechanical gauges with integral warning lights which change to colour of the face to alert of low pressure / high temperature
- Black scale on white background with red needle for ease of reading at a glance

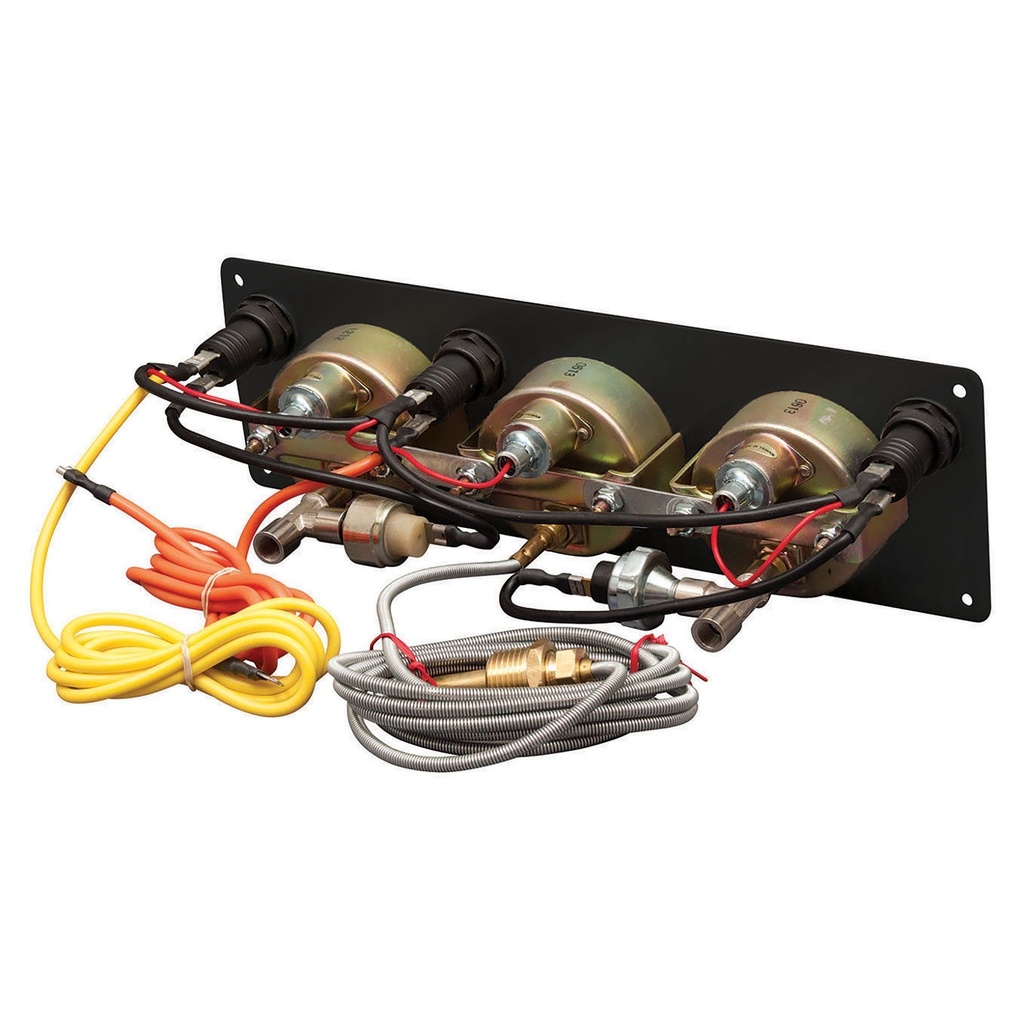

- Mechanical operation so minimal wiring required for installation
Gauge Options -
Oil Pressure (OP) - 0-100 psi
Water Temperature (WT) - 100-280 deg F
Oil Temperature (OT) - 100-320 deg F
Fuel Pressure (FP) - 0-15 psi
Panel Dimensions -
2 Gauge: 8 1/4" x 3 5/8" (210 x 92mm)
3 Gauge: 11 5/8" x 3 5/8" (295 x 92mm)
4 Gauge: 15" x 3 5/8" (381 x 92mm)
Suitable for any 12-16v negative earth system
Specifications
| Option | OP/WT, OP/WT/OT, OP/WT/FP, OP/WT/OT/FP |
| Brand | Longacre |
