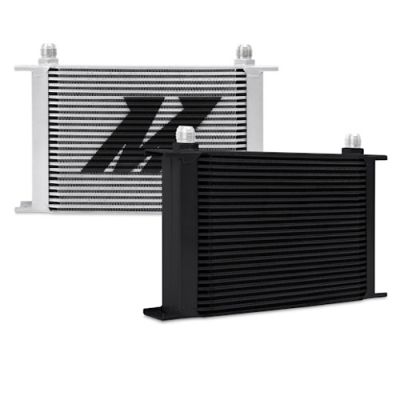

A Mishimoto Universal Oil Cooler Kit is designed to keep oil temperatures under control. A high quality, high efficiency oil cooler core, hoses, fittings, and sandwich plate are provided.
- Keep oil cool to protect engine
- Increase oil life-span
- High quality fittings available as option
Designed to reduce oil temperatures these Universal Oil Coolers from Mishimoto are designed to be used as part of an oil cooling system.

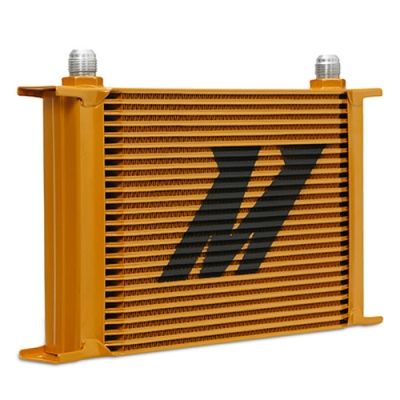

Available in Silver, Gold or Black, and 10, 19, or 25 row versions you can size the cooler to suit your needs.
If you select "without kit" you just get the cooler.
If you select "with kit", the cooler is supplied with two stainless braided hoses with appropriate fittings on the end, a universal sandwhich plate, 10AN fittings, Dowty Oil Seals, a large O-Ring, Allen Key Plugs and appropriate sandwich plate adaptors.
| Type | Overall Width | Overall Height | Overall Length | Core Thickness | Core Length | Core Height |
| 25-row | 1.97 | 12.95 | 8.35 | 1.97 | 11 | 7.32 |
| 19-row | 2 | 13 | 5.5 | 1.97 | 11.25 | 5.5 |
| 10-row | 1.97 | 12.95 | 3.8 | 1.97 | 11 | 2.76 |
Fittings are -10AN.
