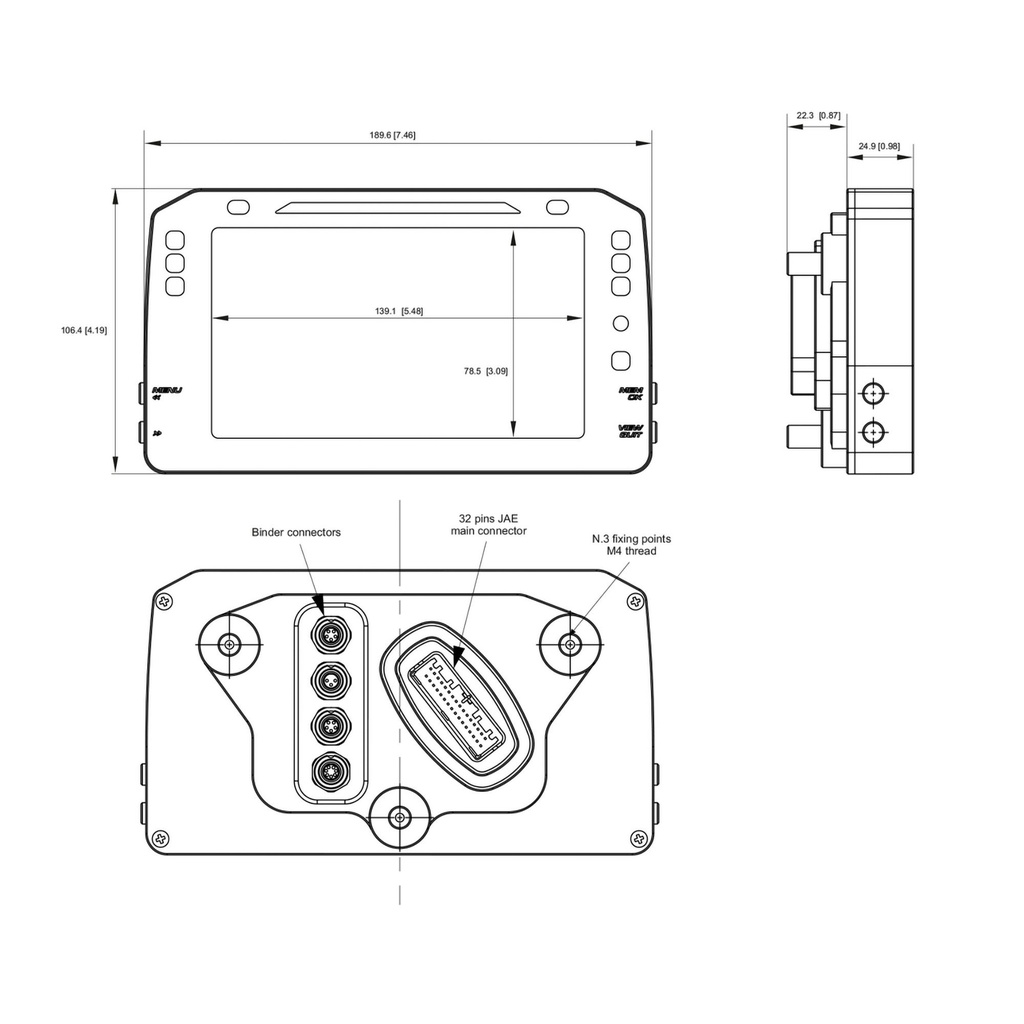

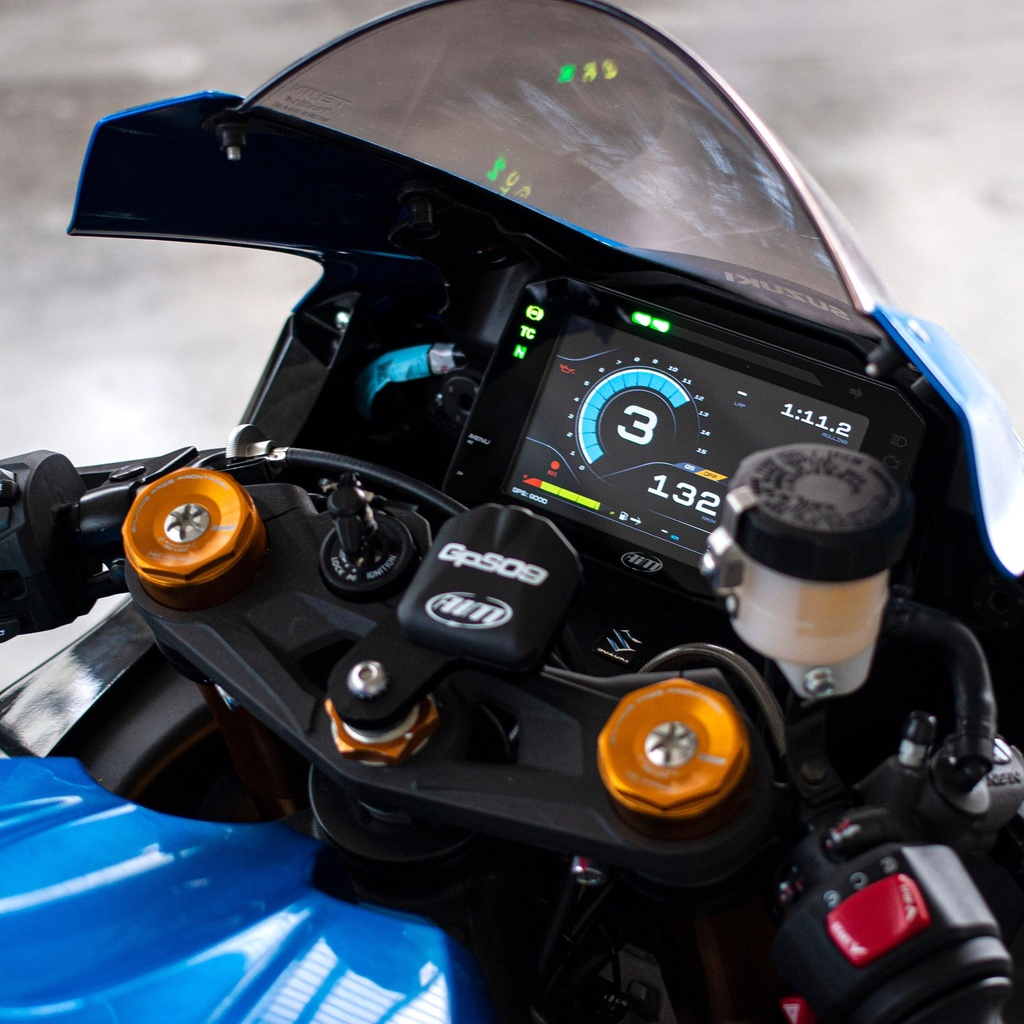

The AIM Motorsport MXPS is a plug and play dash display and data logger specific to Suzuki GSX-R 1000 (including R) bikes from 2017-2022. The dash is completely compatible with the original wiring plug and OEM dash fixing points on the bike for simple installation. The dash includes a GPS09 antenna which enables lap timing and track mapping. For dedicated track bikes there is the optional racing kit which adds extra channels for ECU and external sensor input (kit sold separately).
- Specific to Suzuki GSX-R 1000 and GSX-R 1000 R models from 2017 to 2022
- Easy plug and play installation
- GPS Antenna included for accurate lap timing and track mapping
- 4GB data recording with USB or WiFi connectivity for downloading data
- Adjust bike parameters such as ECU maps, traction control, suspension settings, anti-wheelie and ABS
- Change dash screens and parameters using the bikes OEM multi function switch
- Several configurable dash screen layouts with light and dark modes for optimum readability
- Records all data from the bikes ECU
- Expansion port allows additional sensors or AIM Smartycam HD camera to be added
- Camera connection port allows a mirror camera to be installed (camera not included)
- Race Kit option adds 32 additional input channels (sold separately). Perfect for track bikes.
The MXPS dash logger from AIM Motorsport is the perfect tool for both street and track day bikes as it allows you to monitor and record the parameters of your bikes performance for review. This data can be used to highlight faults or to see where improvements can be made from the bikes setup or riders lines or braking points.

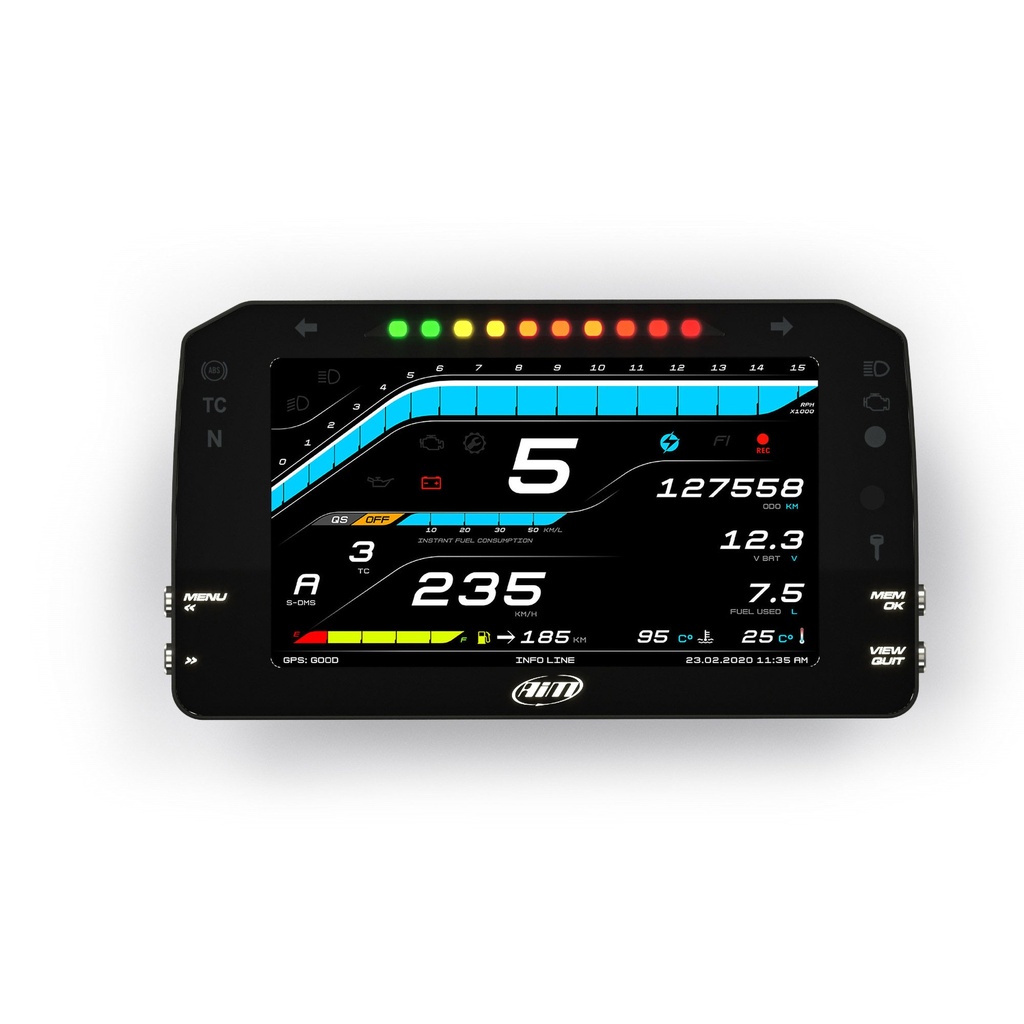

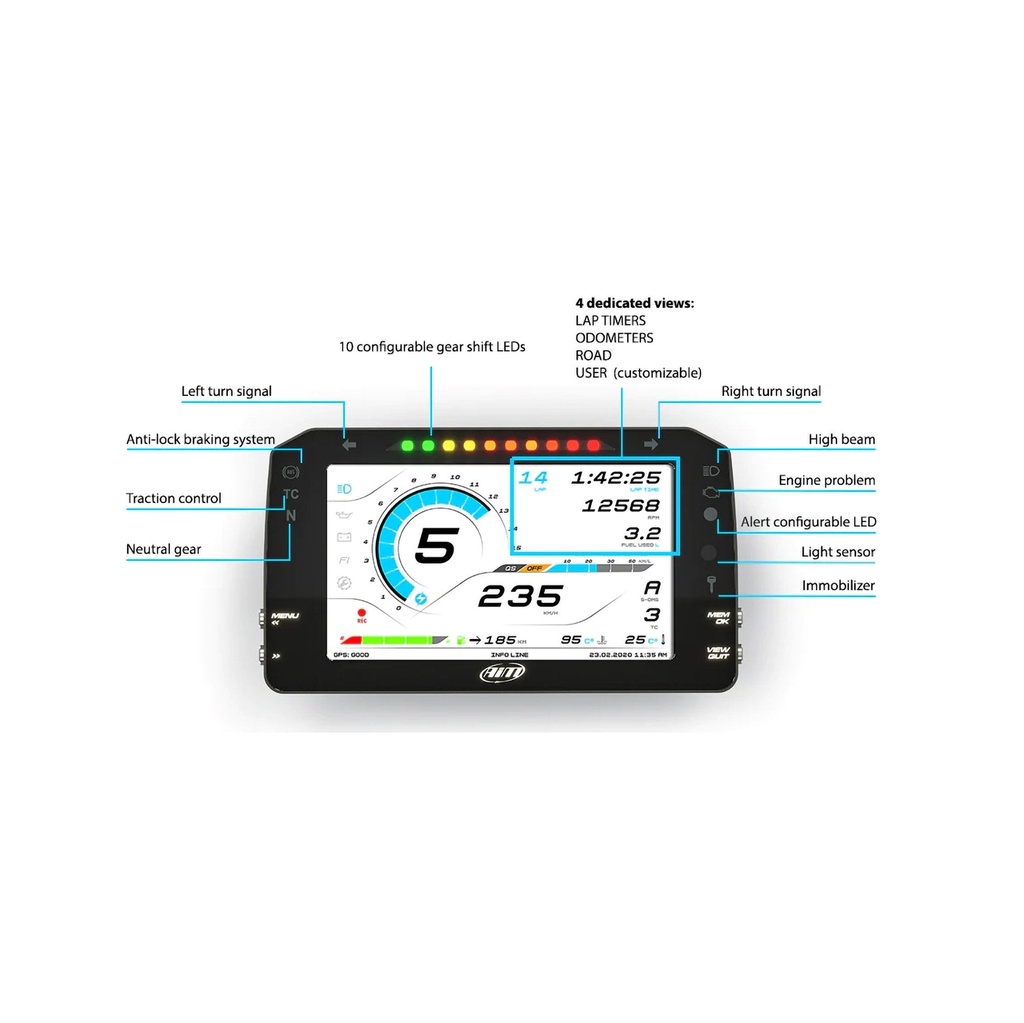

The MXPS features a 6" high contrast TFT screen which gives the rider crystal clear vision whatever the conditions. The display is user configurable and can show all the information the OEM dash did plus much more. 10 configurable gear shift LEDs provide a clear indication of the ideal gear shift point and 9 configurable alarm LED's alert you to any problems.

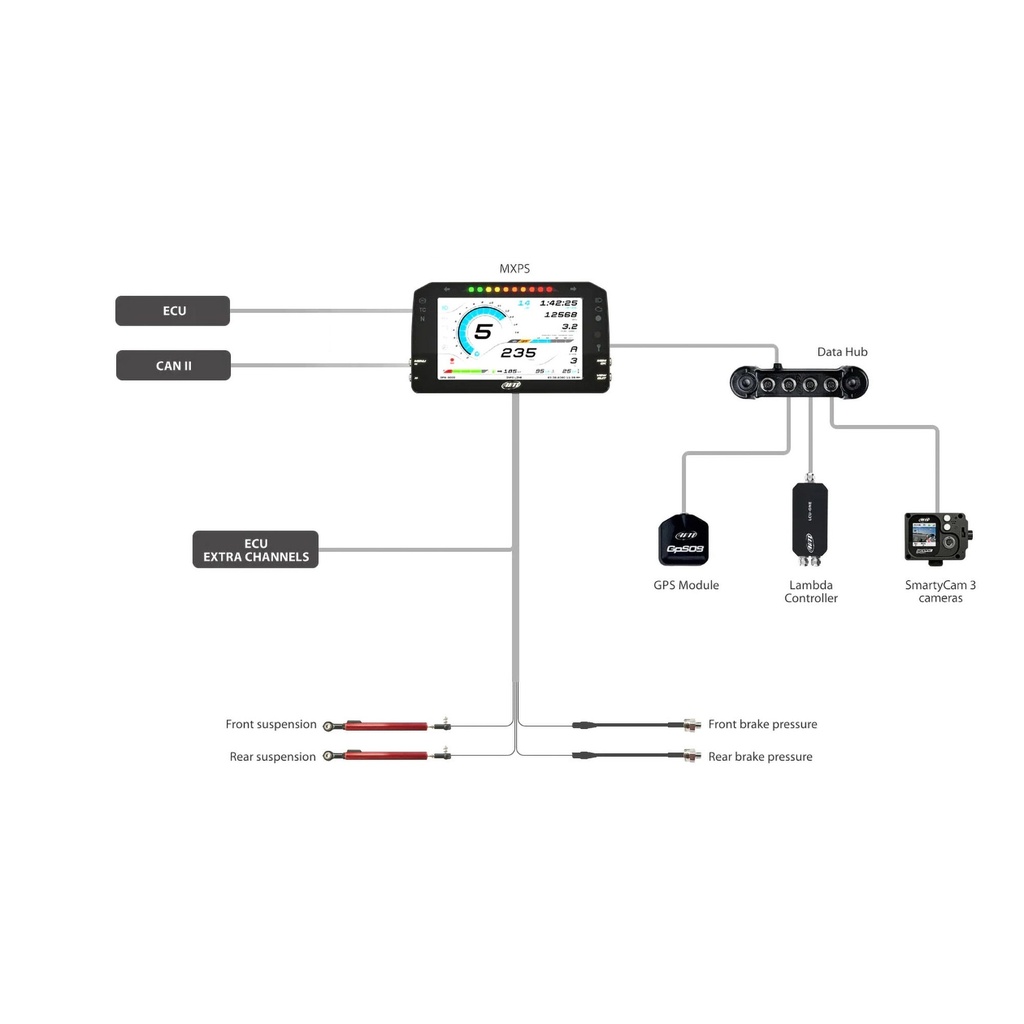

Optional Racing Kit - The MXPS has a separate 'Racing Kit' option which provides a host of extra features suited to bikes which get used on track. With the Racing Kit the dash becomes a complete data logger which can read 28 extra ECU channels and up to 4 external sensors. Extra channel data can be analysed alongside the bike ECU data using the free Race Studio 3 software. This incredibly useful tool provides you with all the data you need to review bike / rider performance at every point of the lap to allow improvements to be made. The dash has a large inbuilt database of race tracks and will automatically recognise the track you are at so there is no need to set up timing points.

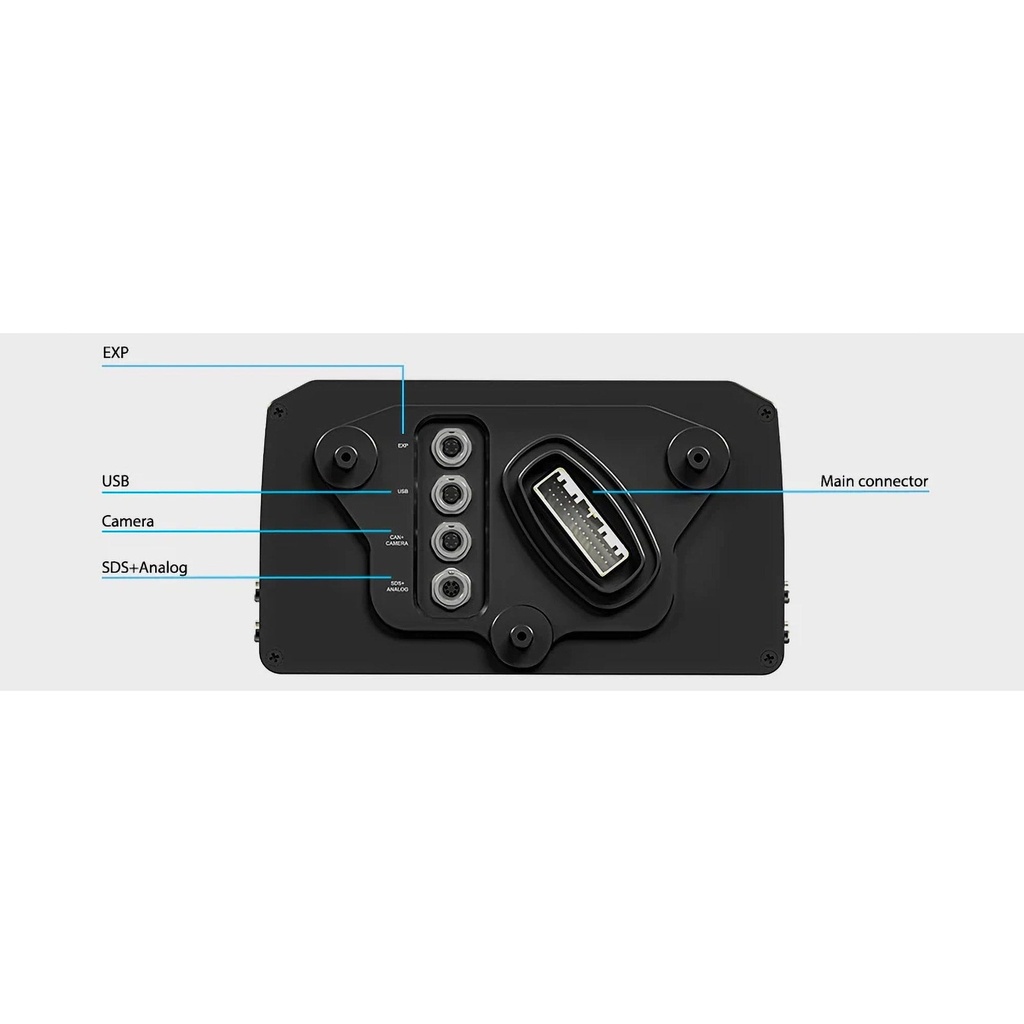

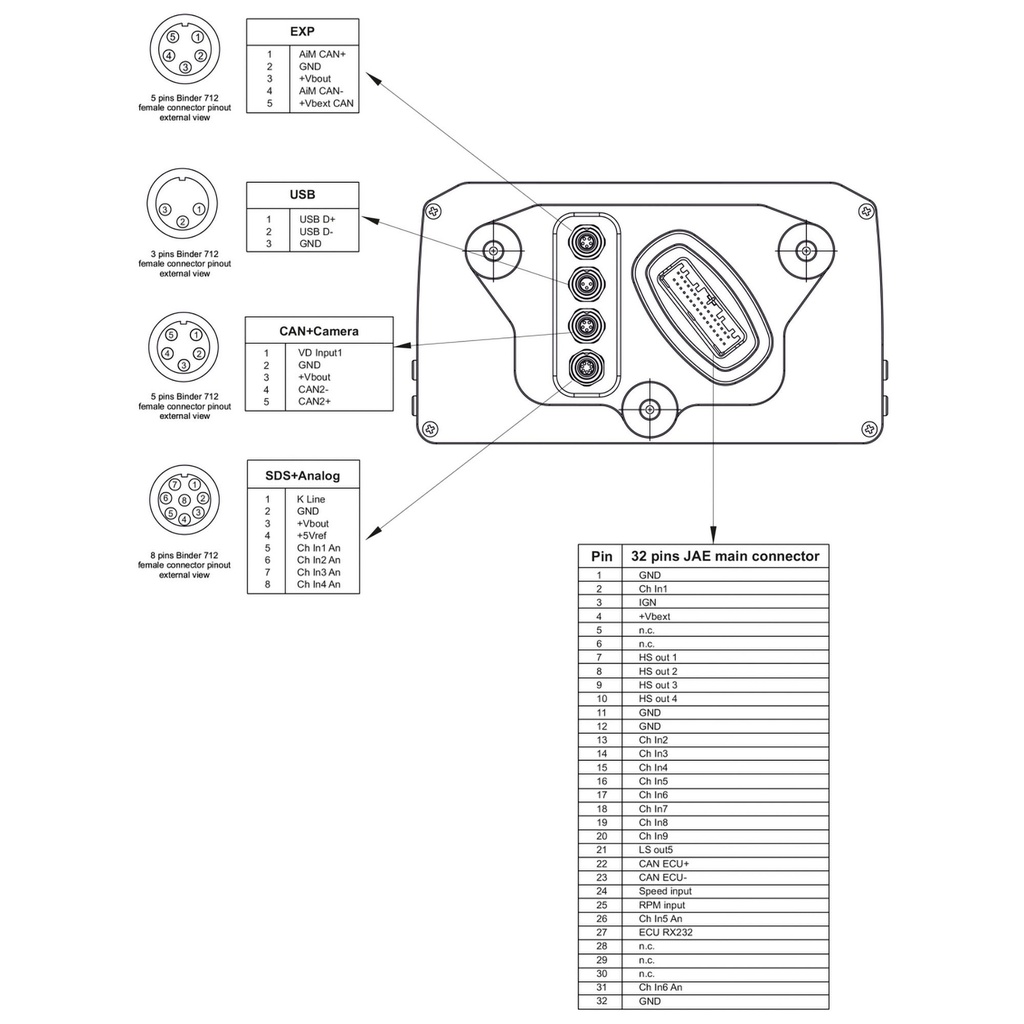

Add optional expansion modules via the 5 pin EXP connector to increase your data performance.
LCU-One S Lambda Controller - Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows perfect tuning of the fuelling
SmartyCam - A range of compact HD cameras designed specifically for motorsport use.
The MXPS dash can be programmed with your current mileage. This can only be done before shipping the dash to you. To arrange this, please email aimenquiry@demon-tweeks.com and state what you want the mileage to be, and if this is in miles or kilometres.
Specifications
| Brand | AIM |
