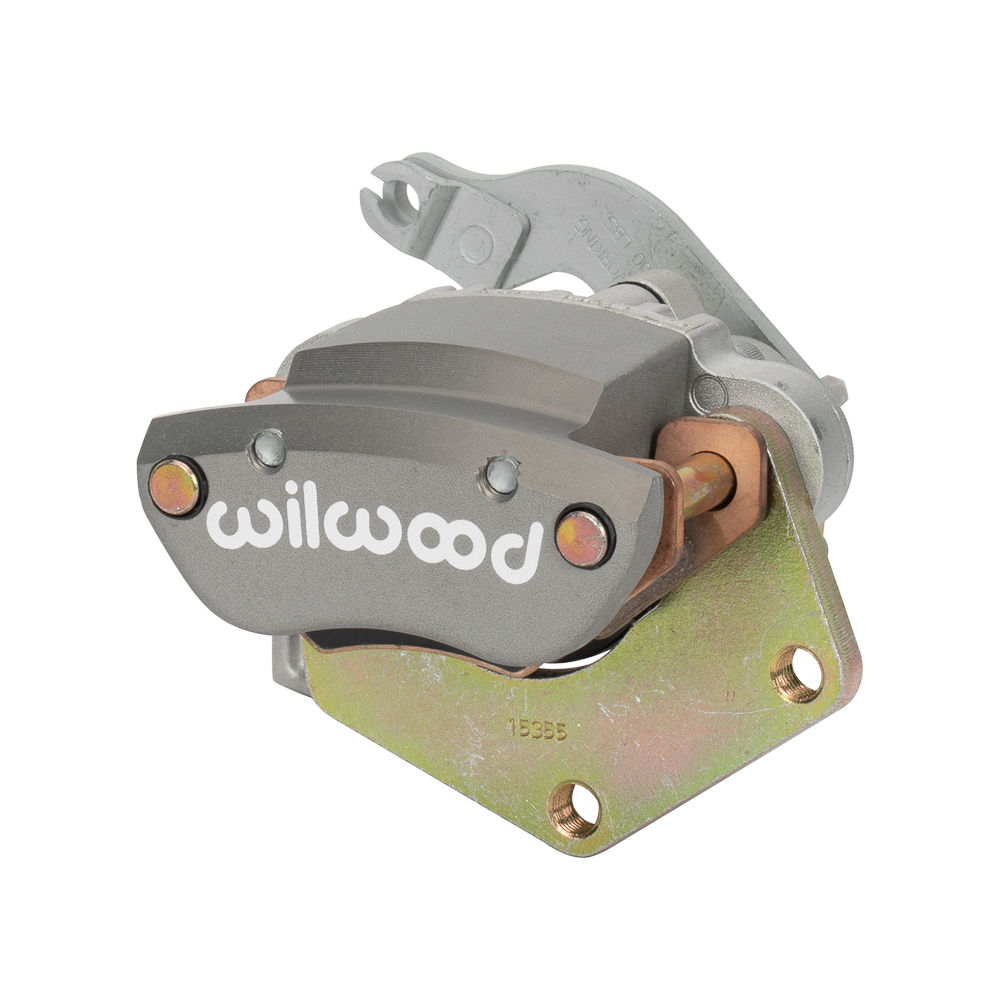

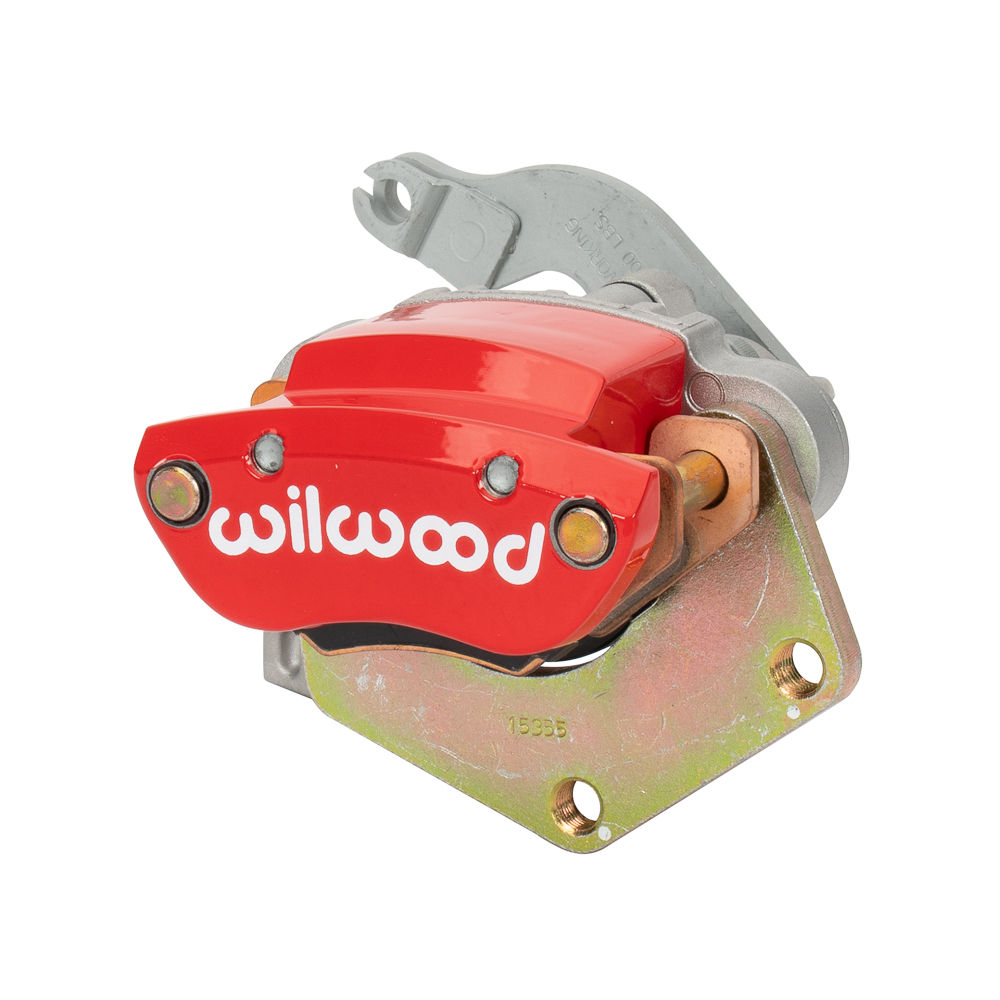

The Wilwood MC4 Mechanical Parking Brake Caliper combines high output performance with a simplicity design and construction. This single piston caliper is a manually actuated parking brake which is operated by a cable. It is fitted with a cable return spring and the mechanical lever accepts .310" diameter barrel-ended parking brake cable. The caliper has been engineered with noise dampening features which provide a quiet and rattle free caliper. The body of the caliper is forge billet anvil for superior strength under load but is also very lightweight.

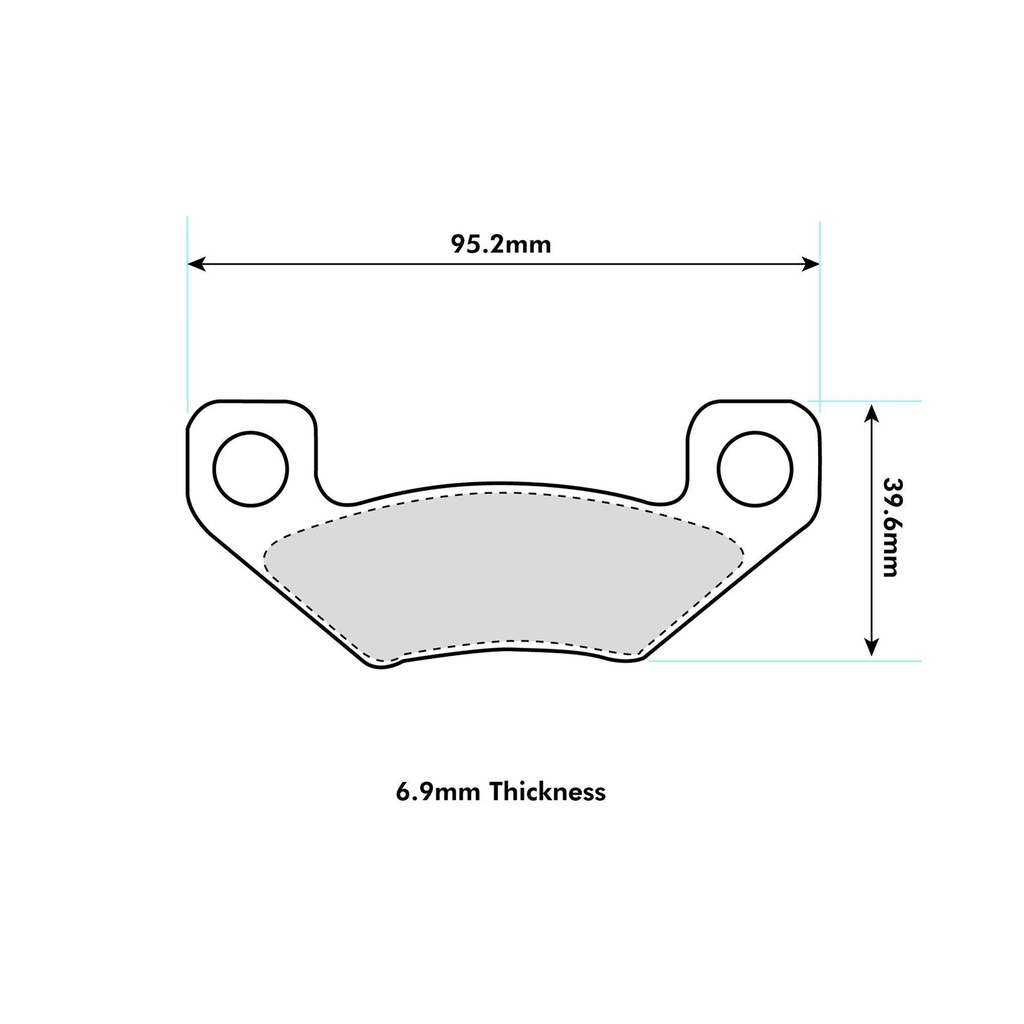

- Composite Metallic high friction brake pads come complete with the brake caliper
- The calipers are coated with brake fluid resistant high gloss powder coat

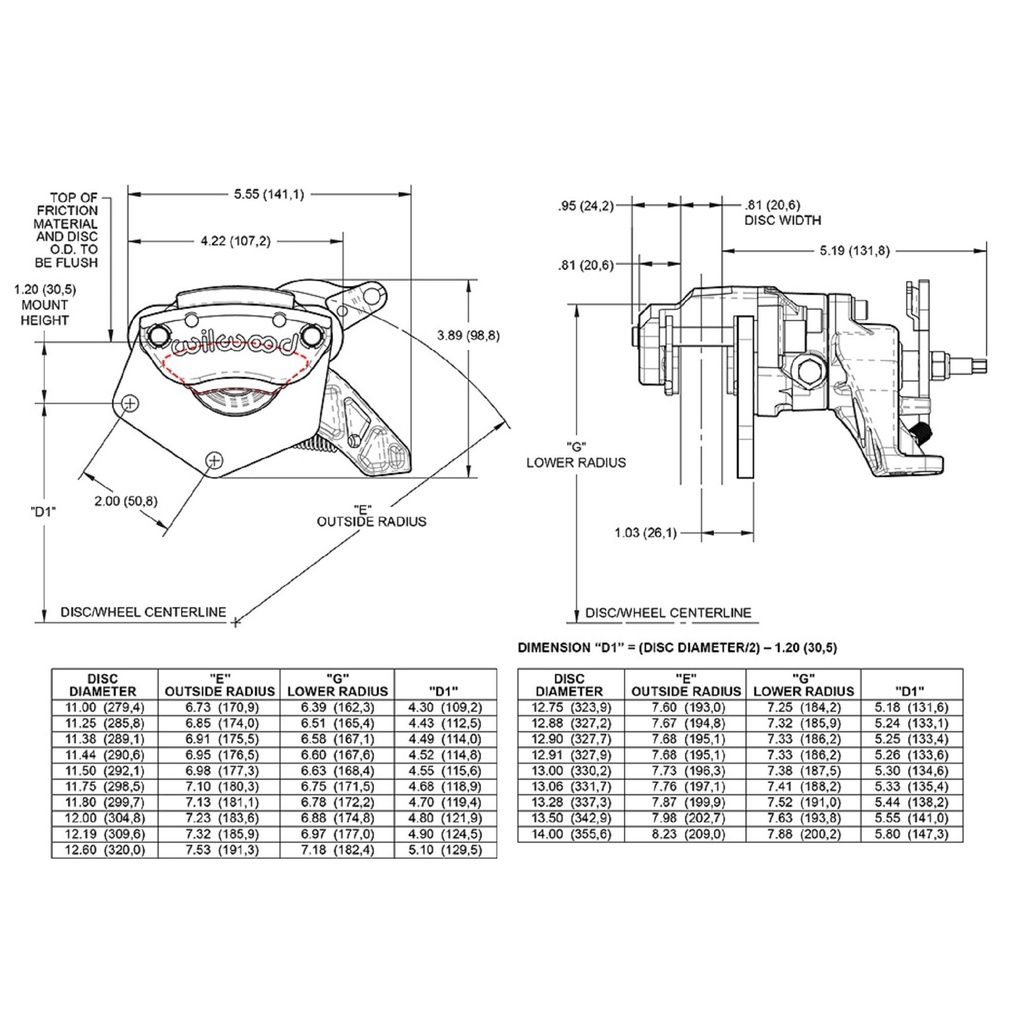

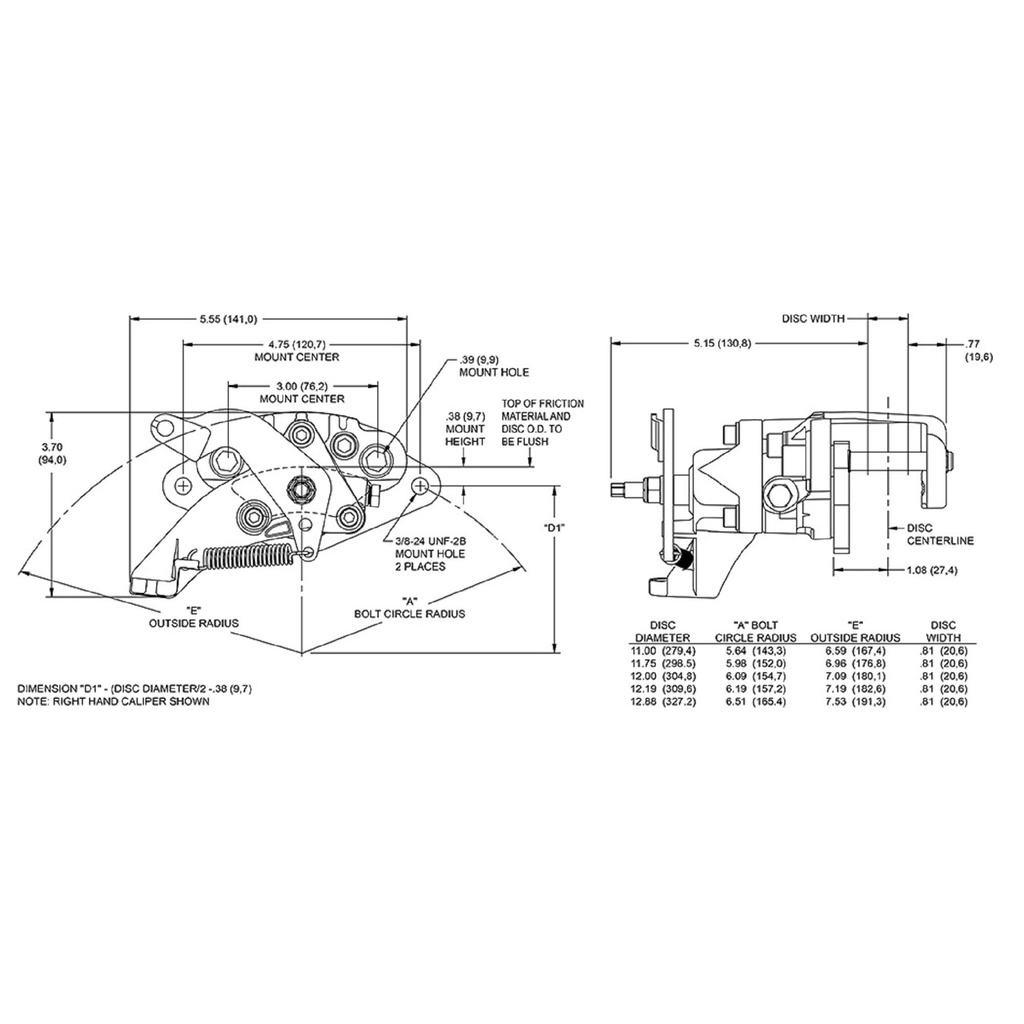

- To suits rotor sizes of .810" (20.5mm) thick with 11.00" - 14.00" (279-356mm) diameter range
- The piston is protected by a boot which keeps the moisture and debris out
- The lever mechanism can be clocked in 3 different positions to suit various cable routes
The MC4 caliper is the perfect solution is you require a separate mechanically operated parking brake. Supplied with the brake caliper are Composite Metallic high friction brake pads which are a high static load brake pad pre-fitted with noise cancelling shields.
Calipers are handed and sold individually.
Specifications
| Finish Type | Powder Coated Black, Powder Coated Red, Powder Coated Silver |
| Side | Left Hand, Right Hand |
| Mount Centres | 4.75 inch (120.7mm), 2 inch (50.8mm) - Offset |
| Brand | Wilwood |
