Wilwood's brake balance bar assembly is designed to maximize travel and adjustability providing increased front-to-rear brake bias control. The precision spherical bearing with corrosion resistant finish is durable and smooth performing.
- Provides front to rear brake bias
- Universal fitting
- Accepts remote adjuster cables with 3/8"-24 thread
- Positive detent stop every full turn provides an adjustment reference

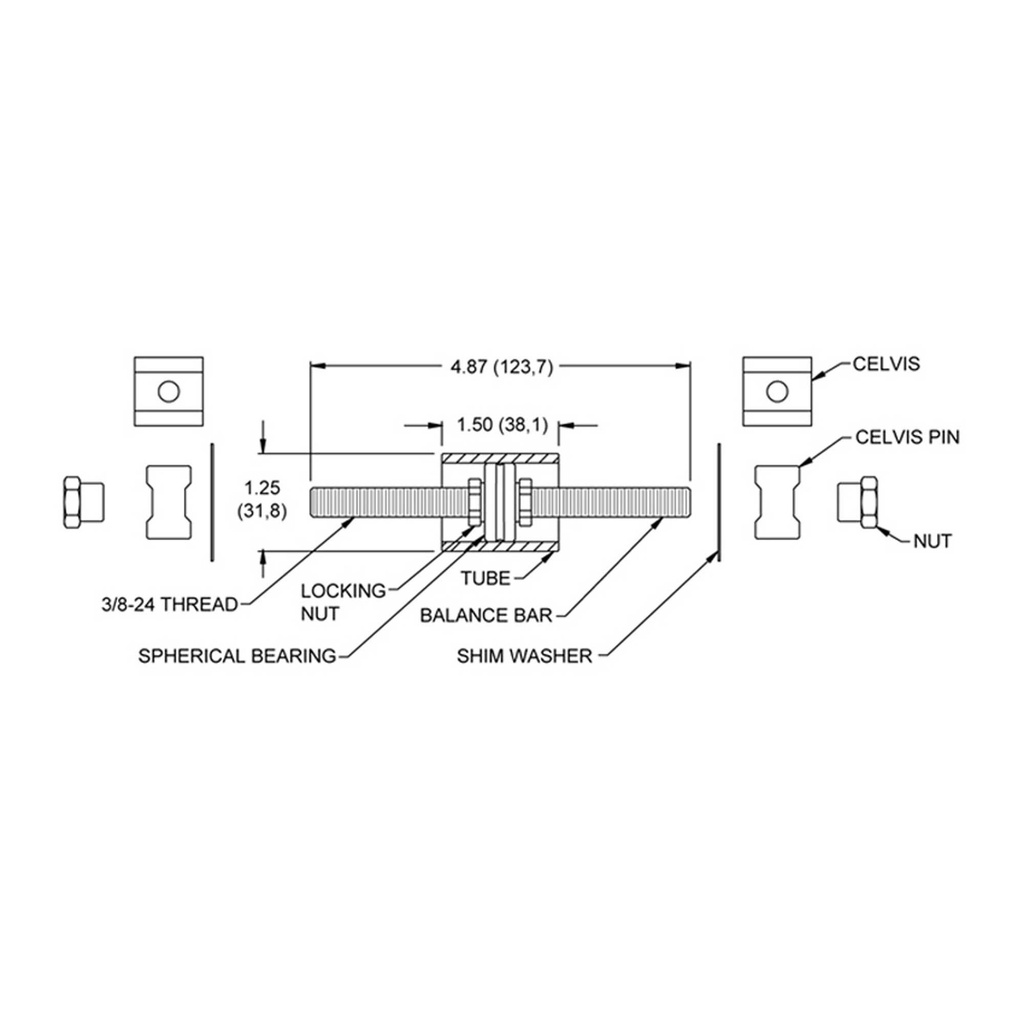

Wilwood's balance bar has a 3/8"-24 threaded adjuster bar which is constructed from a high strength aircraft alloy and fitted with lightweight, maintenance free clevises and thrust washers. This design eliminates binding under extreme pivot angles.
The Balance bar assembly is available with an option to include a steel sleeve for easy weld on operation to fabricated steel pedal assemblies or without the tube for applications where an existing balance bar is being replaced and the tube is already in place. The balance bars bearing fits a tube with 1.0" (25.4mm) internal diameter.
Please note: A detent plunger and locknut are fitted to one clevise only, NOT both sides.
Specifications
| Option | With Tube, Without Tube |
| Brand | Wilwood |
