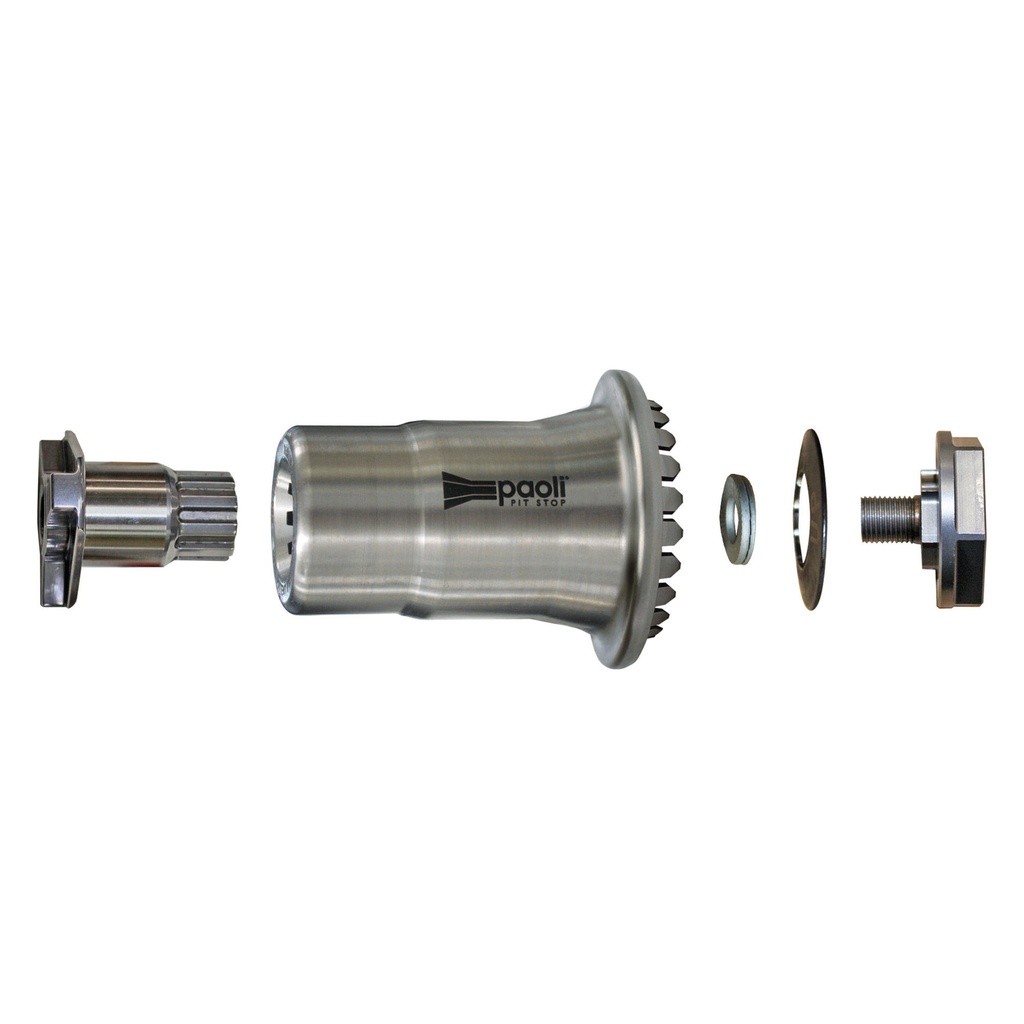

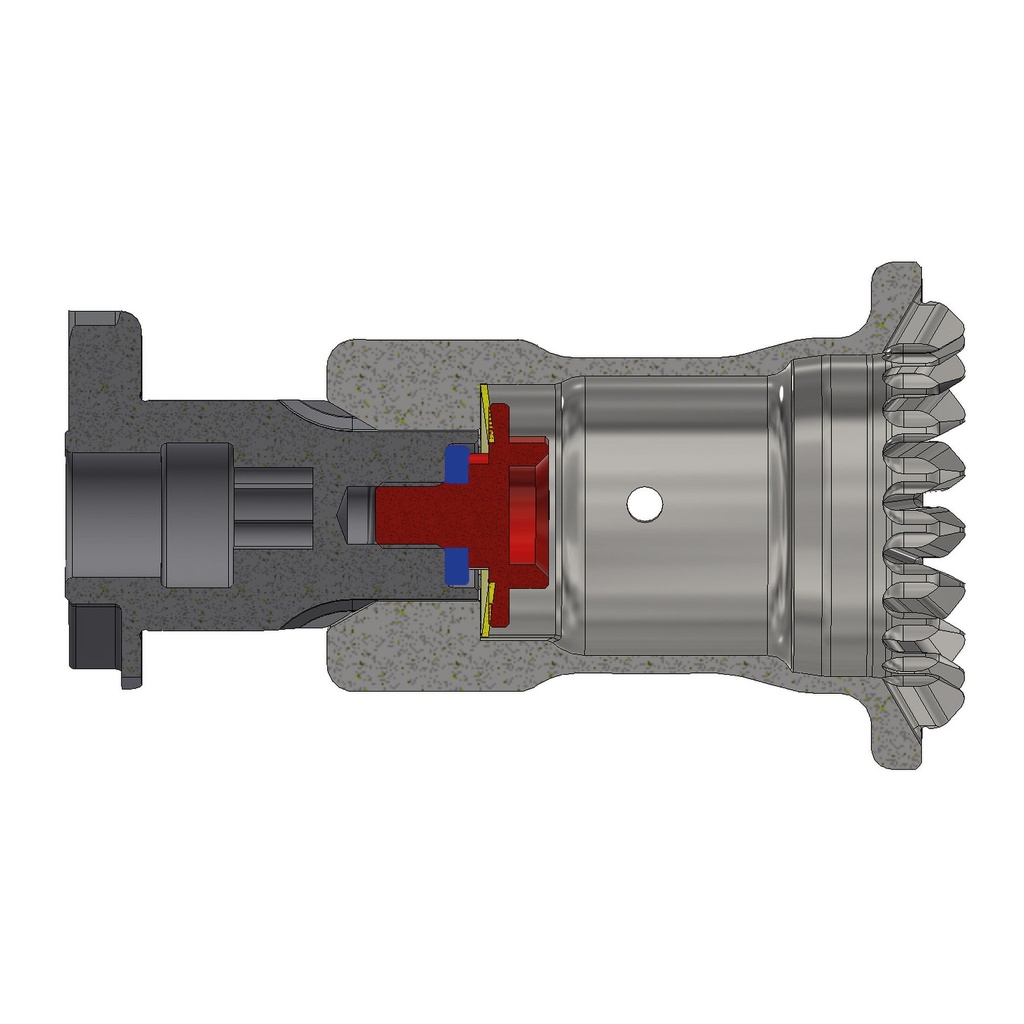

The Paoli DP6000 is a professional wheel nut gun designed for use by F1. GP2 and Indy Car teams. This version features a spline drive anvil which is designed to provide an increased contact area between the anvil and socket which allows for better torque transmission and a reduced load on each contact point for increased durability.
- Proven performance in Formula 1, Formula 2 and Indycar race series
- Spline drive anvil transmits torque better and improved durability
- Choice of classic or 90° handle types
- No reported failures during a race - ever.!
- Designed to meet the strict requirements of the most demanding Motorsport teams
The ultra lightweight gun is constructed using a lightweight magnesium alloy body with a choice of alloy or carbon fibre covers and a Titanium motor. There are two handle types available, 'classic' which has a 72° angle or a 90° option which was developed to offer greater control to the user. The gun features 7 carbon peek vanes and an ergonomic stainless steel 'double stage' trigger. This version has the 90 degree handle which provides better ergonomics and improved airflow.
The DP6000 is available in 3 types -
Fast left hand - loosens right hand threads faster
Fast right hand - loosens left hand threads faster
Non handed - loosens and tightens at the same speed
Specifications :
Spline Drive
4200 Nm (3100 ft/lbs) Maximum Torque
3.54kg (Aluminium cover), 3.50kg (Carbon cover)
14,700 Rpm Free Speed @ 25 bar pressure
198mm Length
3/8" BSP port
Couplings with a nominal bore size of 10mm or larger are recommended for use with this gun.
