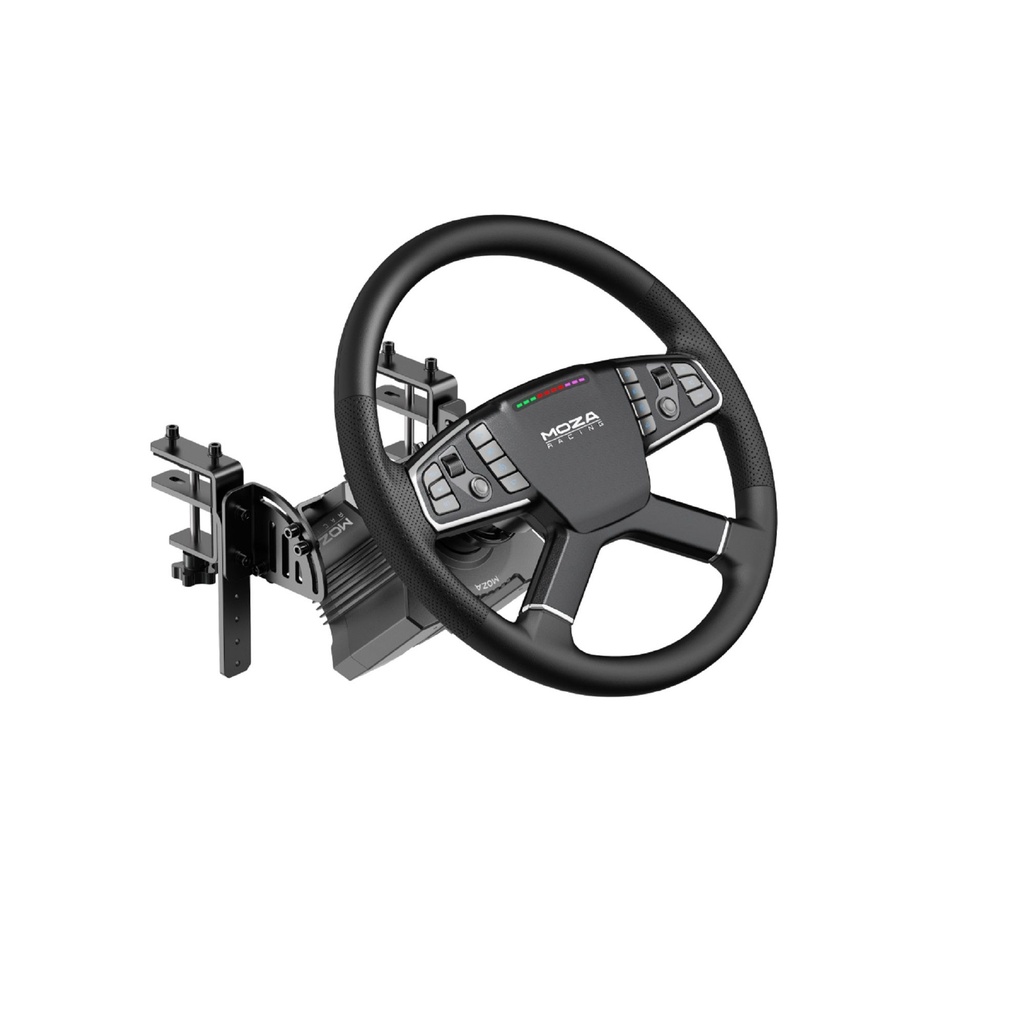

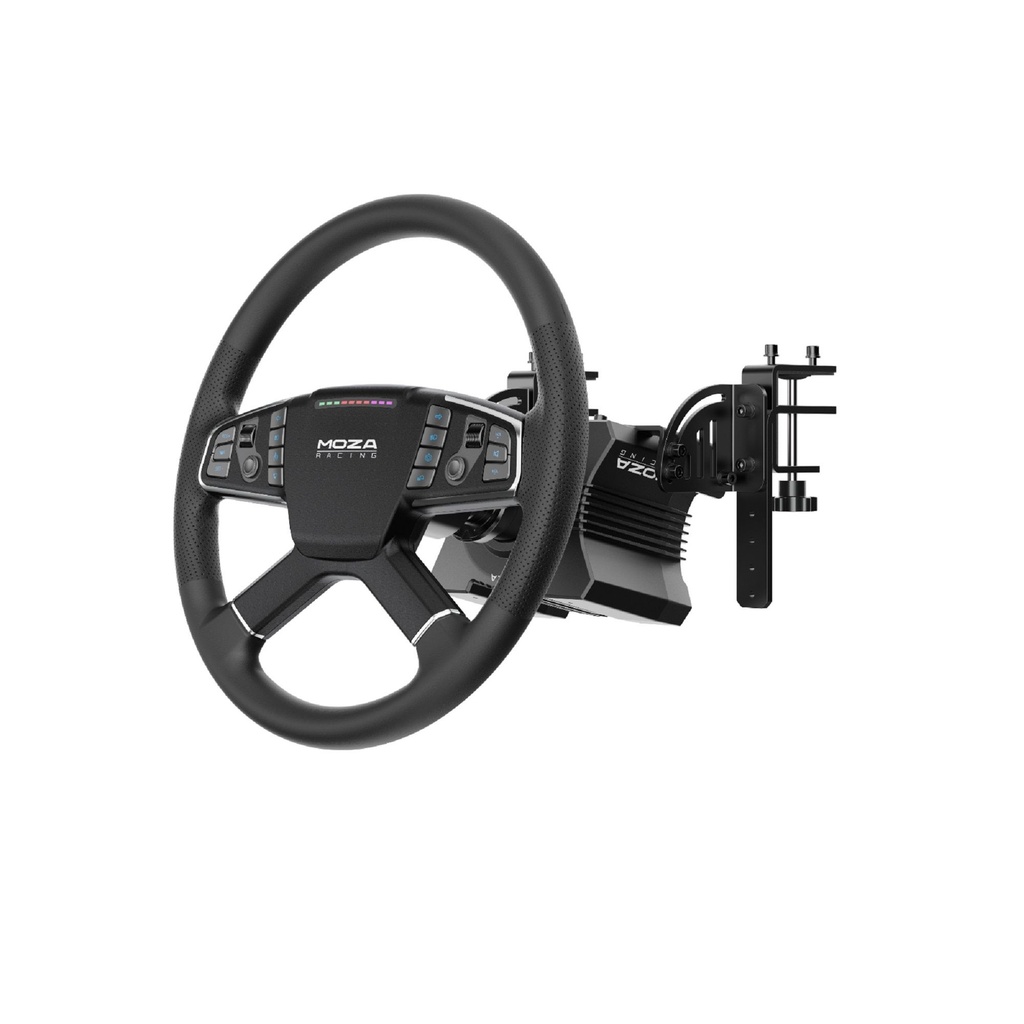

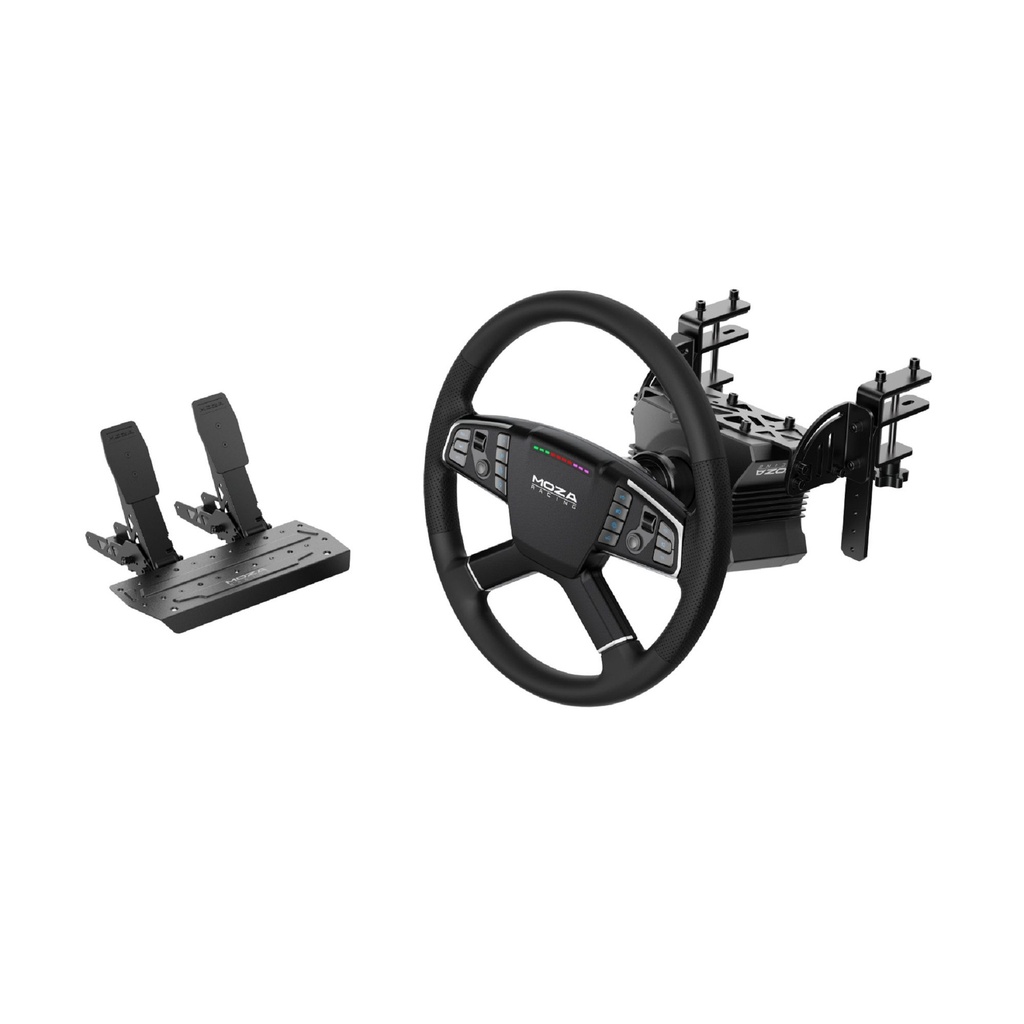

The Moza Trucking Bundle is designed to deliver an authentic truck simulation experience, giving you the tools to feel the weight, scale, and control of real truck driving through professional-grade hardware. It achieves this with the combination of a direct drive wheel base, a full-sized truck wheel, and durable pedals, secured by a versatile clamp for stability during long sessions.
Discover the key features of this simulator bundle that work together to provide a realistic and reliable driving setup:
- RGB Backlit Buttons (14 Buttons with Custom Icons): Equipped with 14 short-travel buttons featuring crisp tactile feedback and a programmable RGB backlight supporting 16.7 million colours, allowing you to customise button illumination and icon labelling with included stickers.
- Customisable RPM LED Light (10 RGB LEDs): Integrated with 10 high-brightness RGB LEDs capable of displaying 16.7 million colours, this feature lets you set shift light colours, brightness, and activation points through Moza Pit House software, providing visual feedback for gear shifts that help you maintain optimal engine performance.
- All-Aluminium Quick Release System: The steering wheel uses Moza’s all-aluminium quick release system for secure, rapid wheel swaps in seconds, giving you flexibility to change wheels without tools or lengthy adjustments.
- Thumbwheels and Ultra-Thin Joysticks: Fitted with two textured aluminium thumbwheels and two ultra-thin joysticks that function as D-pads, this control layout provides precise, comfortable input control while the flat joystick design reduces the risk of accidental activation during demanding simulation sessions.
- Open Ecosystem Compatibility (Direct PC Connection): Designed for flexibility, the wheel can be directly connected to a PC via Moza’s universal adapter, offering compatibility with third-party bases outside the Moza ecosystem, giving you more options to integrate the wheel into your existing setup.

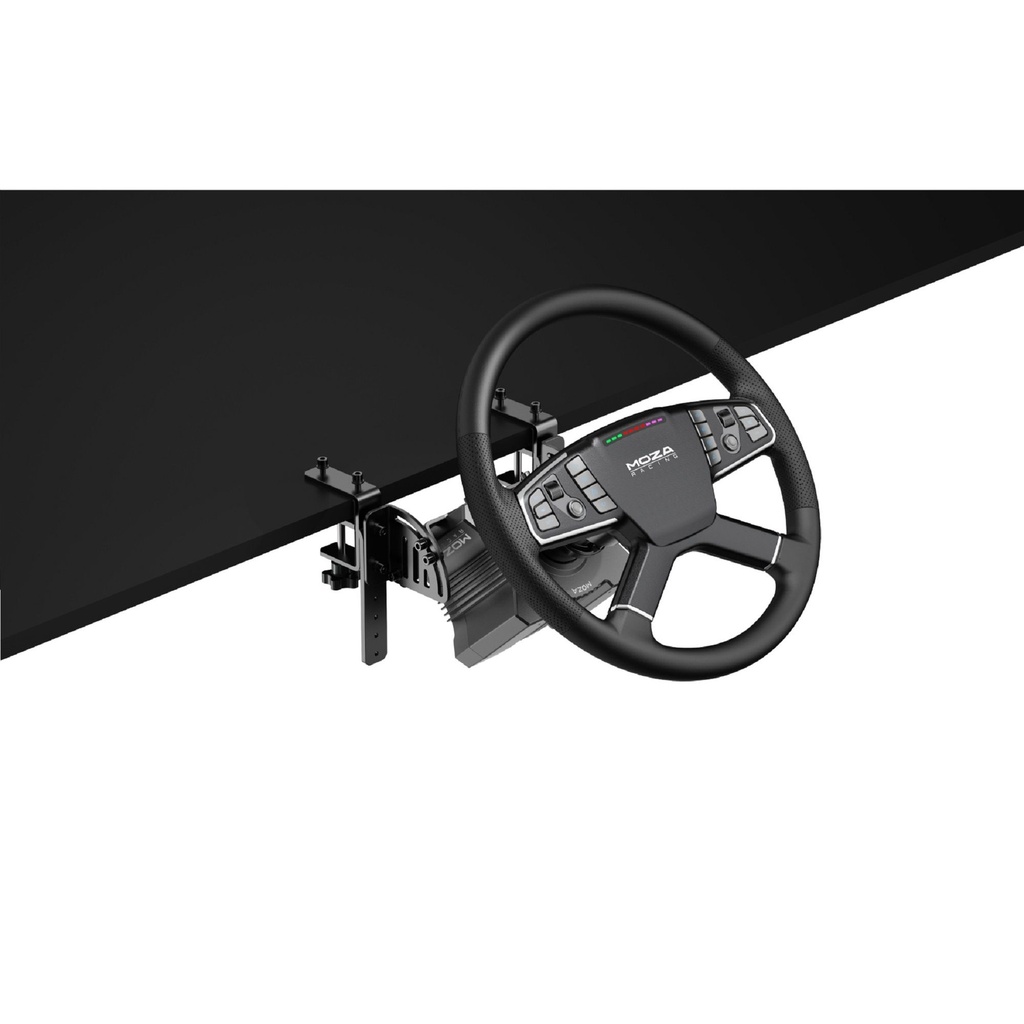

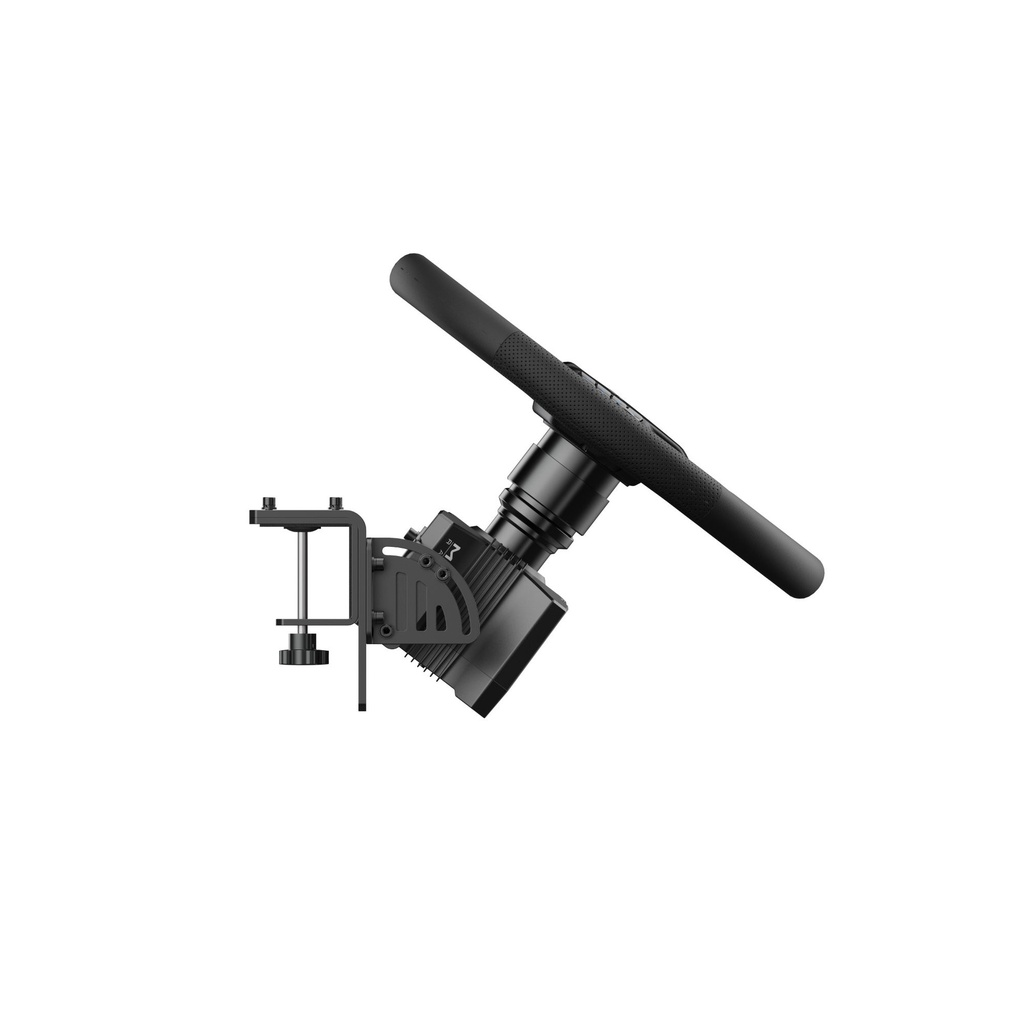

- Clamp for Truck Wheel (Flexible Installation Options): Built with 4–6mm thick high-strength steel, the clamp supports mounting on desktops from 3mm to 70mm thick or aluminium profiles, with adjustable angles from 0 to 75 degrees, giving you versatile, sturdy mounting options that accommodate different desk heights and preferred steering positions.
- Moza Pit House Software Integration: The included software provides a user-friendly control panel to test button functions, switch between joystick or knob modes, adjust gear shift indicator settings, and customise button backlight colours, enabling full control and configuration of your simulation settings.
R5 DD Wheelbase:
- Platform: PC
- Drive System: Direct Drive
- Peak Torque: 5.5 Nm
- Encoder: 15-bit Ultra-High Resolution
- USB Refresh Rate: 1000 Hz
- Housing: Aviation-Grade Aluminium Alloy
- Slip Ring: Industrial Conductive Slip Ring (5 million revolutions lifespan)
- Quick Release: Supported (All-Aluminium Quick Release System)
- Temperature Monitoring: Onboard temperature control system
- Torque Ripple: Ultra-Low Torque Ripple and Groove Torque
TSW Truck Steering Wheel:
- Diameter: 400mm
- Frame: 4mm-Thick Aerospace-Grade Aluminium Alloy
- Grip Material: Perforated and Textured Microfibre Leather (Hand-Stitched)
- Button Count: 14 Short-Travel Buttons with RGB Backlight (16.7 Million Colours)
- LED Indicators: 10 RGB RPM Shift Light LEDs
- Thumbwheels: 2 Aluminium Thumbwheels
- Joysticks: 2 Ultra-Thin Joysticks (D-Pad Functionality)
- Quick Release: Moza All-Aluminium Quick Release
- Compatibility: Direct PC Connection via Universal Adapter, Compatible with Moza Bases
SR-P Lite Pedals:
- Construction: High-Strength Steel
- Sensor: High-Precision Hall Sensor (Throttle and Brake)
- Pedal Spacing: Adjustable
- Output Curve Adjustment: Supported via Moza Pit House
- Anti-Slip Pad: Included
Clamp for Truck Wheel:
- Construction: 4–6mm Thick High-Strength Steel
- Angle Adjustment: 0–75 Degrees
- Mounting Compatibility: Desktop Thickness 3mm–70mm, Aluminium Profiles Compatible
- Compatibility: Works with All Moza Ecosystem Bases
Moza Pit House Software Features:
- Full device management and real-time monitoring
- Button testing and configuration
- RPM LED light colour, brightness, and activation adjustment
- Switching between joystick and knob modes
- Firmware updates for all connected devices
The Moza Truck Driving Simulator Bundle brings together a suite of professional features, enabling you to build a dedicated simulation rig that balances durability, flexibility, and authentic control. Adding this bundle to your simulation setup provides a reliable, high-performance platform for replicating the feel and mechanics of truck driving, making it a practical addition for those looking to achieve consistent and immersive simulation sessions.
Compatibility: PC
2 Year manufacturer’s warranty
