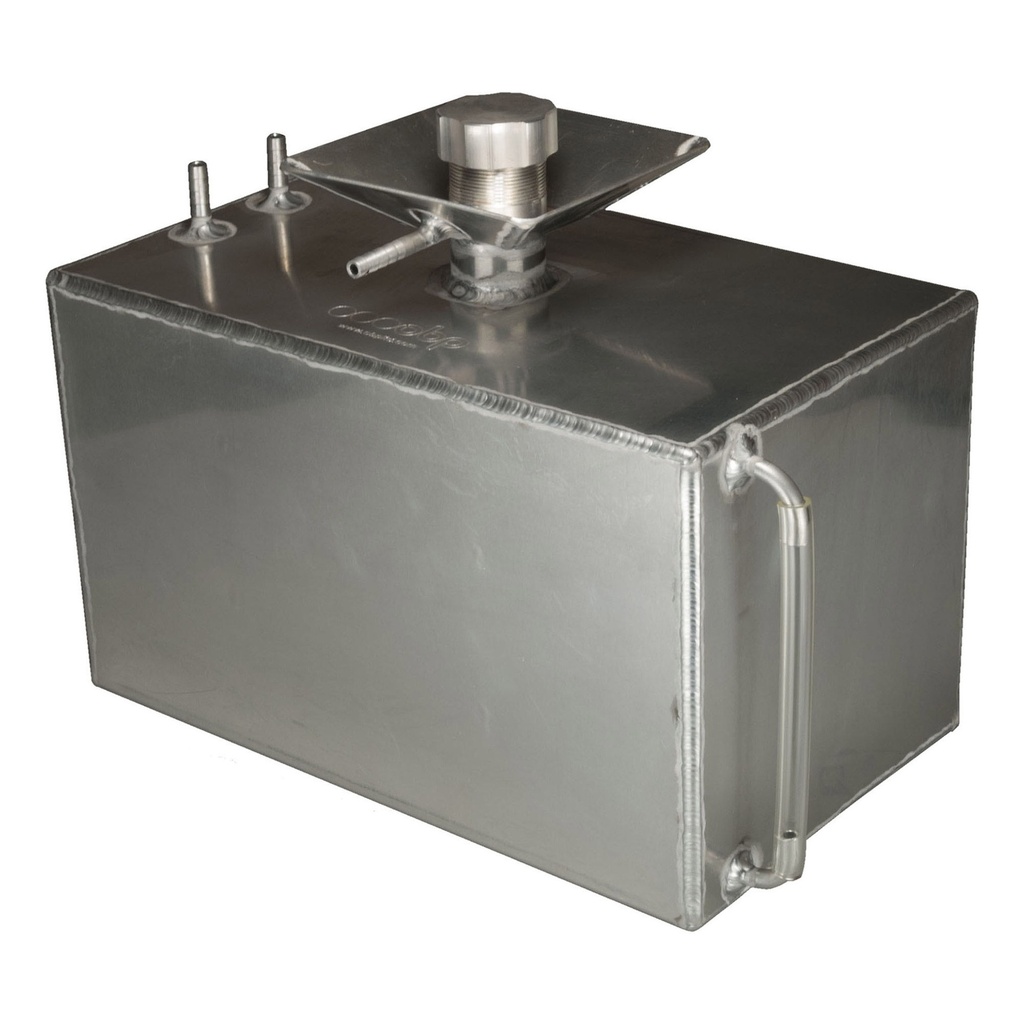

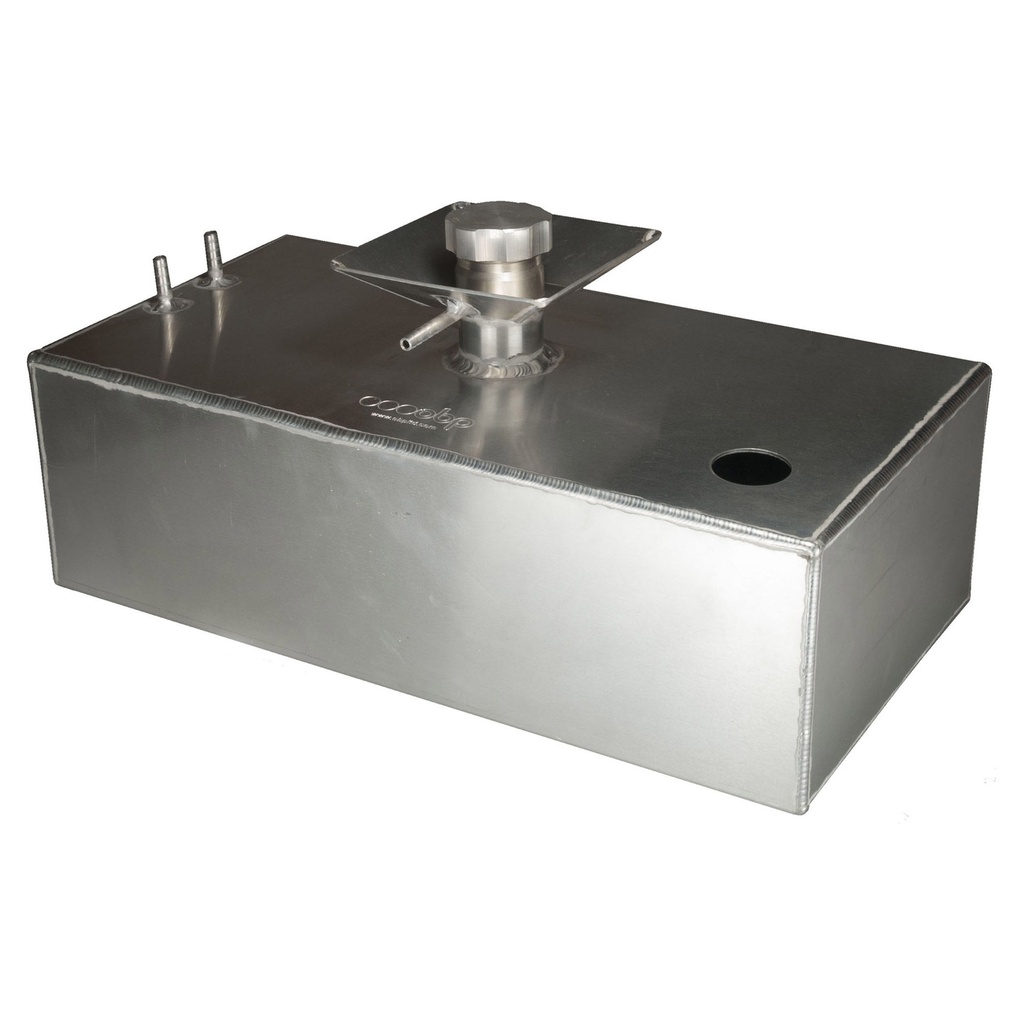

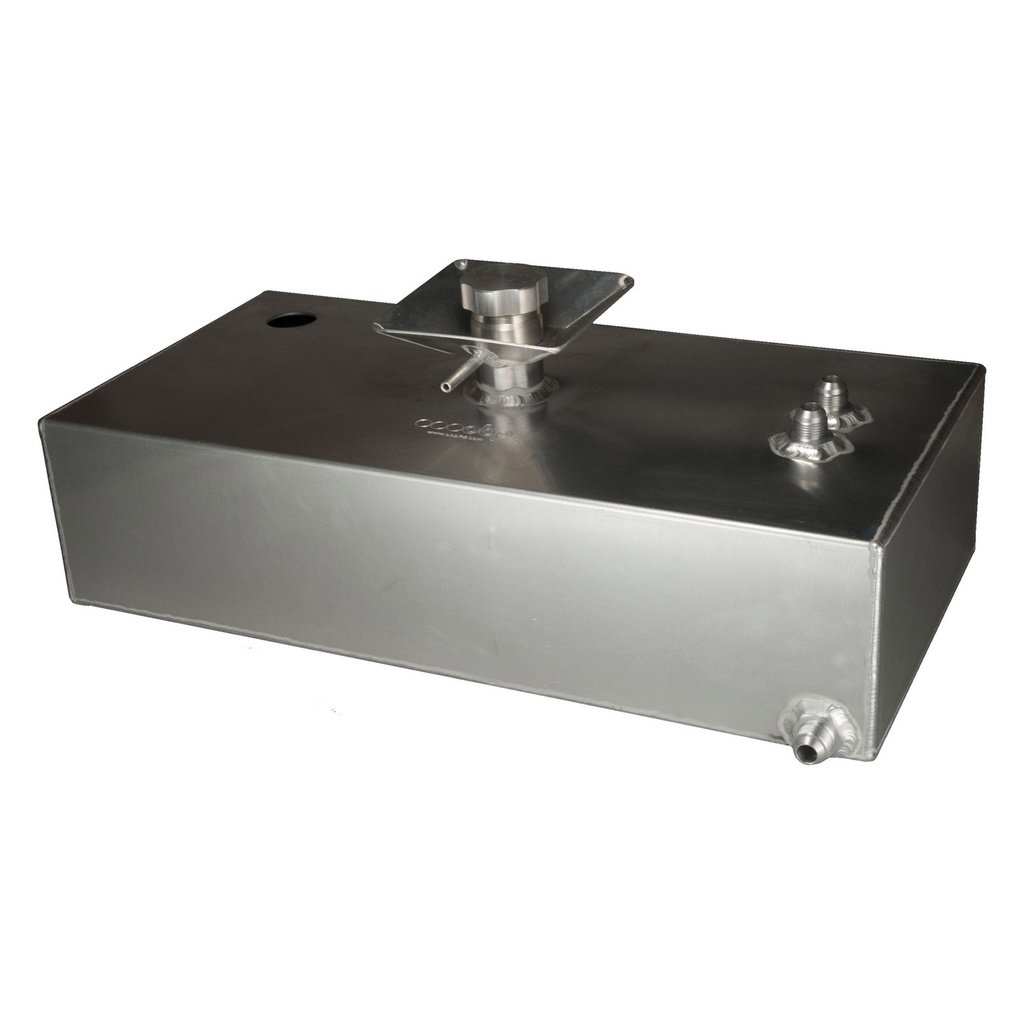

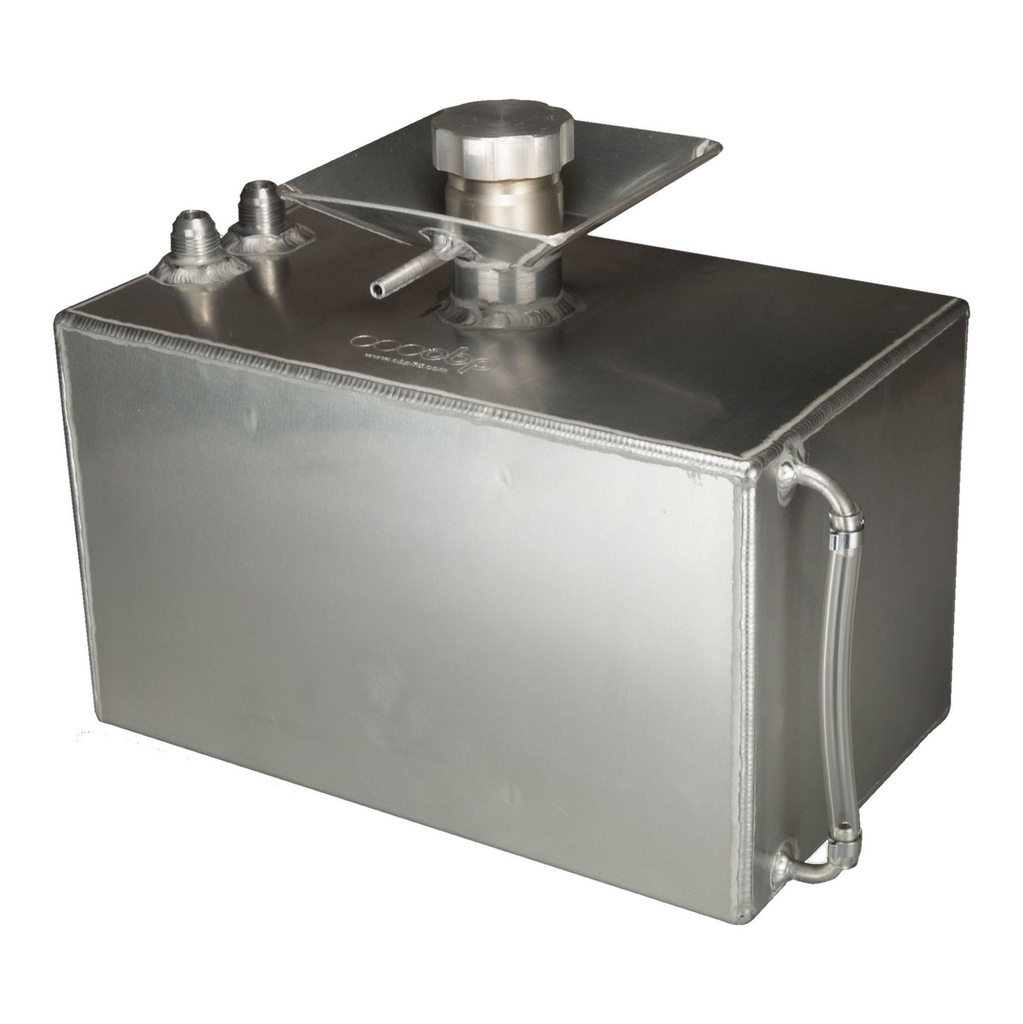

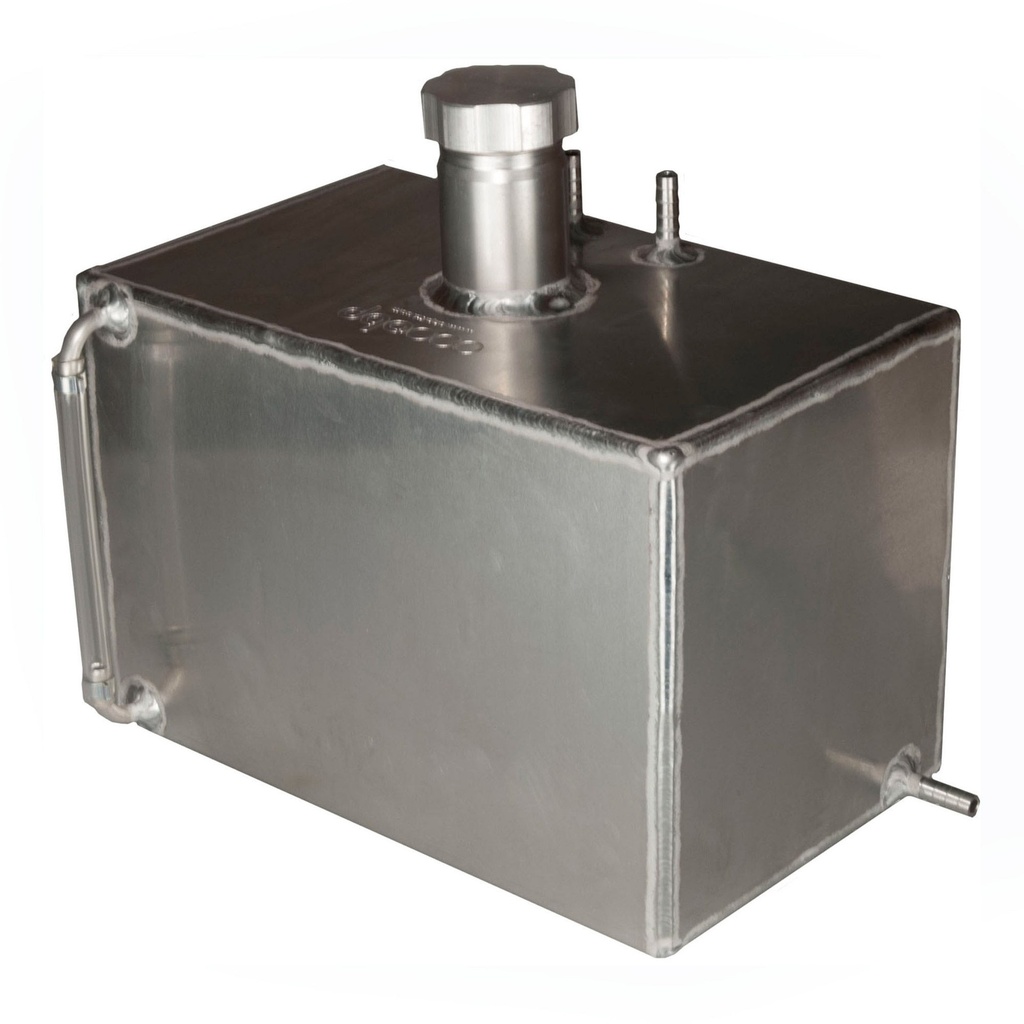

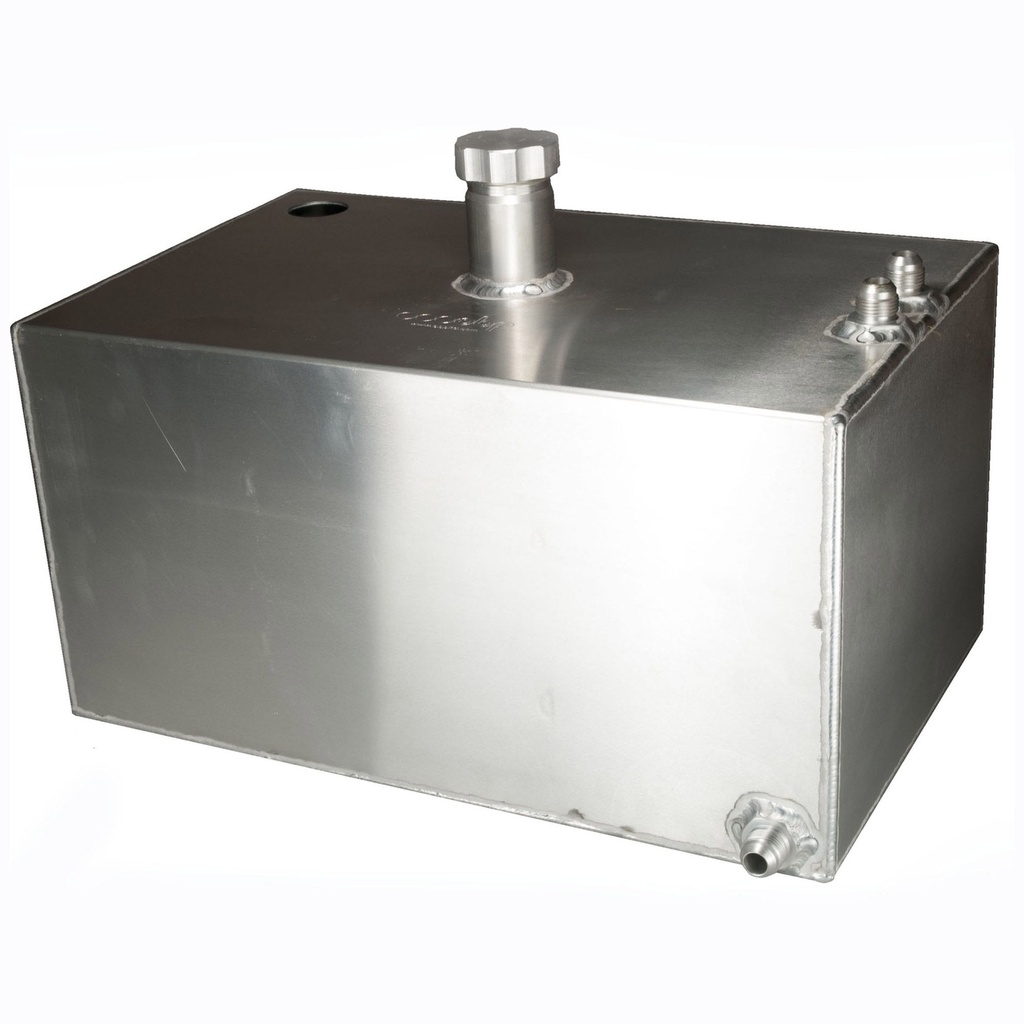

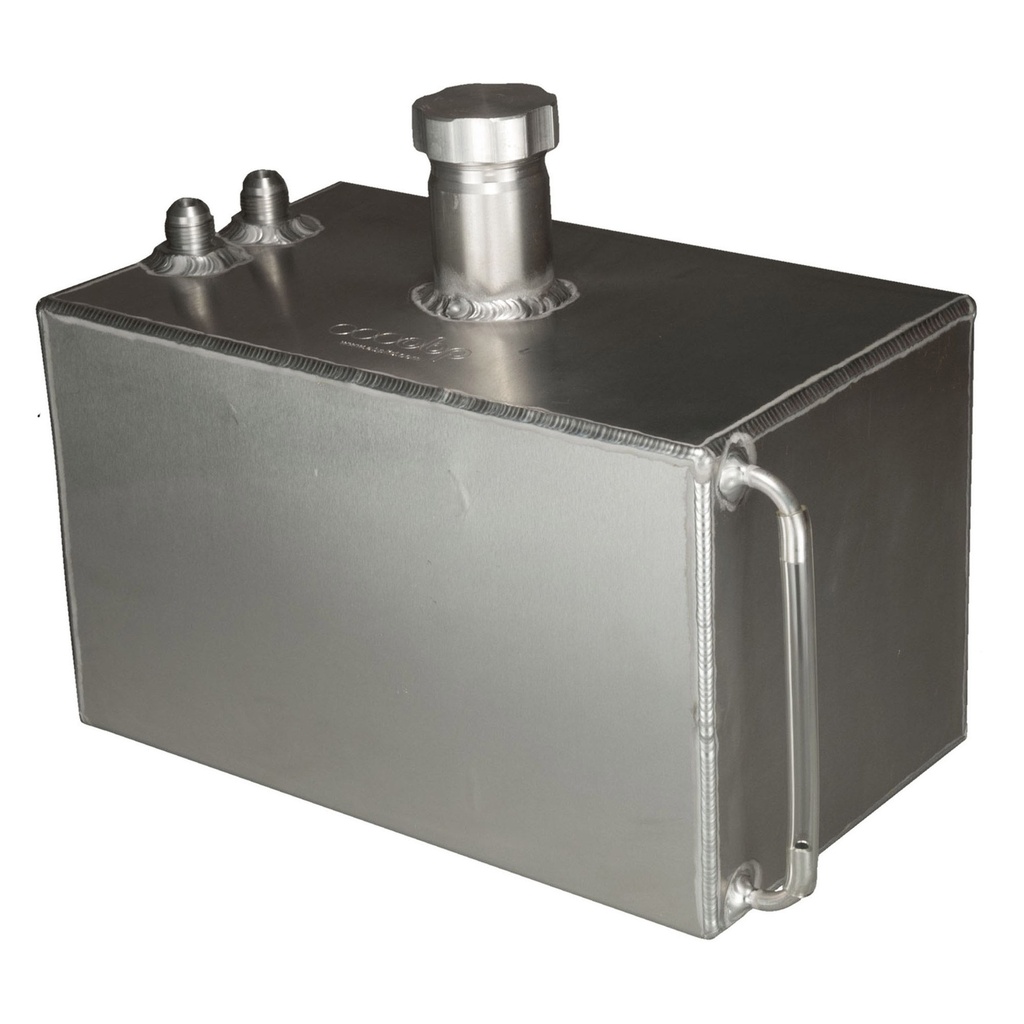

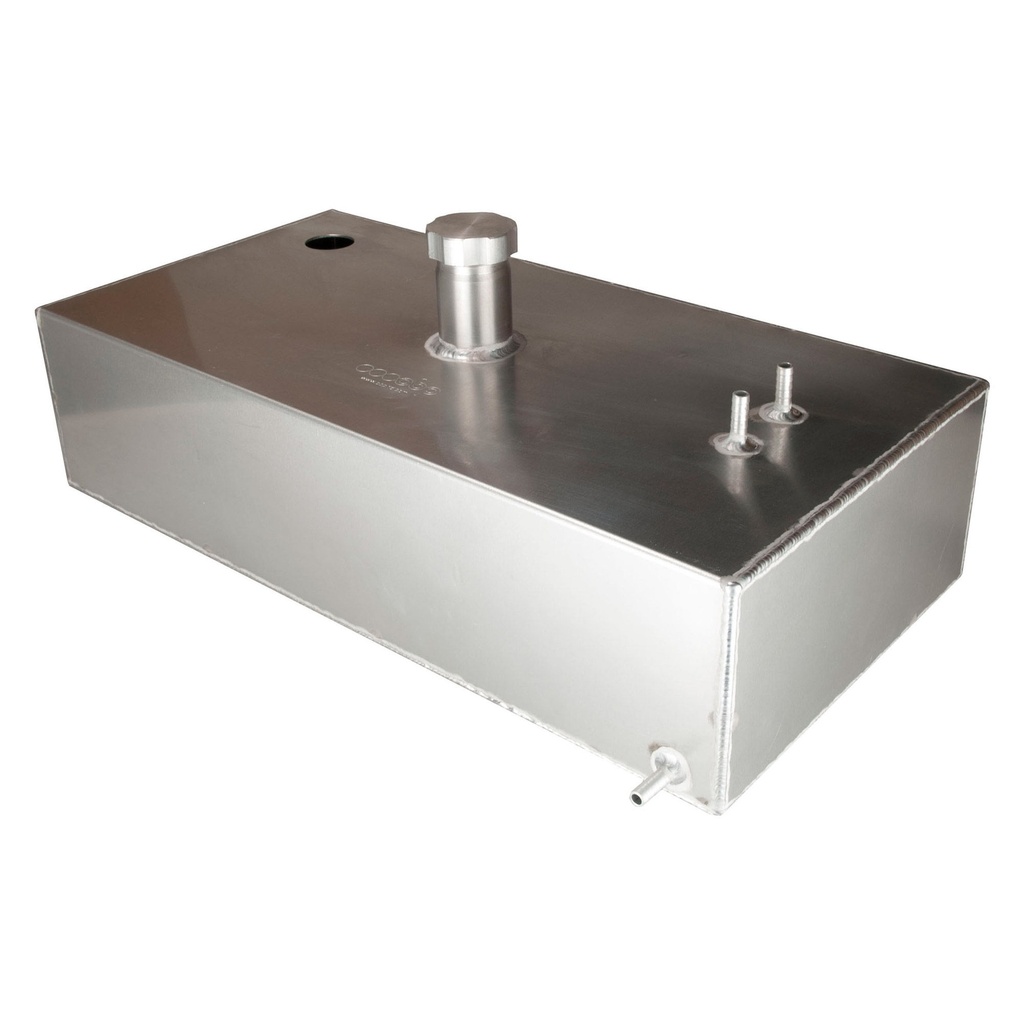

These universal aluminium fuel tanks from OBP are manufactured with built in baffles to help reduce fuel surge. The tanks are precision manufactured in the UK and come complete with 1 x fuel pipe outlet, 1 x fuel pipe return, 1 x breather outlet and a 50mm filler neck with screw cap and seal. The fuel pipe fittings are available with a choice of 10mm push on or AN -10 JIC fitting.
- Internally baffled to help reduce fuel surge
- Precision made in the UK
- Ideal for kit cars, resto-mods or custom builds
- Includes fuel outlet, fuel return and breather unions
- 50mm fuel filler neck with screw on cap and seal
- Optional fuel level sender hole and / or filler neck splash bowl
The fuel tanks have a clear pipe sight gauge for monitoring the fuel level. For dash mounted fuel level gauges the tanks can be purchased with the option of a fuel level sender hole pre-drilled.
Fuel Tank Options:
Option 1: No splash bowl, No fuel sender hole
Option 2: With splash bowl, No fuel sender hole
Option 3: No Splash bowl, With fuel sender hole
Option 4: With splash bowl, with fuel sender hole.
Dimensions:
2 Gallon: 200mm high x 180mm wide x 300mm long
3 Gallon: 200mm high x 200mm wide x 340mm long
4 Gallon: 150mm high x 250mm wide x 490mm long
6 Gallon: 150mm high x 300mm wide x 600mm long
8 Gallon: 250mm high x 300mm wide x 480mm long
Please note: These fuel tanks are not foam filled.
