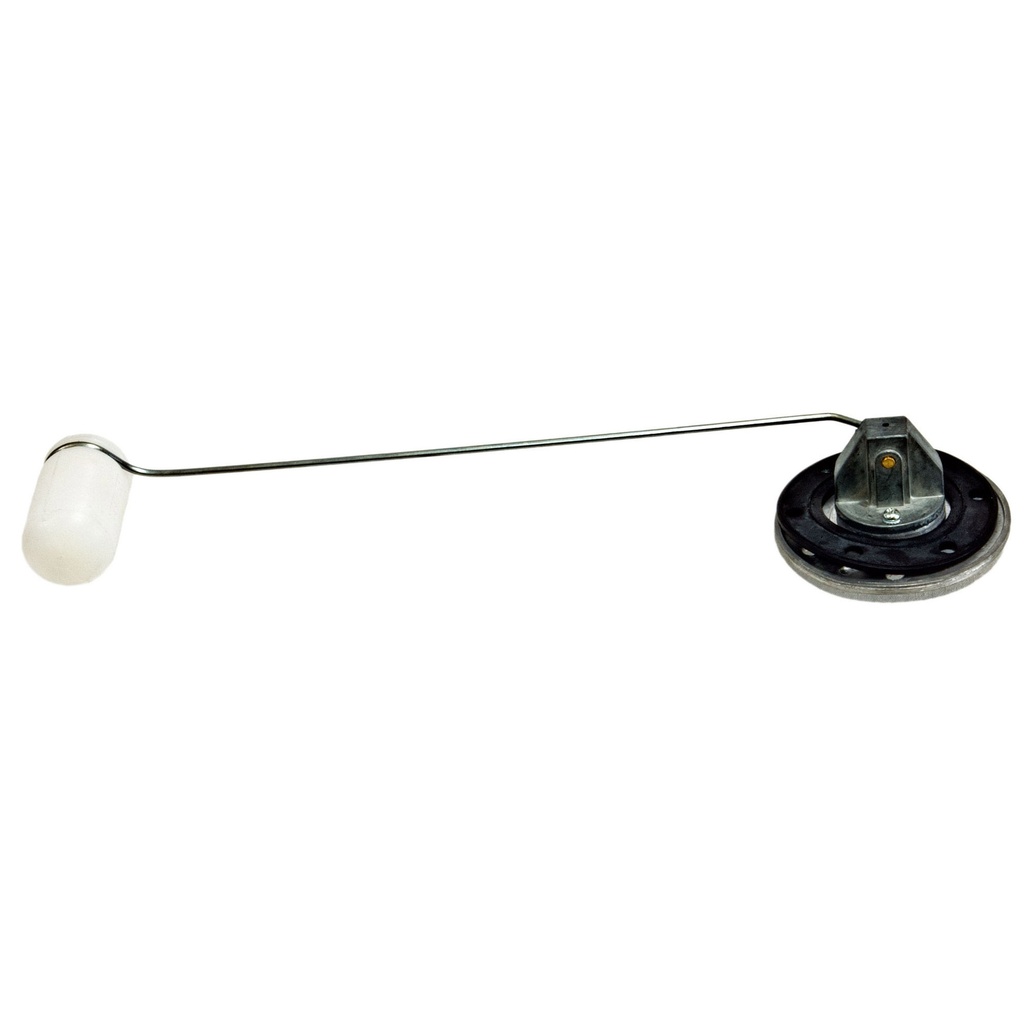

This float arm type fuel level sensor is designed to fit OBP aluminium fuel tanks which have provision for a sender but it can also be fitted to other fuel tanks by cutting a 40mm hole and drilling the 6 bolt holes. The sender is suitable for tank depths up to 280mm and the float arm can be shortened to suit different tank depths.
- Fits OBP fuel tanks which have a sender provision
- Can be fitted into other fuel tanks
- Adjustable float arm to accommodate different tank depths
The OBP fuel level sensor operates on the following resistance range - 260 Ohms empty to 20 Ohms full. This range is compatible with early smiths gauges and some Ford gauges.
