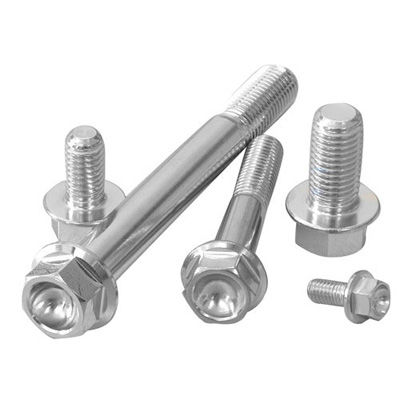

Pro-Bolt Flanged Hex Head Stainless Steel Bolts

Manufactured from 316 Stainless Steel these high quality Flanged Hex Head Bolts from Pro-Bolt offer superior strength and corrosion resistance. They also feature a dished out head with a captive washer (flange).

These bolts are buffed to a mirror finish, absolutely no polishing is required.

• Material Specification: 316 Stainless Steel
  Stainless Steels are iron alloys with a minimum of 10.5% chromium with other elements (Nickel, Molybdenum, Titanium, Copper, Carbon, Nitrogen) added to enhance properties such as formability and strength. But it is the chromium-rich, oxide film that gives the corrosion resistance of stainless steel. This protective film is strong and chemically stable (i.e. passive) where there is sufficient oxygen on the surface. This strong protective film is extremely thin and will usually self repair if sufficient oxygen is available. Under certain conditions the passive state can be broken down and corrosion can result.
• Application: 316 stainless steel is suitable for low stress applications where a durable finish is required.
• Heat Resistance: 316 has good resistance to oxidation in intermittent service to 870°C and in continuous service to 925°C. However, continuous use at 425-860°C is not recommended.
• Torque & Lubrication: Wherever possible, use torque values specified by your equipment manufacturer. For fasteners in general use, please refer to the torque values listed. It is recommend antiseize or copper based paste be applied to the threads to prevent galling (where friction can cause two stainless steel components to bond together). If threadlock is to be used a medium grade is recommended.
  Please use the following guide:


  Thread Diameter	M5	M6	M8	M10
  Max Torque in NM	6.90	11.1	28.3	37.6

The Hex Head Bolt length measurements are taken from below the head, the number in the brackets is the thread length.

Sold Individually.
