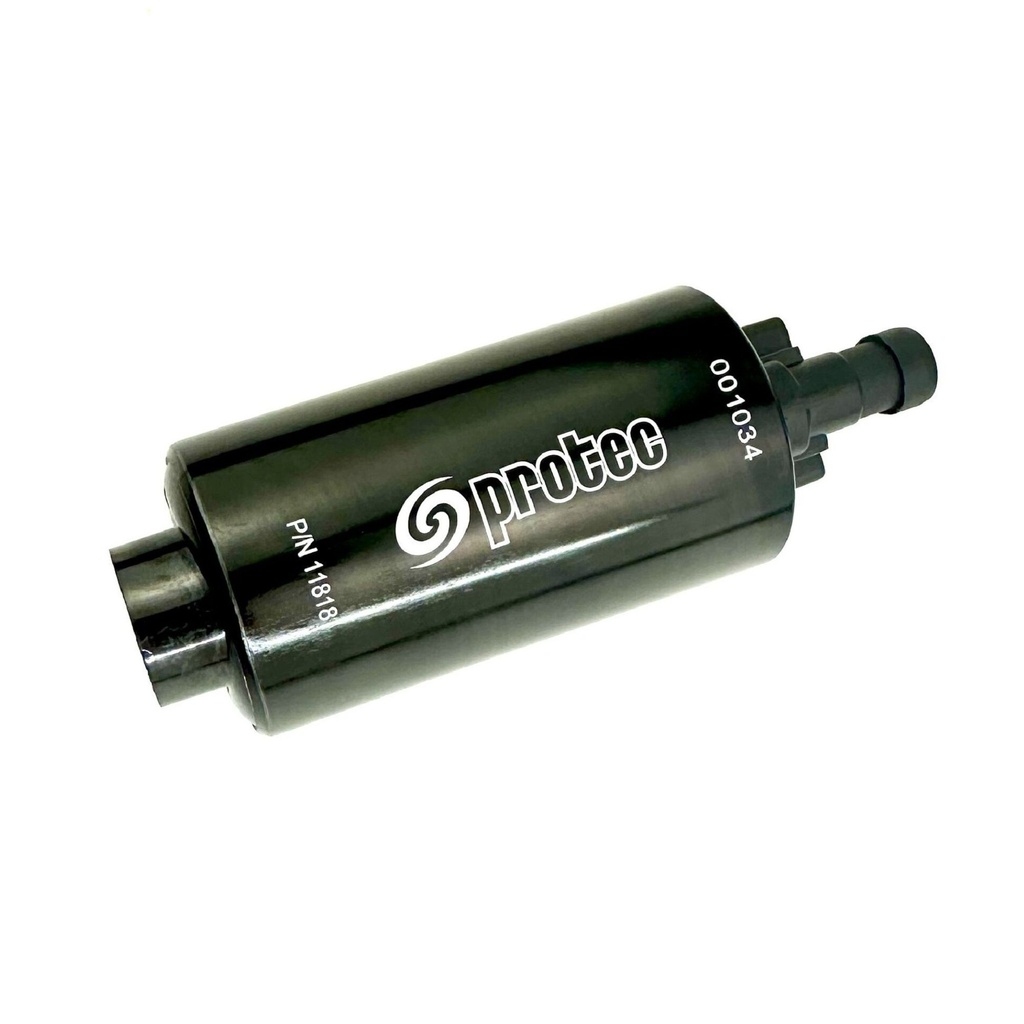

This VAG type Low Pressure lift pump is a Cost effective lift pump solution and features a compact 36mm diameter body and is compatible with most pump and racing fuels including E85. The pump is designed for in-tank fitment and is ideal for feeding swirl pots on fuel injected engines or for high performance carburetted engines. Direct replacement for VDO PU-AC-020 fuel pump.
Sock filters to suit this pump are available to purchase separately.
Specifications
- Weight :173 grams
- 125 ltr/hr flow rate @ 0.21 bar (3-4 psi)
- External Materials: Black Anodised Aluminium
- Inlet Fitting :19mm OD
- Outlet Fitting: 9mm OD
- Impeller material : Composite
- Terminal Post : Spade Terminal OE Fitment
- Min Voltage Input: 6 vdc
- Max Voltage Input: 18 vdc
- Current Draw (2-3 psi): 1.25 amps (13.8vdc)
