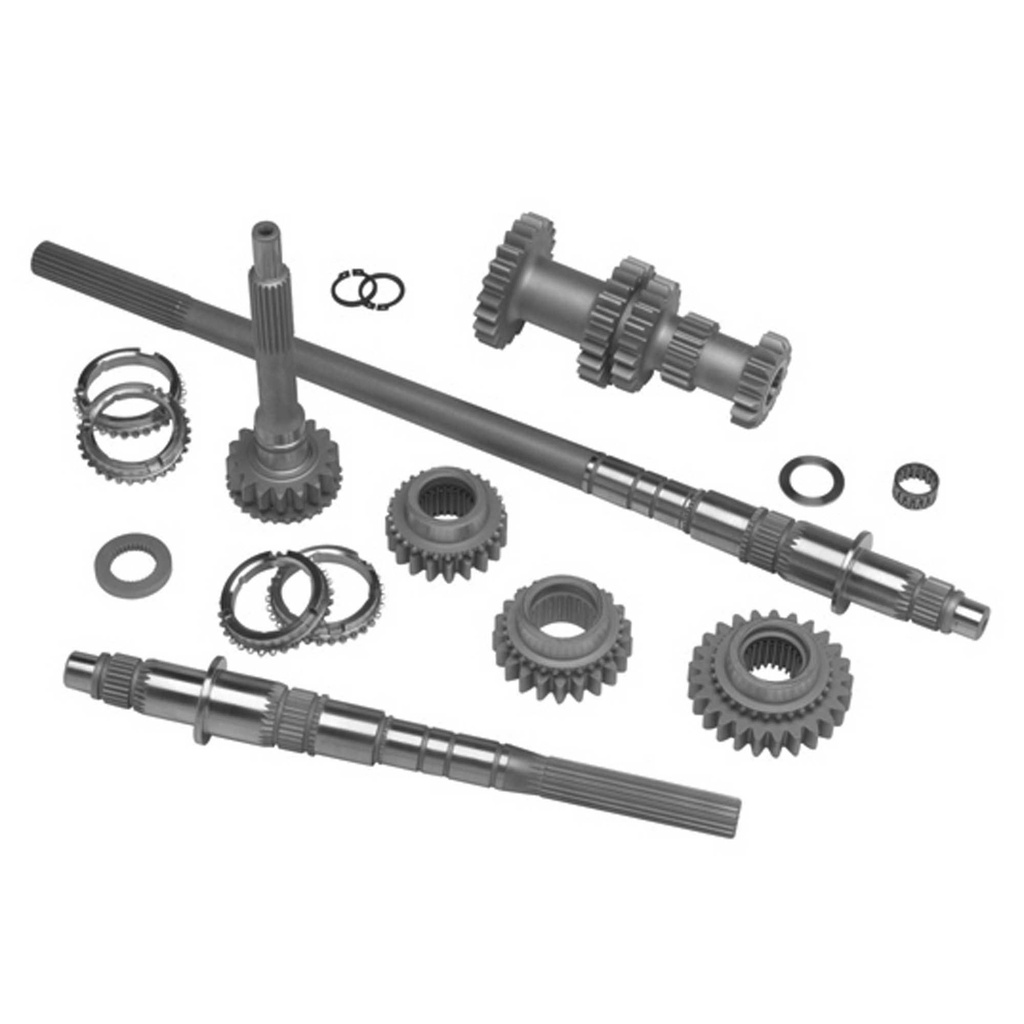

This 4 speed close ratio gear kit from Quaife features straight cut gears with synchromesh engagement and is designed to fit the 2000E (Bullet) gearbox found in Fords such as Cortina MK1, Escort RS1600 and Twin cam. The kit includes a Quaife main shaft which is available in standard or shot options. Needle roller bearings are used to support free running gears and a larger size spigot bearing is used.
Two sets of ratios are available -
| Ratios | 1st | 2nd | 3rd | 4th |
|---|---|---|---|---|
| Option 1 | 2.250 | 1.495 | 1.168 | 1.000 |
| Option 2 | 2.500 | 1.660 | 1.220 | 1.000 |
Specifications
| Gear Ratios | Option 1, Option 2 |
| Mainshaft Length | Standard, Short |
| Brand | Quaife |
