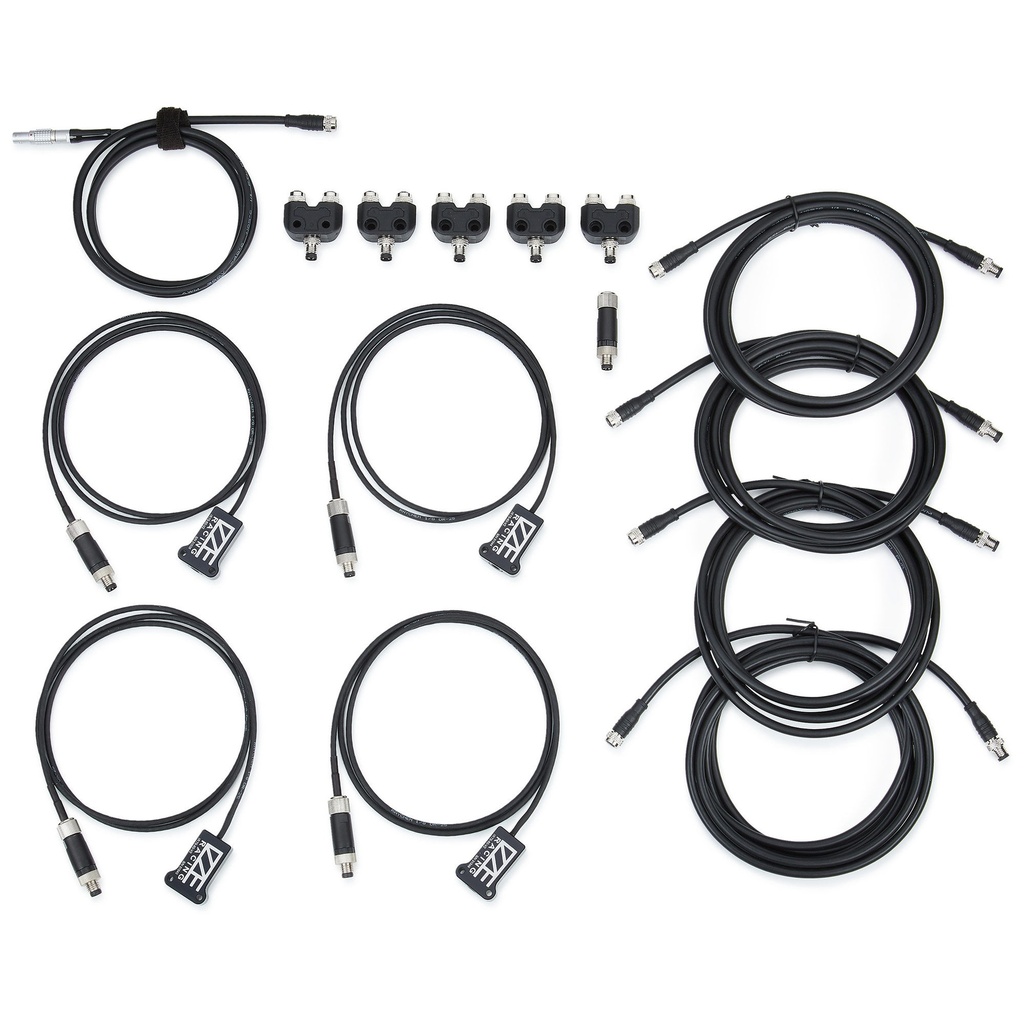

This set of 4 sensors complete with wiring harness provides a method of accurately logging tyre temperatures. Each sensor can measure 16 points on a tyre so you can see a true temperature across the entire tyre width. The temperature range on the sensors is -20 to 300 degrees C.
- Accurate temperature taken at 16 different points across the tyre width
- Invaluable for fine tuning suspension and chassis settings
- Real time heat map available when used with VBOX Video HD2

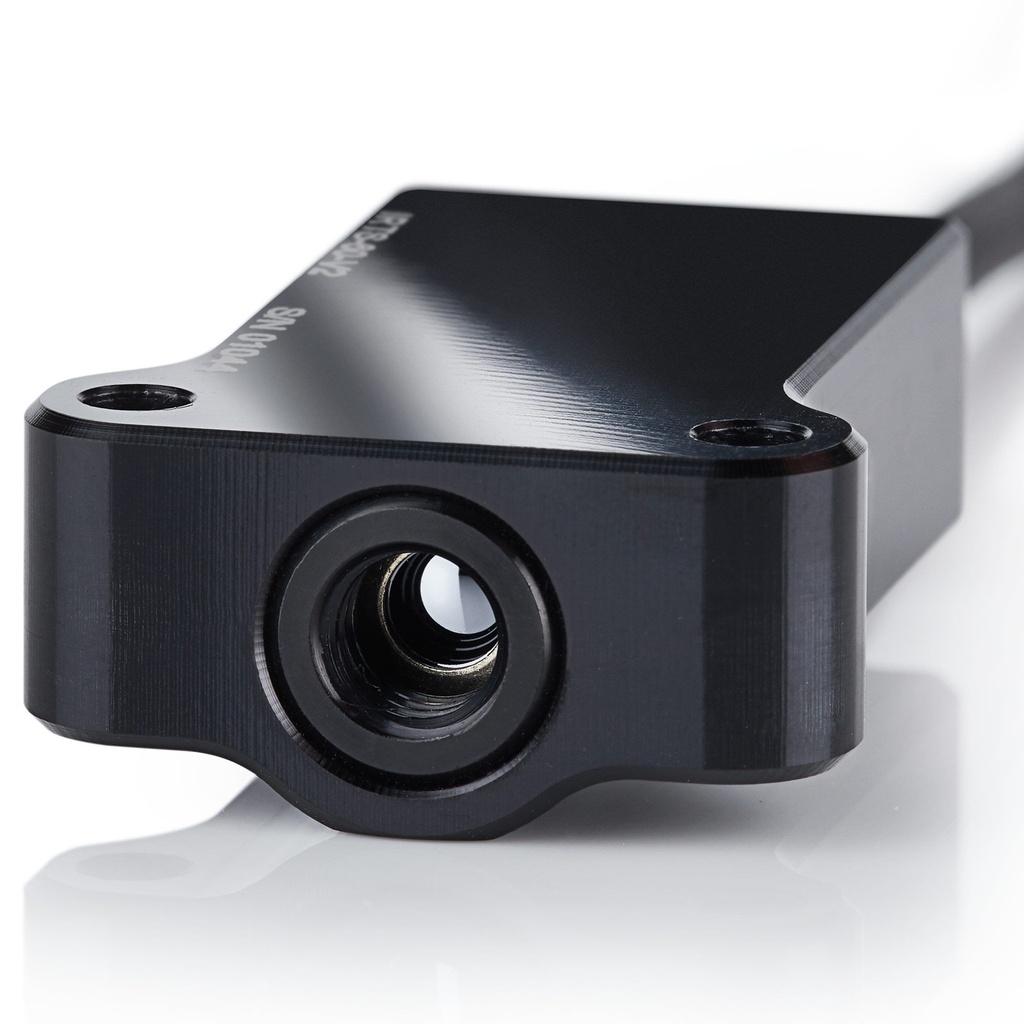

The Racelogic tyre temperature sensors are mounted in close proximity to the tyre and constantly monitor the temperature across the whole width of the tyre. The advantage of this compared to more traditional methods is that you can view and log the temperatures during the lap to see how the each tyre reacts to cornering and braking. This information can be beneficial for fine tuning the chassis including brake bias, suspension settings and tyre pressures.
The sensor kit can be used with the Racelogic VBOX Video HD2 to provide real time tyre temperature mapping which can be overlayed with the video footage for easier reference to tyre reactions to different parts of the track. The kit can also be used with the VBOX Touch Motorsport data logger.

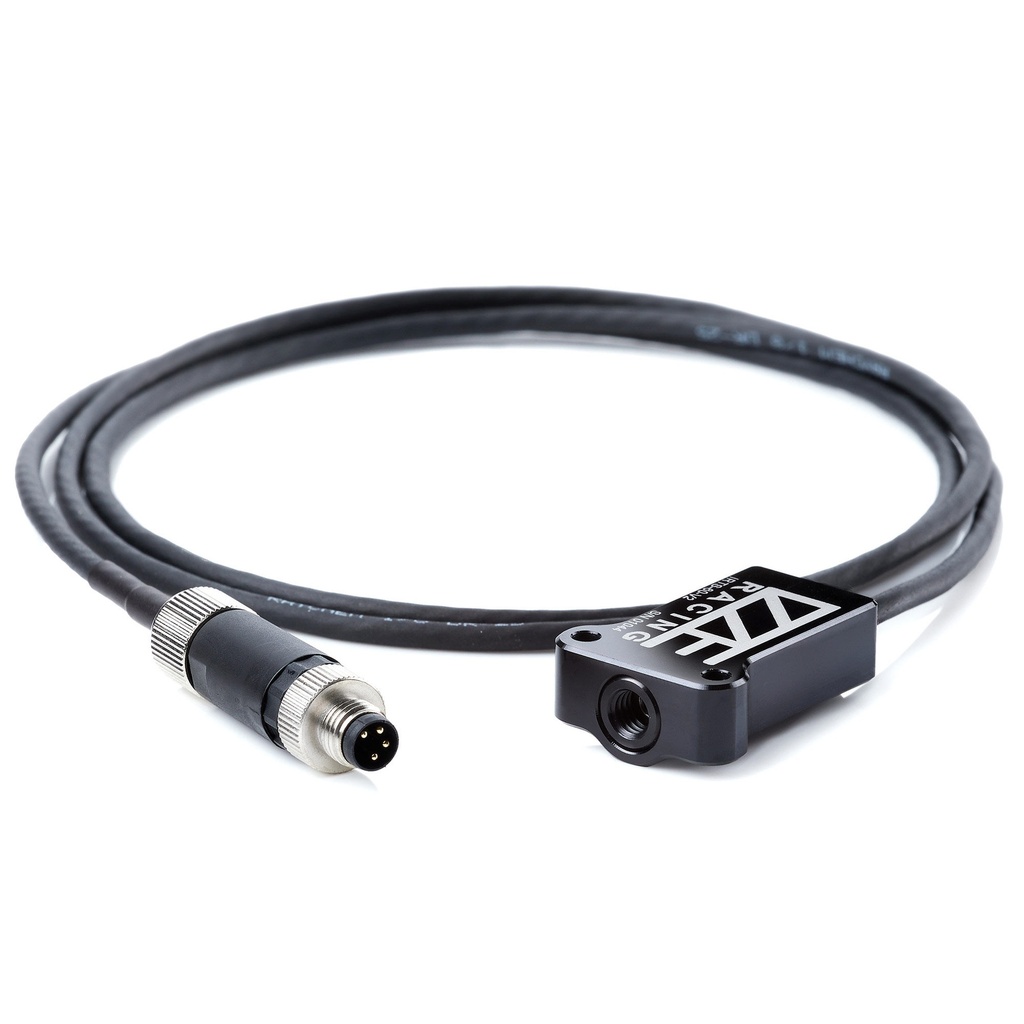

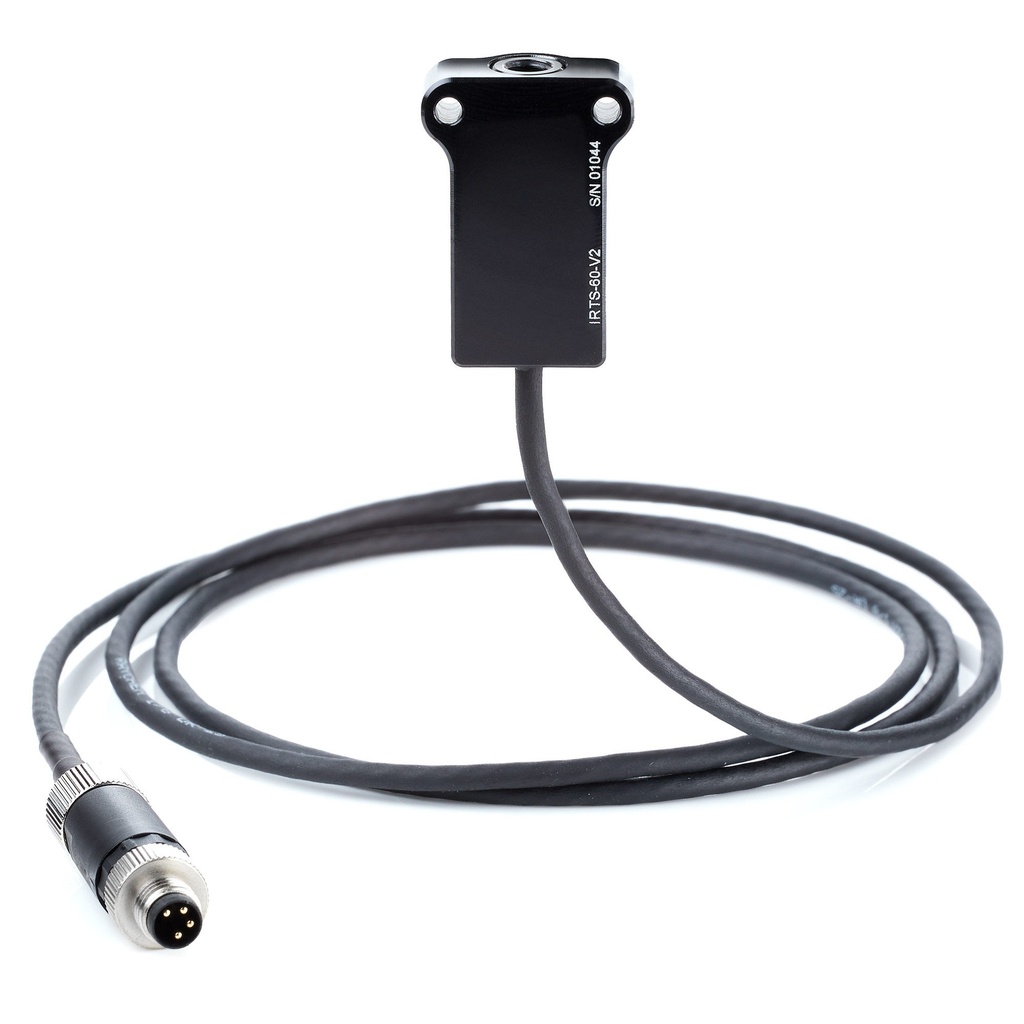

Options are available with 60 degree or 120 degree field of view sensors
